Why Amorphous Silica's Nine-Electronvolt Band Gap Makes Glass Transparent

In the spring of 1966, inside a darkened laboratory at the General Electric Research and Development Center in Schenectady, New York, physicist H.R. Philipp directed a beam of vacuum ultraviolet radiation at a polished disc of fused quartz. He was mapping the exact energy required to knock an electron loose from the material's atomic lattice.[1]

The instruments recorded a massive energy wall. Philipp's measurements, published in the journal Solid State Communications, confirmed that amorphous silicon dioxide possesses an electronic band gap of approximately 9.0 electron-volts. This single, extreme physical property is the fundamental reason why a solid wall of glass appears completely invisible to the human eye.[1]

Transparency is not a default state of matter, but rather a rare failure of a material to interact with passing electromagnetic radiation. When light strikes a solid object, the photons typically transfer their energy to the material's electrons, absorbing the light and rendering the object opaque. Glass survives this bombardment untouched.[2][3]

The mechanism relies on a strict quantum mechanical rule governing how electrons absorb energy. Electrons orbiting the silicon and oxygen atoms in glass can only accept energy in specific, discrete amounts, jumping from a resting state known as the valence band to a higher-energy conduction band.[2]

The space between these two states is the band gap, a forbidden zone where no electrons can exist. In metals, this gap is nonexistent, allowing electrons to absorb almost any photon and reflect the light back as a shiny surface. In amorphous silica, that gap is an enormous 9.0 electron-volts wide.[1][2]

The Quantum Energy Deficit

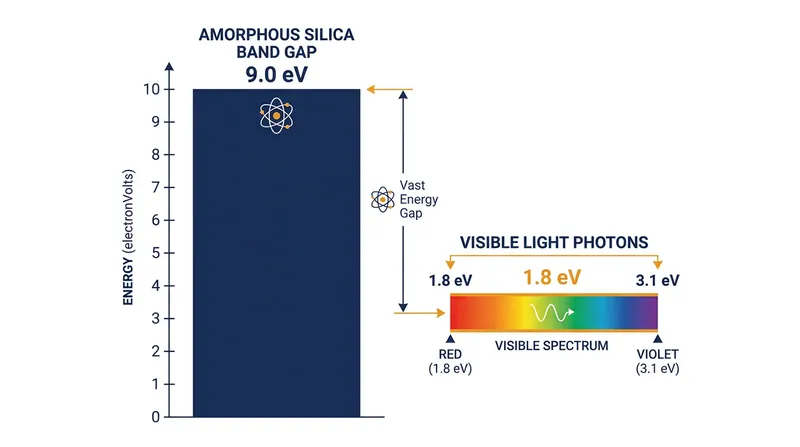

To cross a 9.0-electron-volt band gap, an electron must absorb a single photon carrying at least that much energy. The visible light spectrum, which is the narrow band of radiation that human eyes have evolved to detect, consists of photons with energies ranging only from 1.8 to 3.1 electron-volts.[3][4]

This creates an insurmountable energy deficit. A photon of violet light, the most energetic color in the visible spectrum, carries roughly 3.1 electron-volts, which is barely a third of the energy required to excite an electron in pure silica. The electrons simply cannot accept the photon's energy.[3]

Because quantum mechanics forbids partial transitions, the electron cannot absorb the visible photon and save the energy for later. The photon, unable to transfer its energy to the atomic structure, passes straight through the electron cloud as if the material were empty space.[2]

This massive band gap explains why glass does not absorb visible light, but absorption is only half of the transparency equation. A material can completely reject photon absorption and still remain entirely opaque if it scatters the light as it passes through.[5]

Consider a pile of crushed ice or a cloud of steam. Both are made of water, which is intrinsically transparent, yet both appear bright white and opaque. The opacity arises from scattering, where light bounces off the boundaries between different physical phases or structural orientations.[4][6]

The Scattering Problem

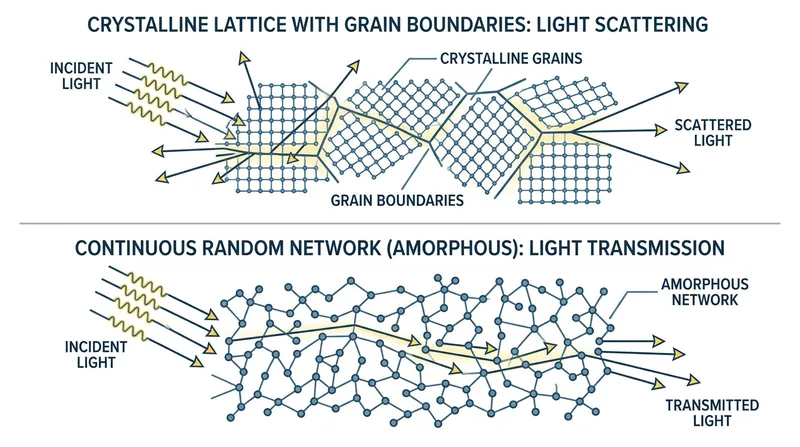

Most solid materials, including metals and ceramics, are crystalline. As a crystalline solid cools from a liquid state, atoms arrange themselves into highly ordered, repeating lattices that grow outward until they crash into neighboring lattices forming at different angles.[5]

The microscopic intersections where these misaligned lattices meet are called grain boundaries. When light travels through a crystalline material, it hits these boundaries and experiences a sudden shift in the refractive index, causing the photons to scatter in random directions.[5][6]

If you compress pure silica powder into a solid block, the resulting ceramic will have the same 9.0-electron-volt band gap as window glass, meaning it absorbs no visible light. Yet the block will appear stark white and completely opaque because the millions of internal grain boundaries scatter every photon.[1][5]

Glass achieves true transparency by eliminating these boundaries entirely. When molten silica is cooled rapidly, the atoms lose their thermal mobility before they have time to organize into a repeating crystalline lattice. The material solidifies into an amorphous state, freezing the chaotic structure of a liquid into a rigid solid.[7]

In 1932, physicist W.H. Zachariasen published a foundational paper in the Journal of the American Chemical Society describing this unique architecture. He proposed that "the atoms in glass are linked together by forces essentially the same as in crystals," but they form an extended, continuous random network lacking any long-range periodicity.[8]

The Continuous Random Network

Zachariasen's continuous random network model remains the definitive explanation for the optical properties of glass. Because the atomic structure never settles into distinct, competing crystalline grains, there are no internal boundaries to interrupt the passage of light.[8]

The refractive index remains perfectly uniform throughout the entire volume of the material. Without grain boundaries to scatter the photons and without a narrow band gap to absorb them, visible light travels through the solid silica network in a straight, uninterrupted line.[6][7]

This combination of a wide band gap and an amorphous structure is remarkably difficult to achieve in nature. Pure silica requires temperatures exceeding 1,700 degrees Celsius to melt, making it incredibly energy-intensive to manufacture into the clear sheets used in modern architecture.[7][9]

To lower the melting point, manufacturers add network modifiers like sodium carbonate and calcium oxide, creating the standard soda-lime glass used in windows and bottles. These additives disrupt the silica network, dropping the melting temperature to a much more manageable 1,500 degrees Celsius.[9]

However, these chemical additions introduce new variables into the optical equation. The sodium and calcium atoms do not significantly alter the primary band gap, but commercial glass sand almost always contains trace amounts of iron oxide impurities.[9]

Impurities and the Green Edge

Iron atoms introduce intermediate energy states directly into the forbidden zone of the silica band gap. These mid-gap states allow electrons to absorb specific wavelengths of visible light, particularly in the red and blue portions of the electromagnetic spectrum.[9][10]

Because the red and blue photons are absorbed by the iron impurities, the light that successfully transmits through the glass is heavily biased toward the green wavelengths. This is why the thick edge of a standard pane of window glass always appears distinctly green.[9]

To create the ultra-clear glass required for fiber-optic cables or specialized architectural facades, manufacturers must rigorously purify the silica sand to remove these iron contaminants. In fiber optics, the glass must be so pure that a photon can travel for dozens of kilometers without hitting an absorbing impurity.[10]

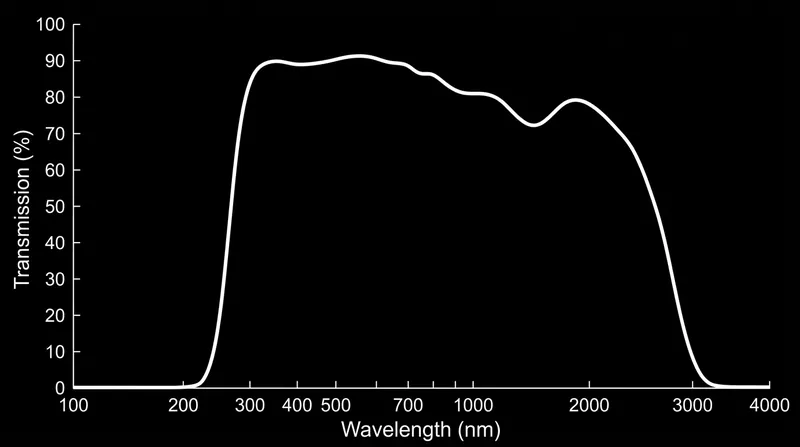

While glass ignores visible light, its transparency is strictly limited to that narrow biological window. If you shift the incoming radiation to higher energies, the 9.0-electron-volt band gap suddenly becomes a highly effective, impenetrable wall.[1][3]

Ultraviolet light, particularly the high-energy UVB and UVC bands, carries enough energy to bridge the band gap or excite electrons in the oxygen bonds. The glass absorbs these photons completely, which is why it is virtually impossible to get a sunburn while sitting indoors behind a closed window.[4][10]

The Infrared Barrier

At the opposite end of the spectrum, low-energy infrared radiation faces a different physical barrier. While infrared photons lack the energy to excite electrons across the band gap, their specific frequencies perfectly match the natural vibrational frequencies of the silicon-oxygen bonds.[3][10]

When infrared light hits glass, the photons transfer their energy directly into the atomic lattice, causing the silicon and oxygen atoms to vibrate vigorously. This vibrational absorption turns the glass completely opaque to thermal infrared radiation, trapping heat inside a structure.[10]

This dual-sided opacity creates the greenhouse effect that defines modern agriculture and climate science. Visible sunlight passes easily through the wide band gap of the glass roof, warming the soil and plants inside the structure.[6][10]

The warmed interior then radiates thermal energy back toward the sky as infrared light. Because the glass is opaque to these specific infrared frequencies, the heat cannot escape, demonstrating how a material's selective transparency dictates the transfer of energy in the physical world.[10]
