120-Degree Phase Offset Cancels Neutral Return Current, Allowing Balanced Three-Phase Grids to Deliver Constant Instantaneous Power With 25% Less Conductor Mass

On August 24, 1891, a switch was thrown at a hydroelectric plant in Lauffen am Neckar, Germany, sending electrical power 109 miles to the International Electrotechnical Exhibition in Frankfurt. The transmission did not use a single alternating current, but three separate waveforms staggered precisely in time. That moment established the mathematical architecture that still governs the global electrical grid today.[2][4]

The system was designed by Mikhail Dolivo-Dobrovolsky, an engineer at the German firm AEG, who recognized a fundamental limitation in early electrical networks. Single-phase alternating current, while easier to generate, delivered power in pulses that caused motors to vibrate and required massive copper cables for long distances. Dolivo-Dobrovolsky determined that combining three currents could solve both problems simultaneously.[2][5][6]

Across the Atlantic, Serbian-American inventor Nikola Tesla was independently developing similar polyphase concepts, patenting his own alternating-current induction motors. However, it was Dolivo-Dobrovolsky who determined that combining exactly three currents offered the optimal balance of efficiency and simplicity. By offsetting three alternating currents by exactly 120 electrical degrees, the system achieved a state of elegant geometric equilibrium.[2][3]

The success of the Lauffen-Frankfurt demonstration immediately ended the debate over how electricity should be distributed at scale. Today, three-phase power remains the universal standard for bulk electricity generation and transmission. The reason is not merely historical preference, but a strict mathematical advantage that reduces the physical infrastructure required to move energy across continents.[1][4]

The mathematics of the 120-degree offset

To understand the efficiency of the modern grid, one must visualize alternating current as a continuous sine wave. In a standard single-phase system, the voltage rises to a positive peak, falls through zero to a negative peak, and returns to zero. This complete cycle occurs 50 or 60 times per second, depending on the country.[1]

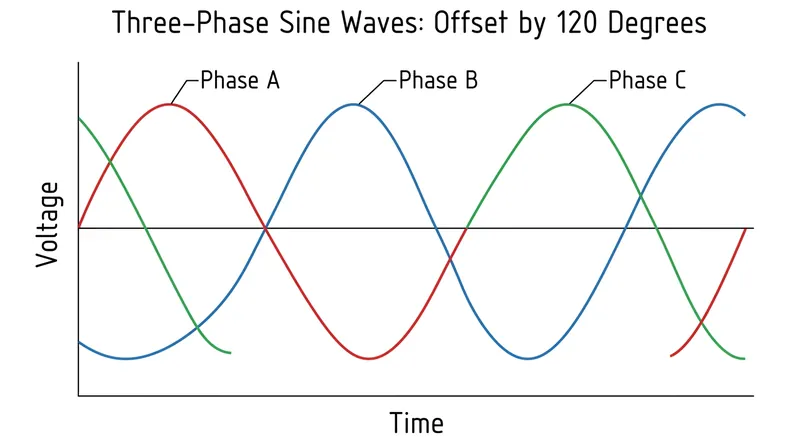

A three-phase system generates three of these sine waves simultaneously across three separate conductors. However, the generator is physically constructed so that the waves do not peak at the same time. Phase B is delayed by exactly one-third of a cycle behind Phase A, and Phase C is delayed by another third.[1]

This precise staggering creates a 120-degree phase shift between each of the three electrical currents. Because a full cycle represents 360 degrees, the three phases are spaced perfectly evenly across the rotational cycle of the generator. This specific geometry is the foundation of every advantage the system possesses.[1]

When these three staggered waveforms are graphed together, their mathematical relationship becomes visible. At any given microsecond, the instantaneous voltage of one phase is exactly balanced by the combined voltages of the other two phases. If Phase A is at its absolute maximum positive voltage, Phases B and C are both at exactly half of their maximum negative voltage.[1][5]

This relationship holds true at every point in the cycle. The algebraic sum of the three sinusoidal functions is always exactly zero. That single trigonometric identity is the mechanism that allows power grids to eliminate massive amounts of copper and aluminium wire.[1][5]

Canceling the neutral return current

In any electrical circuit, current must have a return path to complete the loop. A single-phase system requires two wires: a hot wire to carry the current to the load, and a neutral wire of equal size to carry the return current back to the source. This means half of the copper in a single-phase transmission line is dedicated solely to the return path.[1]

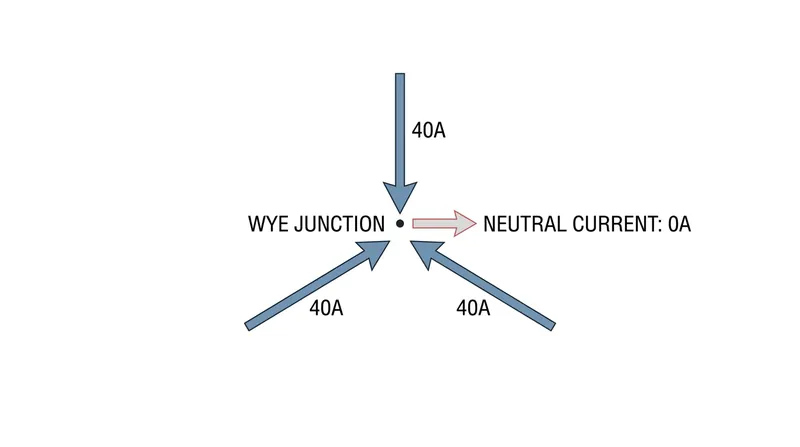

Three-phase systems exploit the 120-degree offset to eliminate the need for a full-sized return conductor. Because the sum of the three currents is always zero at any instant, the currents effectively use each other as their return paths. As electrons flow outward on one phase, they are drawn back simultaneously through the other two phases.[1][5]

"The mathematical cancellation of the neutral current is not an engineering trick, but a geometric certainty," notes the Factlen Editorial Team in their analysis of the grid's architecture. "By staggering the phases, the system forces the currents to act as their own return paths. This eliminates the need for a dedicated neutral wire in bulk transmission."[5]

When a three-phase system is perfectly balanced—meaning the electrical load is identical across all three phases—no current whatsoever flows through the central neutral point. The geometric cancellation is absolute. This allows engineers to configure high-voltage transmission lines using only three active conductors, entirely omitting the heavy neutral wire that a single-phase system would require.[1][5]

In practical distribution networks, perfect balance is rarely achieved because individual buildings and appliances draw different amounts of power at different times. To account for this, local distribution grids often include a fourth wire, a downsized neutral conductor. This wire only needs to be large enough to carry the residual imbalance, rather than the full load current.[1][5]

The elimination of the primary return current represents a massive reduction in the physical weight of the power grid. High-voltage transmission towers can be built lighter, narrower, and further apart because they only need to support three conductors instead of the four or six that would be required to move the equivalent power using single-phase lines.[1]

Delivering constant instantaneous power

Beyond reducing wire counts, the 120-degree offset solves a critical mechanical problem inherent to alternating current. In a single-phase circuit, the instantaneous power drops to absolute zero twice during every cycle as the voltage crosses the neutral axis. This creates a pulsating delivery of energy that fluctuates 100 or 120 times per second.[1][5]

While a lightbulb's thermal inertia hides this pulsation from the human eye, heavy industrial machinery cannot ignore it. A single-phase electric motor experiences this fluctuating power as a pulsating physical torque. The motor vibrates aggressively, runs less efficiently, and requires complex starting capacitors to initiate rotation from a standstill.[1][5]

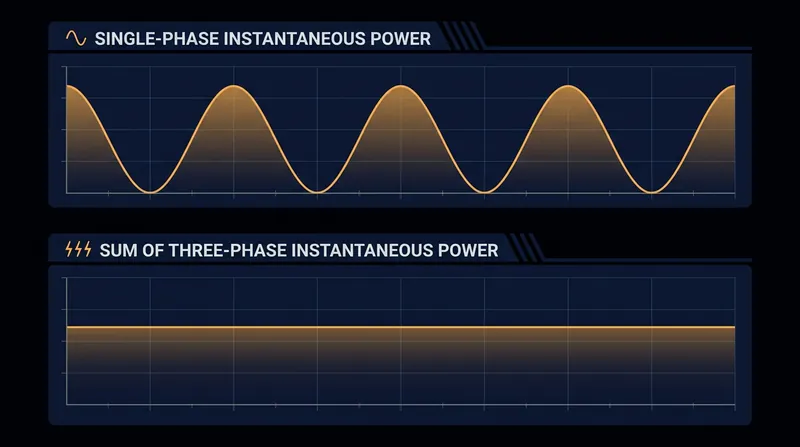

Three-phase power eliminates this pulsation entirely. Because the three voltage waves are staggered, they never cross the zero axis at the same time. As the power delivered by one phase begins to decline, the power from another phase is already rising to take its place. The overlapping waves create a seamless transfer of energy.[1][5]

Mathematically, while the voltage of each individual phase fluctuates, the total instantaneous power delivered by all three phases combined remains perfectly constant. The equation for three-phase real power yields a flat, continuous line, completely devoid of the peaks and valleys that characterize single-phase electricity.[1][5]

This constant power delivery allows three-phase induction motors to produce a perfectly smooth, rotating magnetic field. The motors generate steady torque, operate with minimal vibration, and start automatically without auxiliary circuits. This mechanical elegance is why three-phase motors drive virtually every major industrial process, water pump, and manufacturing line on Earth.[1][5]

The 25 percent reduction in conductor mass

The combined effects of neutral current cancellation and constant power delivery culminate in a stark economic advantage. When electrical engineers calculate the material required to build a grid, they measure the total mass of conductive metal needed to deliver a specific amount of power over a specific distance at a specific voltage.[1][5]

To transmit a given amount of power, a single-phase system requires two conductors of a certain diameter. To transmit that exact same power using a three-phase system at the same line-to-line voltage, the grid requires three conductors, but each one carries significantly less current. The individual wires can be substantially thinner.[1][5]

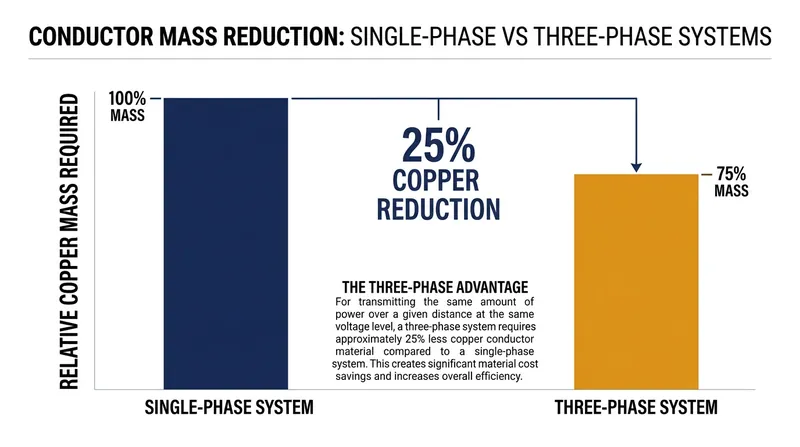

When the cross-sectional areas are calculated, the three thinner wires of a three-phase system require exactly 75 percent of the total copper or aluminium mass that the two thicker wires of a single-phase system would need. The 120-degree phase offset directly yields a 25 percent reduction in raw material costs.[1][5]

On a global scale, this 25 percent material saving is staggering. Millions of miles of high-voltage transmission lines crisscross the planet, suspended from steel towers that must bear the sheer physical weight of the metal cables. Stripping one-quarter of the mass from every transmission line makes the modern interconnected grid economically viable.[1][5]

The efficiency gains extend beyond the cables themselves. Because three-phase generators and transformers process constant power rather than pulsating power, they utilize their iron cores and magnetic fields more effectively. A three-phase transformer is significantly smaller, lighter, and cheaper to manufacture than a single-phase transformer of the exact same power rating.[1][5]

Modern challenges to the balanced grid

For over a century, the mathematical perfection of the three-phase grid relied on linear loads—devices like incandescent bulbs and simple motors that draw current in smooth sine waves. Under these conditions, the 120-degree offset guarantees that the neutral current cancels out. However, the modern built environment is rapidly altering this equation.[1][5]

Today, commercial buildings are filled with non-linear electronic loads, including computer power supplies, variable frequency drives, and LED lighting drivers. These devices do not draw current smoothly; they pull electricity in sharp, abrupt pulses. These pulses introduce harmonic distortion into the electrical grid, fundamentally changing how the waveforms interact.[1][5]

The most problematic of these are triplen harmonics, which operate at multiples of the third harmonic frequency. Unlike fundamental currents, triplen harmonic currents do not cancel each other out at the neutral point. Because of their specific frequency, the third harmonics from all three phases are perfectly in sync, causing them to add together rather than cancel.[1][5]

In heavily digitized buildings, this harmonic addition can cause the current on the neutral wire to exceed the current on the active phase wires, leading to severe overheating in conductors that were historically downsized. While the 120-degree offset remains the undisputed champion of bulk power transmission, managing the neutral return path has become a defining challenge for modern electrical engineering.[1][5]
