Nanostructured Alloy Overcomes Cold Brittleness for Deep-Space and Deep-Sea Applications

For spacecraft to survive the vacuum of deep space, or for submersibles to withstand the crushing depths of the ocean, their structural metals must bend rather than shatter when exposed to extreme cold. That fundamental requirement has long forced engineers to compromise, as traditional alloys that gain strength at ultralow temperatures simultaneously lose their ability to deform. Now, a newly engineered nanostructured alloy has bypassed that constraint entirely.[1][4]

Researchers at The Hong Kong Polytechnic University have developed a multi-principal element alloy that achieves record-breaking strength and ductility at liquid-nitrogen temperatures. By altering the surface geometry of nanoscale particles within the metal, the team created a material that actually hardens as it strains under cryogenic conditions.[1][4]

The vulnerability the new alloy addresses is known as cold brittleness, a phenomenon that has plagued metallurgy for over a century. When conventional metals are cooled to temperatures approaching −196 degrees Celsius, their internal atomic lattices become rigid and lock dislocations in place.[1][3]

Without the ability for those microscopic dislocations to move, the metal cannot absorb mechanical energy through plastic deformation. Instead of denting or stretching under a heavy load, the material simply snaps. This exact mechanism of low-temperature brittle failure famously contributed to the sinking of the Titanic, and it remains a primary bottleneck for modern aerospace and superconducting systems.[1][4]

To overcome this, the research team, led by Zibin Chen, an assistant professor in the Department of Industrial and Systems Engineering, pioneered a negative-curvature interface strategy. Rather than relying on a single dominant base metal, they synthesized an alloy composed of nickel, cobalt, chromium, aluminum, and tantalum.[1][2]

Within this specific mixture, the researchers engineered the boundaries between different crystalline phases at the nanoscale. By shaping these interfaces with negative curvature, they created internal structures that can bear immense loads while still allowing atomic layers to slide past one another without initiating a crack.[1][4]

A parallel study published in July 2026 by the same team introduced a hierarchical nano-orderings architecture into the alloy. This configuration distributes highly distorted local chemical orderings and coherent precipitates throughout the metal's ultrafine-grained structure, creating a stepwise increase in elastic strain energy.[1][5]

As the material deforms, these hierarchical structures act as sequential dislocation generators. "These nano-architectures thus function simultaneously as dislocation generators, strain-hardening enablers, and strengthening agents," the researchers wrote in Nature Communications, explaining how the material becomes stronger the more it is stretched.[5]

Record-setting cryogenic performance

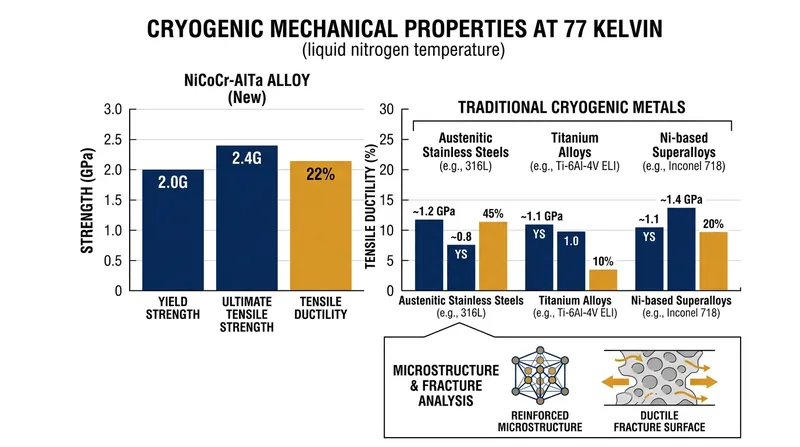

The resulting mechanical properties set a new benchmark for cryogenic materials. When tested at liquid-nitrogen temperatures of 77 Kelvin, the hierarchical nano-ordered alloy demonstrated a yield strength of approximately 2.0 gigapascals and an ultimate tensile strength of 2.4 gigapascals.[1][5]

Crucially, that immense strength did not come at the cost of brittleness. The material maintained a uniform tensile ductility of 22 percent, allowing it to stretch significantly before fracturing, surpassing both traditional cast alloys and previously reported advanced materials.[1][5]

Another variant of the alloy, utilizing the negative-curvature interface approach, achieved a yield strength of 1.30 gigapascals alongside an extraordinary tensile ductility of 50 percent. It also recorded a fracture toughness of approximately 213 megapascals per square root meter, providing immense damage tolerance.[1][4]

Beyond its raw performance, the alloy was designed with scalable manufacturing in mind. The researchers successfully fabricated the material using additive manufacturing, commonly known as 3D printing, combined with tailored post-processing treatments to lock in the nanoscale architecture.[1][2]

It can also be produced through conventional industrial methods. The team demonstrated that standard smelting, rolling, and short-term aging processes are sufficient to generate the necessary nanoscale structures, avoiding the need for entirely new production infrastructure.[1][4]

Scaling for extreme environments

The ability to use existing manufacturing techniques provides a direct pathway for large-scale production. The research team is now preparing to test industrial-scale samples of the alloy, moving beyond the laboratory-sized specimens used in the initial characterization.[1][4]

According to the researchers, the goal is to validate these larger components for commercial deployment within the next five years. If successful, the material could fundamentally change how engineers design hardware for extreme environments, removing the weight penalties associated with reinforcing brittle metals.[1][4]

Deep-space probes, which operate in the freezing vacuum of the solar system, require materials that can withstand micrometeoroid impacts without shattering. Similarly, deep-sea submersibles face immense hydrostatic pressure in near-freezing waters, demanding structural integrity that conventional alloys struggle to maintain.[1][2]

The alloy's properties also make it highly relevant for terrestrial applications. Clean energy infrastructure, such as liquid hydrogen storage tanks, and advanced superconducting systems rely heavily on materials that remain stable and tough at cryogenic temperatures.[2][4]

While the laboratory results are unprecedented, the transition from controlled testing to real-world deployment introduces new variables. The next phase of research will need to determine how these nanoscale interfaces respond to the sustained radiation of space or the corrosive salinity of the deep ocean over decades of continuous use.[1][3]
