China Activates World's Largest Hybrid Supercapacitor-Battery Grid Storage System

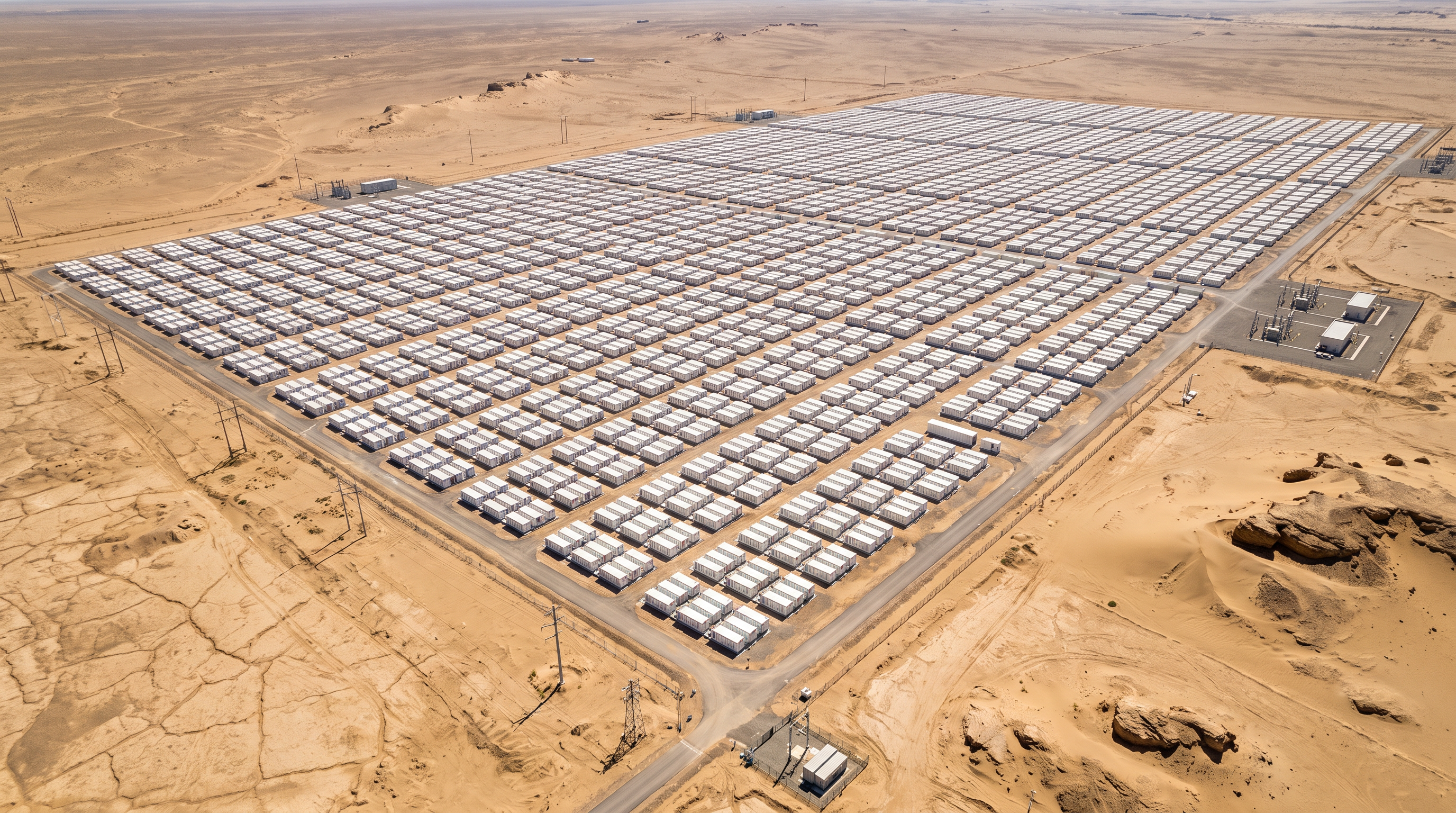

In a milestone for global renewable energy infrastructure, China has successfully connected the world's largest hybrid supercapacitor-battery energy storage system to its national grid. Located in the harsh climate of the Gobi Desert in Gansu province, the Jiayuguan NingSheng independent energy storage project represents a massive leap in grid-scale engineering. The facility, which officially completed commissioning in late December 2025, boasts a staggering 500-megawatt (MW) power rating and a 1-gigawatt-hour (GWh) storage capacity. By integrating two distinct energy storage technologies into a unified architecture, the project aims to solve one of the most persistent bottlenecks in the green energy transition: how to maintain grid stability when relying on intermittent power sources like wind and solar.[1][8]

The sheer scale of the Jiayuguan NingSheng project marks a departure from previous pilot programs. Backed by the China National Nuclear Corporation (CNNC) and constructed by China Nuclear Industry Huaxing Construction, the facility is the first GWh-scale energy storage project in history to combine supercapacitors and large-format batteries. The physical footprint encompasses 475 MW of lithium iron phosphate (LFP) batteries supplied by Sermatec, paired with a 25 MW supercapacitor system provided by Herong New Energy. Connected to the grid via a 330-kilovolt transmission line, the facility feeds directly into the Jiaxi solar power aggregation station, serving as a massive buffer between the region's sprawling solar farms and the broader national transmission network.[1][3]

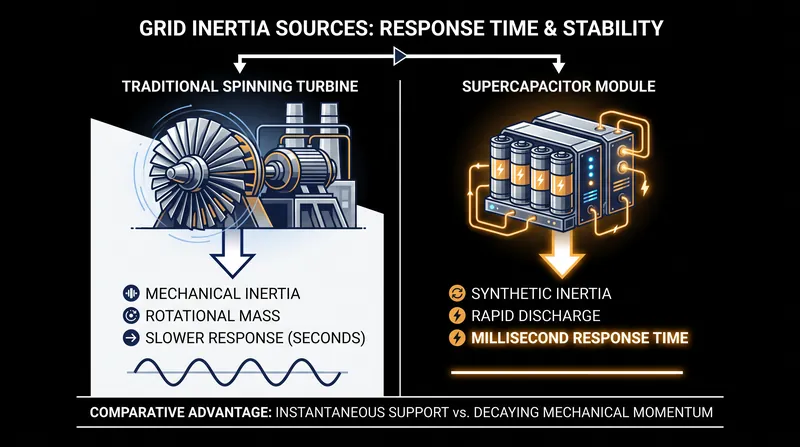

To understand the necessity of this hybrid architecture, one must examine the physics of modern power grids. Traditional electrical grids were built around massive, spinning turbines in coal, gas, or nuclear plants. The physical mass of these spinning generators provides 'inertia'—a natural resistance to sudden changes in grid frequency. When a large industrial load comes online, the kinetic energy of the spinning turbines absorbs the shock. Solar panels and wind turbines, however, are connected to the grid via inverters and have zero physical inertia. As these renewable sources replace fossil fuels, the grid becomes highly sensitive to micro-fluctuations, risking localized blackouts if a cloud cover suddenly drops solar output.[6][7]

Historically, grid operators have relied almost exclusively on chemical batteries to store renewable energy. While lithium-ion systems excel at storing massive amounts of energy for hours at a time, they are fundamentally ill-suited for the split-second power bursts required to replace mechanical grid inertia. A lithium-ion battery relies on the physical movement of lithium ions through a liquid electrolyte to intercalate into a solid electrode. This chemical process takes time and generates heat. Forcing chemical batteries to constantly absorb and discharge tiny, rapid spikes in power to stabilize grid frequency accelerates their internal degradation, significantly shortening their operational lifespan and increasing the risk of thermal runaway.[5][7]

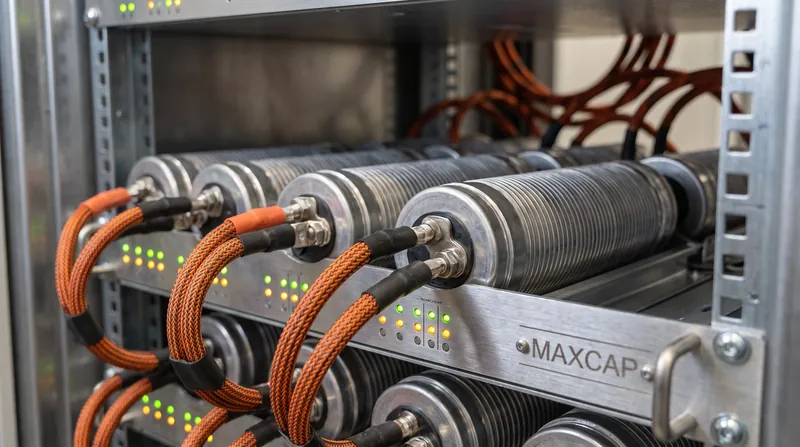

Supercapacitors offer a completely different physical mechanism for energy storage. Unlike chemical batteries, supercapacitors store energy electrostatically by accumulating charge on the surface of highly porous carbon electrodes. Because there is no chemical reaction or physical phase change involved, supercapacitors can charge and discharge almost instantaneously. They can deliver massive bursts of power in milliseconds and can endure hundreds of thousands of charge cycles with virtually zero degradation. However, their energy density is remarkably low; they can release a massive amount of power, but only for a few seconds or minutes before they are completely depleted.[5][6]

The hybrid approach at the Jiayuguan facility fundamentally alters the grid storage dynamic by delegating different tasks to the most appropriate technology. The 25 MW supercapacitor segment acts as an ultra-fast shock absorber for the local power grid. When a sudden drop in solar generation occurs, the supercapacitors inject power into the grid within milliseconds to prevent frequency deviations. They are engineered to sustain this high-power discharge for up to 60 seconds. This rapid response perfectly mimics the mechanical inertia of traditional power plants, bridging the critical gap before the bulk battery system or other regional generators can ramp up to meet the demand.[1][5]

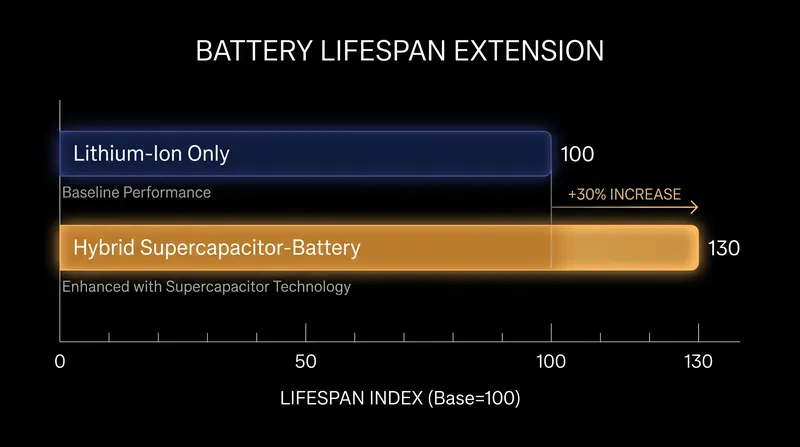

Once the immediate frequency crisis is stabilized by the supercapacitors, the facility's massive 475 MW LFP battery array takes over for sustained energy delivery. This bulk storage component is designed strictly for 'energy shifting' and peak shaving—absorbing excess solar power generated during the midday sun and discharging it steadily during the evening peak demand hours. By offloading the high-frequency, rapid-response tasks to the supercapacitors, the lithium batteries are spared from the micro-cycling that typically destroys their internal chemistry. Engineering models and early field data suggest that this division of labor can extend the overall lifespan of the battery system by up to 30%, drastically altering the lifecycle economics of the plant.[2][7]

The environmental conditions surrounding the Jiayuguan project presented severe engineering challenges that further justified the hybrid approach. Situated in the Gobi Desert, the facility must operate reliably across extreme temperature fluctuations, ranging from a blistering 60 degrees Celsius (140 degrees Fahrenheit) in the summer to a freezing minus 40 degrees Celsius in the winter. Chemical batteries notoriously struggle in extreme cold; the viscosity of the liquid electrolyte increases, slowing ion transport and severely limiting discharge capability. To function in winter, massive battery parks often require parasitic heating systems that drain stored energy just to keep the cells warm.[1][8]

Supercapacitors, conversely, maintain over 85% of their operational capacity even at minus 40 degrees Celsius. Because their energy storage relies on static electricity rather than temperature-dependent chemical kinetics, they are largely immune to the freezing conditions of the Gobi Desert. This thermal resilience ensures that the facility can continue providing critical frequency regulation and black-start capabilities during harsh winter storms when the chemical batteries might be sluggish. The ability to guarantee millisecond-level grid support regardless of the ambient temperature is a major operational advantage for regional grid dispatchers.[2][6]

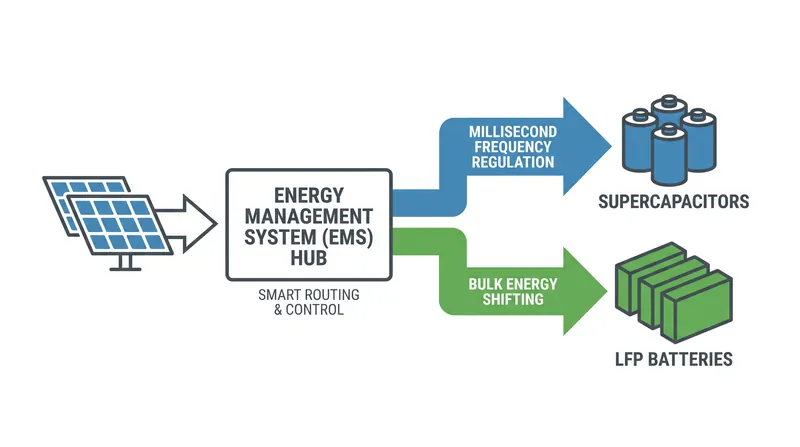

Managing the seamless interplay between these two disparate storage mediums requires highly sophisticated power electronics and software. The facility relies on an advanced Energy Management System (EMS) that monitors grid conditions in real-time and dynamically routes power requests. Millisecond-scale events, such as inertia support and rapid frequency regulation, are automatically routed to the supercapacitor banks. Minute-to-hour-scale events, such as bulk energy dispatch, are directed to the LFP batteries. This intelligent orchestration ensures that neither system is pushed beyond its optimal operating parameters, maximizing both the efficiency of power conversion and the safety of the entire 1-GWh installation.[2][4]

The Jiayuguan NingSheng project is not an isolated experiment but part of a broader, aggressive national strategy to modernize China's grid. It follows the successful deployment of a smaller 100 MW hybrid frequency-regulation plant in Shanxi province, which came online in late August 2025. These projects align directly with China's recently announced Special Action Plan, which mandates the addition of more than 180 gigawatts of 'new type' energy storage by 2027. As the country rapidly expands its wind and solar infrastructure, hybrid storage systems are increasingly viewed by state planners as a mandatory requirement for integrating high penetrations of renewable energy without compromising national power security.[2][4]

For the global energy sector, the successful commissioning of a GWh-scale hybrid system provides a crucial proof of concept. Grid operators in North America and Europe are grappling with identical challenges as they retire stable, fossil-fuel-burning baseload plants in favor of variable renewables. Until now, the high upfront capital cost of supercapacitors has relegated them to niche applications, such as regenerative braking in trains or small-scale industrial power buffering. The Jiayuguan facility demonstrates that when deployed at utility scale, the upfront premium of supercapacitors can be offset by the operational savings gained from extending the life of the primary battery array and reducing grid curtailment.[3][5]

Despite the clear technical triumphs, energy economists note that the widespread commercial viability of such massive hybrid systems remains dependent on evolving market structures. In many regional power markets, ancillary services like millisecond-level frequency regulation are not yet adequately compensated. The economic payback for the Jiayuguan project relies heavily on state-backed mandates and integrated planning rather than pure open-market arbitrage. For this architecture to proliferate globally, electricity markets will need to update their pricing mechanisms to properly value the ultra-fast, high-quality power stabilization that supercapacitors provide, moving beyond simple megawatt-hour energy pricing.[4][8]

Looking ahead, materials scientists are already developing the next generation of hybrid storage components to further reduce costs. Research is heavily focused on lithium-ion capacitors (LICs)—devices that physically combine a battery-type anode with a capacitor-type cathode within a single cell, rather than pairing separate battery and capacitor racks as seen in Jiayuguan. If these integrated cells can be manufactured at scale, they could offer the high energy density of lithium batteries and the rapid power delivery of supercapacitors in a much smaller, cheaper footprint. Until then, macro-scale hybrid facilities like the one in Gansu province will serve as the vanguard of grid modernization, proving that the tools to stabilize a 100% renewable grid already exist.[6][7]
