New Fabrication Technique Uses Mica to Build Ultra-Clean 2D Quantum Materials

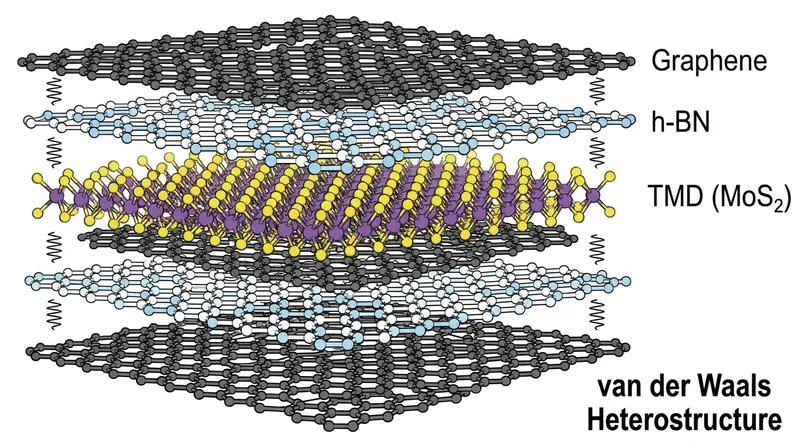

The promise of two-dimensional materials—substances exactly one atom thick, like graphene or transition metal dichalcogenides—has long been heralded as the successor to silicon. By stacking these atomic sheets like molecular Lego bricks, physicists can engineer van der Waals heterostructures that exhibit exotic quantum behaviors and unprecedented electrical efficiency.[5]

But the reality of manufacturing these devices has been bottlenecked by a microscopic nuisance: glue. To pick up and stack these fragile layers, engineers have traditionally relied on sticky synthetic polymers to support the atomic sheets during transit.[4]

Now, a breakthrough published in the peer-reviewed journal Nature Communications offers a remarkably elegant solution. Researchers from the University of Southampton and the National University of Singapore have developed a polymer-free transfer technique that uses muscovite—commonly known as mica—to assemble ultra-clean 2D quantum materials.[1]

The primary claim driving this research is that polymer residues fundamentally disrupt the function of quantum devices. For over a decade, the standard operating procedure in nanofabrication has involved spin-coating a sacrificial polymer layer, such as PMMA or PPC, over a 2D material in order to move it from one substrate to another.[4]

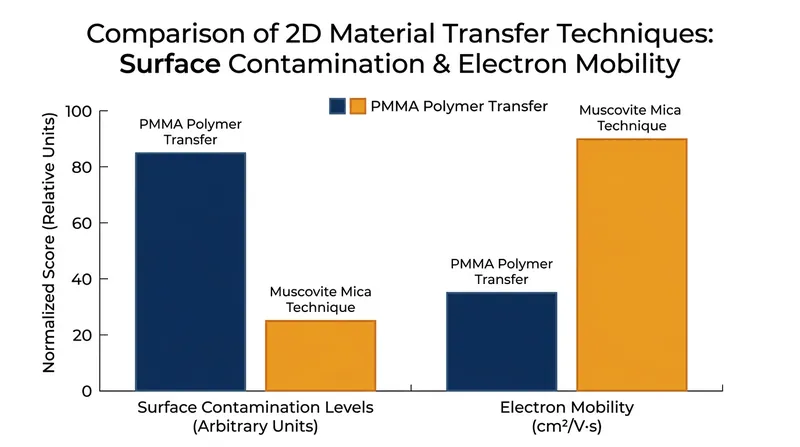

The evidence supporting this limitation is overwhelming across materials science literature. When these polymers are dissolved with chemical solvents, they inevitably leave behind trace organic residues on the atomic surface. These microscopic contaminants act as speed bumps for electrons, causing a phenomenon known as Fermi-level pinning, which severely degrades the material's electrical performance and obscures fragile quantum states.[2][4]

To solve this, the Southampton and NUS team hypothesized that replacing soft, sticky polymers with a rigid, inorganic crystal would eliminate the residue problem entirely.[1]

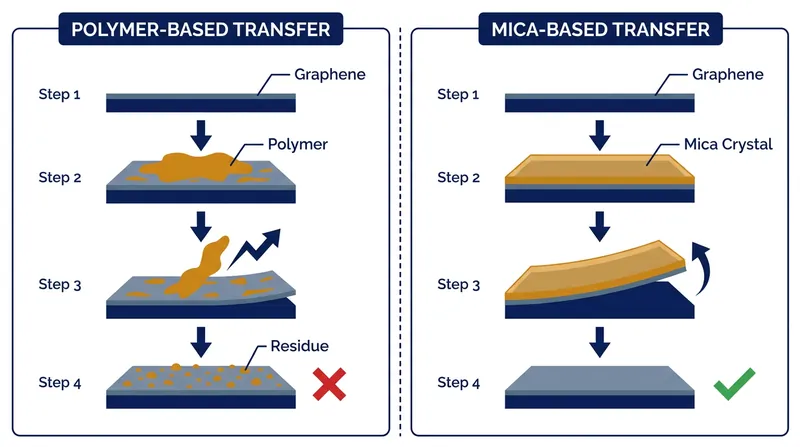

The experimental evidence bears this out. The researchers utilized thin flakes of muscovite mica as the transfer stamp. Because mica is a naturally layered silicate mineral, it can be cleaved to reveal a surface that is perfectly flat at the atomic level, with no dangling chemical bonds to trap contaminants.[1]

The technique relies on precise temperature control to modulate the mica's adhesion. By carefully heating and cooling the substrate, the team demonstrated the ability to deterministically pick up, stack, and release 2D materials without ever introducing a polymer into the equation.[1]

A secondary major claim from the study is that achieving this level of cleanliness unlocks entirely new quantum phenomena. According to Dr. Makars Šiškins, the lead author from the University of Southampton, pristine interfaces are not just a manufacturing convenience—they are a prerequisite for discovering new physics.

The evidence for this is found in the team's successful assembly of highly demanding structures. When 2D materials are stacked with precise angular alignment and zero interfacial contamination, their electrons interact in novel ways. The researchers built moiré superlattices and suspended membranes that typically fail under polymer methods, allowing them to observe exotic superconductivity and tunable magnetism that were previously masked by polymer dirt.[1]

Despite these strong laboratory results, there is transparent uncertainty regarding the technique's scalability for commercial semiconductor manufacturing.[5]

Current silicon foundries operate on 300-millimeter wafers, utilizing highly automated, high-throughput processes. The mica transfer technique, while deterministic, currently relies on the mechanical exfoliation of natural crystals—a manual process unsuited for mass production. Translating this bespoke, micrometer-scale assembly to wafer-scale production will require significant advances in synthetic mica growth and robotic handling.[4][5]

Beyond its use as a temporary transfer stamp, emerging evidence suggests that muscovite itself could become a permanent fixture in next-generation devices.[3]

A parallel study recently mapped the broadband dielectric permittivity tensor of van der Waals muscovite, providing quantitative evidence of its optical properties. The researchers found that mica exhibits consistently low refractive indices and negligible optical loss across the ultraviolet to near-infrared spectrum.[3]

This data supports the claim that mica is an ideal, low-loss substrate for ultrathin nanophotonics, allowing engineers to design highly efficient distributed Bragg reflectors and dichroic beam splitters using 2D materials.[3]

The implications of these combined discoveries extend far beyond academic curiosity. As traditional silicon transistors approach their absolute physical limits—nearing the size of just a few atoms—the semiconductor industry is desperately searching for a viable technology to sustain Moore's Law.[2]

Two-dimensional materials offer the ultralow body thickness and high electron mobility required to keep computing power growing. By solving the contamination bottleneck, the mica transfer technique removes one of the most significant barriers to integrating 2D materials into commercial microchips.[4]

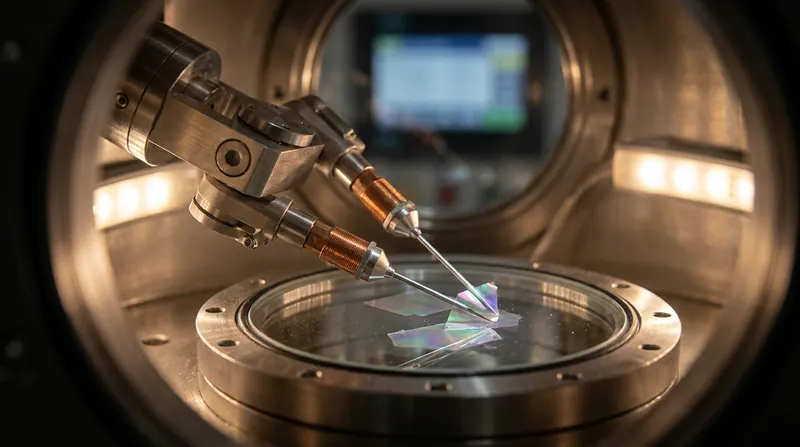

Ultimately, this inorganic approach paves the way for the automatization of van der Waals assembly. With the messy unpredictability of polymers removed, the deterministic nature of mica transfers is perfectly suited for integration with machine learning and robotic micromanipulators, signaling a new, ultra-clean era for nanoelectronics.[1][5]
