Mapping the Iron-Carbon Phase Diagram: How Carbon Concentration and Thermal History Dictate Steel's Crystalline Structure

The iron-carbon phase diagram serves as the foundational map for metallurgy, defining how temperature and carbon content interact to form different crystalline structures. However, industrial heat treatment relies on intentionally bypassing this equilibrium to lock in hardened states like martensite.

By Nicolas Laurent

Share this story

Listen

In short

  1. The iron-carbon phase diagram maps the crystalline structures that form under infinitely slow heating and cooling.
  2. Alloys with less than 2.14 percent carbon are classified as steels, while those with more are cast irons.
  3. Austenite can dissolve nearly 100 times more carbon than room-temperature ferrite.

Theoretical metallurgists view the iron-carbon phase diagram as an absolute thermodynamic truth—a map where infinitely slow heating and cooling dictate exactly which crystalline structures will form at specific carbon percentages. Industrial heat treaters, however, view the diagram merely as a starting line to be deliberately violated. They argue that the most valuable structures in modern engineering, such as the ultra-hard martensite used in aerospace bearings, only exist because engineers intentionally bypass the diagram's equilibrium rules through rapid quenching.[1][6]

The tension between these two perspectives—the theoretical equilibrium and the practical manipulation of time—defines modern materials science. The iron-carbon (Fe-C) phase diagram plots temperature on the vertical axis and carbon concentration on the horizontal axis, typically mapping the alloy up to 6.67 percent carbon by weight.[4][7]

At its core, the diagram maps how iron atoms rearrange themselves as thermal energy fluctuates. Pure iron at room temperature exists as a body-centered cubic (BCC) crystal known as ferrite, which can hold a maximum of just 0.022 percent carbon at 727 degrees Celsius.[5][8]

When heated above 912 degrees Celsius, the iron lattice expands into a face-centered cubic (FCC) structure called austenite. This structural shift is the engine of all steel heat treatment, because austenite can dissolve up to 2.14 percent carbon at 1,147 degrees Celsius—nearly 100 times more than ferrite.[4][7]

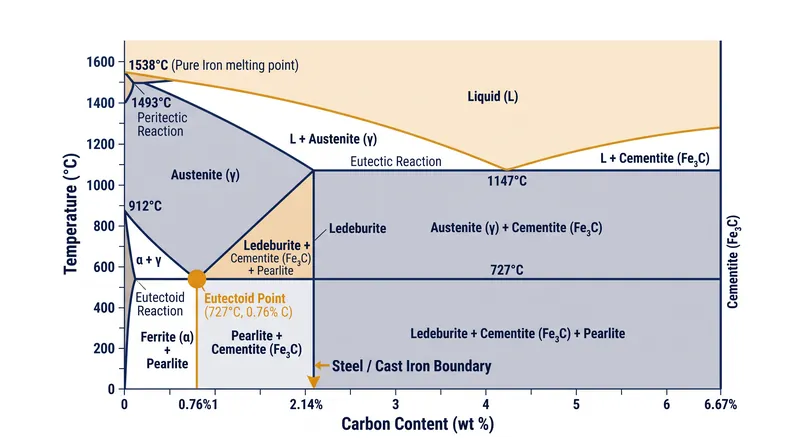

The iron-carbon phase diagram maps the crystalline structures that form under infinitely slow heating and cooling.

The 2.14 percent carbon threshold represents a hard boundary in metallurgy. Alloys containing less than 2.14 percent carbon are classified as steels, which are generally ductile and forgeable. Alloys exceeding this limit, up to the 6.67 percent boundary where the intermetallic compound cementite (Fe3C) forms, are classified as cast irons.[3][8]

Cast irons are brittle but possess excellent casting properties and compressive strength. As the 2026 guide from manufacturing firm Weerg notes, "Cast irons have a carbon content greater than 2.14%... this makes them harder but much more brittle than steel, making them ideal for engine blocks but unsuitable for structural beams."[3]

The most critical coordinate on the entire diagram is the eutectoid point: 0.76 percent carbon at exactly 727 degrees Celsius. When austenite with this exact composition cools slowly below 727 degrees, it transforms simultaneously into a layered, microscopic mixture of soft ferrite and hard cementite.[5][7]

This lamellar structure is called pearlite, named for its iridescent, pearl-like appearance under a microscope. Pearlite offers a balanced combination of strength and ductility, making it the default state for structural steels used in bridges and railways.[4][8]

Hardness increases dramatically as carbon content approaches the eutectoid point of 0.76 percent.

However, the phase diagram only describes what happens when time is not a factor. As the ASM International digital library outlines in its monograph on Time-Temperature-Transformation (TTT) diagrams, industrial processes rarely wait for equilibrium.[1]

If a steel component is heated into the austenite region and then rapidly cooled—a process known as quenching—the carbon atoms do not have time to diffuse out of the shrinking crystal lattice. The iron attempts to revert to its room-temperature BCC structure but is physically jammed by the trapped carbon.[2][6]

The result is a distorted, body-centered tetragonal (BCT) crystal structure called martensite. Martensite does not appear anywhere on the standard iron-carbon phase diagram because it is a metastable phase—a thermodynamic anomaly locked in place by thermal shock.[1][5]

Martensite is exceptionally hard but dangerously brittle. To make it usable, engineers must perform a secondary heat treatment called tempering. By reheating the quenched steel to between 150 and 600 degrees Celsius, a small amount of carbon is allowed to precipitate out, trading a fraction of the hardness for a significant gain in toughness.[2][6]

The National Institute of Standards and Technology (NIST) detailed these mechanics in a foundational technical series, explaining that the precise control of these heating and cooling cycles allows a single alloy to serve as either a pliable wire or a rigid cutting tool.[2]

The debate over how strictly to adhere to the equilibrium diagram continues as new alloys emerge. Modern advanced high-strength steels (AHSS) incorporate elements like chromium, nickel, and molybdenum, which shift the eutectoid point and distort the phase boundaries.[5][9]

The debate over how strictly to adhere to the equilibrium diagram continues as new alloys emerge.

"The iron-carbon diagram is the alphabet of metallurgy, but alloying elements change the language entirely," explains a 2024 technical brief from Industrial Metallurgists. A 5 percent addition of chromium, for instance, lowers the carbon required to reach the eutectoid point, allowing for harder steels with less carbon-induced brittleness.[5]

The phase diagram remains an indispensable tool for predicting microstructures, even if it represents an idealized reality. It provides the baseline against which all non-equilibrium deviations are measured, ensuring that the physical properties of the world's most ubiquitous metal remain predictable and controllable.[7][9]

Terms to know

Austenite
A face-centered cubic crystalline structure of iron capable of dissolving up to 2.14 percent carbon at high temperatures.
Ferrite
A body-centered cubic crystalline structure of iron that exists at room temperature and can hold very little carbon.
Martensite
An ultra-hard, brittle, metastable structure formed when austenite is rapidly quenched, trapping carbon atoms inside a distorted lattice.
Eutectoid Point
The specific temperature and composition (727°C and 0.76% carbon) where solid austenite transforms simultaneously into ferrite and cementite.
Cementite
An extremely hard and brittle intermetallic compound of iron and carbon (Fe3C) containing 6.67 percent carbon.

Different angles

Theoretical Metallurgists' view

The phase diagram is the absolute thermodynamic baseline.

For theoretical metallurgists, the iron-carbon phase diagram represents an immutable thermodynamic truth. It defines the lowest-energy states that an iron-carbon alloy will naturally seek given infinite time. By mapping the exact boundaries where austenite, ferrite, and cementite are stable, theorists argue that all material properties—even those of non-equilibrium structures—can ultimately be traced back to the fundamental energy landscapes described by the diagram.

Industrial Heat Treaters' view

Equilibrium is an obstacle; value is created by bypassing it.

Industrial heat treaters view the equilibrium diagram as a set of rules meant to be broken. In their view, the most commercially valuable structures in metallurgy, such as martensite and bainite, do not appear on the standard phase diagram because they are metastable. By utilizing Time-Temperature-Transformation (TTT) curves and precise quenching mediums, heat treaters intentionally trap the alloy in high-energy states, prioritizing mechanical hardness and wear resistance over thermodynamic stability.

Alloy Engineers' view

The binary Fe-C diagram is just a starting point for complex alloys.

Engineers designing advanced high-strength steels (AHSS) argue that the traditional binary iron-carbon diagram is insufficient for modern applications. The addition of elements like chromium, molybdenum, and nickel fundamentally distorts the phase boundaries, lowering the eutectoid temperature or shifting the carbon requirements. For these engineers, the binary diagram is merely a pedagogical tool, while real-world manufacturing relies on multi-component computational models to predict phase transformations.

Industrial Heat Treaters 40%Theoretical Metallurgists 35%Alloy Engineers 25%
Industrial Heat Treaters
View equilibrium as an obstacle, focusing instead on manipulating cooling rates to create metastable structures like martensite.
Theoretical Metallurgists
Argue that the phase diagram is the absolute thermodynamic baseline from which all material properties are derived.
Alloy Engineers
Emphasize that the binary iron-carbon diagram is merely a starting point, as modern additives fundamentally shift the phase boundaries.
