TSMC Unveils COUPE Platform, Integrating Silicon Photonics to Break Copper Ceiling in AI Data Centers
TSMC has moved its Compact Universal Photonic Engine (COUPE) into mass production, utilizing 3D chip stacking to replace copper interconnects with light-based data transmission. The platform aims to solve the severe bandwidth and power bottlenecks constraining next-generation AI data centers.
- Foundry Operators
- View silicon photonics as the next major manufacturing battleground and a way to lock in high-margin advanced packaging contracts.
- AI Hardware Designers
- See optical interconnects as a necessary mechanism to bypass the bandwidth limitations of copper and scale GPU clusters.
- Infrastructure Analysts
- Focus on the timeline of deployment, noting that full in-package optics are still years away despite the current hype.
The AI industry assumes the biggest bottleneck to scaling artificial intelligence is manufacturing enough GPUs. The reality is much more mundane: it is the physical limitation of copper wire.
As data centers cluster tens of thousands of AI accelerators together, they must communicate at blistering speeds. Copper interconnects, the historical standard, are hitting a physical wall. They consume massive amounts of power, generate excess heat, and suffer severe signal degradation over distances longer than a few meters.[1]
Enter TSMC's newly industrialized solution: the Compact Universal Photonic Engine, or COUPE.[1]
While the semiconductor giant has teased silicon photonics for years, 2026 marks the transition from laboratory concept to mass production. The platform aims to solve the severe bandwidth and power bottlenecks constraining next-generation AI infrastructure.[5]
COUPE is not a standalone chip you can buy off a shelf. Instead, it is a foundry-and-packaging platform—a manufacturing service that allows chip designers to integrate optical data transmission directly alongside traditional electronic logic.[4]
The mechanism relies on TSMC's SoIC-X (System-on-Integrated-Chips) 3D stacking technology.[2]
In practice, this means TSMC stacks an electrical control die—the electronic integrated circuit (EIC), built on an advanced node like 6nm—directly on top of a photonic integrated circuit (PIC), which is built on a mature 65nm process.[4]

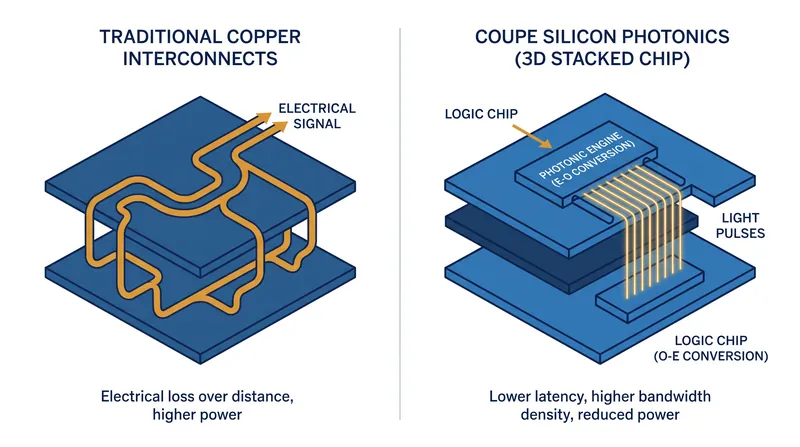

By stacking them vertically rather than placing them side-by-side, the electrical handoff distance is reduced to microscopic levels, drastically lowering impedance at the die-to-die interface.[3]
The resulting optical engine converts electrical signals into pulses of light, transmitting data via fiber optics rather than copper. This heterogeneous integration requires coordinated innovation across the entire supply chain, from wafer-level testing to high-speed optical packaging assembly.[3][6]
The resulting optical engine converts electrical signals into pulses of light, transmitting data via fiber optics rather than copper.

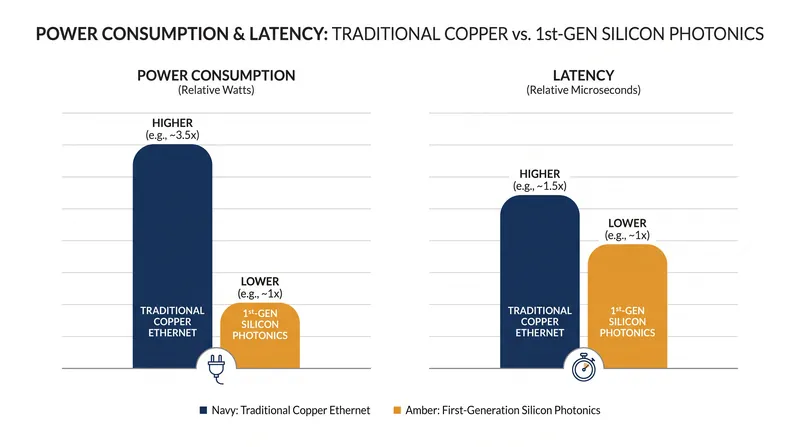

The performance claims are substantial, though they require careful parsing. TSMC states that COUPE delivers a 40 percent reduction in energy consumption compared to traditional optical transceivers.[1]
Other marketing materials from the foundry tout up to a 5x to 10x improvement in overall power efficiency and 10x to 20x lower latency.[3]
However, it is crucial to distinguish what is shipping today from what is merely on the roadmap. The first generation of COUPE, which is entering volume production now, is packaged into swappable optical modules known as OSFP pluggables.[2]
This initial iteration is capable of a 1.6 Terabits per second (Tbps) data transfer rate, which is twice the maximum of current top-tier copper Ethernet solutions.[2]

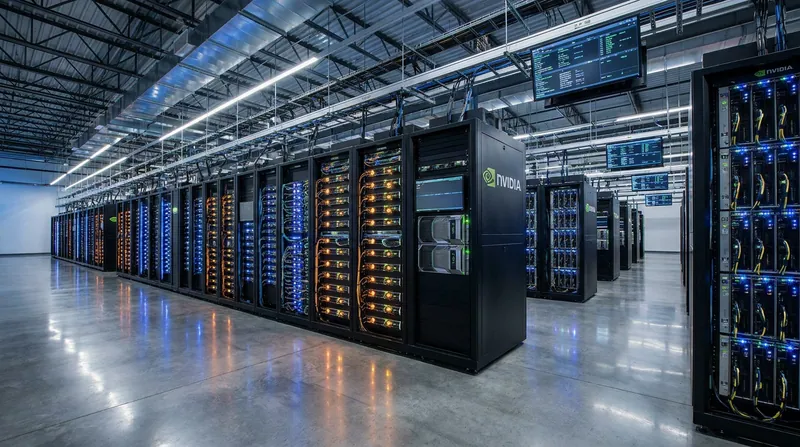

This first-generation technology is already finding its way into flagship networking hardware. Nvidia's Spectrum-X Ethernet switches, for example, utilize COUPE-based optical engines.[1][5]
The second phase, slated for broader rollout later in 2026, moves to Co-Packaged Optics (CPO). Here, the optical engine is moved off the pluggable module and integrated directly onto the same baseboard as the network switch chip, enabling speeds up to 6.4 Tbps.[2]
The ultimate goal—the third phase—is to bring the optical connections directly into the GPU package itself, targeting 12.8 Tbps.[2]
That final phase, however, remains in the exploratory stage and is unlikely to see commercial deployment before 2028.[1]
The strategic implication of COUPE's mass production is profound. As the AI stack matures, the most critical value is migrating from the logic chips themselves to advanced packaging and silicon photonics.[4]
TSMC is positioning itself to dominate this new layer of the infrastructure stack, much like it dominated advanced packaging with its CoWoS (Chip-on-Wafer-on-Substrate) technology.[1]
Competitors like GlobalFoundries and Samsung are also racing to commercialize their own silicon photonics platforms, but TSMC's ability to combine leading-edge logic, mature photonics, and proven 3D stacking gives it a formidable head start. Ultimately, COUPE proves that the next leap in AI performance won't just come from shrinking transistors, but from changing how they talk to each other.[3][4]
Key points
- TSMC's COUPE platform has entered mass production, transitioning silicon photonics from a lab concept to commercial reality.
- The technology uses 3D chip stacking to place an electrical die directly on top of a photonic die, minimizing signal impedance.
- First-generation COUPE modules offer 1.6 Tbps data transfer rates and are already being integrated into Nvidia network switches.
- The shift to optical data transmission bypasses the severe power and bandwidth limitations of traditional copper wiring in AI data centers.
Key terms
- Silicon Photonics
- The study and application of photonic systems which use silicon as an optical medium, allowing data to be transmitted via light rather than electrical currents.
- COUPE
- Compact Universal Photonic Engine, TSMC's proprietary manufacturing platform for integrating electronic and photonic circuits.
- Co-Packaged Optics (CPO)
- An advanced packaging technique that brings the optical transceiver directly onto the same substrate as the main processor or switch, reducing the distance data must travel.
- SoIC-X
- System-on-Integrated-Chips, TSMC's 3D chip stacking technology used to vertically bond different silicon dies with microscopic precision.
- EIC and PIC
- Electronic Integrated Circuit (which processes standard electrical data) and Photonic Integrated Circuit (which handles the light-based data transmission).
Frequently asked
Why is copper wiring being replaced in AI data centers?
Copper wires consume massive amounts of power, generate excess heat, and suffer severe signal degradation at the high speeds required by modern AI clusters.
What exactly is TSMC's COUPE platform?
COUPE is a manufacturing technology that stacks an electrical control chip directly on top of a photonic chip, allowing data to be converted into light pulses for highly efficient transmission.
Is this technology available right now?
Yes, the first generation of COUPE is entering mass production in 2026 as swappable optical modules, though deeper integration directly into GPUs is still years away.
How much power does silicon photonics save?
TSMC claims its COUPE platform delivers a 40 percent reduction in energy consumption compared to traditional optical transceivers, with some configurations offering up to a 10x improvement in power efficiency.
