The Science of Microbial Fuel Cells: How Soil Bacteria Can Turn Your Garden Into a Power Source

The modern garden is increasingly digital. Soil moisture sensors, automated drip irrigation systems, and micro-weather stations are transforming how we grow plants, allowing for unprecedented precision in residential and commercial agriculture. But this digital revolution relies on a distinctly analog and frustrating problem: batteries.[4][5]

Traditional lithium-ion or alkaline batteries degrade quickly in outdoor environments. The constant cycling of heat, cold, and moisture saps their capacity, requiring frequent replacements. Worse, when left to degrade, they can leak toxic chemicals into the very soil they are meant to monitor, contributing to a growing mountain of agricultural electronic waste.[4]

Enter the Microbial Fuel Cell (MFC), specifically the Soil Microbial Fuel Cell (SMFC). Instead of relying on mined lithium and chemical pastes, these devices harvest electricity directly from the dirt beneath our feet, offering a power source that is as renewable as the earth itself.[1][6]

The mechanism relies on the fact that healthy soil is teeming with life. A single teaspoon of garden dirt contains billions of microorganisms. Among these are a special class of bacteria known as "exoelectrogens"—microbes that naturally release electrons outside of their cell walls as a byproduct of digesting organic matter.[3]

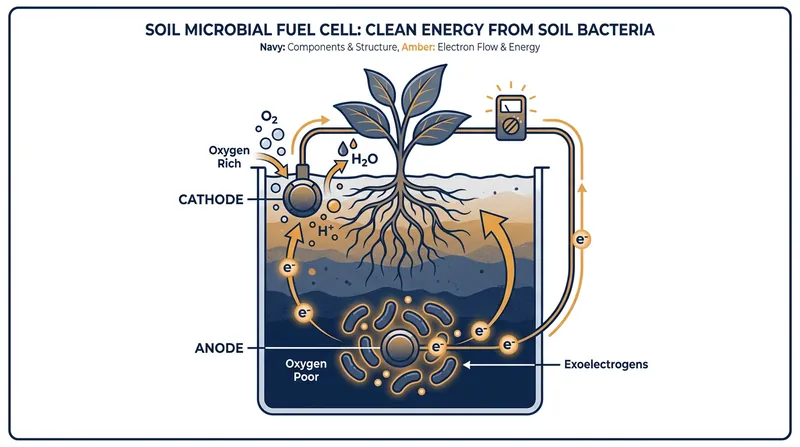

A soil microbial fuel cell is designed to capture these stray electrons. The architecture is elegantly simple: it consists of two electrodes. An anode is buried deep in the anaerobic (oxygen-free) layer of the soil, while a cathode rests near the surface where oxygen is plentiful.[1][3]

As the exoelectrogenic bacteria consume decaying plant matter and root exudates near the buried anode, they deposit their waste electrons onto the conductive material. These electrons travel up a wire to the cathode, creating a measurable electrical current before reacting with oxygen and hydrogen to form water.[1]

The technology becomes even more efficient when paired with living plants, creating what is known as a Plant-Microbial Fuel Cell (PMFC). Through photosynthesis, plants produce organic compounds, releasing up to 70 percent of them into the soil through their root systems.[2]

This constant drip of root exudates acts as a continuous, renewable food source for the exoelectrogens. The bacteria eat the exudates, release electrons, and power the fuel cell, creating a symbiotic power plant that runs continuously as long as the plant is alive and photosynthesizing.[2][6]

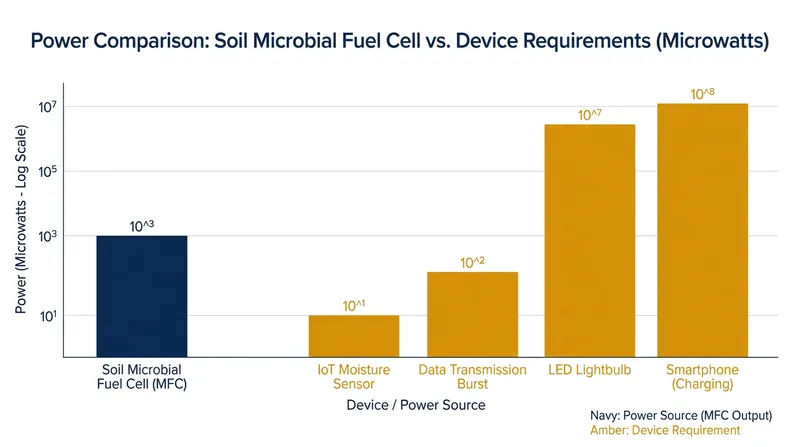

To be clear, a single soil battery will not power a lawnmower or light up a patio array. The power output is measured in microwatts—a fraction of what is needed to power a standard LED bulb. However, it is more than enough to run low-power Internet of Things (IoT) devices.[3][5]

Researchers at institutions like Northwestern University have successfully used dirt-powered fuel cells to run soil moisture and nutrient sensors indefinitely. The sensors gather data, store the tiny trickle of energy in a capacitor, and periodically transmit the data via wireless signals to a central hub.[1]

Startups in the AgTech space are now aggressively commercializing this technology. Companies like the Netherlands-based Plant-e have been pioneering PMFCs for years, moving from laboratory prototypes to real-world deployments in wetlands, green roofs, and smart gardens.[2][5]

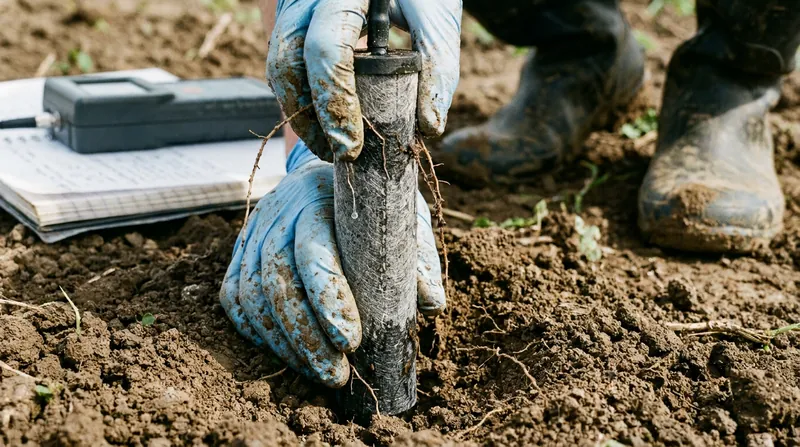

Early soil batteries struggled with changing moisture levels; if the soil dried out, the bacteria went dormant, and the power stopped. Modern designs solve this by using specialized geometries—like vertical, cartridge-like shapes—that ensure the anode remains in deep, moist soil while the cathode stays perfectly aerated.[1][3]

The most exciting development in 2026 is the shift toward fully biodegradable fuel cells. By using carbon felt and bioplastics, engineers are creating power sources that simply compost into the earth at the end of their lifecycle, leaving zero toxic footprint.[4][6]

Challenges do remain. Extreme freezing temperatures can halt microbial activity, and highly compacted or chemically treated soils lack the biological diversity needed to sustain a charge. The technology requires healthy, living soil to function.[3]

Nevertheless, the shift from chemical batteries to biological power represents a profound change in how we interact with our environment. By tapping into the invisible metabolism of the garden, we are turning the earth itself into a sustainable, living grid.[6]
