The Science of Calcined Clay: How a New Cement Additive is Halving Concrete's CO2 Footprint

Concrete is the second most consumed substance on Earth, trailing only water. The global economy pours an estimated 30 billion tons of it every year to build highways, bridges, skyscrapers, and residential foundations. But this foundational material harbors a massive climate problem: the production of cement, the crucial binding agent in concrete, is responsible for approximately seven to eight percent of all global anthropogenic carbon dioxide emissions. If the cement industry were a country, it would be the third-largest emitter in the world, sitting just behind China and the United States. For decades, the construction sector has struggled to find a scalable, cost-effective way to decarbonize this ubiquitous material without compromising the structural integrity that modern infrastructure demands.[5][7]

The core of the emissions problem lies in a specific intermediate ingredient called clinker. To manufacture traditional Ordinary Portland Cement (OPC), producers must heat crushed limestone and other raw materials in massive rotary kilns to temperatures exceeding 1,450 degrees Celsius. Achieving these extreme temperatures requires immense amounts of energy, traditionally supplied by burning fossil fuels. However, the fuel is only half the problem. The chemical process itself, known as calcination, fundamentally alters the limestone, breaking it down into calcium oxide and releasing trapped carbon dioxide directly into the atmosphere as a byproduct. This unavoidable chemical release means that even if kilns were powered entirely by renewable energy, traditional clinker production would still generate massive carbon emissions.[3][7]

A breakthrough technology known as Limestone Calcined Clay Cement, or LC3, is now offering a pragmatic and highly scalable solution to the clinker problem. Originally developed through a collaborative research initiative led by the École Polytechnique Fédérale de Lausanne (EPFL) in Switzerland, alongside institutions in India and Cuba, LC3 fundamentally alters the traditional cement recipe. By substituting a massive portion of the carbon-intensive clinker with a synergistic blend of widely available materials, the LC3 formulation can reduce the overall carbon dioxide emissions of cement production by up to 40 percent. Crucially, it achieves this dramatic environmental benefit while matching, and in some cases exceeding, the mechanical performance of conventional Portland cement.[3][6]

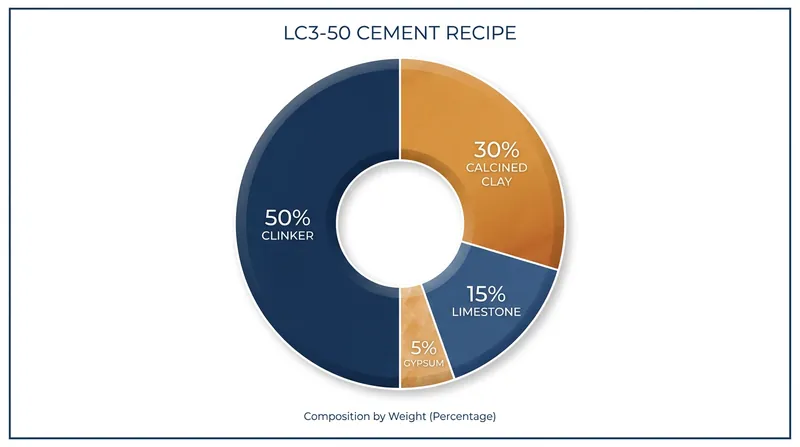

The standard formulation for this new material, commonly referred to as LC3-50, relies on a precise ternary blend. It consists of 50 percent traditional Portland clinker, 30 percent calcined clay, 15 percent uncalcined crushed limestone, and 5 percent gypsum to regulate setting time. By capping the clinker content at exactly half of the mixture, producers immediately slash the energy and chemical emissions associated with the kiln process. While blended cements are not a new concept, the specific ratio and the interaction between the calcined clay and the raw limestone represent a significant leap forward in materials science, unlocking structural properties that previous low-clinker alternatives could not achieve.[1][3]

The magic of the LC3 system begins with the calcined clay. Unlike the limestone used for clinker, which requires extreme heat, the kaolinitic clays used in LC3 only need to be heated—or calcined—to temperatures between 700 and 800 degrees Celsius. This lower thermal requirement drastically reduces the energy footprint of the manufacturing process. Furthermore, the specific type of clay required, low-grade kaolinite, is abundantly available across the globe, particularly in the Global South where construction demand is growing fastest. These clays are often considered waste products by other industries, meaning their extraction and utilization do not require opening new, environmentally disruptive mining operations.[1][4]

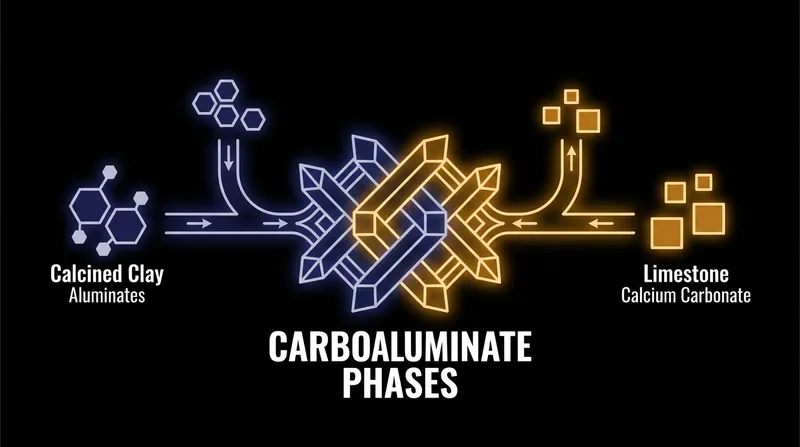

The true engineering breakthrough of LC3, however, lies in the chemical synergy between the calcined clay and the uncalcined limestone when water is introduced. In traditional blended cements, limestone acts merely as an inert filler, taking up space without contributing to the chemical bonds that give concrete its strength. But in the LC3 system, the reactive aluminates released by the calcined clay interact directly with the calcium carbonate from the crushed limestone. This unique hydration thermodynamics process forms complex carboaluminate phases, effectively turning the previously inert limestone into an active participant in the binding process.[1][5]

This synergistic chemical reaction has profound implications for the physical structure of the resulting concrete. The formation of carboaluminate phases significantly densifies the microscopic pore structure of the material. As a result, concrete mixed with LC3 achieves compressive strength levels that are entirely comparable to 100 percent Ordinary Portland Cement within the standard 28-day curing window. In some field tests, the early-stage strength development of LC3 actually outpaced conventional concrete, providing structural engineers with the exact same performance metrics they have relied on for decades, but with a fraction of the embodied carbon.[1][4]

Beyond raw compressive strength, the densified microstructure of LC3 provides exceptional long-term durability, particularly in harsh environmental conditions. The refined pore network makes it incredibly difficult for external chemicals to penetrate the concrete. Studies have shown that LC3 exhibits vastly superior resistance to chloride ingress compared to traditional cement. This makes the material exceptionally well-suited for marine environments, coastal infrastructure, and regions that rely heavily on de-icing salts, where chloride penetration typically corrodes the internal steel rebar and leads to catastrophic structural failure.[1][3]

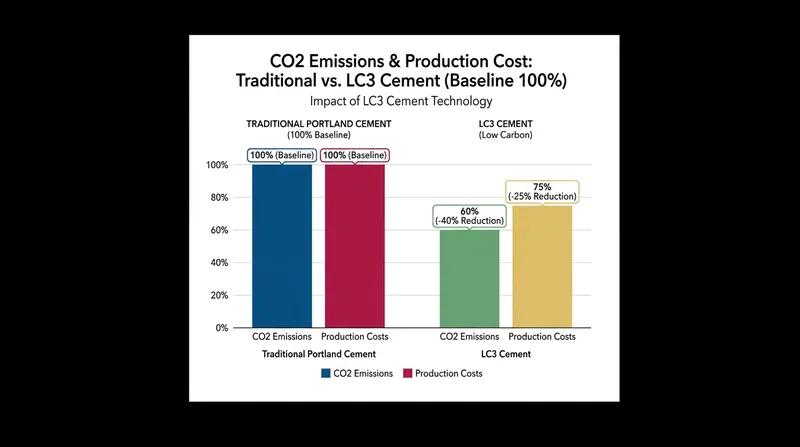

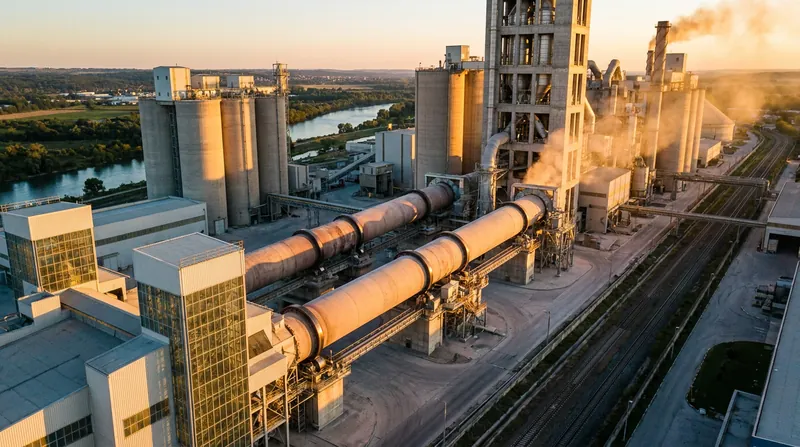

The economic profile of LC3 is equally compelling, which is critical for global adoption in a notoriously margin-thin industry. Because the clay requires significantly less heat to calcine, and because the limestone requires no heating at all, the overall energy consumption of the manufacturing process plummets. Combined with the use of cheap, widely available raw materials, the production costs of LC3 can be up to 25 percent lower than traditional Portland cement. Furthermore, the material can be produced using existing rotary kilns with only minor modifications, sparing cement manufacturers the massive capital expenditures typically required to overhaul industrial facilities.[2][3]

The timing of the LC3 breakthrough is particularly critical given the shifting landscape of traditional cement additives. For years, the industry has relied on supplementary cementitious materials (SCMs) like fly ash, a byproduct of coal-fired power plants, and ground granulated blast furnace slag, a byproduct of steel manufacturing, to reduce clinker content. However, as the global energy grid transitions away from coal and the steel industry modernizes, the supply of these traditional SCMs is rapidly declining. Calcined clay offers a globally abundant, non-fossil-sourced alternative that can permanently replace the dwindling supplies of industrial waste products.[1][4]

Despite its immense potential, the transition to LC3 does present specific engineering challenges, primarily related to the material's workability. Calcined clays possess a highly layered microscopic structure and a massive specific surface area, which means they absorb significantly more water than traditional cement powders. This high water demand can make the wet concrete mixture stiffer and harder to pour or pump on a construction site. To maintain the necessary flowability without compromising the final strength by adding excess water, contractors must utilize higher dosages of specialized chemical admixtures, known as polycarboxylate ether superplasticizers.[1][5]

These rheological challenges have not stopped the rapid global deployment of the technology. Following successful pilot projects and rigorous standardization testing, commercial production of LC3 is scaling up internationally. Facilities in Colombia, Ivory Coast, and Ghana have already integrated calcined clay systems into their production lines. In Ghana, a new clay calciner system is expected to substitute up to 40 percent of the clinker in the final product, drastically reducing the nation's reliance on expensive, carbon-heavy clinker imports while simultaneously lowering the overhead costs of domestic infrastructure development.[4][6]

In the United States, the policy landscape is beginning to recognize the massive decarbonization potential of limestone calcined clay cement. A joint study by the American Council for an Energy-Efficient Economy (ACEEE) and Global Efficiency Intelligence highlighted that shifting just half of federal, state, and local government procurement toward LC3 could eliminate 7.3 million metric tons of carbon dioxide annually. Because public construction projects account for nearly half of all cement purchased in the U.S., targeted government procurement policies could single-handedly create the market demand necessary to accelerate domestic production and normalize the material across the broader construction sector.[2][4]

As the world races to meet aggressive net-zero emissions targets, the built environment remains one of the most stubborn sectors to decarbonize. Limestone calcined clay cement represents a rare convergence of environmental necessity, structural reliability, and economic viability. By leveraging abundant earth materials and existing industrial infrastructure, LC3 is proving that the construction industry does not need to wait for hypothetical future technologies to begin halving its carbon footprint today. It is a pragmatic, ready-to-deploy solution that is quietly rewriting the foundational recipe of the modern world.[2][5][7]
