The MGU-H and MGU-K: How Formula 1's Energy Recovery System Recovers and Deploys 4 Megajoules Per Lap

As a Formula 1 car decelerates from 320 km/h into a heavy braking zone like Monza's Turn 1, the carbon brake discs instantly glow red, absorbing temperatures exceeding 1,000 degrees Fahrenheit. But the friction material is only doing part of the work. Nestled within the power unit, the Motor Generator Unit-Kinetic (MGU-K) engages, intercepting a massive amount of kinetic energy that would otherwise be lost as heat. This is the frontline of Formula 1's Energy Recovery System (ERS), a hybrid architecture that has defined the sport since 2014. The MGU-K acts as a high-tech kinetic recovery system, reversing its polarity under deceleration to act as a generator. It aggressively slows the rear axle while simultaneously harvesting up to 2 megajoules (MJ) of electrical energy per lap, sending that charge directly into the car's 20-kilogram Energy Store.[2][5]

Harvesting the energy is only the setup; the payoff comes when the driver returns to the throttle. The MGU-K seamlessly switches from a generator back to a motor, deploying up to 4 MJ of energy per lap directly to the crankshaft. That 4 MJ translates to a maximum output of 120 kilowatts—roughly 160 brake horsepower—available for about 33 seconds over the course of a single lap. In a sport decided by fractions of a second, that electrical surge is the difference between a successful overtake and being left behind on a long straight. The deployment is mapped alongside the accelerator pedal, meaning the driver does not press a separate boost button; the power unit's electronic control unit seamlessly blends the electrical torque with the combustion engine's output.[1][2][5]

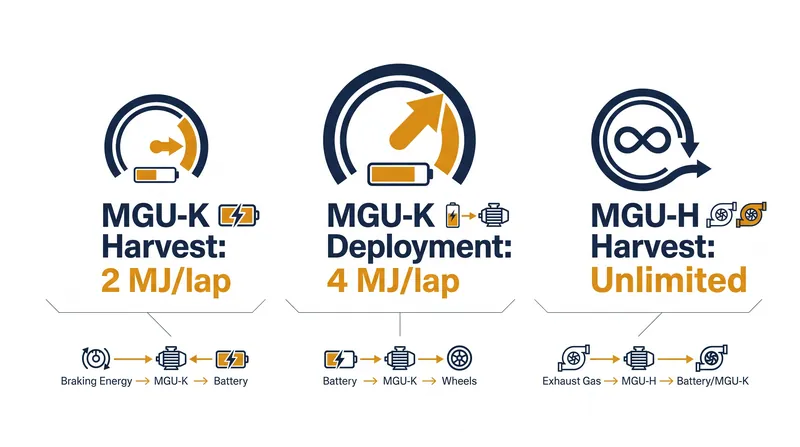

However, a strict reading of the MGU-K's limits reveals an immediate mathematical problem. If the MGU-K is only permitted to harvest 2 MJ of energy under braking per lap, but is allowed to deploy 4 MJ of energy to the rear wheels, the battery would be completely drained within a few laps. A car relying solely on kinetic recovery would spend most of the race severely underpowered, waiting for heavy braking zones to slowly recharge the system. This inherent deficit is where the second, far more complex half of the hybrid system steps in to balance the ledger and keep the 160-horsepower boost flowing continuously.[2]

The Motor Generator Unit-Heat (MGU-H) is the engineering marvel that makes the modern Formula 1 power unit viable. Mounted directly onto the shaft of the turbocharger, nestled in the "V" of the 1.6-liter internal combustion engine, the MGU-H captures the entropy—the waste heat and pressure—of the exhaust gases exiting the engine. As the exhaust gases spin the turbocharger's turbine, they also spin the MGU-H. This unit acts as a secondary generator, but unlike the MGU-K, it is not dependent on the car slowing down. It harvests energy constantly as long as the engine is producing exhaust pressure, which is the vast majority of a lap.[3]

Crucially, the FIA regulations place no limit on how much energy the MGU-H can harvest per lap. It spins at a staggering 125,000 rpm, converting exhaust heat into a continuous stream of electrical charge. That electricity can be routed into the Energy Store to top up the battery, bridging the gap between the 2 MJ kinetic harvest and the 4 MJ deployment limit. Even more effectively, the MGU-H can bypass the battery entirely and feed electrical energy directly to the MGU-K. This direct transfer does not count against the 4 MJ battery deployment limit, allowing teams to sustain the 160-horsepower boost for much longer than the baseline 33 seconds.[2][3]

Beyond energy harvesting, the MGU-H solves one of the oldest and most frustrating problems in turbocharged racing: turbo lag. When a driver lifts off the throttle mid-corner, the flow of exhaust gas drops, and a traditional turbocharger slows down. When the driver accelerates again, they must wait for the exhaust pressure to build back up to spool the turbo. The MGU-H eliminates this delay entirely. By drawing electrical power from the battery, the MGU-H acts as a motor to artificially spin the turbocharger's compressor up to optimal speed before the exhaust gases even arrive. This instantaneous throttle response gives the current generation of V6 hybrid engines the drivability of a naturally aspirated V8.[1][3][5]

Despite its brilliance, the MGU-H has become a victim of its own complexity. The engineering required to build a motor-generator that can survive 125,000 rpm while bolted to a searing-hot exhaust pipe is brutally expensive and difficult to master. It created an insurmountable barrier to entry for new engine manufacturers, prompting the FIA to rewrite the rulebook to attract brands like Audi and Ford. Starting in 2026, the MGU-H will be banned entirely from Formula 1. As FIA President Mohammed Ben Sulayem stated, the new regulations aim to deliver "benefits for road car users and meeting our objective of net zero carbon by 2030," prioritizing sustainable fuels over unchecked electrical complexity. This regulatory shift forces a massive rebalancing of the power unit, stripping away the invisible, unlimited energy loop that teams have relied on for over a decade.[4]

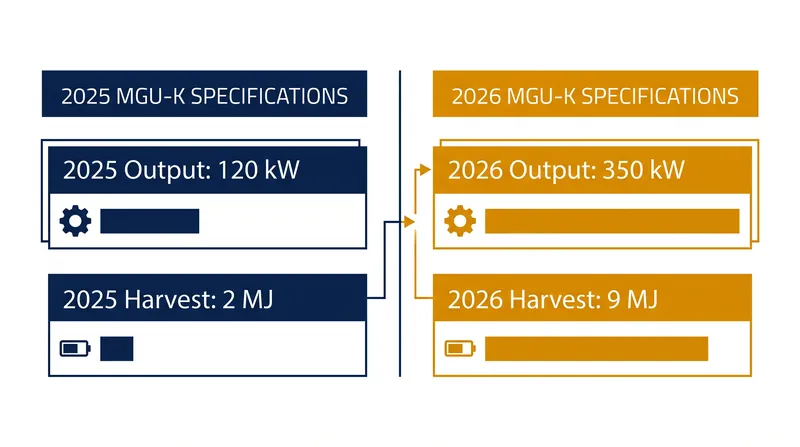

Without the exhaust harvesting capacity of the MGU-H, the entire electrical burden falls squarely onto the MGU-K. To compensate, the 2026 regulations will nearly triple the MGU-K's output from 120 kW to 350 kW, meaning nearly half of the car's total 1,000 horsepower will come from the electric motor. The kinetic harvesting limit will jump to 9 MJ per lap, and the deployment rules will shift from a single 4 MJ allowance to multiple 4 MJ bursts, limited only by the battery's state of charge. Drivers will have to actively manage their kinetic harvesting, utilizing tactics like "lift and coast" to ensure they have enough electrical deployment for the straights, fundamentally altering how a Formula 1 car is raced.[4]
