The Mechanics of the ROC Curve and AUC: How Classification Model Performance is Assessed Independent of Class Imbalance

Imagine an artificial intelligence deployed to detect credit card fraud. Fraud is rare—perhaps one in every ten thousand transactions. If the algorithm simply approves every transaction and flags absolutely nothing, its overall accuracy will be 99.99%. For the bank, however, the model is entirely useless, and millions of dollars will be lost to theft. This is the fundamental trap of evaluating algorithms: accuracy is an illusion when the underlying data is heavily skewed. To understand how data scientists solve this, we must look past the final output and examine the mathematical mechanics of how models actually make decisions.[4][6]

Classification models rarely output a simple binary 'yes' or 'no.' Instead, they output a probability—for instance, an 85% chance that a specific transaction is fraudulent. The human operator or the system architecture must then set a classification threshold. If the threshold is set at 50%, anything above that mark is flagged as fraud. Moving this threshold changes the entire behavior of the model, altering the balance between catching real threats and annoying legitimate customers.[3]

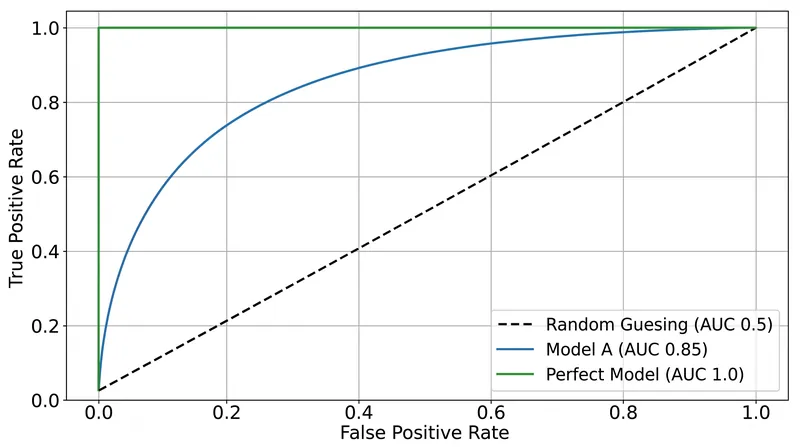

Lowering the threshold catches more actual fraud, which increases the True Positive Rate. However, it simultaneously flags more legitimate transactions, increasing the False Positive Rate. The Receiver Operating Characteristic (ROC) curve is a mathematical graph that plots this exact trade-off. It maps the True Positive Rate on the Y-axis against the False Positive Rate on the X-axis across every possible threshold, creating a visual representation of the model's discriminatory power.[3]

A model that guesses randomly produces a straight diagonal line from the bottom left to the top right of the graph. A theoretically perfect model shoots straight up the Y-axis to a 100% True Positive Rate before moving across the X-axis. Most real-world models form a curve that bows toward the top-left corner. The closer the curve hugs that upper-left corner, the better the model is at separating the two classes, regardless of where the final threshold is set.[3]

Because reading a curve visually is subjective, statisticians calculate the Area Under the Curve (AUC). This distills the entire ROC curve into a single number between 0.0 and 1.0. An AUC of 0.5 means the model is no better than a coin flip; an AUC of 1.0 means it is perfect. Crucially, AUC is both scale-invariant and classification-threshold-invariant. It measures the quality of the model's predictions independently of what probability cutoff is eventually chosen by the operator.[3]

The primary claim supporting the widespread use of ROC and AUC is their resilience to class imbalance. Because the True Positive Rate and False Positive Rate are calculated independently of the overall ratio of positive to negative cases, the curve does not artificially inflate when the dataset is flooded with negative examples. A model tested on a perfectly balanced 50:50 dataset will yield the exact same ROC curve if tested on a 99:1 dataset, assuming the underlying distributions of the classes remain constant.[1][5]

However, the evidence supporting AUC as a flawless metric for highly imbalanced data is increasingly contested in statistical literature. While the metric itself does not mathematically break, its interpretation can be dangerously misleading in extreme edge cases. In datasets where the negative class massively outnumbers the positive class, a large absolute number of false positives will barely move the False Positive Rate denominator, making the curve look artificially optimistic.[2][6]

This limitation has led researchers to advocate for Precision-Recall (PR) curves in cases of severe imbalance. Unlike ROC, which looks at the False Positive Rate relative to all actual negatives, Precision looks directly at the ratio of true positives to total predicted positives. If a model flags one hundred transactions to catch a single fraudster, its False Positive Rate might still look excellent on an ROC curve because there are millions of transactions, but its Precision will be a dismal 1%.[2][4]

The consensus in the evidence suggests a bifurcated approach to model evaluation. ROC curves remain the gold standard for general-purpose model assessment and for comparing the baseline discriminatory power of different algorithms. They provide a clean, standardized view of how well a model separates classes. But when the cost of false positives is high and the minority class is exceptionally rare, researchers strongly advise supplementing AUC with the Area Under the Precision-Recall Curve (AUPRC).[1][2][4]

The mechanics of the ROC curve demonstrate a fundamental truth in data science: no single metric tells the whole story. AUC strips away the illusion of accuracy, forcing models to prove they can actually distinguish between classes rather than just guessing the most common outcome. Yet, as machine learning tackles increasingly rare phenomena—from rare genetic markers to subtle network intrusions—the limits of AUC remind us that mathematical robustness does not always equal practical utility.[3][6]
