The Mechanics of the Kaplan-Meier Curve: How Survival Analysis Handles Incomplete Data

The short version is this: when you are tracking how long it takes for an event to happen—whether that is a patient surviving cancer or a customer canceling a subscription—you will almost never have complete data for everyone. The Kaplan-Meier estimator is the mathematical engine that allows researchers to calculate accurate survival probabilities anyway, using a step function that gracefully incorporates incomplete data without biasing the final result.[1][2]

To understand why this is necessary, consider the core problem in data analysis: reality rarely conforms to a neat, bounded observation window. In a clinical trial, researchers want to know the median time until an event occurs. But what happens when the study ends before all patients have experienced the event? Or when a patient moves away and drops out of the trial entirely?[2][4]

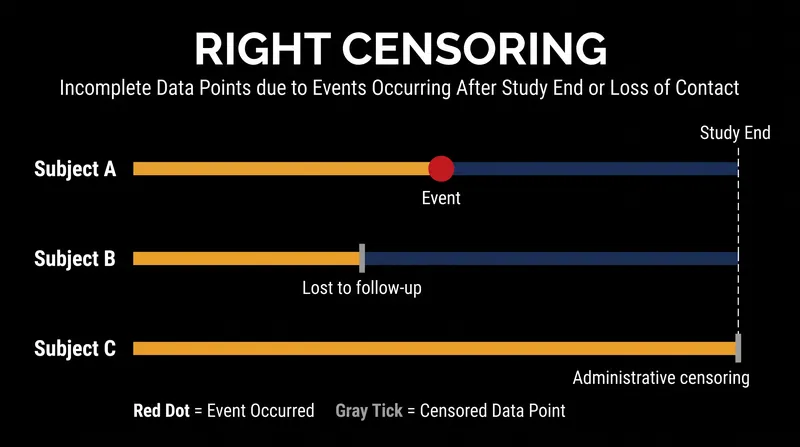

This phenomenon is known as "censoring," specifically right-censoring. It means the exact time of the event is unknown, but the researcher knows the subject survived at least up to a certain point. A naive approach would simply discard these incomplete records, but doing so introduces massive bias, artificially lowering the estimated survival time because only the earliest failures are counted.[1]

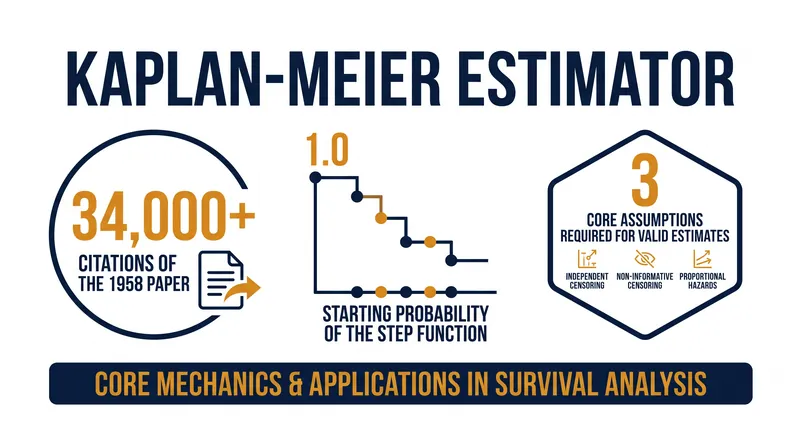

To solve this, Edward Kaplan and Paul Meier independently developed similar non-parametric methods in the 1950s. The editor of the Journal of the American Statistical Association convinced them to merge their work, resulting in a seminal 1958 paper that has since been cited over 34,000 times. Their solution, the Kaplan-Meier estimator, became the gold standard for survival analysis.[1][5]

The mechanics of the Kaplan-Meier estimator are elegant in their simplicity. Rather than trying to fit the data to a pre-defined distribution curve (like a bell curve or a Weibull distribution), it calculates the probability of survival empirically at each specific time an event occurs.[1][4]

It does this by breaking time down into intervals defined by the events themselves. For any given interval, the algorithm calculates the conditional probability of surviving that specific period, given that the subject had already survived up to the start of it. The overall survival probability at any time is simply the product of all these conditional probabilities multiplied together.[1][4]

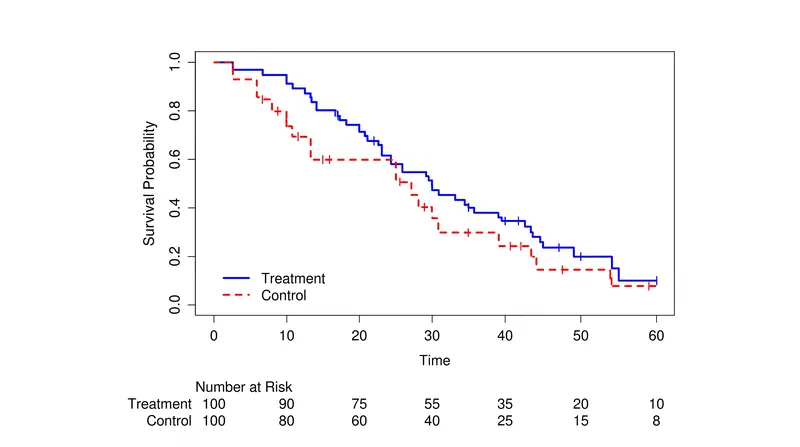

Visually, this creates the iconic Kaplan-Meier curve: a step function that starts at 100% (or 1.0) on the y-axis and steps downward over time on the x-axis. The curve only drops when an actual event (like a death or a subscription cancellation) is observed.[2][6]

The genius of the method lies in how it handles censored data. When a subject is censored—say, a patient withdraws from the study at month six—the curve does not drop. Instead, that patient is simply removed from the denominator (the "number at risk") for all subsequent calculations.[4][5]

On the chart, these censored observations are typically marked with vertical tick marks or crosses on the flat parts of the step function. A common misinterpretation is assuming that a tick mark represents a drop in survival; in reality, it represents a subject who survived up to that point but whose subsequent fate is unknown.[4][5]

Because censored subjects shrink the "number at risk," each subsequent event causes a proportionally larger drop in the survival curve. If 100 people are at risk, one event drops the curve by 1%. But if censoring has reduced the risk set to just 10 people, a single event will drop the curve by 10%.[4][6]

This dynamic makes the "tail" of a Kaplan-Meier curve highly volatile. As the number at risk dwindles toward the end of the observation period, the confidence intervals widen dramatically. A curve that looks stable for the first two years might show massive, erratic steps in year three simply because only a handful of subjects remain.[1][4]

For the Kaplan-Meier estimator to be valid, it relies on a few critical assumptions. The most important is "non-informative censoring." This means the reason a subject was censored must be entirely independent of their likelihood of experiencing the event.[4][6]

If patients are dropping out of a clinical trial because the drug is making them too sick to continue, the censoring is informative. The algorithm will blindly assume those patients had the same future survival prospects as the healthy patients who stayed, leading to a falsely optimistic survival curve.[3][4]

Another limitation of the Kaplan-Meier method is that it is univariate. It can easily compare the survival curves of two distinct groups (e.g., Treatment A vs. Treatment B) using a log-rank test, but it cannot easily adjust for multiple continuous variables like age, weight, or baseline blood pressure.[3][4]

When researchers need to account for multiple confounding variables, they turn to the Cox Proportional Hazards model, introduced by Sir David Cox in 1972. While Kaplan-Meier is descriptive and visual, Cox regression is inferential and multivariate.[3][4]

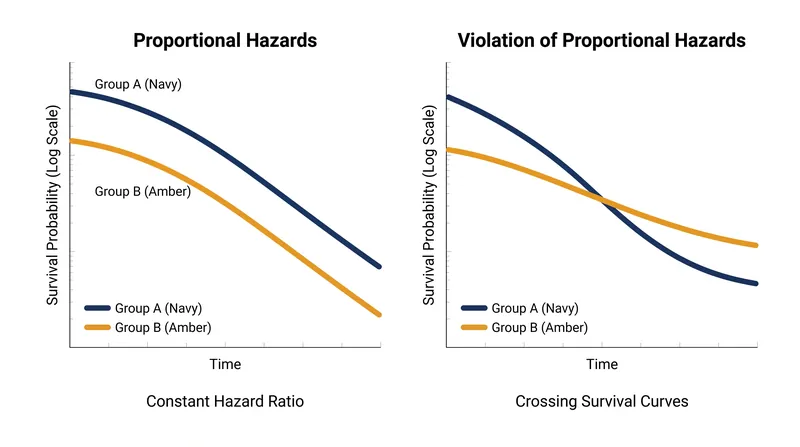

The Cox model estimates the "hazard ratio"—the relative risk of the event occurring in one group compared to another, adjusted for covariates. However, it relies on the strict "proportional hazards" assumption: that the ratio of risks between the two groups remains constant over time.[3][6]

If a surgical intervention carries a high immediate risk of mortality but offers excellent long-term survival, while a medical treatment has low immediate risk but poor long-term efficacy, their hazard ratio is not constant. In such cases, the Cox model's single summary number can be deeply misleading, and the visual evidence of crossing Kaplan-Meier curves is required to understand the true dynamic.[2][5]

Today, survival analysis has expanded far beyond its medical origins. Reliability engineers use it to predict when mechanical components will fail, while data scientists in the tech sector use it to model user engagement, customer lifetime value, and subscription churn. By embracing the reality of incomplete data rather than discarding it, the Kaplan-Meier estimator remains one of the most robust and widely used statistical tools in modern data analysis.[1][5]
