The Mechanics of Principal Component Analysis: How Dimensionality Reduction Works and When to Use It

Principal Component Analysis (PCA) is a mathematical algorithm that reduces the number of variables in a dataset while preserving as much of the original information as possible. Stated plainly, it takes a high-dimensional space—imagine a spreadsheet with thousands of columns—and flattens it into a smaller, denser set of features by finding the most important angles from which to view the data. It is the standard mathematical solution to the "curse of dimensionality," a phenomenon where adding more variables to a machine learning model exponentially increases the volume of the data space, making it sparse and causing algorithms to overfit.[1][2]

To understand how PCA works, one must first understand variance. Variance measures how spread out a set of data points is. The algorithm operates on the foundational principle that the directions in the data with the highest variance contain the most critical information or signal, while directions with low variance are largely noise. By isolating these high-variance directions, the algorithm can discard the rest without losing the fundamental shape and relationships of the dataset.[1][4]

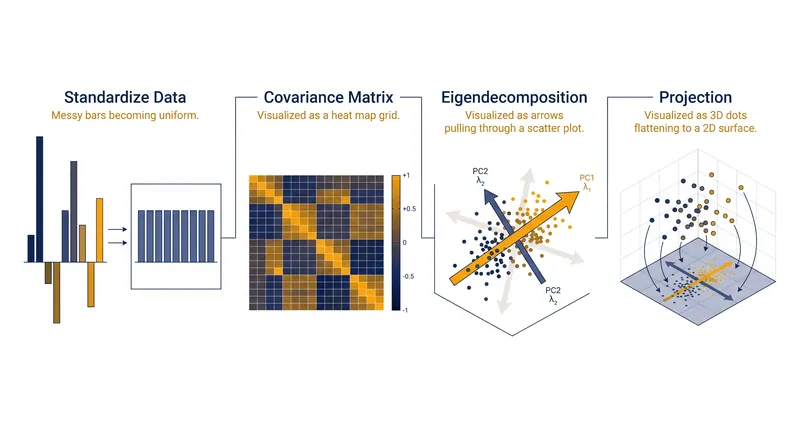

The mechanism begins with standardization, which is a strict prerequisite. Because PCA is highly sensitive to the scale of the initial variables, all features must be normalized to a common scale before any calculations occur. If a dataset contains "age" measured in tens and "income" measured in tens of thousands, the algorithm will incorrectly identify income as the most important feature simply because its absolute variance is mathematically larger. Standardization forces every variable to have a mean of zero and a standard deviation of one, leveling the playing field.[2][5]

Once the data is scaled, the algorithm computes a covariance matrix. This is a square mathematical grid that calculates how every single variable in the dataset changes in relation to every other variable. If two variables increase together, they have a positive covariance; if one increases while the other decreases, they have a negative covariance. This matrix captures the entire web of linear relationships within the data, serving as the foundational map for the next step.[1][5][6]

The core engine of PCA is eigendecomposition. The algorithm extracts two mathematical objects from the covariance matrix: eigenvectors and eigenvalues. Eigenvectors represent the directions of the new feature space—the new axes along which the data will be projected. Eigenvalues represent the magnitude of variance that exists along each of those new axes. Together, these pairs define the "principal components" of the dataset.[1][3][4]

These principal components are then sorted by their eigenvalues in descending order. The first principal component (PC1) is the single line through the data that captures the absolute maximum amount of variance. The second principal component (PC2) is drawn completely orthogonal—at a perfect 90-degree angle—to PC1, capturing the maximum remaining variance. This strict orthogonal requirement ensures that the new components are entirely uncorrelated with one another, eliminating the problem of multicollinearity that plagues many regression models.[2][4]

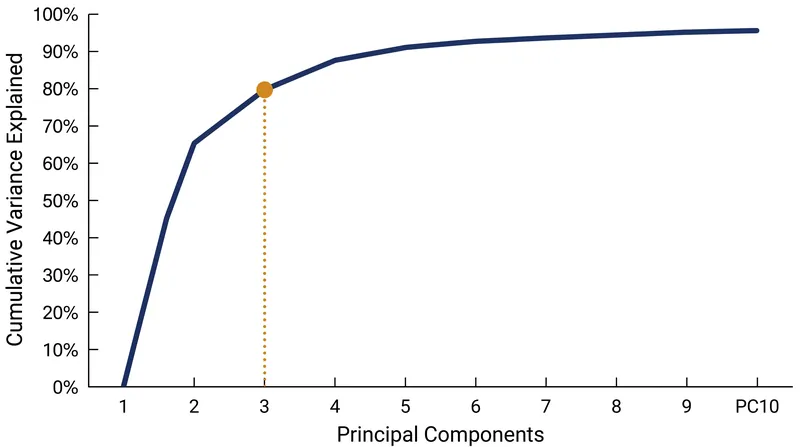

The final step is projection. The original dataset is multiplied by the chosen eigenvectors to transform the original variables into the new, reduced dimensional space. A data scientist might start with 500 original variables but find that the first 10 principal components account for 95 percent of the total variance. By dropping the remaining 490 components, the computational load is drastically reduced while the predictive signal is almost entirely preserved.[3][5]

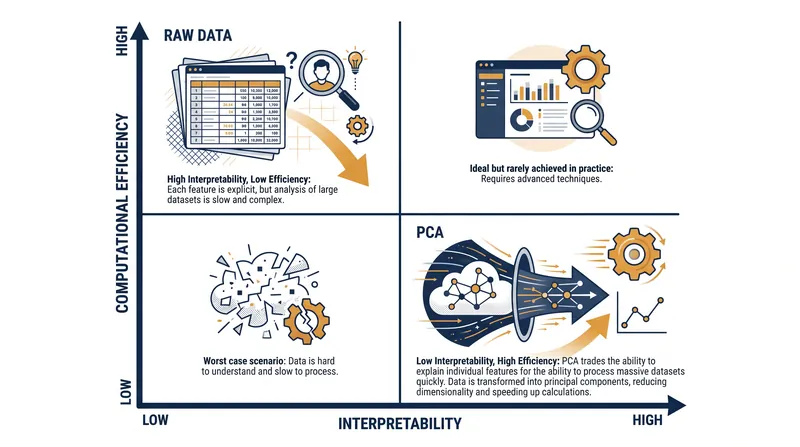

However, this mathematical efficiency comes at a severe cost: the total loss of human interpretability. A principal component is a linear combination of all the original features mixed together. If a predictive model determines that a patient has a high risk of disease based on "PC1," a doctor cannot look at PC1 and know whether the risk is driven by blood pressure, age, or cholesterol. The new variables are mathematically pure but practically opaque to human reasoning.[2][3][7]

This trade-off dictates exactly when PCA should be used. The evidence strongly supports its use in predictive modeling pipelines where accuracy and computational speed are the only metrics of success, such as image recognition, genomic sequencing, or high-frequency trading algorithms. In these domains, the raw variables are too numerous for algorithms to process efficiently, and human interpretation of individual features is rarely required.[6][7]

Conversely, PCA is fundamentally unsuited for diagnostic modeling or business analytics where stakeholders need to understand the "why" behind a prediction. If a marketing team needs to know which specific demographic variable is driving customer churn, transforming those variables into uninterpretable principal components destroys the utility of the analysis. Furthermore, because PCA only captures linear relationships, it will fail to compress data where the underlying structure is highly non-linear, requiring more complex manifold learning techniques like t-SNE or UMAP to preserve local structures.[4][6][7]
