Scientists Expand Protein Samples One Billion Times to Pinpoint Amino Acids With Standard Microscopes

For centuries, biology has been constrained by the fundamental laws of physics. The diffraction limit of light dictates that standard microscopes cannot resolve structures smaller than about 200 nanometers. [7] To see the individual proteins and amino acids that drive human health and disease, scientists have been forced to rely on cryo-electron microscopy (cryo-EM)—a technique requiring multi-million-dollar machines, specialized facilities, and extensive training. [2][4]

But a radically different approach is turning structural biology inside out. Rather than building more powerful lenses to zoom in on microscopic structures, researchers are using highly absorbent polymers to physically inflate the biological samples themselves. [2] According to a new report in Nature, scientists have now successfully stretched protein samples to one billion times their original volume, allowing individual amino acids to be pinpointed using ordinary light microscopes. [1][1]

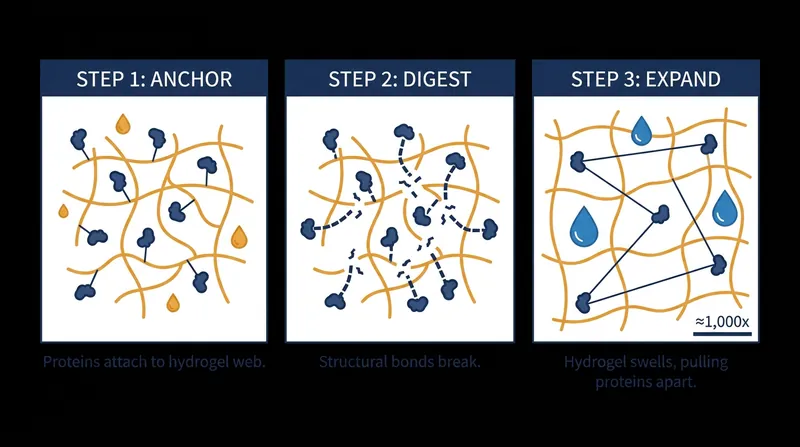

The technique, known as expansion microscopy (ExM), relies on sodium acrylate—the same super-absorbent hydrogel material used in baby diapers. [2] When infused into a biological sample and exposed to water, the polymer matrix swells dramatically, pulling the attached biomolecules apart in all directions. [5]

The concept was first pioneered a decade ago at the Massachusetts Institute of Technology, where researchers achieved a 100-fold volume expansion. [5] Since then, the field has raced to push the limits of how far a cell can be stretched without tearing its fundamental architecture. [3] The latest breakthrough achieves a 1,000-fold linear expansion, which translates to a one-billion-fold increase in total volume. [1][1]

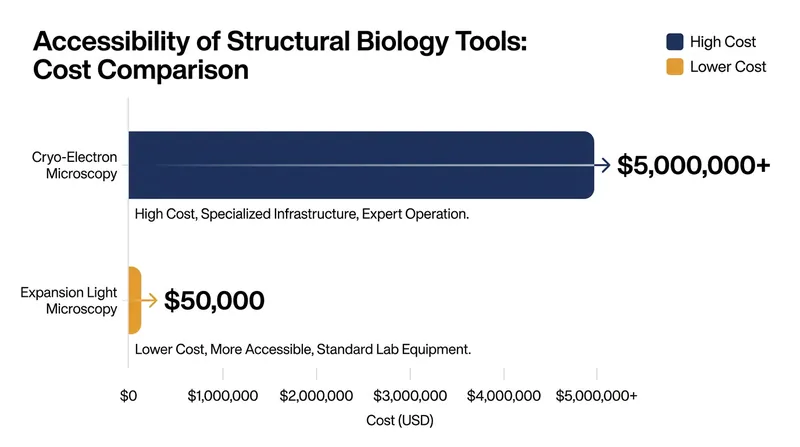

A primary claim driving the adoption of expansion microscopy is that it democratizes high-resolution structural biology. By physically enlarging the sample, the need for advanced optical hardware is eliminated. [7] Standard epifluorescence microscopes, which are ubiquitous in university labs and cost a fraction of a cryo-EM setup, can now achieve sub-nanometer resolution. [4][2][4]

Evidence supporting this claim is robust. Previous iterations of the technology, such as One-step Nanoscale Expansion (ONE) microscopy, successfully visualized the shapes of individual membrane and soluble proteins at around 1-nanometer resolution using conventional light microscopes. [4] The new billion-fold expansion protocol pushes this boundary even further, allowing researchers to identify specific amino acid sequences within those proteins. [1][1][2]

A second major claim is that the technique preserves the structural integrity of the proteins, despite the massive physical forces involved. A historical hurdle for expansion microscopy was the assumption that stretching a cell so violently would destroy the very proteins researchers were trying to study. [3] Early protocols required enzymes to digest structural proteins just to allow the gel to expand, leaving behind only an empty gel with fluorescent labels. [3]

However, recent innovations have solved this problem. Advanced hydrogel formulas now retain a broad spectrum of biomolecules, including proteins, nucleic acids, and carbohydrates, keeping them intact as they are pulled apart. [3] The expansion is highly isotropic—meaning it stretches evenly in all dimensions—preserving the relative spatial organization of the molecules. [4][2]

Proponents also claim that this breakthrough will significantly accelerate drug discovery and disease diagnosis. The ability to see individual proteins and their conformational changes has profound implications for medicine. [7] Researchers have already used expansion techniques to observe the structural shifts in calmodulin, a 17-kDa calcium-binding protein, as it interacts with other molecules. [4][2][4]

Furthermore, the technology is being applied directly to clinical diagnostics. In recent trials, nanoscale expansion was used to analyze the morphology of protein aggregates in the cerebrospinal fluid of patients with Parkinson's disease. [4] By making it easier to spot these misfolded proteins early, clinicians hope to dramatically improve diagnostic timelines for neurodegenerative conditions. [7][2][4]

To maintain transparent uncertainty, researchers acknowledge the physical limitations of isotropic expansion. The core assumption of expansion microscopy is that the hydrogel swells perfectly evenly at the molecular scale. [4] If the gel matrix is heterogeneous, the expansion could distort the shape of the protein, leading to inaccurate structural models. [7][2][4]

While researchers have demonstrated that the expansion is isotropic down to the nanoscale, verifying this at the level of individual amino acids remains challenging. [1] Comparing expanded light-microscopy images with established cryo-EM structures is currently the standard method for validating the technique, but discrepancies can still arise depending on how the sample is prepared. [4][1][2]

Another limitation is processing time. While the imaging itself is fast and cheap, preparing the expanded samples can be labor-intensive. [7] However, recent adaptations using microwave-assisted protocols have successfully reduced the workflow from several days to just a few hours, suggesting that the technique is rapidly maturing toward high-throughput applications. [6][3][4]

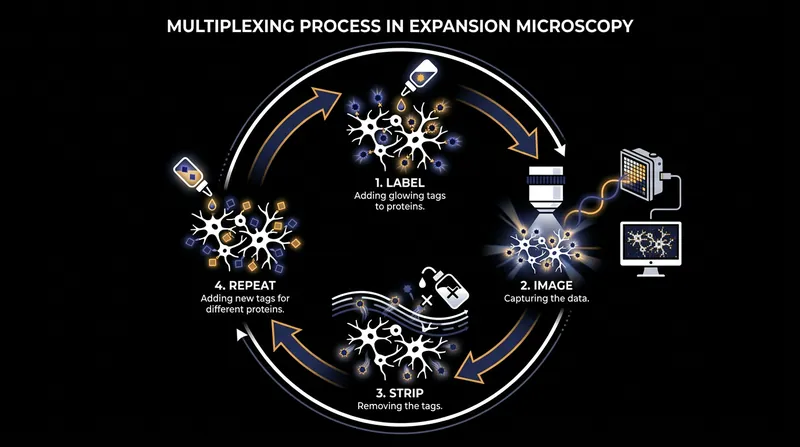

The ability to multiplex—labeling dozens of different proteins in a single sample—is also expanding the utility of the method. [5] Researchers can now link fluorescent antibodies to specific proteins, image them, strip them away, and repeat the process. [5] This allows biologists to visualize complex protein networks and generate new hypotheses about how they interact in real-time. [5]

Ultimately, the billion-fold expansion milestone represents a paradigm shift in how we study the building blocks of life. [1] By replacing multi-million-dollar hardware with clever chemistry, the scientific community is unlocking a new era of accessible, high-resolution biology. [7] As the protocols become faster and more refined, the inner workings of the cell will soon be visible to anyone with a standard microscope and a bit of diaper gel. [2][1][4]
