Replacing Per-User HTTP Delivery With Shared Inboxes: How ActivityPub Compresses Fan-Out Across Federated Social Servers

On January 23, 2018, the World Wide Web Consortium (W3C) published the ActivityPub specification, formalizing the protocol that now powers decentralized social networks. The standard defined a simple mechanism for servers to exchange messages. However, it also introduced a massive scaling problem for popular accounts.[1]

In a centralized network, a user with one million followers writes a post once, and a single database updates to serve it to everyone. In a federated network, servers must actively push that post to every individual follower. This process is known as fan-out delivery.[3]

Under the naive implementation of ActivityPub, an origin server must send a distinct HTTP POST request to the personal inbox of every single follower. If an account has 10,000 followers spread across various instances, the server must execute 10,000 separate outbound network requests.[1][2]

This creates a severe bottleneck. A sudden viral post can overwhelm the origin server's background workers, filling outbound message queues and consuming massive amounts of bandwidth. The network effectively launches a distributed denial-of-service attack against itself through normal operation.[2][5]

To prevent this architectural collapse, the W3C included an optional but critical optimization in Section 7.1.3 of the specification. This mechanism, known as the shared inbox, fundamentally alters how federated servers route public messages.[1]

The Architecture of the Shared Inbox

Every user on an ActivityPub network is represented by an Actor object, formatted as a JSON-LD document. This document contains cryptographic keys, profile metadata, and the URLs for the user's personal inbox and outbox.[1][3]

When a server supports optimized delivery, it adds a `sharedInbox` endpoint to this Actor document. This URL represents a single, server-wide collection point rather than a user-specific destination.[1]

The W3C specification states that a server "MAY reduce the number of receiving actors delivered to by identifying all followers which share the same sharedInbox." Instead of addressing users individually, the origin server groups them by their host instance.[1]

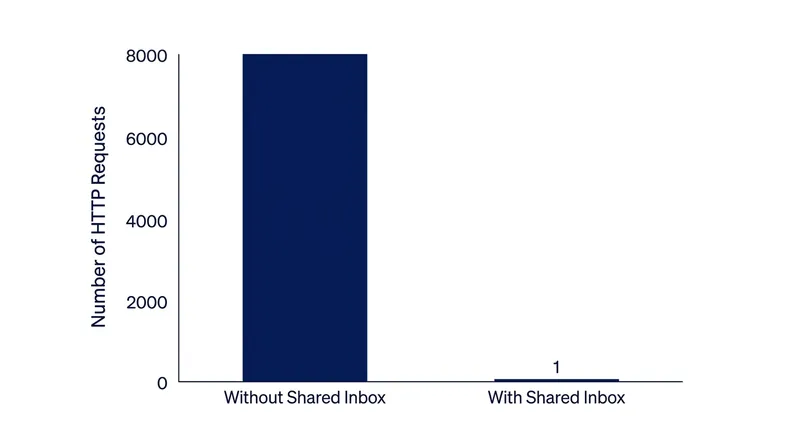

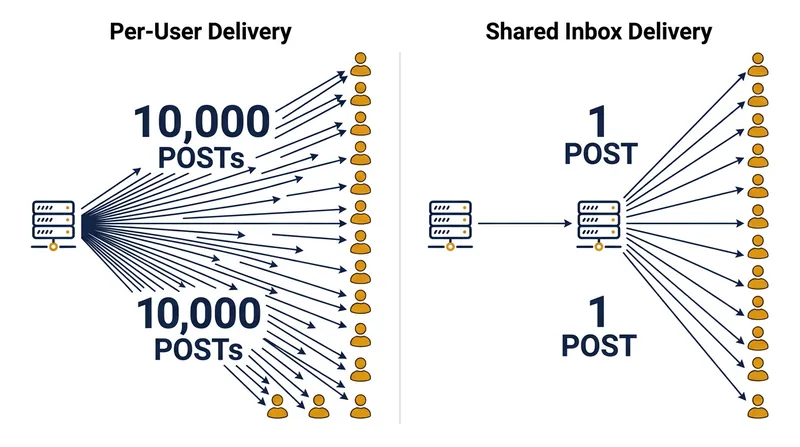

If 8,000 of a user's 10,000 followers reside on the Mastodon.social instance, the origin server skips the 8,000 personal inboxes. It sends exactly one HTTP POST request to the Mastodon.social shared inbox, containing the activity and its intended audience.[5]

The receiving server then assumes the routing burden. It parses the incoming 12-kilobyte JSON payload, checks the addressing fields, and inserts the post into the local timelines of the relevant 8,000 users.[2][4]

Mathematical Compression of Network Traffic

This shift in responsibility compresses outbound network traffic by orders of magnitude. The delivery complexity drops from a linear scale based on total followers to a scale based purely on the number of unique receiving servers.[5]

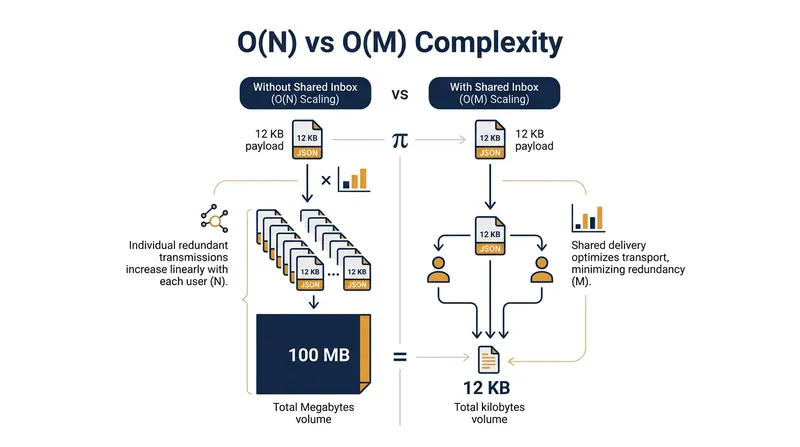

For highly concentrated networks, this optimization is the difference between a functional server and a crashed one. Sending a single payload once requires minimal resources, whereas sending it 8,000 times consumes nearly 100 megabytes of outbound bandwidth.[5]

"For servers hosting many actors, delivery to all followers can result in an overwhelming number of messages sent," the W3C specification notes. The shared inbox was designed explicitly to serve this high-density use case.[1]

Frameworks like Fedify automatically implement this logic. When the fan-out process begins, the software scans the follower list, deduplicates the destination URLs by their shared inbox endpoints, and dispatches the consolidated payload.[2]

This efficiency relies entirely on the receiving server accurately processing the payload. If an origin server attempts to deliver to an inbox on a non-federated server, the W3C mandates it should receive a 405 Method Not Allowed response.[1]

Idempotency and Delivery Failures

Network requests frequently fail due to timeouts, server restarts, or DNS errors. ActivityPub servers must retry failed deliveries, which introduces the risk of duplicate messages arriving at a shared inbox.[2]

To handle this, the protocol relies on idempotency—the ability to process the same operation multiple times without changing the result. Every ActivityPub object carries a unique identifier formatted as a URL.[1][2]

When a shared inbox receives a payload, the server checks this identifier against its local database. If the identifier already exists, the server discards the duplicate request, preventing the same post from appearing twice in a user's feed.[2][4]

Different server implementations handle this deduplication at different layers. Some use a per-inbox strategy, tracking identifiers strictly within the shared endpoint, while others use a per-origin strategy to track activities across the entire receiving server.[2]

If a remote server is permanently offline, the origin server will eventually exhaust its retry attempts. The W3C specification recommends that servers perform delivery asynchronously and gracefully abandon unreachable endpoints after a set period.[1]

Privacy Constraints and Addressing

The shared inbox optimization is incredibly powerful, but it cannot be used for every type of message. Its utility is strictly limited by the privacy expectations of the payload being delivered.[4]

Public posts, addressed to the special W3C Public collection, are perfect candidates for shared delivery. The receiving server knows it can safely distribute the content to anyone who follows the author.[1][4]

However, direct messages and followers-only posts require stricter handling. If an activity is addressed only to specific individuals, sending it to a server-wide shared inbox exposes the private payload to the receiving server's administrators.[4]

While the W3C specification allows followers-only posts to utilize the shared inbox, many implementations avoid doing so for sensitive communications. True direct messages must always be routed to the recipient's personal inbox endpoint.[1][4]

This creates a bifurcated delivery system. Public broadcasts achieve massive network compression, while private communications remain unoptimized, trading bandwidth efficiency for cryptographic and architectural privacy.[5]

The Foundation of the Fediverse

Without the shared inbox mechanism, the modern Fediverse could not exist at its current scale. While advocates often praise the ideological benefits of decentralization, the practical reality is that the network overhead of per-user delivery would bankrupt independent server operators.[3][5]

By standardizing this optimization, the W3C allowed decentralized networks to mimic the efficiency of centralized platforms. The origin server acts as a broadcaster, and the receiving servers act as local distribution hubs, solving a mathematical bottleneck rather than a philosophical one.[1][5]

This architecture mirrors the design of email, where a message sent to multiple employees at the same company is transmitted once to the corporate mail server, which then routes it to individual inboxes.[3]

As new platforms like Threads and Flipboard adopt ActivityPub, the density of users on single servers is increasing dramatically. A single shared inbox might now represent millions of potential recipients.[5]

The shared inbox remains one of the most elegant solutions in the ActivityPub specification. It proves that decentralized protocols can scale globally, provided they intelligently distribute the computational workload across the network.[1][5]
