Low-Frequency Discrete Cosine Transforms Bypass the Avalanche Effect: How Perceptual Hashes Detect Re-Uploaded Images Across Social Platforms

When a user uploads a copyrighted photograph to a social media platform, the image rarely arrives in its original state. The platform's servers compress the file, the user might have cropped the edges, and a filter may have altered the color balance. If the platform relied on standard cryptographic hashes like SHA-256 to detect the duplicate, it would fail.[1][3]

Cryptographic hashes are designed to exhibit the "avalanche effect," where changing a single bit of the input file completely randomizes the output string. This is essential for verifying software integrity, but it makes cryptographic hashes useless for identifying images that have been visually preserved but digitally altered.

The Avalanche Effect and Its Discontents

To solve this, platforms use perceptual hashes (pHash), which intentionally bypass the avalanche effect. A perceptual hash generates a fingerprint based on the visual structure of the image, ensuring that two images that look the same to a human will produce similar hash values, even if their underlying file data differs significantly.[2][3]

The core mechanism behind a standard perceptual hash is the Discrete Cosine Transform (DCT). The DCT is a mathematical operation that expresses a finite sequence of data points in terms of a sum of cosine functions oscillating at different frequencies. In image processing, it separates the image into parts of differing importance with respect to the image's visual quality.[2]

Isolating Low-Frequency Structure

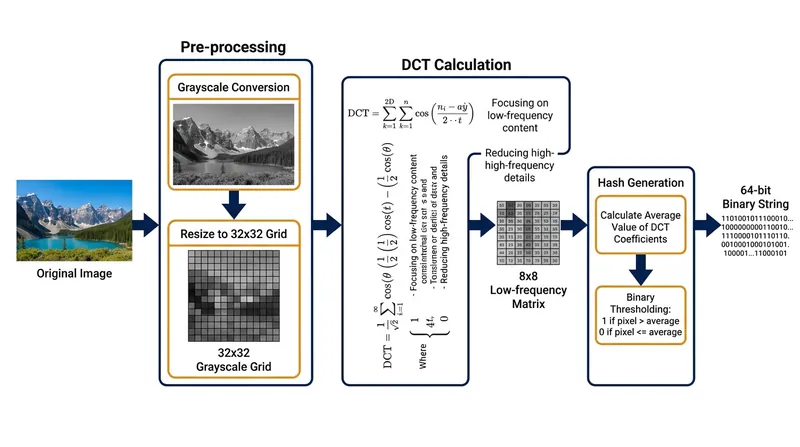

When an image is processed for a pHash, it is first reduced to grayscale and shrunk to a small size, typically 32 by 32 pixels. This removes high-frequency details like sharp edges and fine textures, which are easily destroyed by compression or scaling. The DCT is then applied to this simplified 1,024-pixel block.[2][3]

The DCT outputs a matrix of coefficients representing the image's frequencies. The pHash algorithm discards the high-frequency coefficients, keeping only the low-frequency data from the top-left corner of the matrix—usually an 8 by 8 block. These 64 values represent the lowest frequencies in the picture, capturing the broad, structural layout of light and dark areas.[2]

Because compression algorithms like JPEG also discard high-frequency data to save space, the low-frequency structure remains largely untouched across different compression levels. By isolating these low frequencies, the pHash ensures that the resulting fingerprint is robust against common image manipulations.[2][3]

Calculating the Hamming Distance

To generate the final hash, the algorithm calculates the median value of the 64 low-frequency coefficients. It then compares each coefficient to the median, assigning a 1 if it is above the median and a 0 if it is below. This creates a 64-bit integer—the perceptual hash.[2]

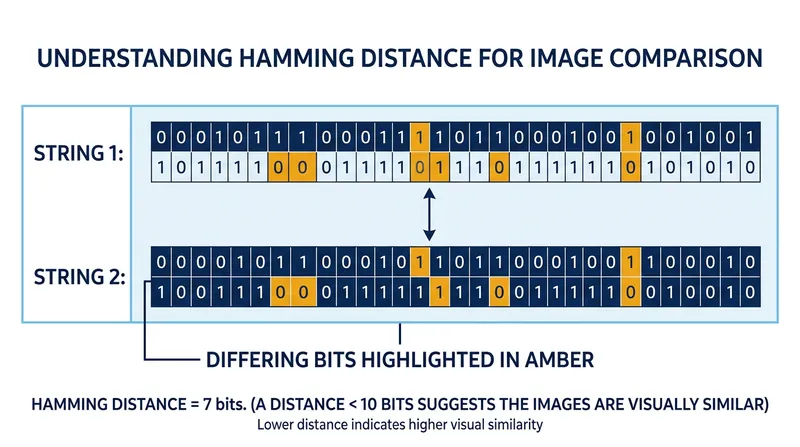

When a platform wants to check if a newly uploaded image matches a known file, it computes the pHash of the new image and compares it to the hashes in its database using the Hamming distance. The Hamming distance is simply the number of bit positions in which the two 64-bit hashes differ.[3]

If two images are identical, their Hamming distance is zero. If the distance is small—typically less than 10 bits—the images are considered visually similar, indicating a likely re-upload, crop, or slight color adjustment. This allows automated systems to flag copyrighted material or known abusive content even when the files have been modified.[2][3]
