Internal Pressure Doubles Circumferential Stress, Forcing Cylindrical Pipes to Unzip Lengthwise

Engineers who design pressurized pipelines and industrial storage vessels control exactly two primary variables to prevent a catastrophic rupture: the specific alloy they select and the precise thickness of the wall. When they next test a newly fabricated cylinder to absolute failure, they know exactly how it will break. The vessel will never snap in half across its middle, nor will the end caps blow off.

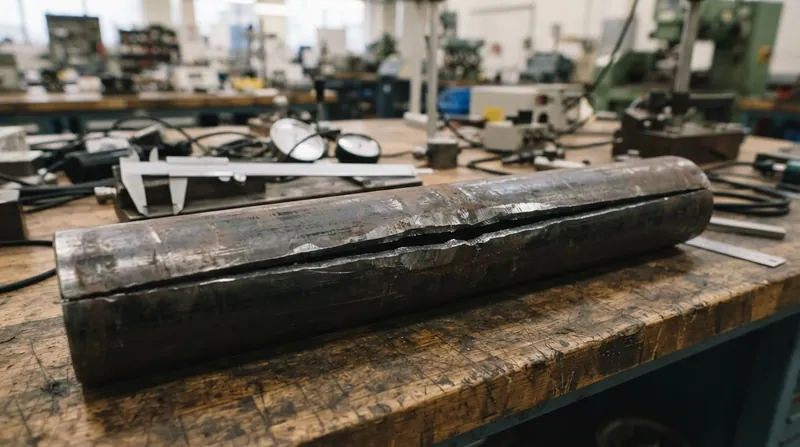

Instead, the cylinder will tear lengthwise, unzipping straight down its side in a violent and immediate release of stored energy. This specific failure mode is not a manufacturing defect, a welding error, or a coincidence of metallurgy. It is a strict mathematical consequence of how internal pressure distributes force against a curved boundary.

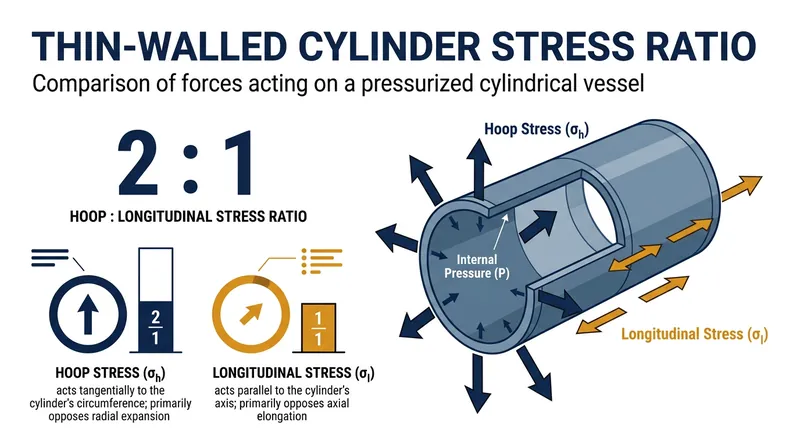

The physics of containment dictates that a fluid pushing outward against a cylindrical wall generates two distinct planes of tension simultaneously. The first is longitudinal stress, which acts parallel to the pipe's axis and attempts to stretch the cylinder end-to-end. The second is circumferential stress, commonly known as hoop stress, which acts tangentially around the curve and attempts to expand the pipe's diameter.

"The wall is twice as highly stressed in the circumferential direction as along the axis," notes a 2026 engineering analysis published on DEV Community. "That is why a failing cylinder tears lengthwise — the crack opens on the plane that the larger stress is trying to pull apart."[6]

Because the hoop stress is mathematically double the longitudinal stress, the material will always reach its yield point radially long before it does axially. This 2:1 ratio is the single most important fact in pressure vessel design, forming the absolute foundation of safety codes and infrastructure engineering worldwide.[1][6][7]

The Mathematics of Containment

The exact relationship between these competing forces emerges from a simple static equilibrium calculation. For a thin-walled cylinder, the hoop stress is calculated by multiplying the internal fluid pressure by the internal diameter, and then dividing that product by twice the wall thickness.[1]

Conversely, the longitudinal stress is calculated by multiplying the internal pressure by the diameter, but dividing the result by four times the wall thickness. Because the denominator in the axial equation is exactly twice as large, the resulting longitudinal stress is exactly half the magnitude of the circumferential stress.[1][6]

This mathematical reality means that half of the steel in any pressurized pipe is structurally redundant with respect to the axial load. The wall thickness must be doubled entirely just to contain the hoop stress, making cylindrical vessels inherently inefficient compared to other geometric shapes.[1][6]

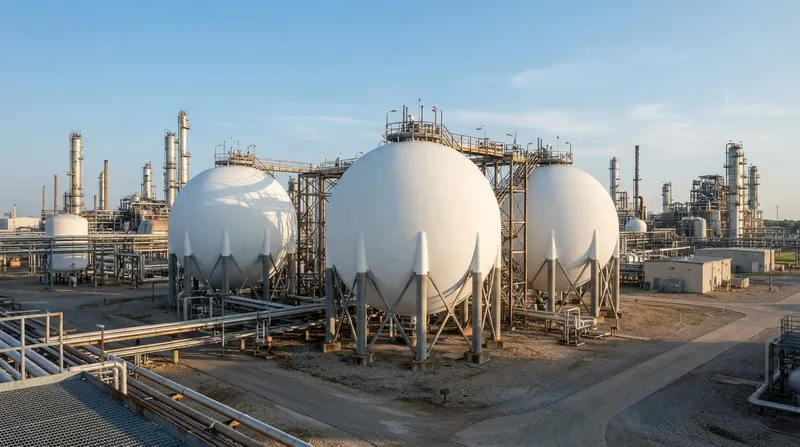

A spherical vessel, by contrast, carries only the lower longitudinal stress equivalent in every possible direction. Because its geometry is perfectly symmetric across all axes, a sphere requires only half the wall thickness of a cylinder to safely contain the exact same internal pressure.[1][6]

This is precisely why massive industrial gas storage tanks and high-altitude weather balloons are designed as spheres rather than cylinders. By eliminating the geometric penalty of the hoop stress, a spherical pressure vessel maximizes the volume of stored fluid while minimizing the weight and cost of the required steel.[1][6]

However, pipes must be cylindrical to transport fluids over long distances, so this material inefficiency is an unavoidable geometric penalty. Engineers accept the 2:1 stress ratio as a fundamental constraint of fluid transport, sizing every pipeline specifically to survive its circumferential loads rather than its axial ones.[3][5]

The Thin-Wall Assumption

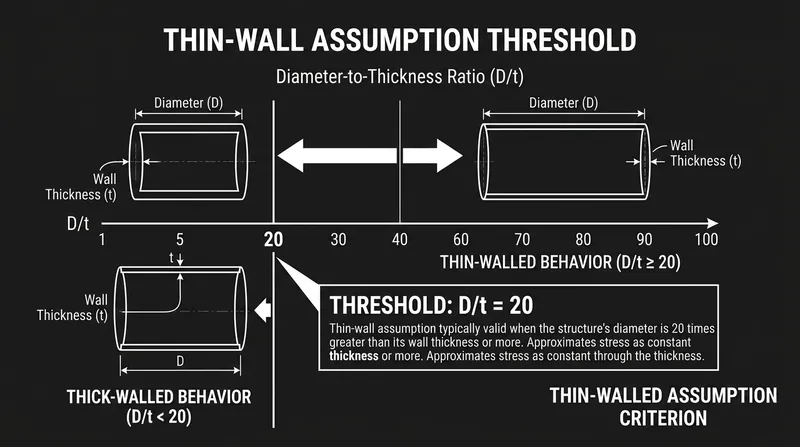

These clean mathematical relationships rely on a specific geometric condition known in mechanics as the thin-wall assumption. The standard engineering rule dictates that the membrane formulas remain valid only when the ratio of the cylinder's internal diameter to its wall thickness is 20 or greater.[1]

When a pipe meets this specific threshold, the stress is assumed to be distributed uniformly through the entire thickness of the metal. The membrane theory applies perfectly, allowing engineers to use the simple 2:1 ratio to specify materials and predict failure points with exceptionally high confidence.[1][6]

Below that ratio, the vessel is classified as thick-walled, and the stress distribution becomes highly non-uniform. In thick-walled applications like hydraulic press cylinders or deep-sea submersibles, the hoop stress is highest at the innermost surface and decays exponentially toward the outer edge.[3][4]

In heavy industrial applications like double-acting hydraulic presses, the cylinder walls must withstand immense cyclic pressures. While the hoop stress still dominates the structural design of these closed-end cylinders, the longitudinal stress is not zero and must be analytically addressed to prevent long-term metal fatigue.[4]

When pressurizing the rod side of a hydraulic actuator, the fluid transmits a compressive force while the cylinder wall experiences axial tension from the reaction force. Engineers must combine the hoop, longitudinal, and radial stresses using advanced failure theories to ensure the actuator survives millions of operational cycles.[4]

For these robust vessels, engineers must abandon the simple membrane equations and apply complex Lamé formulas to capture the stress gradient accurately. Using the standard thin-wall formula on a thick-walled vessel will dangerously under-predict the peak stress at the inner surface, risking a premature and catastrophic rupture.[1]

Real-World Pipeline Failures

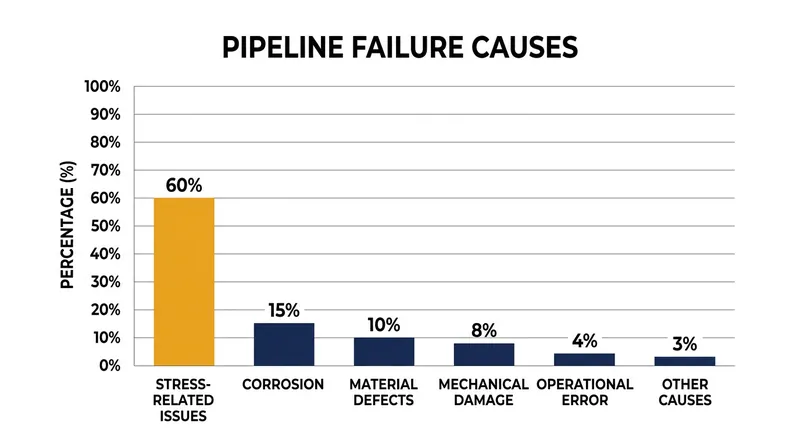

Despite a thorough theoretical understanding of these physics, managing circumferential forces remains a massive industrial challenge. According to 2026 data from PatSnap, approximately 60 percent of all pipeline failures worldwide are directly attributed to stress-related issues.[5]

Hoop stress is the predominant factor in catastrophic pipeline ruptures across the energy sector. When a high-pressure transmission line fails, the resulting lengthwise tear can release substantial volumes of oil, gas, or hazardous chemicals into the surrounding ecosystem before automated safety valves can isolate the damaged section.[5]

Soil contamination represents one of the most persistent environmental impacts of these stress-induced failures. When a pipeline unzips, the rapid depressurization creates a shockwave that can excavate a massive crater, spreading hazardous materials over a wide radius and complicating the subsequent cleanup efforts.[5][7]

The environmental damage from these incidents often persists for decades, contaminating groundwater aquifers and destroying local agriculture. Consequently, regulatory bodies heavily scrutinize pipeline design, compelling operators to invest in advanced durability technologies and real-time stress monitoring systems to prevent leaks.[5]

Aging infrastructure significantly exacerbates the risk of a blowout. In older vintage pipes manufactured before 1970, geometric imperfections and welding irregularities create dangerous stress concentration points. Modern inspection techniques reveal that even minor variations in wall thickness can increase local hoop stress by 20 to 30 percent above theoretical calculations.[5]

Dynamic Loads and Extreme Climates

Static pressure is rarely the only force acting on a pipeline wall in the field. Temperature fluctuations introduce severe thermal expansion and contraction cycles, creating dynamic stress patterns that interact with the baseline hoop stress to weaken the steel over time.[2][5]

Pipelines operating in extreme climates experience accelerated degradation due to these relentless thermal interactions. Industry data shows that failure rates in harsh environments can increase by up to 40 percent compared to moderate climate installations, as the metal fatigues under the combined environmental and internal loads.[5]

Transient pressure spikes, commonly known as water hammer, present another acute threat to system integrity. Rapid valve closures or sudden pump operations can generate instantaneous hoop stress levels that far exceed the system's design parameters, instantly unzipping a weakened or aging pipe.[5]

Even in residential plumbing, the exact same physics apply. When water freezes inside a copper pipe, it expands by approximately 9 percent, creating localized pressure spikes that can reach an astonishing 25,000 psi. The resulting freeze burst typically manifests as a classic longitudinal tear, proving that hoop stress governs failure at every scale.[8]

Safety Margins and Industry Codes

To prevent these catastrophic unzipping events, the American Society of Mechanical Engineers (ASME) publishes strict codes for pressure vessel and pipeline design. The ASME B31 series dictates the maximum allowable hoop stress levels for both liquid and gas transportation networks across the globe.[5]

For static pressure service, engineers typically target a factor of safety (FOS) of 3 or higher. This means the pipe wall is designed to be at least three times thicker than the mathematical minimum required to survive the anticipated internal pressure, providing a robust buffer against imperfections.[1]

ASME codes also limit the operating stress to a specific fraction of the material's specified minimum yield strength. Gas pipelines are generally restricted to operating at 72 percent of their yield strength, while liquid pipelines are capped at 80 percent, ensuring the metal never approaches its breaking point.[5]

The integration of digital monitoring technologies is now transforming how operators manage these forces. Real-time hoop stress monitoring systems and predictive maintenance platforms are attracting significant investment, allowing companies to track material fatigue before a microscopic crack can initiate.[5]

These proactive intervention strategies represent the future of pipeline integrity. By continuously measuring the circumferential strain against the theoretical limits, operators can replace degraded sections long before the internal pressure forces the steel to unzip.[5][7]

Ultimately, the battle against hoop stress is a defining feature of modern infrastructure. By respecting the 2:1 ratio and designing walls to contain the circumferential forces, engineers ensure that the millions of miles of pressurized pipe beneath our feet remain intact, safely delivering the resources that power the global economy.[3][7]
