How IOMMU Memory Virtualization Blocks PCIe Hardware Cheats in Competitive Gaming

In May 2026, Riot Games published a photograph of a confiscated stack of custom circuit boards, labeling the pile a "$6,000 paperweight." The image marked a major escalation against Direct Memory Access (DMA) cheats, a premium tier of game hacking that abandons software manipulation entirely. Instead of running illicit code on the gaming machine, these setups use specialized hardware to physically siphon data out of the system.[1]

The defense against this hardware-level extraction is not a better software scanner, but a fundamental change in motherboard configuration. Competitive titles now increasingly mandate the Input-Output Memory Management Unit (IOMMU), a hardware virtualization feature built into modern processors. By enabling IOMMU, anti-cheat systems can erect a physical firewall around the game's memory, blinding the external hardware without ever needing to detect the cheat itself.[3]

This shift represents a structural concession in the anti-cheat arms race. Kernel-level drivers, long considered the ultimate authority on a local machine, cannot reliably police hardware that operates below the operating system. By moving the enforcement boundary to the motherboard's memory controller, developers are turning a software vulnerability into a hardware lockdown.[2]

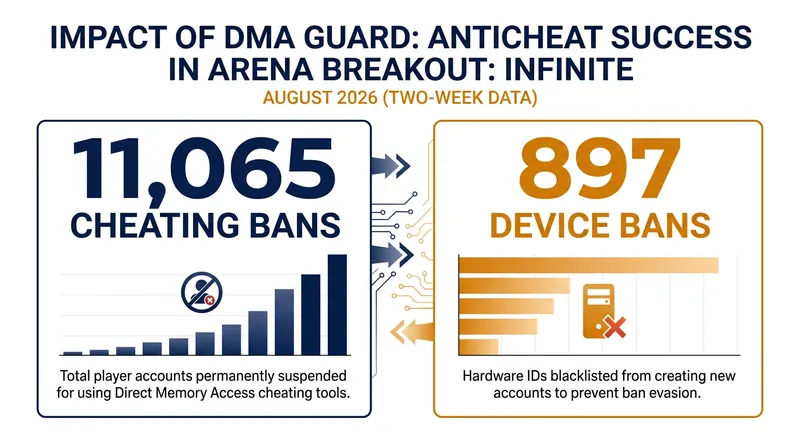

The transition is already reshaping the competitive landscape across major franchises. Following Riot's Vanguard update in May, titles like Arena Breakout: Infinite deployed similar hardware-level memory protection in August 2026, issuing over 11,000 bans in a single two-week window. The era of the undetectable secondary computer is rapidly closing.[1]

How direct memory access bypasses software

Traditional game hacks operate as software on the same machine as the game, modifying files or injecting code into active processes. Anti-cheat systems counter this by scanning the system's memory, monitoring active drivers, and verifying file integrity. If a known cheat signature appears in the operating system, the player is flagged and banned.[2]

Direct Memory Access cheats bypass this entire ecosystem by exploiting the Peripheral Component Interconnect Express (PCIe) bus. A cheater installs a specialized PCIe card—often a reprogrammed Field Programmable Gate Array (FPGA) development board—directly into their motherboard. This card uses the PCIe protocol to read the host system's physical memory without any involvement from the central processing unit.[2]

Because the CPU is bypassed, the operating system remains completely unaware that a memory read has occurred. The anti-cheat software, which relies on the operating system to report suspicious activity, sees a clean machine. The physical card simply extracts the raw data, translating virtual addresses to physical ones, and sends it out through a secondary port.[2]

The extracted data is then routed via a high-speed USB connection to a completely separate secondary computer. This second machine processes the raw memory, extracting player coordinates, health values, and weapon states. Because the actual cheat software runs exclusively on the secondary laptop or desktop, the primary gaming PC remains pristine and scannable.[1][2]

The two-PC hardware ecosystem

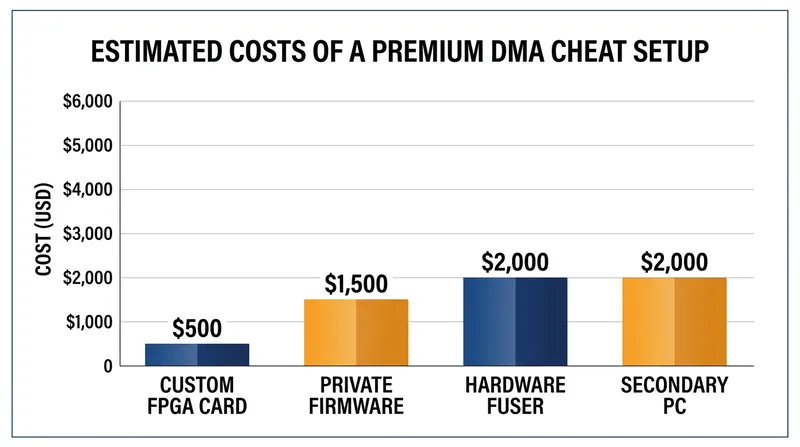

A functional DMA setup requires a complex and expensive chain of hardware, often pushing the total investment past $1,500 to $2,500. The core component is the PCIe card itself, which must be flashed with custom firmware. This firmware is designed to mimic a legitimate hardware device, such as a standard Wi-Fi adapter or an NVMe storage drive, to avoid raising suspicion during basic hardware enumerations.[1][2]

To display the stolen information without modifying the gaming monitor's output, cheaters utilize a hardware fuser. This device takes the clean video feed from the gaming PC and overlays the radar or wallhack visuals generated by the secondary computer. The combined image is then sent to the player's monitor, ensuring that streaming software like OBS captures only the clean, original feed.[1]

For automated aiming, the secondary computer cannot simply send software commands back to the game, as that would trigger immediate detection. Instead, setups employ hardware mouse emulators, such as a KMBox or an Arduino microcontroller. These devices inject physical mouse movements into the gaming PC's USB ports, mimicking human input perfectly.[1]

The most sophisticated DMA configurations operate in a strictly read-only capacity. Writing data back into the game's memory—to remove weapon recoil or alter player models—leaves residual modifications that kernel-level integrity checks can easily catch. By only reading the data and overlaying it externally, the setup maintains a zero-footprint presence on the primary machine.[2]

IOMMU as a hardware firewall

To combat this invisible extraction, anti-cheat developers turned to the Input-Output Memory Management Unit. Known as VT-d on Intel platforms and AMD-Vi on AMD systems, IOMMU was originally designed for enterprise virtualization. It allows a host system to securely assign specific hardware devices to isolated virtual machines, ensuring that one virtual environment cannot access another's memory.

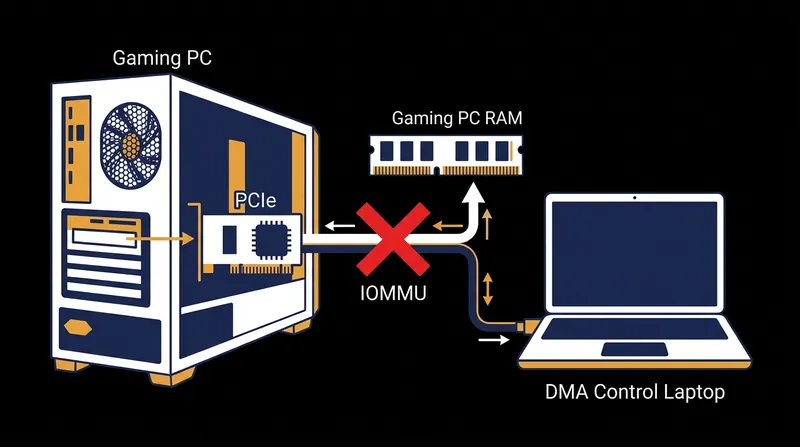

In a gaming context, IOMMU functions as a strict hardware firewall for the system's RAM. When enabled in the motherboard's BIOS, it forces all PCIe devices to route their memory requests through a permission table. The anti-cheat system can then instruct the IOMMU to restrict access, explicitly denying unauthorized PCIe cards from reading the protected memory regions where the game resides.[2]

When a DMA card attempts to siphon data with IOMMU active, the memory controller simply blocks the request and generates a page fault. The cheat card remains physically plugged in, but the specific addresses it needs to generate a wallhack or radar are walled off. The secondary computer receives nothing but empty data.[1]

This defense mechanism is uniquely effective because it operates entirely in hardware. It does not rely on identifying the specific firmware of the cheat card or scanning the secondary computer. By universally enforcing memory isolation, the anti-cheat neutralizes the entire class of DMA attacks regardless of how well the hardware disguises itself.[3]

Enforcement and the bricking myth

The enforcement of IOMMU has caused significant disruption within premium cheating communities. In May 2026, Riot Games updated Vanguard to strictly mandate IOMMU for accounts flagged with suspicious hardware configurations. The update generated repeated page faults that interfered with the FPGA firmware on the cheat devices, corrupting the cards and rendering them unusable.[1]

This led to widespread claims that Vanguard was intentionally destroying expensive computers. Riot Games publicly corrected the misconception, stating, "Disabling IOMMU allows the cheat device to function again, but IOMMU will still be required to play our games." The gaming PC remains entirely functional for everyday tasks; the $6,000 hardware investment is simply neutralized for competitive play.[1]

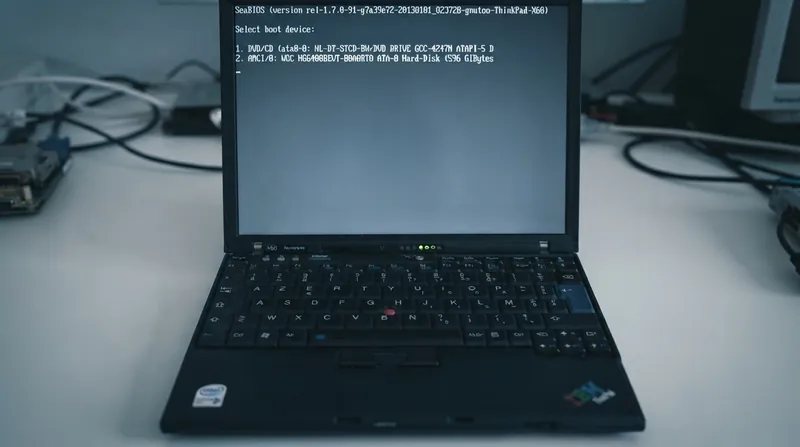

Other studios have rapidly adopted the same standard. In August 2026, Morefun Studios rolled out DMA Guard for Arena Breakout: Infinite, requiring players to manually enable VT-d or AMD-Vi in their BIOS before launching the game. The studio confirmed the feature uses Windows' built-in Kernel DMA Protection to shut down memory-reading hardware at the source.

The requirement is not universally applied to all players immediately. Systems like DMA Guard are primarily deployed against accounts exhibiting unusual login environments, frequent network changes, or suspicious performance metrics. However, as the technology matures, hardware memory protection is becoming a baseline requirement for high-stakes competitive matchmaking.

The future of hardware trust

The reliance on IOMMU is part of a broader industry pivot toward hardware-anchored security. Alongside mandatory TPM 2.0 and Secure Boot, memory virtualization establishes a trusted boot chain. This ensures that the system environment is secure before the operating system even loads, closing the window where malicious firmware can hide itself.

Security researchers are already exploring the next phase: Protected Virtual Machines (PVM). By running the game itself inside a hardware-isolated hypervisor, developers can achieve complete two-way isolation between the game and the host operating system. This would prevent even the most privileged kernel-level administrative access from tampering with the competitive environment.[3]

The battle against DMA cheats demonstrates the limits of software-only enforcement. As illicit hardware becomes more sophisticated and accessible, competitive integrity relies on the physical architecture of the motherboard. By locking down the memory controller, developers are ensuring that the most expensive cheats on the market are defeated by a simple BIOS toggle.[3]
