How A-Star and Dijkstra's Algorithms Trade CPU Cycles for Path Accuracy in Game Development

A player clicks the mini-map in a high-stakes real-time strategy match. Instantly, a squad of fifty units calculates a complex route through a dense forest, around a mountain range, and directly into an enemy base. The game does not freeze, and the frame rate does not drop. That seamless, instantaneous movement relies on a mathematical trade-off executed in a fraction of a millisecond. Behind the screen, the game engine is rapidly deciding whether to spend precious CPU cycles finding the absolute perfect route, or to use a shortcut that finds a functional path before the next frame renders.

At a standard 60 frames per second, a game engine has exactly 16.6 milliseconds to render graphics, process physics, register player inputs, and calculate artificial intelligence behaviors. If pathfinding algorithms consume too much of that narrow window, the simulation stutters, creating a jarring experience that ruins competitive integrity. Developers must constantly balance the computational budget, choosing between finding the mathematically perfect route and finding a "good enough" route fast enough to keep the game running smoothly. This tension defines the architecture of modern virtual worlds.

The historical baseline for guaranteed path accuracy is Dijkstra's algorithm, conceived by Dutch computer scientist Edsger W. Dijkstra in 1956 and published three years later. It operates by exploring all possible paths outward from the starting point in every direction, expanding its search radius uniformly like water flooding a complex maze. It calculates the exact cost to reach every single accessible node on the map until it finally washes over the destination.[6]

"Dijkstra’s Algorithm works well to find the shortest path, but it wastes time exploring in directions that aren't promising," notes Amit Patel in the highly regarded Red Blob Games pathfinding reference. Because the algorithm does not inherently know where the destination lies relative to the start, it evaluates nodes moving in the complete opposite direction just as thoroughly as those moving toward the goal. It is perfectly accurate, but entirely blind.[2]

In a 2018 comparative benchmark published in the International Journal of Information System and Technology, researchers tested Dijkstra against alternative algorithms in a maze runner game environment. The exhaustive search consistently guaranteed the shortest possible path, but the computational cost scaled aggressively. As the grid size increased and the maze complexity deepened, the time required to evaluate thousands of irrelevant nodes quickly became a liability for real-time applications.[3]

To solve this specific performance bottleneck, Stanford Research Institute scientists Peter Hart, Nils Nilsson, and Bertram Raphael published a formal heuristic basis for minimum cost paths in a 1968 IEEE journal. They introduced an algorithm that would eventually dominate the video game industry, naming it A* (pronounced A-Star). It was designed to maintain the mathematical rigor of previous methods while drastically cutting the time required to reach a solution.[4]

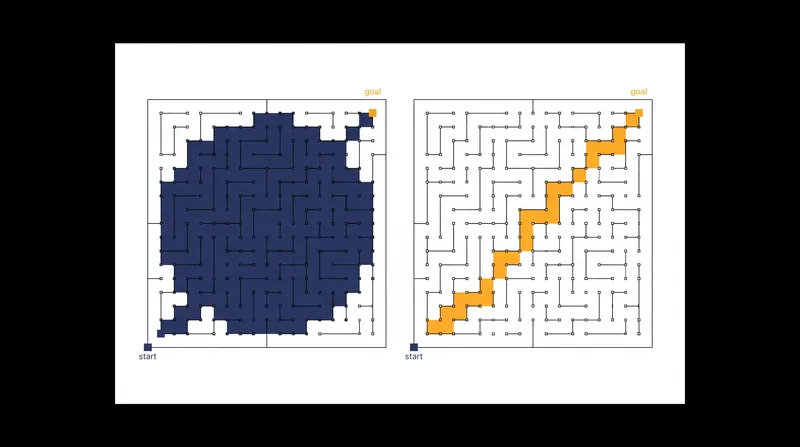

A* modifies Dijkstra's uniform expansion by introducing a heuristic—an educated mathematical guess about the remaining distance from any given node to the final goal. Instead of flooding outward equally in a perfect circle, A* prioritizes exploring the specific nodes that appear to move the entity closer to the destination. It combines the known cost of the path taken so far with the estimated cost of the remaining distance.[5]

This prioritization drastically reduces the total number of nodes the game engine must evaluate before finding a valid route. In a 2023 analysis published by Darcy & Roy Press examining A* in video games, researchers demonstrated that tuning this heuristic allows developers to explicitly control the algorithm's behavior. By adjusting the math, programmers can shift the system from a slow, perfect search into a lightning-fast, approximate one depending on the immediate needs of the game.[1]

The resulting efficiency gain is massive. In open digital terrain, A* can successfully plot a path while evaluating a tiny fraction of the nodes Dijkstra would be forced to check. This targeted approach is exactly what allows modern strategy games and sprawling open-world titles to handle hundreds of active, moving entities simultaneously without exceeding that critical 16.6-millisecond frame budget.[2][7]

However, that incredible speed comes with a strict trade-off in both accuracy and system memory. A* requires the game engine to store the calculated heuristic value for every open node it considers, increasing the memory overhead compared to simpler algorithms. In environments where RAM is heavily constrained, storing thousands of floating-point numbers for pathfinding can become its own performance bottleneck.[1][5]

Furthermore, the algorithm's accuracy is entirely dependent on the quality of its heuristic guess. If the heuristic overestimates the true distance to the goal—perhaps because of a hidden wall or complex terrain penalty—A* loses its mathematical guarantee of finding the absolute shortest path. The digital units will still reach their destination, but they might take a slightly suboptimal, wandering route to get there.[2][4]

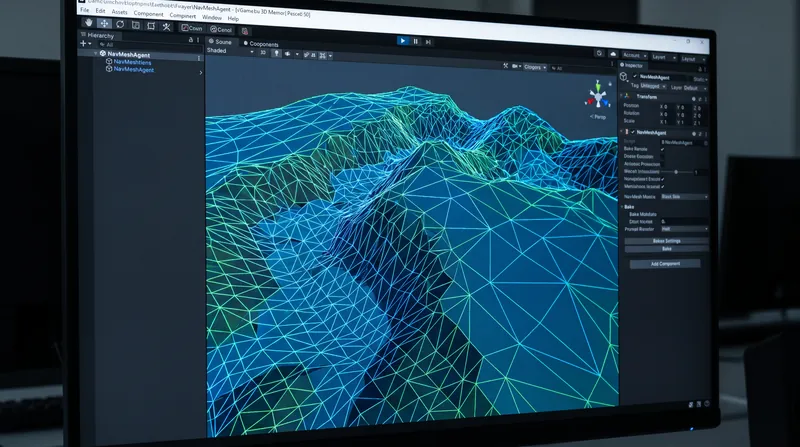

To manage these limitations and maximize performance, modern game engines rarely run A* on a raw, pixel-by-pixel grid. Instead, developers utilize Navigation Meshes (NavMeshes)—simplified, invisible polygonal representations of the walkable terrain layered over the visible geometry. A NavMesh groups thousands of tiny grid squares into a few large, connected shapes.[7]

By executing the A* algorithm across a streamlined NavMesh rather than a dense grid, the system only needs to evaluate a handful of large polygons instead of thousands of individual points. This hybrid approach—combining the directed search of A* with optimized spatial data—delivers the blistering speed required for competitive esports while maintaining the illusion of perfect, calculating intelligence.[7]
