Computational Cost vs. Accuracy: Comparing EKF and Particle Filter Solutions for SLAM

At the 2002 AAAI National Conference on Artificial Intelligence in Edmonton, Canada, researchers Michael Montemerlo, Sebastian Thrun, Daphne Koller, and Ben Wegbreit presented a solution to a mathematical bottleneck that was choking autonomous robotics. Their algorithm successfully mapped 50,000 distinct landmarks in a single environment, a staggering achievement for the era. Prior to this demonstration, the industry standard algorithms could barely handle a few hundred environmental features before overwhelming the processors of the time. The presentation marked a fundamental shift in how robots understand their surroundings, moving the industry away from rigid matrices and toward probabilistic guessing.[2]

The challenge they were solving is known as Simultaneous Localization and Mapping (SLAM). When a robot wakes up in an unknown environment, it faces a profound paradox: it needs an accurate map to know where it is, but it needs to know exactly where it is to build a reliable map. Every time the robot's sensors detect a wall, a corner, or a tree—a feature known as a landmark—it must calculate both the position of that landmark and its own position relative to it. It must do this while constantly accounting for the inherent noise, slippage, and drift in its wheel odometry.

Throughout the 1990s, the dominant mathematical approach to this paradox was the Extended Kalman Filter (EKF). EKF SLAM relies on a single, massive state vector that tracks the robot's pose alongside the absolute coordinates of every known landmark. To manage the uncertainty of these measurements, it maintains a massive covariance matrix that updates continuously. As Michael Calonder noted in a comparative analysis for the Swiss Federal Institute of Technology (EPFL), "Basically, EKF SLAM and FastSLAM solve the same problem while making use of the identical probabilistic motion and measurement models."[1]

The fatal flaw of EKF SLAM lies in the architecture of that covariance matrix. Because the filter tracks the correlation between the robot's pose and every single landmark, the matrix grows quadratically with the environment. As Montemerlo and his team wrote in their foundational 2002 paper, "Kalman filter-based algorithms, for example, require time quadratic in the number of landmarks to incorporate each sensor observation." In algorithmic terms, this is an O(K^2) time complexity, where K is the number of landmarks. A room with 100 landmarks requires 10,000 calculations per step; a building with 1,000 requires a million, rapidly freezing the system.[2]

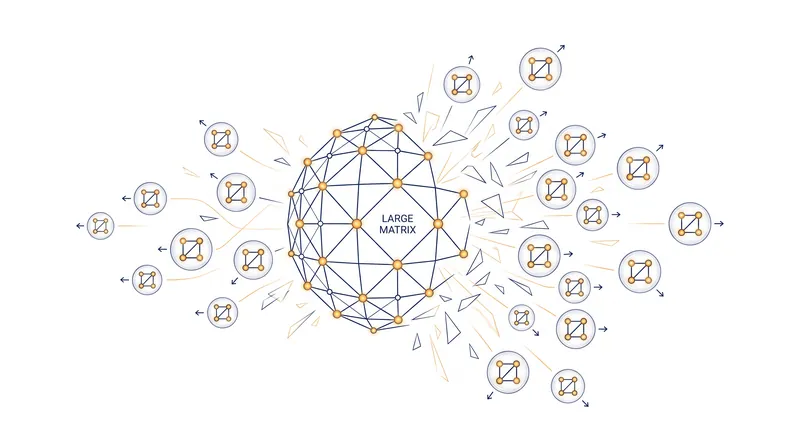

The 2002 AAAI paper introduced FastSLAM, which bypassed this quadratic wall by utilizing a Rao-Blackwellized particle filter. Instead of maintaining one giant matrix of absolute certainty, FastSLAM generates hundreds or thousands of virtual "particles." Each particle represents a specific, guessed trajectory the robot might have taken through the room. Because the path is assumed to be known within the isolated reality of each particle, the locations of the landmarks become conditionally independent of one another, severing the mathematical links that caused the EKF matrix to balloon.[2]

This factorization fundamentally changed the math of autonomous navigation. Instead of an O(K^2) matrix, FastSLAM achieved an O(M log K) complexity, where M is the number of particles. Inside each particle, the algorithm only needs to store tiny 2x2 covariance matrices for the landmarks. The computational cost scales logarithmically with the map size rather than quadratically. This algorithmic efficiency is exactly how the Stanford team managed to process 50,000 landmarks without crashing their hardware, opening the door to large-scale outdoor mapping.[1][2]

However, FastSLAM introduced its own unique failure mode: particle depletion. If a robot navigates a highly ambiguous environment—like a long, featureless hallway with identical doors—the algorithm relies on statistical resampling to eliminate incorrect paths. Over time, this aggressive resampling can accidentally discard the true trajectory, leaving the robot entirely lost with no way to recover. While EKF SLAM fails predictably due to processor exhaustion, FastSLAM fails when its statistical guesses collapse under sustained uncertainty, making it brittle in sparse environments.[1][6]

Over the last decade, the robotics industry has largely moved past both pure EKF and pure Particle Filter SLAM for large-scale 3D mapping. In 2018, researchers Yanhao Zhang, Teng Zhang, and Shoudong Huang at the University of Technology Sydney (UTS) published a comprehensive comparison demonstrating that optimization-based SLAM—specifically non-linear least squares optimization—matches or exceeds the accuracy of invariant EKF in most practical scenarios. This research confirmed what practitioners were seeing in the field: filtering was losing ground to optimization.[3]

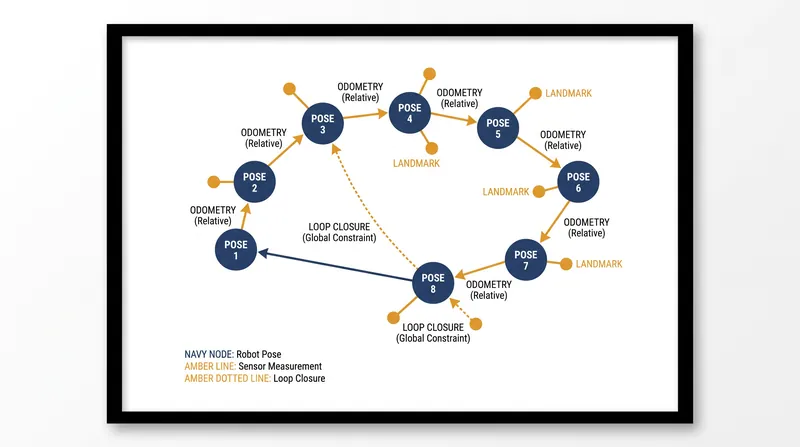

This shift is now the industry consensus. As a highly-rated 2022 technical breakdown on the Robotics Stack Exchange explained, modern 3D systems almost exclusively rely on pose-graph optimization, often referred to as factor graphs. The underlying mathematics are intimately related, but the execution differs. "Factor graphs and Extended Kalman Filters actually solve the problem in the exact same way," one engineer noted, pointing out that factor graphs are simply iterative and formatted differently, allowing them to re-evaluate past errors when new data arrives.[5]

The transition from EKF to FastSLAM to Graph Optimization traces the exact trajectory of autonomous computing hardware. Early systems required elegant mathematical tricks and strict filtering to survive on limited CPUs, while modern systems leverage abundant memory and parallel processing to optimize entire trajectories at once. The 50,000-landmark breakthrough of 2002 proved that large-scale mapping was possible; today's factor graphs simply make it reliable enough to trust with passenger vehicles on public highways. As algorithms continue to evolve, the foundational tension between computational cost and localization accuracy remains the central engineering challenge of the field.[2][3][7]
