China Unveils First Near-Memory Computing 3D AI Chip to Bypass US Manufacturing Constraints

Shanghai-based startup Dongfang Suanxin recently unveiled the DF1000, China's first software-defined near-memory computing 3D AI chip, at the 2026 World Artificial Intelligence Conference.[1][2]

Washington's export controls have successfully restricted China's access to sub-7nm extreme ultraviolet lithography and advanced High-Bandwidth Memory, the two critical components of modern Western AI accelerators.[4][5]

Instead of fighting a losing battle on transistor shrinkage, Chinese engineers are pivoting to advanced packaging. The DF1000 claims to achieve high-end AI performance using a mature 14nm process, effectively bypassing the need for restricted manufacturing equipment.[1][3]

CLAIM 1: Bypassing the Lithography Bottleneck. Dongfang Suanxin asserts the DF1000 delivers 520 TFLOPS of BF16 compute power entirely on a 14nm node.[2][3]

EVIDENCE ASSESSMENT: The theoretical foundation is strong. The chip relies on a software-defined architecture developed over two decades at Tsinghua University by founder Wei Shaojun, which dynamically reconfigures on-chip resources to maximize hardware utilization and compensate for the older node.[1][4]

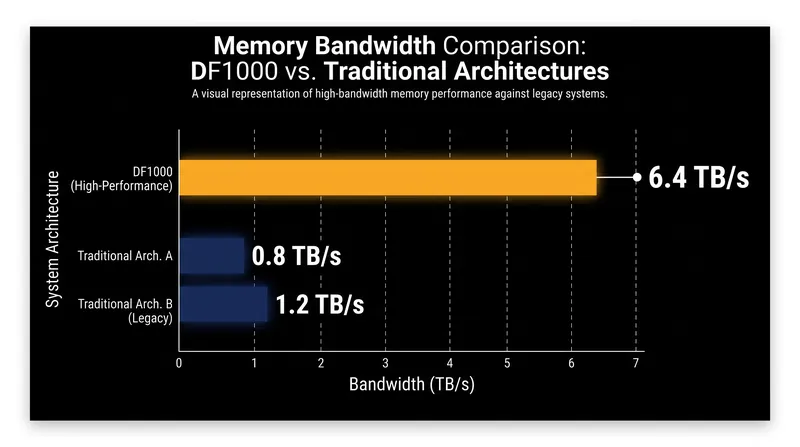

CLAIM 2: Shattering the Memory Wall without HBM. The company claims a memory bandwidth of 6.4 TB/s, exceeding some cutting-edge Western chips, without using restricted High-Bandwidth Memory.[3]

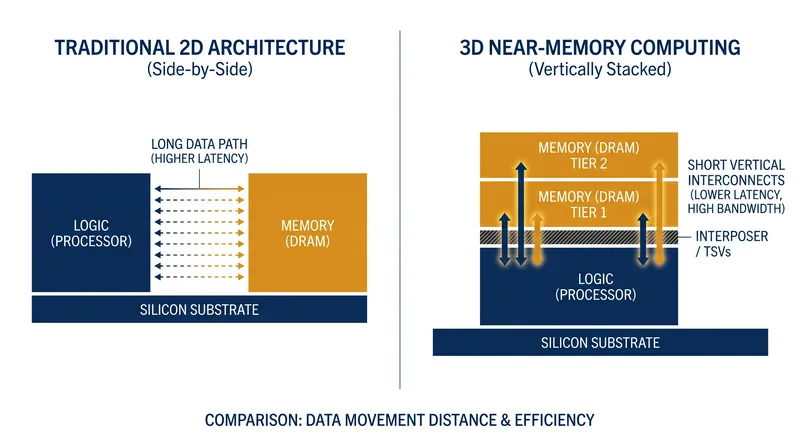

EVIDENCE ASSESSMENT: This is achieved via 3D near-memory computing. By vertically stacking DRAM directly above and below the logic compute units using wafer-level hybrid bonding, the data travel distance is compressed to sub-micrometer levels, drastically reducing latency.[3][5]

Academic preprints from the Chinese Academy of Sciences corroborate this approach, showing that hybrid-bonded through-silicon vias can reduce energy consumption by up to 93 percent and accelerate transformer workloads by over seven times compared to standard 2D baselines.[4][6]

CLAIM 3: A Fully Sanction-Proof Supply Chain. The company states the DF1000 is manufactured entirely within China, utilizing SMIC for the 14nm foundry work and JCET for the 3D packaging.[4][5]

EVIDENCE ASSESSMENT: This claim is highly credible. Both SMIC and JCET possess mature, proven capabilities in these specific domains. By deliberately avoiding nodes smaller than 14nm, the production line requires no restricted ASML extreme ultraviolet lithography machines.[4]

AREA OF UNCERTAINTY: Thermal Management. While the architectural theory is sound, the physical reality of 3D stacking presents severe thermal challenges. Stacking logic and memory vertically traps heat, a notorious problem in dense silicon.[3][4]

EVIDENCE ASSESSMENT: Independent analysts note that Dongfang Suanxin has not yet published detailed thermal dissipation metrics or real-world continuous-load benchmarks for the DF1000, leaving its sustained performance under heavy AI workloads an open question.[4]

AREA OF UNCERTAINTY: Yield Rates and Commercial Scaling. The DF1000 is currently a prototype and proof-of-concept, with mass production slated for the fourth quarter of 2026.[1][5]

EVIDENCE ASSESSMENT: 3D hybrid bonding is notoriously difficult to scale with high yields. Defect rates compound when multiple dies are stacked; if one layer fails, the entire package is discarded, which could drive up costs and limit availability.[4]

The broader industry context validates the strategy. The DF1000 is not an isolated anomaly but part of a systemic Chinese pivot. Companies like Huawei, Tsingway, and Suanmiao Technology are all actively taping out 3D-stacked architectures.[1]

This collective shift suggests Beijing has quietly concluded that the next phase of the semiconductor war will be fought over advanced packaging, not just lithography.[4]

If successful, this architectural strategy of innovating the physical structure to catch up with Western hardware could fundamentally undermine the premise of United States export controls.[1][4]

The ultimate test will arrive in late 2026, when Dongfang Suanxin attempts to transition the DF1000 from an award-winning prototype to a commercially viable data center accelerator.[2][5]
