Cerebras Launches WSE-3, the World's Largest AI Chip With 4 Trillion Transistors

The artificial intelligence industry is currently constrained by a fundamental physical bottleneck: moving data between chips. As large language models grow exponentially in size and complexity, the traditional approach of wiring thousands of individual graphics processing units (GPUs) together is hitting the hard limits of interconnect speed. Every time a processor has to request data from another chip across a server rack, it wastes precious time and energy, creating a traffic jam that slows down the entire training process.

Enter Cerebras Systems, a Silicon Valley hardware company that has taken a radically different approach to semiconductor design to solve this exact problem. The company has launched the Wafer-Scale Engine 3 (WSE-3), a colossal processor that currently holds the title of the world's largest AI chip. By completely rethinking how a computer chip is manufactured and packaged, Cerebras aims to bypass the interconnect bottleneck entirely, offering a streamlined path to training the next generation of artificial intelligence. This launch represents a significant milestone in the ongoing race to build hardware capable of supporting increasingly autonomous and capable AI agents.

To truly understand the breakthrough of the WSE-3, one must first look at how traditional computer chips are made. Typically, semiconductor manufacturers etch hundreds of small, postage-stamp-sized processors onto a single circular silicon wafer. These individual chips are then meticulously cut apart, packaged in protective casings, and wired back together on complex motherboards. This fragmented approach is highly efficient for manufacturing yields, but it creates massive data-transfer penalties when those chips are forced to work together on a single massive AI model.[2]

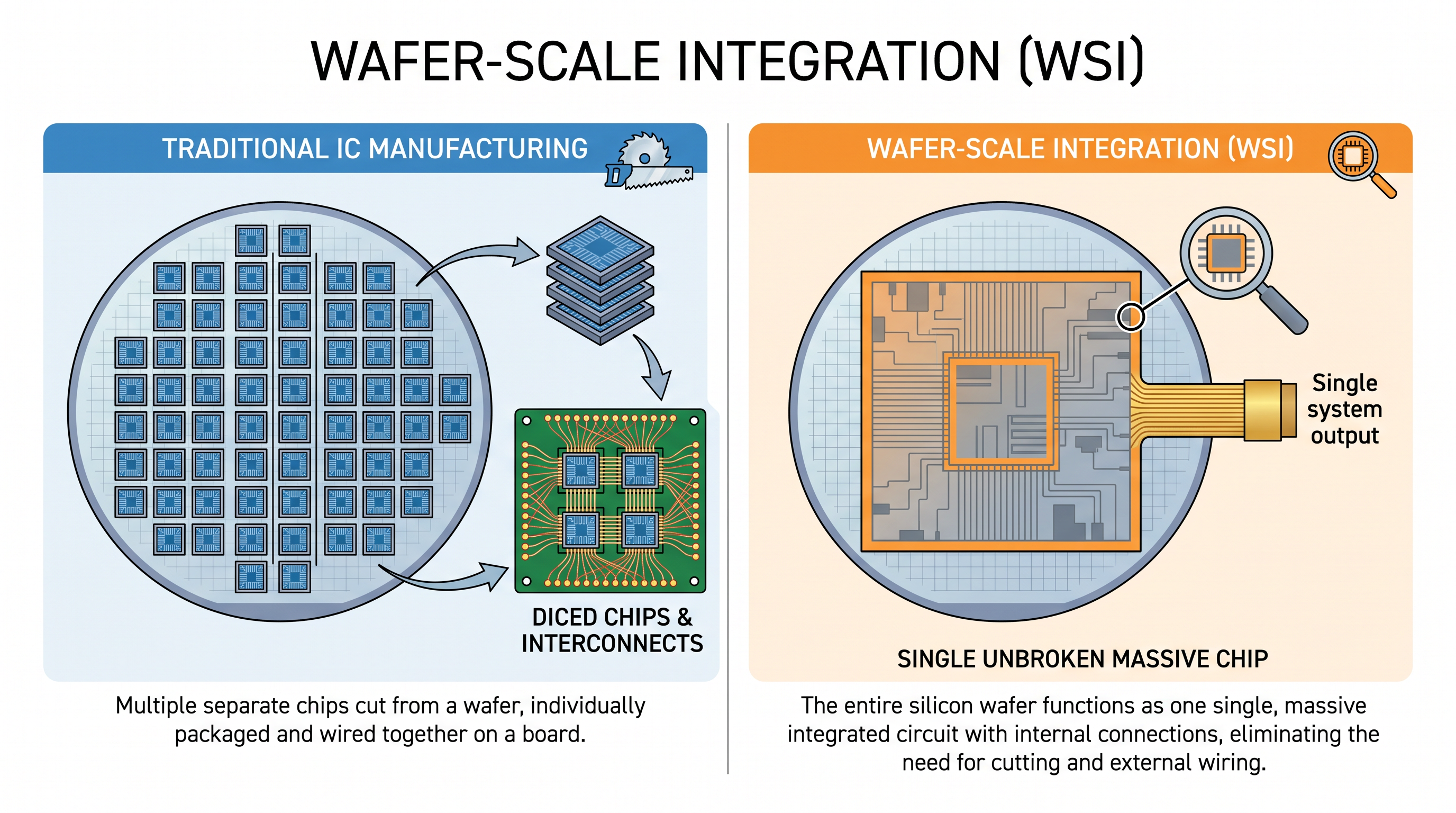

Cerebras bypasses this cutting process entirely, opting instead for a method known as wafer-scale integration. The WSE-3 is a single, unbroken square of silicon carved from a standard 300-millimeter wafer, making it roughly the size of a dinner plate. By keeping the entire wafer intact as one continuous processor, the chip completely eliminates the slow, power-hungry copper wires that usually connect separate processors across a server rack. The result is a unified compute engine where data never has to leave the silicon.[1][2]

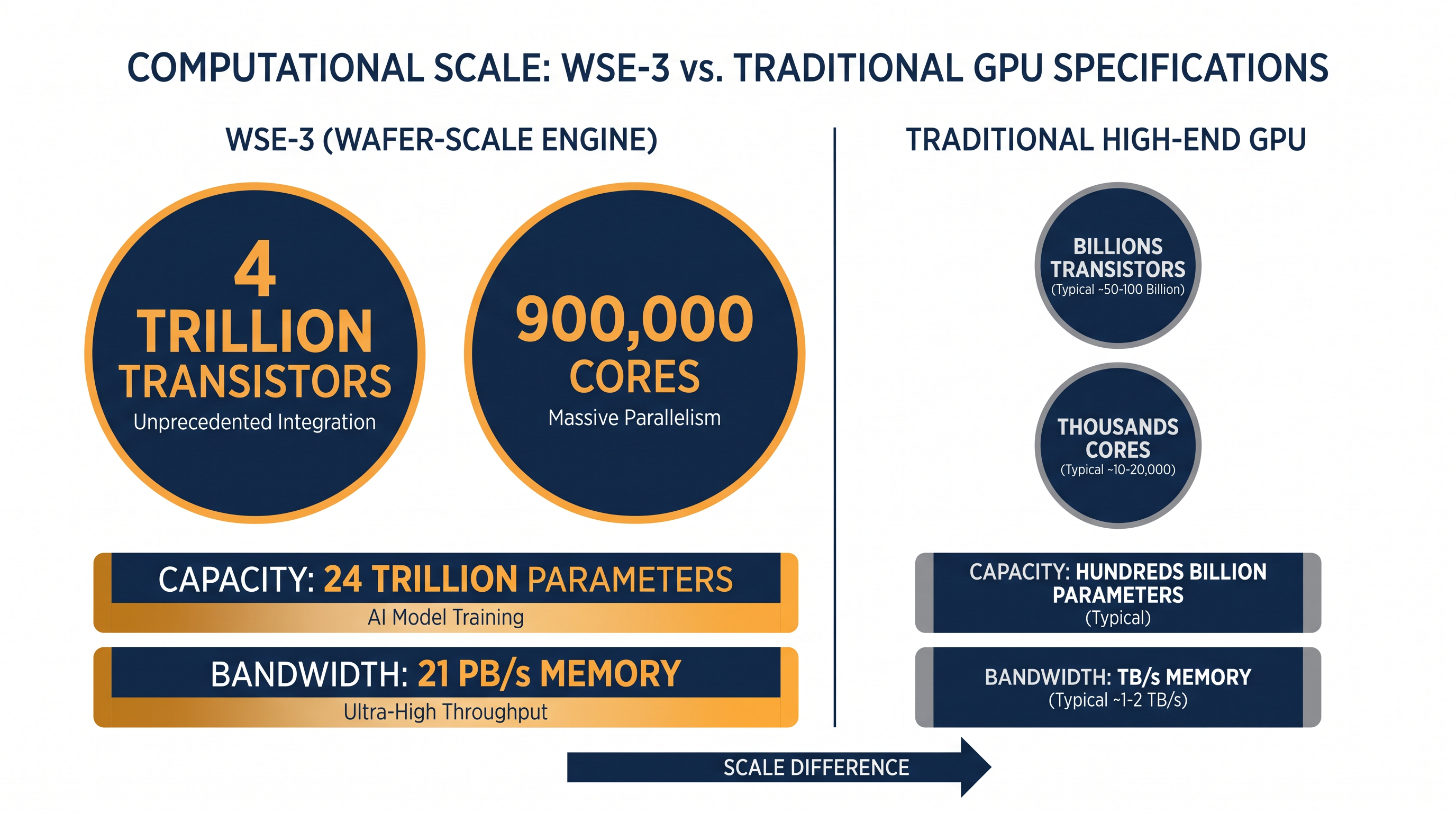

The physical specifications of this unbroken silicon expanse are staggering, dwarfing anything else currently on the market. The WSE-3 houses an astonishing 4 trillion transistors—more than 50 times the transistor count of the largest traditional GPUs used in enterprise datacenters today. These microscopic switches are organized into 900,000 AI-optimized compute cores, all operating in parallel on the exact same physical substrate. This massive density allows the chip to process an unprecedented volume of calculations simultaneously. For researchers pushing the boundaries of machine learning, this translates to raw, unadulterated computational power.[3]

The primary advantage of this wafer-scale architecture is the sheer volume of memory bandwidth it unlocks. In traditional distributed GPU clusters, the speed at which a model generates text, writes code, or completes reasoning steps is almost always limited by how fast it can move model weights from the memory banks to the compute cores. This 'memory wall' is the silent killer of AI performance, forcing expensive processors to sit idle while they wait for data to arrive over the network.[2]

Because all 900,000 cores on the WSE-3 share the same continuous piece of silicon, data travels microscopic distances at near-instantaneous speeds. The chip features 44 gigabytes of on-chip static random-access memory (SRAM), delivering an astonishing memory bandwidth of 21 petabytes per second. To put that in perspective, it is thousands of times faster than the interconnect speeds of traditional hardware. This immense bandwidth allows the processor to achieve a peak AI performance of 125 petaflops, fundamentally altering the math of AI training.

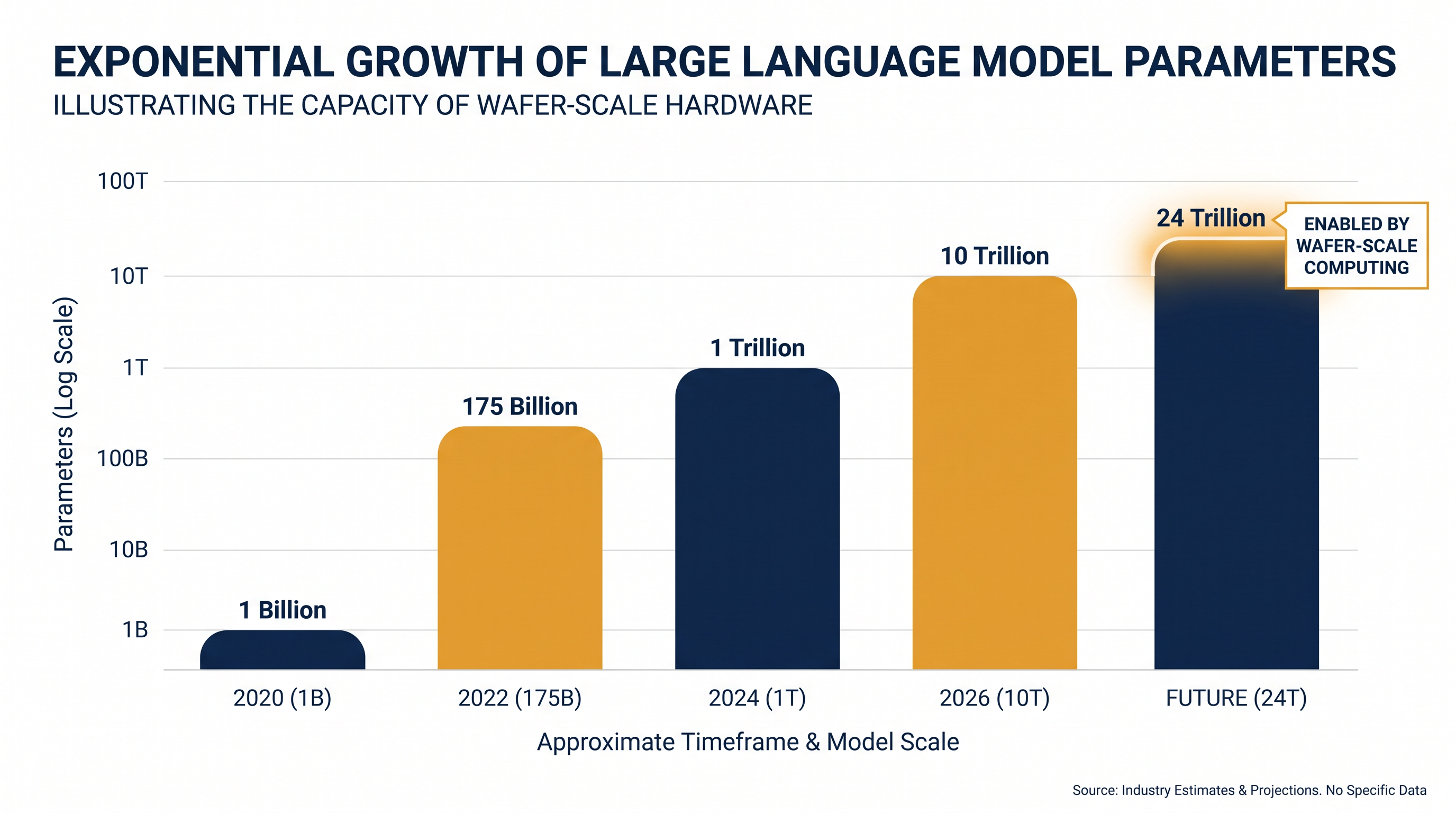

This immense bandwidth fundamentally changes what is possible in both AI training and real-time inference. The WSE-3 is specifically designed to support massive neural networks with up to 24 trillion parameters. To contextualize that scale, a 24-trillion-parameter model is roughly ten times the estimated size of the largest frontier models currently in deployment, such as OpenAI's GPT-4 or Google's Gemini. The hardware is effectively future-proofing datacenters for the next several generations of artificial intelligence development. By providing the headroom to grow, Cerebras is enabling researchers to experiment with architectures that were previously considered computationally impossible.[2]

Crucially, the Cerebras system allows these massive, multi-trillion-parameter models to be stored and processed in a single logical memory space. In traditional GPU clusters, training a model of this size requires complex 'model parallelism,' a technique where the neural network is fractured and distributed across thousands of individual chips. This distributed approach requires extensive custom code, constant troubleshooting, and a massive engineering team just to keep the cluster running without crashing during a months-long training run. The overhead of managing this distributed dance often consumes a significant portion of the project's budget and timeline.[3]

With the WSE-3, scaling an AI project from a standard 1-billion-parameter model up to a massive 24-trillion-parameter model requires virtually no code changes from the developer. The hardware natively handles the distribution of compute work across its 900,000 cores, dramatically simplifying the workflow for machine learning researchers. By abstracting away the complexities of distributed computing, the wafer-scale approach accelerates development timelines and allows data scientists to focus on model architecture rather than cluster orchestration. This ease of use is a major selling point for enterprise clients who want to deploy AI without hiring an army of infrastructure engineers.[2]

Of course, powering and cooling a single, dinner-plate-sized chip packed with 4 trillion transistors presents unique and extreme engineering challenges. Traditional air cooling is entirely insufficient for a processor of this density. To solve this, the WSE-3 is housed within the Cerebras CS-3, a specialized, self-contained AI supercomputer that is roughly the size of a standard dorm refrigerator. The CS-3 acts as the life-support system for the wafer, providing the precise environmental controls necessary to keep the silicon operating at peak efficiency.

The CS-3 system delivers power vertically across the entire face of the wafer, rather than just at the edges, ensuring uniform energy distribution. It also utilizes a highly sophisticated closed-loop liquid cooling system to manage and extract the immense heat generated by the dense silicon. Despite its extreme performance capabilities, the system's overall power draw remains remarkably consistent with previous generations of the hardware. This efficiency addresses a critical and growing concern regarding the massive energy consumption and environmental footprint of modern AI datacenters.[3]

The market implications of the WSE-3's launch extend far beyond its raw technical specifications. The global AI infrastructure sector is currently dominated by Nvidia, which controls an estimated 95 percent of the market for specialized AI accelerators. This near-monopoly has led to severe supply chain constraints, massive backorders, and exceptionally high compute costs for startups and academic institutions. The industry is actively searching for viable alternatives to diversify the hardware supply chain and bring down the cost of innovation.[2]

Industry analysts view Cerebras as a vital alternative that could eventually dilute existing pricing power and ease the global compute shortage. If wafer-scale technology can be deployed widely and reliably, it could significantly lower the financial barrier to entry for companies building specialized AI tools. This is particularly crucial in computationally heavy fields like biotechnology, drug discovery, and real-time agentic reasoning, where the cost of running massive models often prohibits smaller players from entering the market. A more competitive hardware landscape ultimately benefits the entire ecosystem by driving down prices and accelerating the pace of research.[2]

However, the company still faces significant hurdles on its path to widespread adoption. Manufacturing a flawless wafer-scale chip requires intelligently routing around the inevitable microscopic defects that occur in the silicon—a process Cerebras has patented but which remains inherently complex and expensive. Furthermore, breaking into an ecosystem that is heavily optimized for Nvidia's proprietary CUDA software platform requires convincing millions of developers to port their code and trust a fundamentally different hardware paradigm. Overcoming this software moat is arguably a larger challenge than the physical manufacturing of the chip itself.

To address this software friction, Cerebras has focused heavily on providing native, out-of-the-box support for standard open-source frameworks like PyTorch, allowing developers to run their existing models with minimal friction. The company has also partnered with major players, including Qualcomm, to build comprehensive, end-to-end inference solutions. On the hardware side, Cerebras is scaling horizontally; up to 2,048 individual CS-3 systems can be linked together using a proprietary interconnect to create a staggering 256-exaflop supercomputing cluster, capable of tackling the world's most complex datasets.[2]

As the artificial intelligence industry pushes relentlessly toward ever-larger models and real-time reasoning capabilities, the physical limits of traditional, fragmented chips are becoming increasingly apparent. The WSE-3 represents a bold, contrarian bet that the future of artificial intelligence hardware lies not in wiring thousands of small chips together, but in mastering the immense complexities of the largest single chip ever built. If successful, this wafer-scale revolution could fundamentally reshape the economics and capabilities of the AI era. It stands as a testament to the extreme engineering required to keep pace with the exponential growth of machine learning.[2]
