Zero-Moment Point Dynamics: The Physics That Keep Bipedal Robots from Falling

On April 17, 2024, Boston Dynamics retired its hydraulic Atlas robot and introduced a fully electric successor capable of standing up from a prone position. That hardware transition marked a fundamental shift in how commercial humanoids manage gravity. Yet beneath the new neural network controllers, the underlying physics of bipedal balance remains entirely unchanged.

Every humanoid robot walking across a factory floor today is fighting a continuous mathematical battle against tipping over. The human brain handles this process instinctively through a complex network of vestibular signals and muscle memory. For a machine weighing 160 pounds, replicating that balance requires calculating a precise physical metric known as the Zero-Moment Point.[1]

The concept dictates exactly where a robot must place its feet to counteract the momentum of its swinging torso. If the machine calculates this point incorrectly by even a few centimeters, the horizontal forces overpower the vertical support. The result is an immediate, catastrophic fall that software cannot reverse once the threshold is crossed.[1]

"The Zero-Moment Point is not a physical piece of hardware, but a dynamic coordinate on the ground where all tipping forces mathematically cancel out," notes a comprehensive review of whole-body control in Annual Reviews. "It is the absolute boundary condition for bipedal locomotion."[6]

Understanding how this coordinate governs movement explains why humanoid robots took decades to leave the laboratory. It also reveals the hard physical limits that even the most advanced artificial intelligence cannot bypass. To keep a bipedal machine upright, engineers must first define the geometry of its footprint.

Defining the dynamic support polygon

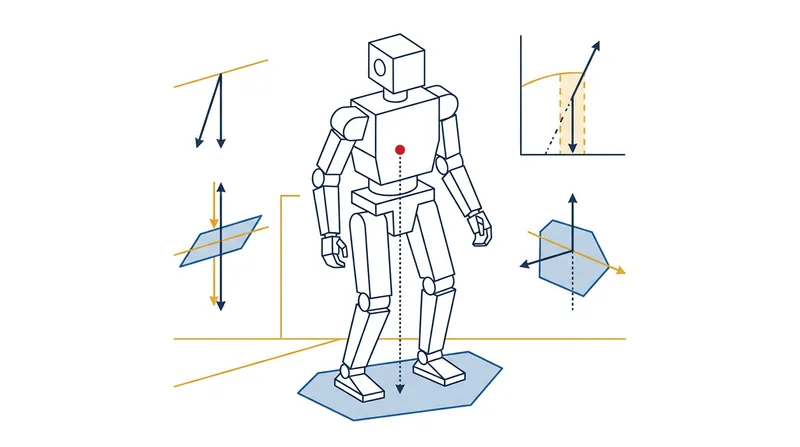

When a robot stands still with both feet flat on the ground, its stability is governed by a simple geometric area called the support polygon. This area encompasses the outer edges of both feet and the empty space directly between them. As long as the robot's center of mass projects straight down into this shape, it remains upright.[1]

Static balance is relatively easy to program, but walking fundamentally destroys this stable geometry. The moment a robot lifts its right foot to take a step, the support polygon instantly shrinks to the exact dimensions of the left foot. The machine is now inherently unstable and actively falling forward.[2]

To prevent the fall, the robot must swing its airborne leg forward and plant it before gravity pulls its torso to the floor. This is where static balance fails and dynamic balance takes over. The forces generated by the swinging limbs create horizontal momentum that threatens to tip the entire chassis.

"You are essentially throwing a heavy mass through the air and hoping you can catch it with a tiny contact patch," notes a foundational paper in the IEEE Transactions on Robotics. "The ground reaction forces must perfectly oppose the inertial forces of the moving body."[2]

This dynamic interaction is what the Zero-Moment Point quantifies. It is the specific location on the ground where the sum of all horizontal tipping moments equals zero. If this calculated point remains inside the shrinking support polygon, the robot's foot stays flat and the machine continues walking.[1][2]

Calculating the forces of locomotion

Calculating the Zero-Moment Point requires continuous, high-speed telemetry from across the robot's chassis. Sensors in the joints measure the exact angle and velocity of every moving limb. Meanwhile, force-torque sensors embedded in the ankles measure how hard the ground is pushing back against the sole of the foot.[6]

The robot's central processor aggregates this data to track the exact trajectory of its center of mass. As the torso accelerates forward, the inertial forces push the Zero-Moment Point toward the front edge of the toes. If the robot accelerates too quickly, the point crosses the boundary of the foot.[1]

Once the Zero-Moment Point exits the support polygon, the foot acts as a pivot hinge rather than a stable base. The heel lifts off the ground prematurely, and the robot begins an uncontrolled rotation toward the floor. At this stage, the machine has mathematically lost the ability to recover its balance.[2]

To prevent this, classical control systems enforce a strict safety margin. Engineers program the software to keep the Zero-Moment Point at least 15 percent away from the physical edges of the foot. This conservative approach guarantees stability but results in the slow, crouched, unnatural walking gait characteristic of early humanoids.[2][6]

"Early bipedal robots walked with bent knees to keep their center of mass at a constant height, which simplified the math," explains the Factlen Editorial Team in its analysis of locomotion models. "This eliminated vertical acceleration variables, making the horizontal tipping forces much easier to predict and control."[5]

The shift to predictive modeling

Modern commercial humanoids have largely abandoned this crouched walking style in favor of straight-legged, natural gaits. This transition was made possible by a software architecture known as Model Predictive Control. Instead of merely reacting to current sensor data, the robot continuously simulates its own future movements.[6]

A predictive controller looks ahead across a time horizon of roughly one to two seconds. It calculates dozens of potential foot placements and torso trajectories for the upcoming steps. The software then selects the sequence of movements that will keep the Zero-Moment Point safely inside the support polygon.[6]

This foresight allows the robot to dynamically adjust its momentum before a fall occurs. If the system predicts that the Zero-Moment Point will drift too close to the edge of the foot on the next step, it can proactively widen its stance. It can also swing its arms to generate a counter-rotating force.[6]

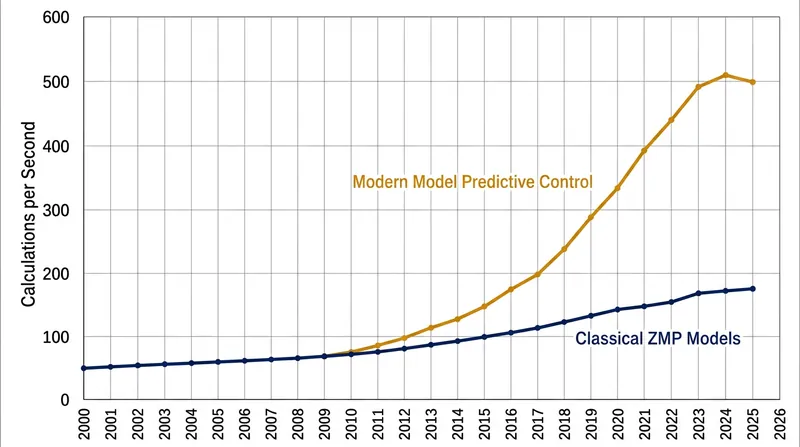

According to modern locomotion research, these predictive models recalculate the optimal trajectory up to 500 times per second. This rapid iteration allows humanoids to walk across uneven terrain, recover from unexpected shoves, and carry heavy payloads without losing their balance.[6]

However, predictive control requires immense computational power to solve the complex differential equations in real time. To reduce this processing burden, robotics companies are increasingly turning to local AI hardware. For example, NVIDIA's newly announced DGX Spark 64GB provides the unified memory required to run these massive neural networks directly on the robot's chassis, eliminating latency.[3]

Pushing the boundaries of stability

Reinforcement learning allows a robot to discover optimal walking strategies through millions of simulated trials. Generating the massive datasets required for this training is a bottleneck, prompting the development of automated tools like Hugging Face's AutoSynthData to synthesize training environments. Over time, the network learns exactly how to manipulate its joints to maintain dynamic balance.[4]

This machine learning approach fundamentally changes how the Zero-Moment Point is managed. Classical controllers treated the boundary of the foot as a danger zone to be avoided. In contrast, neural networks learn to exploit the entire physical surface of the support polygon to maximize speed and efficiency.[5]

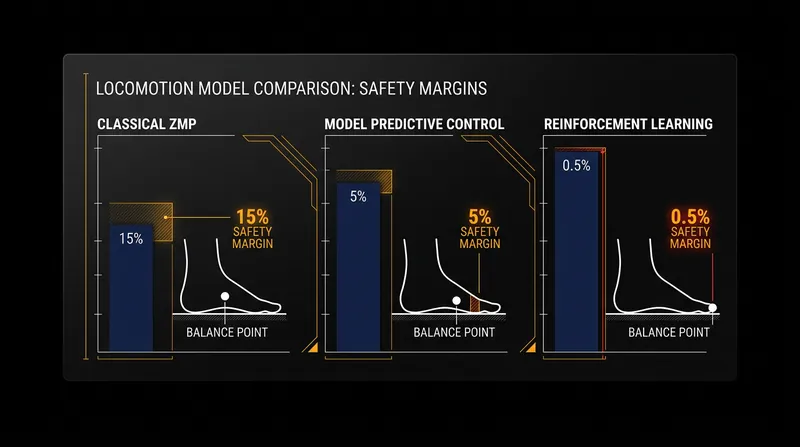

Factlen's analysis of locomotion models reveals that modern AI controllers operate with almost zero safety margin. By processing balance corrections 400 times faster than classical algorithms, the neural network optimizes the center of mass to ride the absolute edge of the shrinking support polygon during high-speed maneuvers.[5]

This aggressive optimization explains why modern humanoids can walk faster and transition smoothly into dynamic tasks like jumping or dancing. The software is no longer artificially restricting the robot's momentum. Instead, it is pushing the hardware to the absolute limits of what the laws of physics allow.[5]

Yet, even the most advanced neural network cannot violate the fundamental constraint of the Zero-Moment Point. If a robot needs to move faster than its support polygon can accommodate, it must abandon walking entirely. This physical threshold marks the transition from bipedal walking to running.[6]

The transition to flight phases

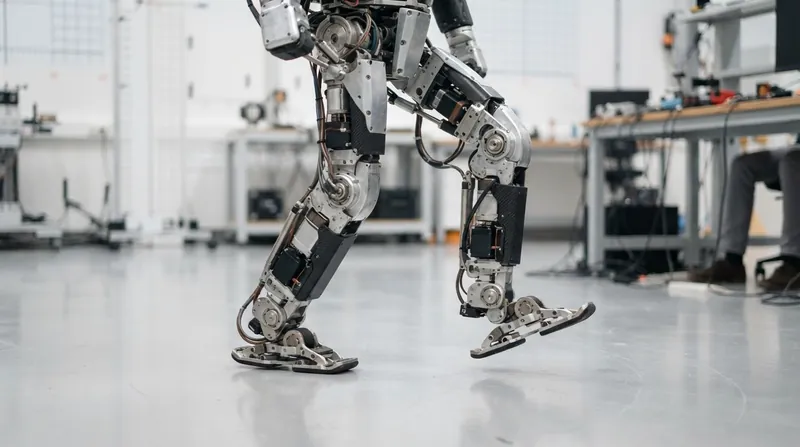

In biomechanics, walking is defined by the requirement that at least one foot remains in contact with the ground at all times. Running, by contrast, introduces a flight phase where both feet are airborne simultaneously. This distinction completely alters the mathematical rules governing the robot's stability.[6]

During a flight phase, the support polygon temporarily ceases to exist. There is no contact patch on the ground, meaning the Zero-Moment Point cannot be calculated or controlled. The robot becomes a ballistic projectile, its trajectory entirely dictated by the momentum it generated before leaving the ground.[1][6]

"Once the robot is in the air, the software can only prepare the legs for the upcoming impact," notes the Annual Reviews analysis of whole-body control. "The controller must precisely calculate the landing angle to instantly establish a new support polygon and absorb the kinetic energy."[6]

Managing this transition requires seamlessly switching between different mathematical models in milliseconds. The software must use Zero-Moment Point dynamics to launch the robot, suspend those calculations during the flight phase, and immediately resume them upon landing. This remains one of the most complex challenges in modern robotics.[6]

As commercial humanoids move from structured factories into unpredictable human environments, their ability to manage these physical constraints will dictate their success. The software driving them will continue to evolve, but the fundamental requirement to balance horizontal forces against gravity will never change.
