Why Violin F-Holes Double Acoustic Power Over Round Openings

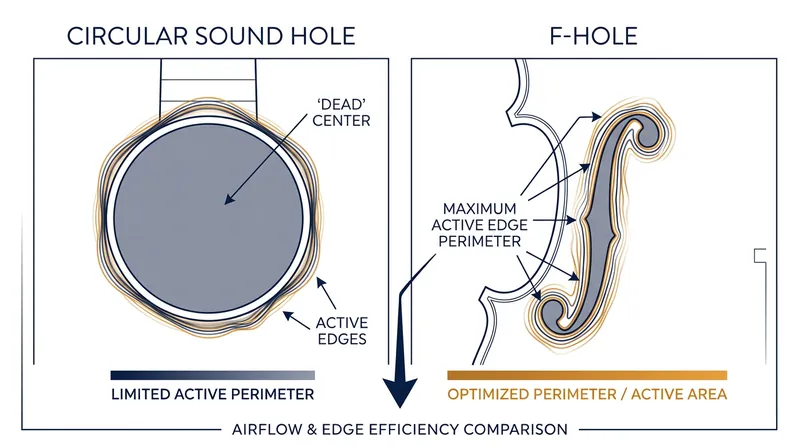

The volume of a stringed instrument is determined the moment vibrating air escapes the wooden body, specifically at the very edge of the sound hole. This boundary is where the instrument's acoustic conductance—its ability to push low-frequency sound waves into the room—is actually governed. Because air acts like an incompressible fluid at these frequencies, it accelerates fastest along the perimeter of the opening, making the total area of the hole largely irrelevant.[1][2]

That physical bottleneck explains why the violin looks the way it does. For centuries, luthiers assumed that a larger hole meant a louder instrument, carving wide, circular openings into medieval lutes and fitheles. But a 2015 fluid-dynamics analysis by researchers at the Massachusetts Institute of Technology proved that narrowing the hole while stretching its length dramatically increases the perimeter, doubling the acoustic power of the instrument.[1][2]

The Perimeter Principle

The MIT team, led by acoustics professor Nicholas C. Makris, applied models of incompressible fluid flow to 800 years of stringed instrument designs. They found that the interior void of a round sound hole is acoustically dead space.[2]

"We modeled the airflow through a simple round hole, as well as a more elaborately patterned hole of the same diameter, and found that in both cases, the air flowed fastest at the hole's periphery," the MIT researchers noted.[2]

By cutting away the inactive center and extending the edges, the f-hole maximizes the active perimeter. This slender design allows the violin to project its lowest notes—the Helmholtz air resonance—with roughly twice the power of an equivalent instrument fitted with circular holes. It is a highly efficient acoustic pump disguised as a decorative flourish.[1]

The difference in output is substantial. The MIT calculations demonstrated that an instrument equipped with f-shaped holes produces about three decibels more acoustic power than one with circular holes. Because the human ear can easily distinguish volume changes as small as 0.5 to 1 decibel, this doubling of acoustic power fundamentally altered how the instrument could be used in performance.

An 800-Year Evolution

The transition from the round holes of the 10th century to the f-holes of the 18th century was not a sudden stroke of engineering genius. The research team, which included mechanical engineer Yuming Liu and violin maker Roman Barnas, traced a continuous lineage through the oud, lute, and medieval fiddles. They observed a slow, evolutionary progression driven by the physical limitations of woodworking.[2]

Over eight centuries, the simple round hole morphed into a semicircle, which eventually stretched into a C-shape. Finally, the design elongated further to assume the familiar f-shape of the modern violin. Throughout this progression, the perimeter of the shapes steadily grew, while the area of the interior void gradually decreased, steadily improving the acoustic conductance.[2]

The researchers calculated a metric called "acoustic radiated power" to estimate the volume these early instruments could produce. By comparing fitheles, rebecs, and early violins, they proved that the newer instruments with elongated sound holes were mathematically far more powerful than their circular-holed predecessors. The evolution was undeniable, but the mechanism behind it remained a mystery.[1][2]

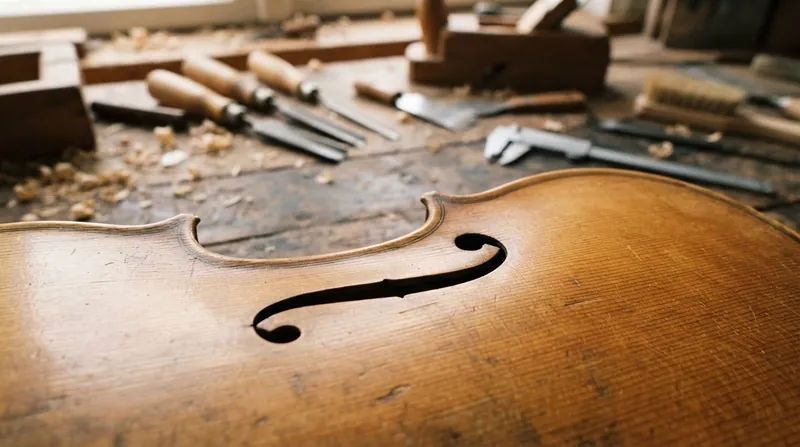

When master luthiers in Cremona, Italy, attempted to copy their best-sounding instruments, they inevitably made slight mistakes. "We found if you try to replicate a sound-hole exactly from the last one you made, you will always have a little error," Makris explained. "You are cutting with a knife into thin wood and you cannot get it perfectly, and the error we report is about two percent."[3]

The Cremonese Golden Age

The MIT team quantified this mutation rate mathematically. They established that changes falling below a specific theoretical threshold were consistent with accidental replication fluctuations arising from craftsmanship limitations. Only changes above that threshold would indicate a planned, deliberate design shift. The gradual lengthening of the f-hole fell squarely into the accidental mutation category.[1]

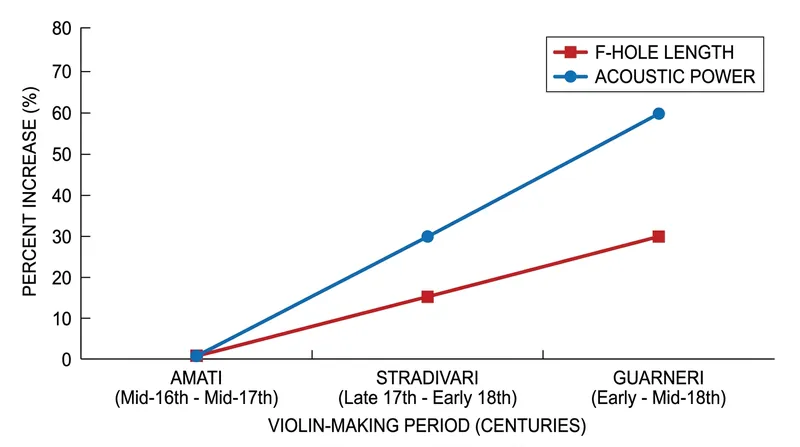

Over generations, those tiny knife slips accumulated. Between the 1560s and the 1740s, in the renowned workshops of the Amati, Stradivari, and Guarneri families, the length of the f-hole gradually increased by about 30 percent. Because luthiers actively selected their loudest, most resonant instruments to copy for the next generation, this accidental elongation compounded.[1][2]

The resulting acoustic gains were massive. The 30 percent increase in f-hole length yielded a 60 percent increase in acoustic power by the Guarneri period. The researchers analyzed technical drawings, X-rays, and CAT scans of 470 Cremonese violins to confirm that this steady, gradual increase began during the Nicolo Amati period and accelerated dramatically under Guarneri.[1][2]

These subtle variations in f-hole length dictate where specific violins are played today. Amati violins, which feature shorter f-holes and slightly less reverberating power, are highly prized for small chamber ensembles. Conversely, Guarneri violins, with their longer f-holes and superior resonating power, are the preferred instruments for soloists projecting over an orchestra in massive concert halls.

Coupling and Interference

The fluid dynamics of the f-hole do not operate in isolation. The MIT analysis revealed that the interaction between the two f-holes on a violin top plate actually reduces the total acoustic conductance by roughly 7 percent compared to the sum of two individual, isolated f-holes. This interference leads to a 15 percent change in radiated acoustic power at air resonance.[1]

Furthermore, the elasticity of the wooden body interacts with the compressible air inside the cavity. The coupling between the vibrating spruce top plate and the internal air volume lowers the Helmholtz resonance frequency by roughly a semitone compared to what it would be in a perfectly rigid instrument. This structural elasticity is crucial for the violin's characteristic warmth.[1]

The Limits of the F-Hole

While the f-hole perfectly optimizes the lowest frequencies, it is not the sole driver of a violin's legendary tone. The perimeter effect strictly governs the air-cavity resonance, which supports the instrument's bottom register. Higher notes rely entirely on the complex, high-frequency vibrational modes of the carved wooden top plate itself, where the f-hole's impact is less pronounced.[1]

Still, the f-hole remains a masterclass in accidental optimization. Without understanding the underlying fluid dynamics, Renaissance craftsmen bred an acoustic amplifier that modern engineers can mathematically verify but scarcely improve. The shape that defines the violin was carved by a thousand tiny mistakes, guided entirely by the ear of the maker.[2][4]
