Differential Oxidative Shrinkage Tears Rigid Surface Layers: Why Oil Painters Apply Fat Over Lean

In March 2019, researchers at the University of Amsterdam published a definitive mechanical model of a slow-motion disaster that has ruined canvases for five centuries. Using time-lapse micro-photography, they measured exactly how much a layer of linseed oil shrinks as it cures. The answer—up to 15 percent by volume—explains the most unforgiving rule in classical art.[2]

Oil painters are taught from their first lesson to apply "fat over lean." It sounds like a dietary restriction, but it is actually a strict mandate of structural engineering. Violating it guarantees that a painting will eventually tear itself apart.[3]

The rule dictates the ratio of oil to pigment and solvent in each successive layer of a painting. A "lean" layer is thinned with a solvent like turpentine, while a "fat" layer is rich in a drying medium like cold-pressed linseed or walnut oil.[3]

The chemistry of curing

To understand why the rule exists, you have to abandon the idea that oil paint dries. Watercolors and acrylics dry through simple evaporation, leaving a solid film of pigment behind as the water escapes into the air.

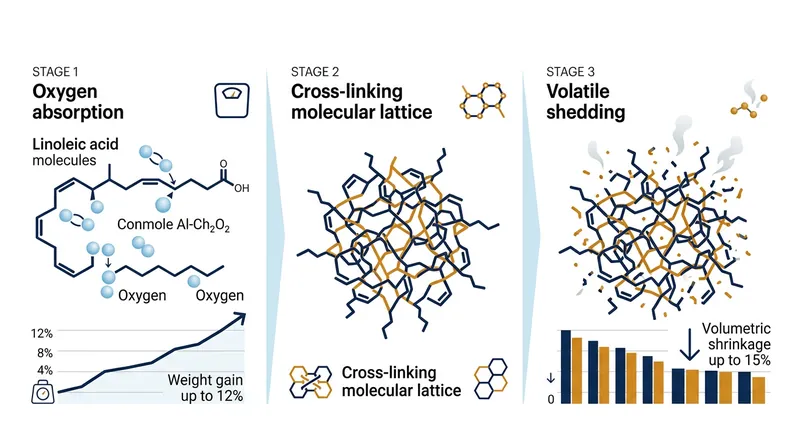

Oil paint, however, undergoes a complex chemical transformation known as polymerization. The linoleic acid in the oil absorbs oxygen from the atmosphere, initially gaining up to 12 percent of its original weight as it forms a dense, cross-linked molecular lattice.[2]

"The paint film is a dynamic structural material, not a static coating," notes conservation scientist Dr. Joyce Townsend in her analysis of 19th-century paint defects. "As the oil oxidizes, it undergoes significant volumetric changes that exert immense lateral force."

Once the initial oxygen absorption peaks, the curing oil begins to shed volatile byproducts. This secondary phase is where the danger lies, because the shedding causes the entire paint film to shrink and contract, a process that can take up to 80 years to complete.[2]

Structural engineering on canvas

A lean layer of paint, heavily diluted with solvent, contains very little oil. The solvent flashes off rapidly, and the sparse remaining oil polymerizes in a matter of days, creating a rigid, brittle, and highly porous foundation.[3]

A fat layer, by contrast, is saturated with oil. It cures incredibly slowly, remaining flexible, mobile, and subject to oxidative shrinkage for decades. The high oil content gives the paint its prized luminous quality, but it also turns the layer into a moving target.[2]

If a painter applies a fat layer first, and then covers it with a lean layer, they have built a rigid roof over a shifting foundation. The lean top layer cures and hardens almost immediately, locking into a brittle sheet.[3]

Beneath that brittle sheet, the fat layer continues to absorb oxygen, expand, and eventually shrink. The rigid upper layer cannot accommodate this subterranean movement, and the resulting mechanical tension must find a release.[2]

The mechanics of a micro-tear

When the lateral strain of the shrinking fat layer exceeds the tensile yield strength of the lean layer above it, the top film simply snaps. Conservators call this specific type of structural failure "alligatoring," because the deep, wide fissures resemble the scaled skin of a reptile.

The American tonalist painter Albert Pinkham Ryder famously ignored this rule throughout the 1890s. He obsessively reworked his canvases, layering fast-drying varnishes over pools of slow-drying oil, resulting in masterpieces like The Race Track that began tearing themselves apart before he even finished them.[3]

Ryder’s disregard for chemistry left conservators with a nightmare. His paintings feature cracks so wide that the raw canvas is visible beneath, and the shifting fat layers continue to ooze and deform more than a century after his death.

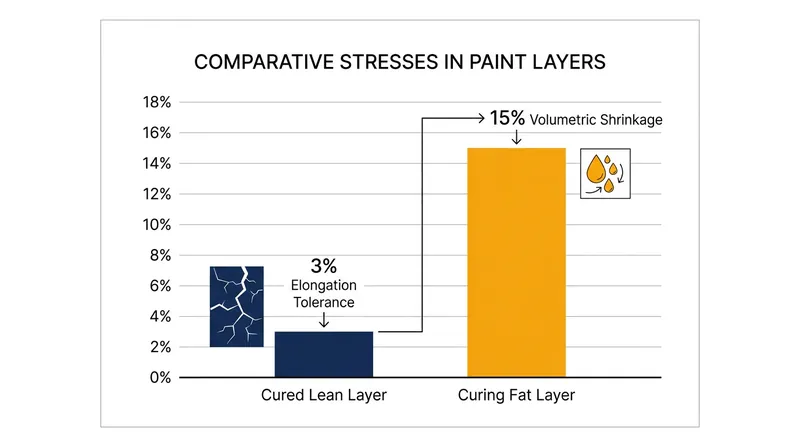

The math of the failure is absolute. A fully cured lean layer of lead white paint can only tolerate about a 3 percent elongation before snapping, while a fat underlayer of linseed oil will shrink by up to 15 percent as it sheds volatile compounds.[1][2]

Modern alkyds and the speed of failure

Contemporary painters often try to bypass this centuries-old constraint by using alkyd resins. These synthetic mediums are modified with alcohol and acid to accelerate the polymerization process, forcing the oil to cross-link and cure in a fraction of the traditional time.[3]

Alkyds allow an artist to paint a fat layer on Monday and paint over it on Wednesday. However, they do not rewrite the laws of physics; they merely compress the timeline of the oxidative shrinkage into a few days rather than a few decades.[2][3]

If an artist applies a lean wash of mineral spirits over a thick, semi-cured layer of alkyd medium, the exact same mechanical tearing will occur. The only difference is that the alligatoring will appear before the painting leaves the studio, rather than hanging in a museum 50 years later.

The rule remains the only way to guarantee a stable film. Every successive layer applied to a canvas must contain a slightly higher percentage of oil than the layer beneath it, ensuring that the most flexible layer is always on top.[3]

Conservation and the permanent cure

Museum conservators cannot reverse alligatoring once the rigid layer has snapped. They can only stabilize the surrounding paint using synthetic adhesives, injecting microscopic amounts of resin into the fissures to prevent the isolated islands of paint from flaking off entirely.

The structural integrity of a painting is entirely determined by the artist's discipline at the easel. A properly constructed oil painting, built strictly from lean to fat, will cure into a unified, flexible film capable of surviving for half a millennium.[3]

The chemistry of linoleic acid is entirely indifferent to artistic intent. A painter can master color, composition, and light, but if they fail to respect the mechanical limits of oxidative shrinkage, their work will inevitably destroy itself.[1][2]
