How Copper Resinate Saponification Turns Renaissance Greens Brown

When Vincent van Gogh’s vibrant chrome yellows lose their brilliance, or when the rosy cheeks in a Renaissance portrait fade to a ghostly pallor, the culprit is usually light. Photons break down the fragile chromophores in these fugitive pigments, leaving them washed out and pale over the centuries.[5]

But when the lush, verdant foliage in a 15th-century Italian masterpiece transforms into a muddy, impenetrable brown, the mechanism is entirely different. The green pigment is not merely fading; it is actively consuming the painting from the inside out through a structural chemical reaction.[2]

This destructive transformation plagues copper resinate, one of the most prized green pigments of the Renaissance and Early Modern periods. Unlike mineral greens such as malachite, which sit opaquely on the canvas, copper resinate is a hybrid organic-inorganic material.[2][3]

Artists created it by dissolving copper salts—typically verdigris—into pine resin heated to roughly 100 degrees Celsius. The resulting glaze was intensely saturated and highly transparent, allowing painters to build luminous, glowing greens by layering it over lighter underpainting.[2][3]

The preparation of copper resinate was itself a delicate alchemical art. Treatises from the era describe the meticulous process of heating the copper salts with the resin until the mixture achieved the perfect consistency and hue.[3]

The resulting pigment was highly prized in Venice, where the local availability of high-quality turpentine made it a staple of the regional palette for over 250 years. Artists like Titian and Tintoretto used it extensively to achieve the deep, glowing greens that defined their landscapes.[3]

For rendering the delicate folds of velvet drapery or the deep shadows of a distant forest, copper resinate was unmatched. Painters across Europe relied on its optical depth to bring landscapes and textiles to life.[2]

Yet, despite its initial aesthetic brilliance, the pigment harbored a chemical time bomb. By the 18th century, the color had largely fallen out of favor as artists realized that their vibrant greens were inevitably turning into dull olive or nearly black patches.[2]

The Chemistry of Saponification

The darkening of copper resinate is driven by a complex chemical reaction known as saponification. In a traditional oil painting, the binder is typically linseed or walnut oil, which consists of a mixture of at least three primary fatty acids and triglycerides.[1][4]

"Saponification is a chemical reaction between the pigment and the oil-based paint medium, universal in paint of this age," notes the Tate conservation team in their analysis of 17th-century portraits.

As the oil ages and dries over decades and centuries, it undergoes hydrolysis, releasing free fatty acids into the paint matrix. These mobile acids seek out reactive metal ions within the pigment layers.[1][4]

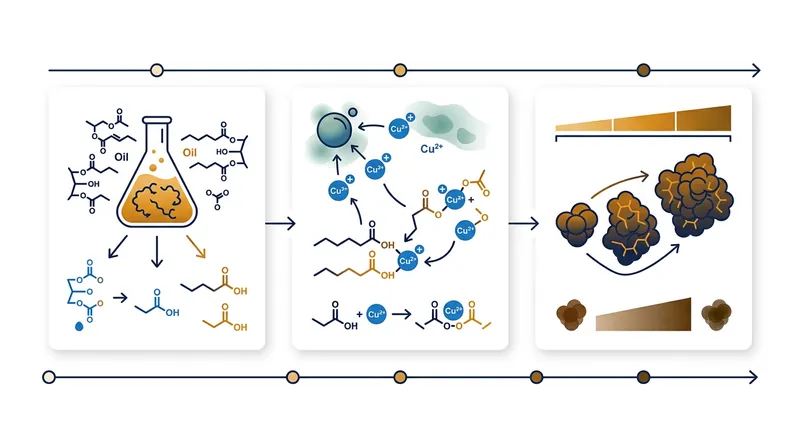

When these free fatty acids encounter the copper ions suspended in the resinate glaze, they react to form copper carboxylates, commonly known as metal soaps. This saponification process fundamentally alters the chemical and optical structure of the paint.[4]

The newly formed copper soaps are dark, waxy compounds that lack the crystalline transparency of the original pigment. As they accumulate, they destroy the light-reflecting properties of the glaze, shifting its hue from a vibrant green to a murky brown.[4]

The reaction is exacerbated by the specific molecular architecture of copper resinate. Recent spectroscopic analysis reveals that both copper acetate and copper resinate are bimetallic complexes, where two copper atoms are bridged by four carboxylate ligands.[1]

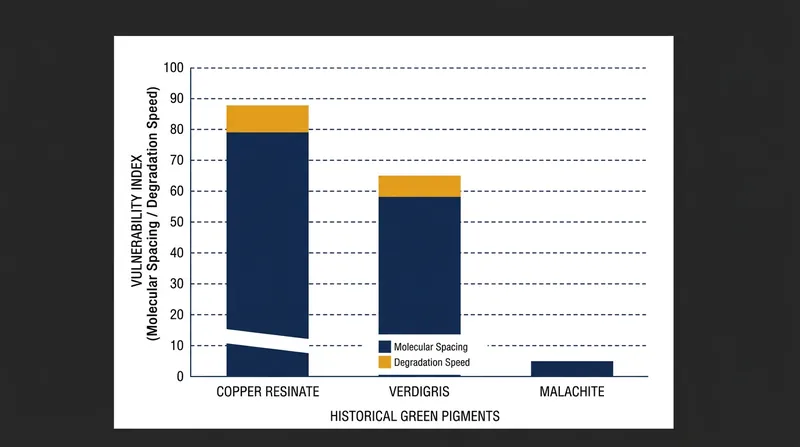

However, the bulky abietate molecules in the pine resin create significantly more space between the copper complexes in a resinate glaze than in a standard verdigris paint. This wider molecular spacing acts like a porous sponge.[1]

That open structure allows the free fatty acids from the aging oil binder to penetrate the pigment matrix much more rapidly. While opaque verdigris layers also suffer from degradation, copper resinate is uniquely vulnerable to pervasive saponification.[1][5]

Light, Oxygen, and Varnish

While saponification drives the structural breakdown of the paint, environmental factors act as powerful catalysts. Light exposure plays a crucial role in the initial stages of degradation by breaking the bridging molecules between the paired copper atoms.[1]

In recent laboratory simulations, researchers exposed fresh copper resinate films to 16 hours of intense 320-mW LED light. This brief exposure successfully replicated the photo-oxidative damage that would normally take up to 400 years of ambient museum lighting to achieve.[1]

Oxygen from the surrounding air then steps in to replace these lost bridges, creating new oxygen-bridged bimetallic copper complexes. These altered molecular structures inherently absorb different wavelengths of light, appearing significantly darker to the human eye.[1]

This photo-oxidative process explains why the edges of a painting, historically protected by the lip of a wooden frame, often retain their original bright green hue. Meanwhile, the exposed center of the canvas turns completely brown.

The artist’s choice of varnish also heavily influences the fate of the copper resinate. Renaissance painters frequently applied a final protective layer of natural resin varnish, such as mastic or dammar, over their finished works.[2][4]

If the varnish itself was highly acidic or degraded into acidic byproducts over time, it provided an additional source of reactive compounds. These acids attack the copper pigment from above, compounding the saponification occurring from the oil binder below.[2][4]

Historical painting manuals occasionally recognized the volatile nature of copper greens, even if the underlying chemistry remained a mystery. Some texts advised artists to isolate verdigris and copper resinate by applying a thin, protective layer of pure varnish.[3]

While this barrier technique could delay the onset of saponification by physically separating the reactive components, it was rarely a permanent solution. It could not ultimately stop the slow, inevitable migration of free fatty acids.[3]

The Conservation Challenge

For modern art conservators, the saponification of copper resinate presents an intractable problem. Because the browning is the result of a fundamental chemical transformation rather than a superficial layer of dirt, it cannot simply be cleaned away with standard 2% solvent solutions.[2]

The copper soaps are now an integral part of the paint film. Attempting to remove the brown layer would mean removing the artist’s original, albeit chemically altered, brushstrokes, which violates core conservation ethics.[2]

Furthermore, the formation of metal soaps often compromises the physical integrity of the painting. As the copper carboxylates aggregate, they can form microscopic lumps or pustules measuring up to 100 microns across that disrupt the surface of the artwork.[4]

This increases the mechanical stress within the paint layers, leading to minute flaking, cracking, and a general loss of cohesion. Conservators must carefully balance the need to stabilize these fragile areas with the ethical imperative to preserve historical material.[4]

In some cases, the saponification process has progressed so far that the original intent of the artist is entirely obscured. Landscapes that were meant to depict the vibrant, sunlit foliage of spring now look like the decaying woods of late autumn.[2]

A Legacy of Lost Color

Art historians and scientists increasingly rely on non-invasive imaging techniques, scanning canvases at resolutions as fine as 50 micrometers. Tools like X-ray fluorescence and Fourier-transform infrared spectroscopy map the presence of copper beneath the brown surface to digitally reconstruct the painting’s original appearance.[2][4]

The digital resurrection of these lost greens has profoundly altered our understanding of Renaissance aesthetics. When scientists digitally map the original copper distribution and restore the vibrant hues on a screen, the balance of the entire composition shifts.[2]

Paintings that have appeared somber and melancholic for centuries are suddenly revealed to be bright, energetic, and full of life. This forces art historians to reevaluate the emotional tone and symbolic meaning intended by the 16th-century masters.[2]

The story of copper resinate is a testament to the delicate, often unpredictable chemistry of classical painting. Renaissance masters experimented with materials that pushed the boundaries of the technology available to them, seeking to capture the natural world.[2][3]

They achieved breathtaking optical effects, but they did so at the cost of long-term stability. Unknowingly, they embedded a chemical flaw into their greatest works that would slowly consume their vibrant landscapes.[2][3]

Today, the darkened glazes serve as a poignant reminder that a painting is not a static object. It is a dynamic chemical system that continues to evolve long after the artist has laid down their brush.[5]
