How Sintered Clay and Magnetite Colored Ancient Greek Vases Without a Drop of Paint

In 1942, physical chemist Theodor Schumann finally cracked a visual mystery that had baffled art historians for centuries. He proved that the striking black figures on ancient Athenian vases were not painted with any known pigment or dye. Instead, the color was a structural illusion born entirely from dirt, fire, and a masterful manipulation of oxygen.[10]

Before Schumann’s chemical analysis, scholars widely assumed Greek artisans applied a specialized black glaze to their terracotta vessels. The reality, confirmed by decades of subsequent archaeometric research, is far more elegant. The potters used the exact same iron-rich clay for both the body of the vase and the painted silhouettes.[2]

The secret lay in the preparation of a liquid clay mixture known as a slip. Artisans would mix water with raw clay and let the heavier particles settle to the bottom of a large vat. They skimmed the finest, lightest particles from the top, creating a highly refined suspension.[1]

This purified slip was rich in illite and potassium, which fundamentally lowered its melting point compared to the coarser clay used for the vessel's body. When the artist painted a scene onto the dried leather-hard clay, the design was virtually invisible. The magic only happened inside the kiln.[5]

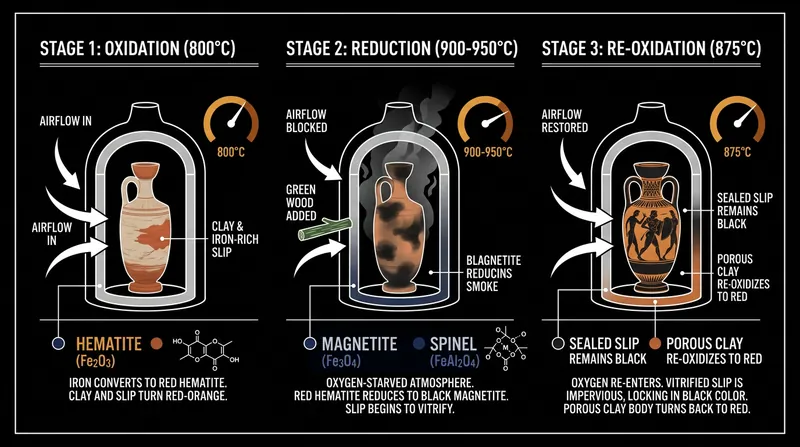

The Three-Stage Firing Cycle

The transformation required a grueling, multi-day firing sequence that pushed the limits of ancient engineering. The first stage was purely oxidizing, meaning the kiln vents were left wide open to allow oxygen to flow freely around the stacked pottery.[1]

As the internal temperature climbed to approximately 800 degrees Celsius, the ambient oxygen reacted with the iron present in both the body clay and the painted slip. This chemical reaction converted the iron into hematite. At this stage, the entire vase glowed a uniform, brilliant red.[6]

The critical second stage demanded a sudden and severe reduction of oxygen. Potters closed the kiln vents and shoveled damp green wood or wet leaves directly into the firing chamber. This smothered the flames, producing thick smoke and flooding the kiln with carbon monoxide.[3]

Starved of oxygen, the carbon monoxide began stripping oxygen molecules directly from the hematite in the clay. This violent chemical reduction converted the red iron oxide into magnetite, turning the entire vessel—both the body and the painted slip—a deep, matte black.[5]

Simultaneously, the kiln temperature was pushed to its absolute peak, reaching between 900 and 950 degrees Celsius. At this extreme heat, the fine particles in the painted slip began to melt and fuse together, a process known as sintering. The coarser body clay, however, remained porous.[6]

Sealing the Black Magnetite

The third and final stage required nerves of steel as the kiln began to cool. Once the temperature dropped to roughly 875 degrees Celsius, the potters reopened the vents, allowing fresh oxygen to rush back into the scorching chamber.[8]

The porous body clay immediately absorbed the returning oxygen. The black magnetite in the unpainted areas oxidized back into red hematite, restoring the vessel's warm terracotta background. But the painted areas reacted entirely differently to the sudden influx of air.[4]

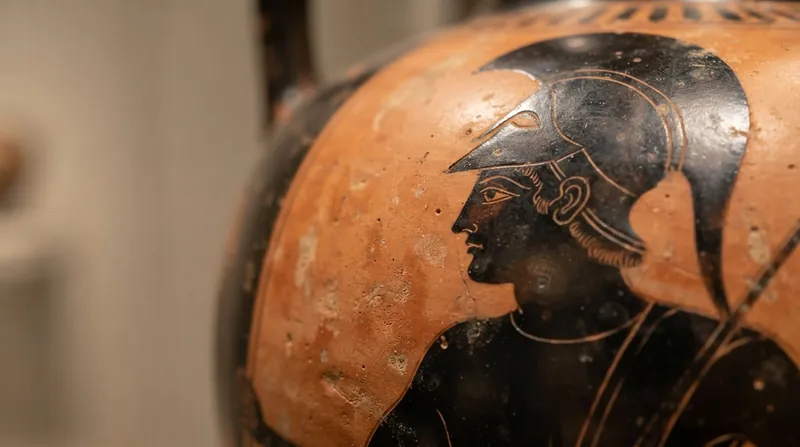

Because the refined slip had sintered into a dense, glassy layer during the peak heat, it was now completely impermeable. The oxygen could not penetrate the sealed surface to reach the iron trapped inside. The painted figures remained locked in their reduced state as black magnetite.[9]

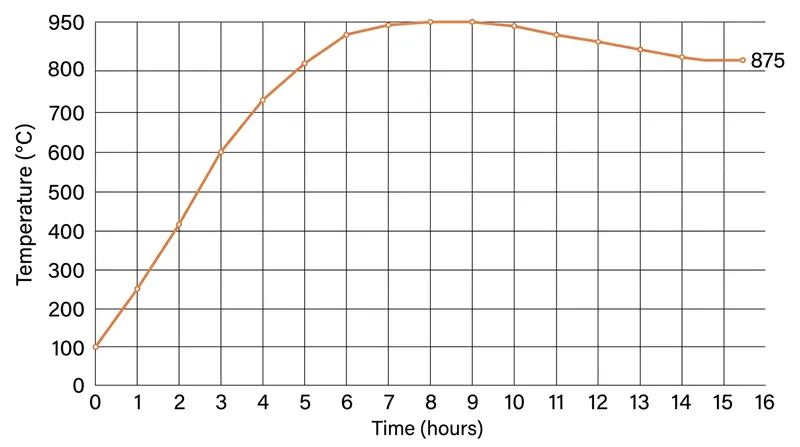

The margin for error during this cooling phase was brutally narrow. If the temperature dropped too rapidly before the slip fully sintered, the entire vessel remained vulnerable to re-oxidation. That failure would erase the black figures entirely, leaving a ruined, uniformly red pot.[6][8]

The kiln then had to cool slowly over several days before it could be safely opened. Exposing the hot ceramics to ambient room temperature too quickly would cause catastrophic thermal shock, shattering months of meticulous artistic labor into worthless shards.[8]

The Shift to Red-Figure

Around 530 BCE, Athenian artisans realized they could invert this chemical process to create more detailed artwork. Instead of painting the figures with the slip, they began painting the negative space, leaving the figures as bare clay.[1]

"The red-figure technique allowed for greater detail and a more realistic representation of the human anatomy," notes the World History Encyclopedia.[1]

This stylistic shift drove a massive export economy. By the fifth century BCE, the Kerameikos district in Athens was mass-producing these red-figure vessels, shipping tens of thousands of amphorae and kraters across the Mediterranean to wealthy Etruscan and Roman buyers.[7]

The sensory environment inside these ancient workshops was intense and hazardous. Modern replications reveal that potters relied heavily on the smell of the smoke, the color of the flames, and the radiant heat on their skin to judge the invisible chemical shifts occurring inside the brick kilns.[3]

Modern Replications and X-Ray Analysis

Today, researchers use advanced tools like confocal X-ray absorption near-edge structure (XANES) spectroscopy to map these ancient chemical transitions. By scanning microscopic cross-sections of Attic pottery, scientists can literally see the distinct layers of hematite and magnetite.[6]

Even with digital pyrometers and electric kilns, replicating the exact conditions of an Athenian firing remains incredibly difficult. Modern ceramicists often struggle to balance the precise duration of the reduction phase with the rapid temperature drops required for the final re-oxidation.[4]

The specific mineralogy of the slip was crucial. Recent mineralogical characterizations of fourth-century BCE black gloss ware confirm that the slip contained high concentrations of illite clay, which naturally fluxes at lower temperatures than the kaolinite-rich clay used for the vessel walls.[5]

The resulting black gloss is not merely a surface decoration, but a permanently fused ceramic layer that is virtually immune to fading, peeling, or ultraviolet degradation. This structural durability is why so many Greek vases survive in pristine condition after 2,500 years underground.[9]

These vessels stand as a monument to empirical science achieved entirely through generational observation. Without any formal understanding of molecular chemistry, Athenian potters mastered the atomic manipulation of iron oxides, creating a visual language that defined the classical world.[7]
