Why Old Master Paintings Crack Into Grids Instead of Peeling

The fate of a Renaissance masterpiece is sealed the moment its linseed oil binder first meets the air. Rather than evaporating, the oil begins absorbing oxygen, triggering a chemical reaction that locks its molecules into a rigid, three-dimensional network. This invisible structural shift dictates everything about how the painting will age.[1][2]

Because the binder cures rather than dries, the paint film transforms into a continuous sheet of plastic-like linoxin. It bonds so fiercely to the canvas that it cannot simply peel away when the centuries take their toll. Instead, it must fracture.[2][5]

The myth of drying paint

Most modern coatings, from household acrylics to digital inks, dry through a simple physical process called coalescence. Water or solvents evaporate into the air, leaving the pigment behind. The resulting film remains relatively flexible, able to stretch and shift as the temperature in a room fluctuates.[1]

Oil paint behaves entirely differently. "Oil paint does not 'dry' in the evaporative sense," notes a 2026 technical analysis by Montcarta. "Instead, it undergoes a complex process of oxidative cross-linking." The medium is chemically restless, continuing to react with its environment long after the artist cleans their brushes.[1]

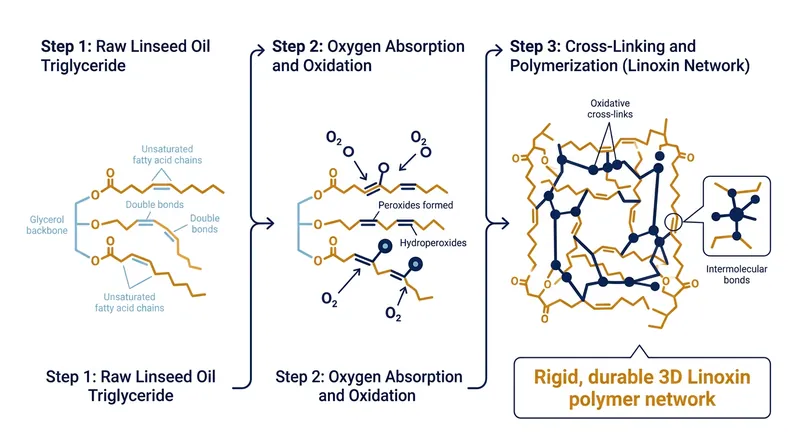

This oxidative polymerization is what gives old master paintings their legendary depth and durability. Cold-pressed linseed oil, the premier binder since the early Renaissance, absorbs atmospheric oxygen over six to twelve months. As it does, the double chemical bonds in the oil molecules open and link together.[2]

The result is a tough, interconnected web that locks the mineral pigments into a permanent matrix. But this strength comes with a hidden cost. As the cross-linking continues over decades and centuries, the paint film becomes increasingly brittle, steadily losing the flexibility it had when it was fresh.[2][5]

The canvas tug-of-war

While the paint layer slowly turns to stone, the canvas beneath it remains highly reactive to its environment. Heavyweight linen and wooden panels expand and contract with every shift in seasonal humidity. This creates a relentless mechanical tug-of-war between the rigid paint and the moving support.[3]

"The greatest threat to oil paintings is the sudden drop in humidity during winter heating periods," the Montcarta researchers explain. When indoor relative humidity drops below 30 percent, the canvas substrate shrinks rapidly. The brittle oil film simply cannot contract at the same rate.[1]

A 2016 study published by the Smithsonian Institution quantified this mechanical stress. Researchers subjected prepared gesso layers to extreme humidity cycles to observe the breaking point. They found that the first incidence of fracture on a 0.5 to 1-millimeter thick layer occurred after just a few to 100 cycles.[3]

The stress is not distributed evenly across the surface. The tension at the corners of a stretched canvas is more than double the stress at the center. As the canvas slackens over the centuries, unable to endure the long-term strain of stretching, the mechanical burden on the paint layer only intensifies.[4]

Relieving the tension

When the stress finally exceeds the breaking point of the paint, the film has to give way. If the paint were weakly adhered, it would simply delaminate and peel off in flakes. But the cross-linked linoxin is anchored deeply into the gesso primer, making peeling chemically impossible.[4]

Instead, the paint layer fractures. "The paint cracks when the stress upon it is greater than the breaking stress point of the paint layer," notes a 2023 archival report from the Robert Strong Woodward estate. "The paint will crack approximately at right-angles to the direction of the stress, relieving that stress."[4]

Because the canvas expands and contracts along its woven warp and weft threads, the stress pulls in perpendicular directions. The paint fractures across these lines of tension, creating a distinct grid. In the middle of the picture, these cracks tend to run parallel to the short sides of the frame.[4]

This network of fine fissures is known as craquelure. It is the visible record of a centuries-long battle between a moving canvas and a hardening polymer. The grid pattern is not a failure of the artist's materials, but a mathematical necessity of stress relief in a cross-linked system.[4][6]

Reading the fractures

For art historians and conservators, craquelure is far more than a symptom of age. It is an unforgeable signature of authenticity. Because the exact pattern depends on the specific materials, layer thickness, and environmental history of the piece, it is nearly impossible to replicate artificially.[6]

Forgers often attempt to simulate the effect using formaldehyde and specialized baking processes. However, these induced cracks tend to be highly uniform. They lack the organic, stress-mapped irregularity of authentic craquelure, which spreads naturally from the middle toward the locked edges of the canvas.[6]

Different regional schools of painting even developed their own distinct cracking styles, driven by their unique studio recipes. French craquelure typically features curving cracks in larger, less regular patterns. Italian craquelure, by contrast, usually presents as smaller, rectangular blocks of cracking.[6]

"A four-hundred-year-old oil painting is not, chemically, an inert object," explains a 2026 essay in Beyond Every Art. "Conservators reading a historic painting's craquelure, its yellowing, its varnish layers, are reading the visible record of a chemical process that simply never announced when it finished."[5]

The limits of preservation

Modern museums go to extraordinary lengths to halt this mechanical degradation. By maintaining a strict 50 percent relative humidity and stable temperatures, conservators can minimize the canvas's movement. This deprives the craquelure of the mechanical stress it needs to spread further.[1]

However, the chemical side of the equation cannot be stopped. The oxidative cross-linking of the linseed oil will continue as long as oxygen is present. The paint film will only grow more brittle with time, making the artwork increasingly vulnerable to even minor physical impacts.[1][5]

Applying a protective varnish too early can actually worsen the problem. If a canvas is varnished before the underlying oil has fully cured—often a process requiring a full year—it traps residual solvents. This disrupts the cross-linking and can cause deep, disfiguring fissures known as alligatoring.[1][5]

The grid of cracks on an old master painting serves as a testament to the medium's living chemistry. It is the physical evidence that the artwork is still reacting to the world around it, locked in a slow-motion transformation that began the day the paint left the brush.[5]
