Why the Shannon-Hartley Theorem Sets an Unbreakable Speed Limit on Global Data Networks

Every time a smartphone drops a video call in a crowded stadium or a home Wi-Fi network throttles during peak hours, the network has collided with a mathematical boundary defined in 1948. The physical universe imposes a hard ceiling on data transmission, and no amount of software engineering can bypass it. This ceiling is the Shannon-Hartley theorem, a foundational principle of information theory that dictates the absolute maximum rate at which data can be transmitted over a communication channel with a specified bandwidth and noise level.[2][6]

The reasoning is straightforward: to send more data, a system must either use a wider pipe, known as bandwidth, or shout louder over the background static, measured as the signal-to-noise ratio. When both variables are maxed out, the data rate cannot increase without introducing unrecoverable errors. Claude Shannon published this framework while working at Bell Labs. In his landmark paper, "A Mathematical Theory of Communication," Shannon established that "the fundamental problem of communication is that of reproducing at one point either exactly or approximately a message selected at another point."[1][4]

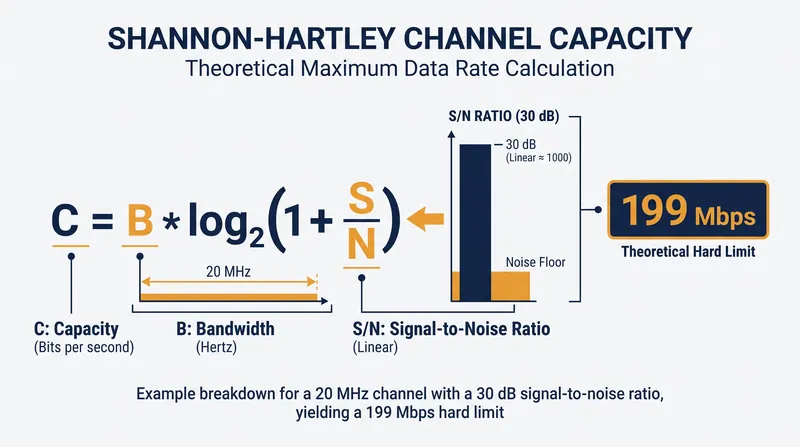

Shannon's work built upon earlier research by Ralph Hartley, who in 1928 proposed that the amount of information that can be transmitted is proportional to the frequency range available and the time of transmission. The resulting theorem is expressed as C = B * log2(1 + S/N), where C is the channel capacity in bits per second, B is the bandwidth in hertz, and S/N is the signal-to-noise ratio.[2][3]

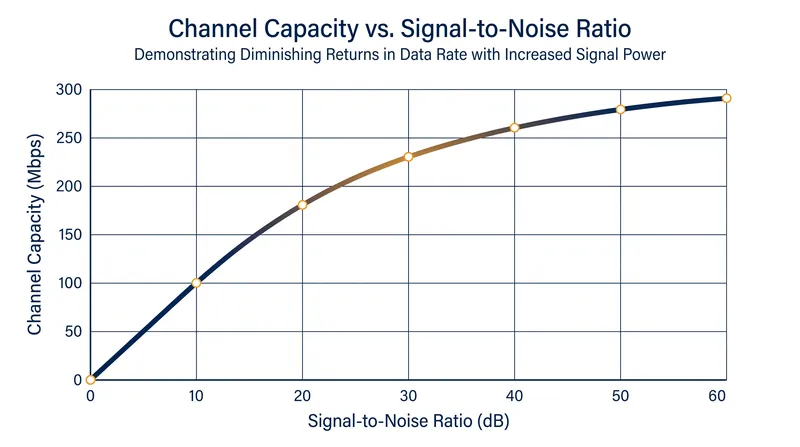

To understand the mechanism, consider a standard 20-megahertz Wi-Fi channel. If the signal-to-noise ratio is 30 decibels—a ratio of 1,000 to 1—the absolute maximum data rate the channel can support is approximately 199 megabits per second. No software update, compression algorithm, or antenna redesign can force that specific 20-megahertz channel to carry 250 megabits per second without data loss. The limit is as rigid as the speed of light.[4][5]

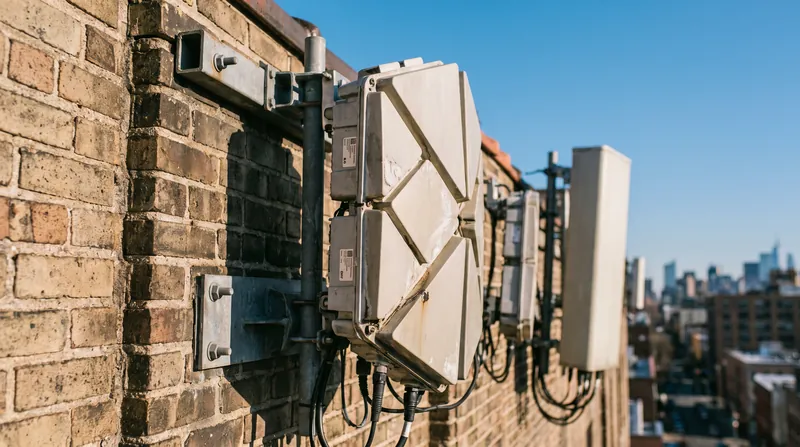

The strongest counter-argument from techno-optimists is that consumers constantly experience faster internet speeds, suggesting the limit is theoretical rather than practical. However, this misreads how network engineers actually achieve those speeds. Engineers do not break the Shannon limit; they circumvent the constraints by finding new spectrum. When 4G networks transitioned to 5G, telecommunications companies did not magically push more data through the same old frequencies. They expanded into the millimeter-wave spectrum, utilizing bandwidths of 100 megahertz or more.[5][6]

Alternatively, engineers deploy complex modulation schemes like Quadrature Amplitude Modulation (QAM). A 256-QAM system transmits 8 bits per symbol by varying both the amplitude and phase of the carrier wave, pushing the transmission rate closer to the theoretical ceiling. Yet, as modulation becomes more complex, the system becomes exponentially more sensitive to noise.[4][5]

A minor increase in background interference—such as a microwave oven operating near a Wi-Fi router—can corrupt the delicate phase shifts, forcing the system to drop to a lower, slower modulation scheme to maintain a reliable connection. This trade-off is why rural broadband initiatives often struggle. Covering vast distances requires lower frequencies that penetrate obstacles, but these frequencies inherently offer narrow bandwidths.[4][6]

The theorem also explains the massive capital expenditures in the telecommunications sector. Because engineers cannot violate the mathematical limit, companies must spend billions of dollars at spectrum auctions to secure wider bandwidths, or lay thousands of miles of fiber-optic cable, which offers vastly superior signal-to-noise ratios compared to wireless transmission.[6]

As global data consumption continues to grow exponentially, the constraints of the Shannon-Hartley theorem will force a reckoning. The telecommunications industry is rapidly approaching the physical limits of existing infrastructure, meaning future gains in data speed will require entirely new transmission mediums rather than incremental improvements to current wireless technology.[3][6]
