The Science of Constant Force: How Compliant Mechanisms Are Creating Weightless Free Weights

The iron plate has been the undisputed king of strength training for centuries. Gravity is entirely reliable, but it comes with a heavy, dangerous, and bulky cost that limits where and how people can train.[7]

Alternatives like resistance bands and pneumatic machines have tried to replace the iron for decades. But traditional elastic bands suffer from a fundamental physics issue known as variable resistance—they get exponentially harder to pull the further they stretch, failing to mimic the consistent, even pull of gravity.[7]

Enter compliant mechanisms, a specialized branch of mechanical engineering that is quietly rewriting the physics of fitness equipment and challenging the dominance of the weight stack.[1]

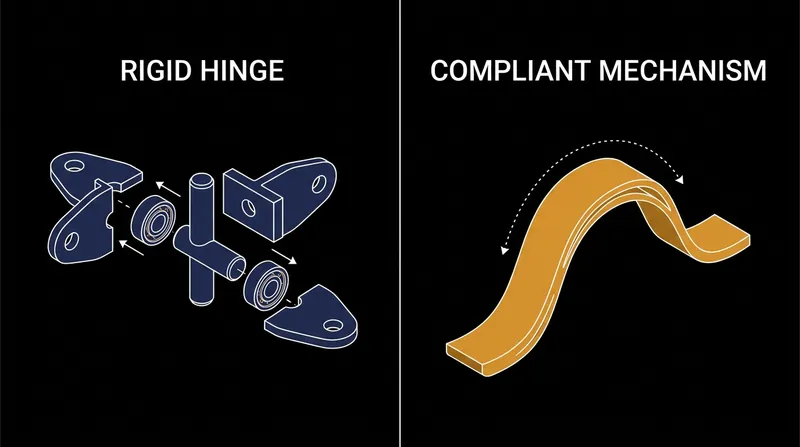

Unlike traditional machines that rely on rigid parts connected by hinges, bearings, and pins, compliant mechanisms gain their movement entirely from the bending of flexible materials.[1]

Think of a bow and arrow, or the living hinge on a plastic shampoo bottle cap. They transfer force and store energy through the elastic deformation of their own structure, requiring zero assembly, zero lubrication, and zero discrete moving parts.[3]

The holy grail for exercise equipment design is the Constant-Force Mechanism (CFM). Researchers, notably at Brigham Young University's Compliant Mechanisms Research group, have pioneered the application of CFMs to human fitness.[1][6]

A CFM solves the resistance band problem through precise geometric engineering. It compensates for the increasing stiffness of a bending material by simultaneously altering the mechanical advantage of the system as it moves.[5]

The result is a perfectly flat force profile. If the mechanism is tuned to provide 50 pounds of resistance, it requires exactly 50 pounds of force to move it the first inch, and exactly 50 pounds to move it the twentieth inch.[1][5]

This mathematical trick perfectly mimics the feel of free weights without the actual mass. Gravity pulls a 50-pound dumbbell with 50 pounds of force regardless of where it is in space; CFMs replicate this exact sensation using only flexing fiberglass or polymers.[6][7]

Beyond just saving space, CFMs actually offer a distinct biomechanical advantage over traditional iron by completely eliminating inertia from the lifting equation.[2]

When lifting a heavy barbell, athletes naturally use momentum to accelerate the weight. At the top of an explosive movement, the weight carries its own upward momentum, requiring the muscles to actually brake or decelerate to avoid joint hyperextension.[4]

Biomechanics researchers analyzing Constant-Force Bodybuilding Machines (CFBMs) have documented exactly how the absence of physical mass changes the nature of the lift.[2][4]

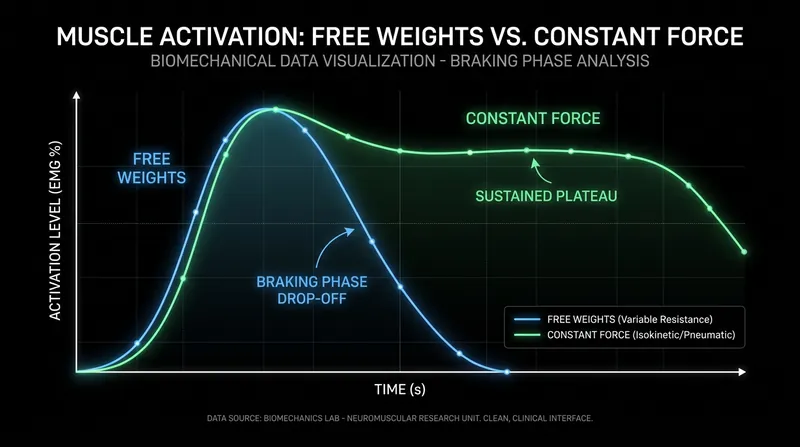

Because there is no mass being accelerated, there is zero momentum. The muscle must apply maximum force through the entire concentric phase, and studies show this entirely eliminates the braking phase seen in free-weight bench presses.[2]

This constant, inescapable tension increases the muscle's time under tension, a critical driver of muscular hypertrophy and strength adaptation. In some studies, peak and mean power outputs were significantly higher on constant-force machines compared to traditional weights.[4]

Furthermore, the safety profile of a weightless free weight is radically different. If a lifter fails a repetition with a 300-pound barbell, the iron crashes down, requiring spotters or safety racks.[7]

If they fail a rep on a CFM, the mechanism simply returns to its resting state. The stored strain energy retracts the handles, but there is no heavy mass accelerating toward the user's chest or feet.[6]

The manufacturing implications are equally disruptive. Because compliant mechanisms can often be fabricated as monolithic, single-piece structures, they drastically reduce part counts and assembly costs.[3][5]

Prototypes like BYU's IsoFlex utilize fiberglass flexures to deliver hundreds of pounds of resistance in a machine that weighs a fraction of a traditional weight stack and can be manufactured rapidly.[6]

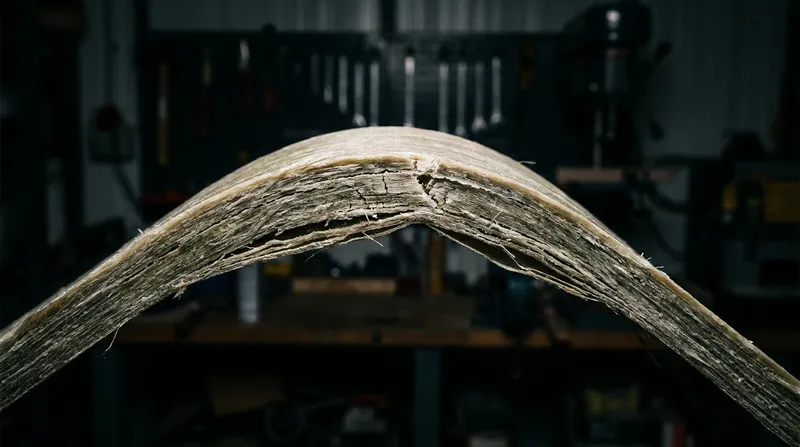

Challenges do remain, primarily in material fatigue. Bending a polymer or fiberglass flexure millions of times under high tension requires advanced materials to prevent microscopic fractures over years of heavy gym use.[3][7]

Yet, as materials science catches up with mechanical theory, the era of the iron plate is facing a legitimate technological rival. The future of heavy lifting might just be entirely weightless.[7]
