The Miller Effect: Why Inverting Amplifiers Lose High-Frequency Bandwidth Before Transistors Reach Their Limits

Novice circuit designers often assume that an amplifier’s high-frequency limit is dictated by the physical speed of its transistors. The prevailing logic suggests that once a signal oscillates faster than electrons can cross the silicon junction, the amplifier simply stops working.

That assumption fundamentally misdiagnoses the bottleneck in almost every basic inverting amplifier design. The actual culprit is not the intrinsic transit time of the semiconductor material, but a geometric feedback mechanism known as the Miller effect.[4]

Long before a transistor reaches its physical switching limit, a tiny, unavoidable parasitic capacitance between its input and output terminals sabotages the signal. Because the amplifier inverts and magnifies the voltage, this microscopic capacitance behaves as if it were massively larger.[1]

The Anatomy of Parasitic Capacitance

Every electronic component possesses unintended physical properties simply because of how it is constructed. In a standard bipolar junction transistor, the physical proximity of the base and collector regions creates a small electrostatic storage area.

This base-collector junction acts exactly like a tiny capacitor, typically measuring just a few picofarads. On paper, a four-picofarad capacitor should not pose a significant threat to a high-frequency signal, as its impedance remains relatively high.[1][2]

However, this specific capacitor bridges the input of the amplifier directly to its output. In an inverting configuration, when the input voltage rises by one volt, the output voltage drops by a factor equal to the amplifier’s gain.

If the amplifier has a voltage gain of 100, a one-volt increase at the input results in a 100-volt decrease at the output. The total voltage difference across that tiny parasitic capacitor is therefore 101 volts.[4]

The capacitor must absorb enough electrical charge to account for that massive 101-volt swing, even though the input signal only moved by a single volt. To the circuit driving the amplifier, it feels exactly like charging a capacitor 101 times larger.

The Mathematics of Multiplication

This phenomenon was first documented in 1920 by physicist John Milton Miller, who observed it in vacuum tube triodes. In his seminal Bureau of Standards paper, Miller wrote that the apparent input capacity of the tube is increased by an amount which is proportional to the amplification.[3][4]

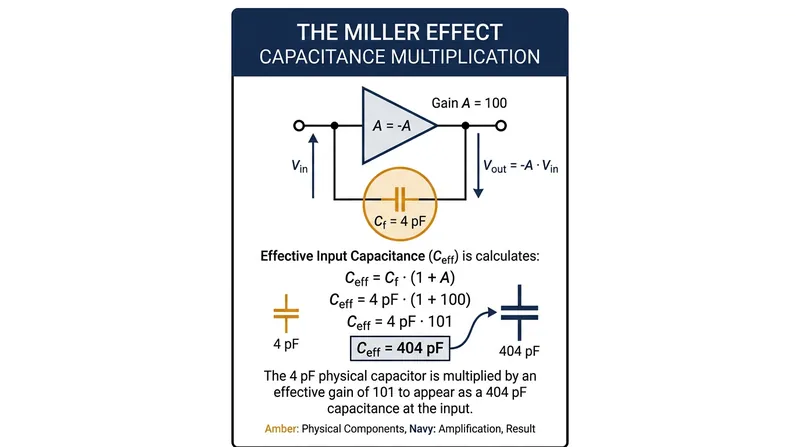

He realized that the effective input capacitance equals the physical feedback capacitance multiplied by one plus the voltage gain. In our example, that harmless four-picofarad parasitic capacitance is mathematically transformed into a 404-picofarad burden.[1][4]

This multiplied capacitance sits directly in parallel with the amplifier's input, waiting to interact with the source resistance. Every signal source, whether it is a microphone, an antenna, or a previous amplifier stage, possesses some internal electrical resistance.[2]

When this source resistance combines with the Miller-multiplied capacitance, they form an unintentional low-pass filter. A low-pass filter allows low-frequency signals to pass through unimpeded but progressively attenuates higher frequencies.

The exact point where the signal loses half its power is known as the cutoff frequency, dictated entirely by the resistor-capacitor time constant. If a signal source has a resistance of one kilo-ohm, that 404-picofarad effective capacitance creates a cutoff frequency of roughly 390 kilohertz.[4]

The Bandwidth Collapse

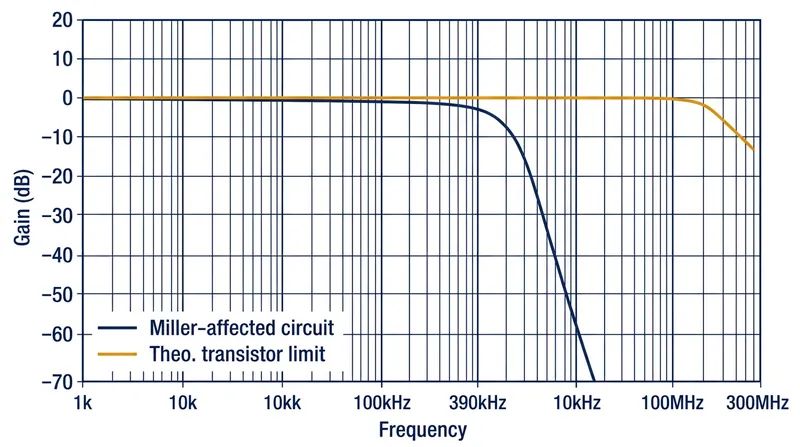

Any signal oscillating faster than 390,000 times per second will be severely degraded. This is where the initial assumption about transistor speed completely falls apart, as the intrinsic transition frequency of a modern small-signal transistor is often well above 300 megahertz.[1][3]

The Miller effect forces the amplifier to sacrifice its high-frequency bandwidth at 390 kilohertz, which is nearly a thousand times slower than the silicon's theoretical limit. The transistor is perfectly capable of switching faster, but the input signal never reaches it.[4]

The high-frequency energy is essentially shunted to ground by the multiplied capacitance before it can be amplified. The higher the voltage gain of the stage, the more severe this bandwidth penalty becomes, creating a strict gain-bandwidth tradeoff.[2]

Circuit designers cannot simply ignore this mathematical reality. If an application requires both high gain and high bandwidth—such as in radar systems or high-speed data communications—a basic common-emitter or common-source amplifier will inevitably fail.[3]

To circumvent the Miller effect, engineers must fundamentally alter the circuit topology to prevent the voltage inversion from multiplying the capacitance. The most common solution is the cascode configuration, which splits the amplification duties across two separate transistors.

Engineering Around the Bottleneck

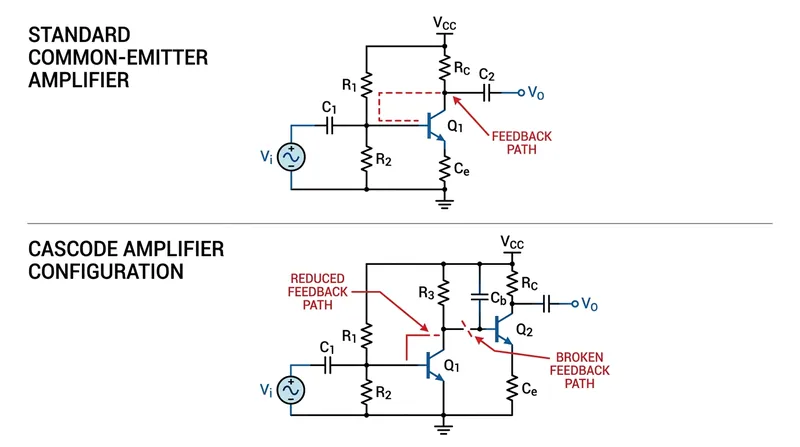

In a cascode circuit, the first transistor handles the input signal but is intentionally restricted to a voltage gain of exactly one. Because there is no voltage amplification, the Miller multiplication factor is eliminated, keeping the input capacitance tiny.[4]

The second transistor in the cascode arrangement provides the necessary voltage gain, but its input is isolated from the parasitic feedback loop. This clever arrangement allows the circuit to achieve high gain while preserving its high-frequency bandwidth.[3]

Another approach involves driving the amplifier with a source that has an extremely low internal resistance. If the source resistance approaches zero, the resistor-capacitor time constant shrinks, pushing the cutoff frequency back into the megahertz range.[1][2]

However, providing a near-zero source resistance usually requires adding a buffer stage, such as an emitter follower, immediately before the inverting amplifier. This adds complexity, power consumption, and physical footprint to the overall circuit design.

While the Miller effect is generally viewed as a parasitic nuisance in high-speed design, it is not universally detrimental. In certain applications, engineers intentionally exploit this capacitance multiplication to solve entirely different problems.[2][4]

Intentional Exploitation of the Effect

The most prominent example is the frequency compensation of operational amplifiers. To ensure that an op-amp remains stable and does not oscillate uncontrollably when feedback is applied, its bandwidth must be deliberately restricted.[1]

Rather than installing a massive, physically large capacitor to create this low-pass filter, designers integrate a microscopic capacitor across an internal high-gain inverting stage. The Miller effect multiplies this tiny component, providing the necessary capacitance without consuming valuable silicon real estate.[2]

This technique, known as Miller compensation, is the reason modern operational amplifiers can be manufactured so compactly and cheaply. The very mechanism that ruins high-frequency performance in one context ensures rock-solid stability in another.[1][3]

The phenomenon also plays a critical role in the design of power electronics and motor drives. When switching large currents with power MOSFETs, the Miller capacitance creates a temporary plateau in the gate voltage, slowing down the switching transition.

This delayed switching can increase heat generation and power loss, forcing engineers to design robust gate-drive circuits capable of rapidly charging and discharging the multiplied capacitance. Understanding the effect is mandatory for preventing catastrophic thermal failures.[3][4]

The Future of High-Speed Design

Ultimately, the Miller effect demonstrates that electronic components cannot be evaluated in isolation. A transistor's performance is dictated not just by its internal physics, but by how its parasitic elements interact with the surrounding circuit topology.

The assumption that silicon speed limits dictate bandwidth ignores the reality of feedback. By recognizing that capacitance multiplies with gain, engineers can accurately predict bandwidth limits and deploy the right topologies to bypass them.[4]

As semiconductor manufacturing continues to shrink transistor dimensions, parasitic capacitances become even more influential. Engineers must constantly balance the demand for higher gain against the inescapable physics of the Miller effect.[1][3]

The next generation of high-speed communications will require even more innovative circuit topologies to bypass these limitations. Until then, the mathematics of capacitance multiplication remain the ultimate speed limit for basic amplifier design.[4]
