Piano Wire Stiffness Forces Technicians to Stretch Octaves Beyond Pure 2:1 Ratios

Open any introductory physics textbook, and the section on musical acoustics will state a seemingly immutable law: an octave is a perfect 2:1 frequency ratio. The authors assert that tuning an instrument is simply a matter of aligning these mathematical integers.

The evidence, however, demonstrates that applying this pure mathematical model to a physical piano produces an instrument that sounds violently out of tune. The textbook model relies on an infinitely flexible string, a theoretical construct that does not exist in the real world.[4]

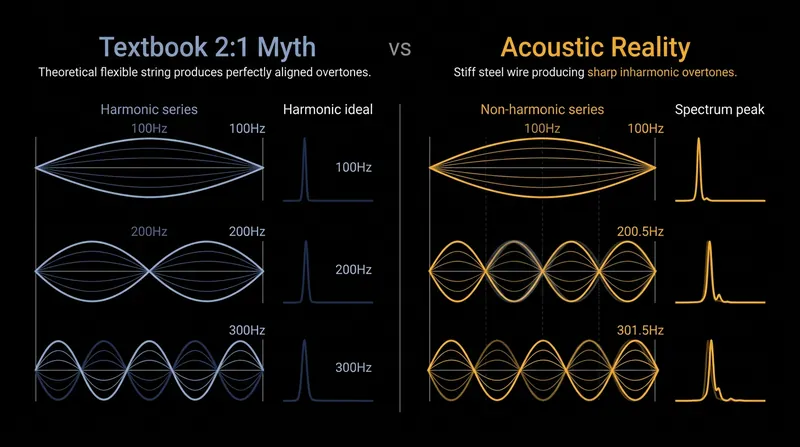

In reality, the thick steel wire used in acoustic pianos possesses substantial physical bending stiffness. This stiffness acts as a secondary restoring force, driving the wire's overtones progressively sharper than the textbook's perfect integer multiples.[1]

Because human ears prioritize the alignment of these overtones over the fundamental pitches, piano technicians are forced to abandon the 2:1 ratio entirely. They must deliberately stretch the octaves, tuning the treble sharp and the bass flat, to mask the physical imperfections of the steel.[3]

The Physics of Bending Stiffness

The fundamental flaw in the 2:1 octave theory is its reliance on the ideal string equation. That equation assumes that tension is the only force pulling a displaced string back to its resting position.

Steel piano wire, particularly the heavy gauge used in the bass register, resists bending entirely on its own. It behaves partially like a flexible string and partially like a rigid metal bar.[1]

"The stiffness of the wire acts as a secondary restoring force, causing the higher partials to run progressively sharper than the true harmonic series," writes acoustician Arthur H. Benade in his 1976 text.

This dual nature means the wave speed along the wire is not constant. Higher frequency waves, which have shorter wavelengths and require the wire to bend more sharply, travel faster than the fundamental frequency.[1]

Consequently, the second harmonic of a 100 Hertz fundamental is not exactly 200 Hertz. Depending on the wire's thickness and tension, it might be 200.5 Hertz, and the fourth harmonic might be 402 Hertz, stretching further away from the mathematical ideal.[1][4]

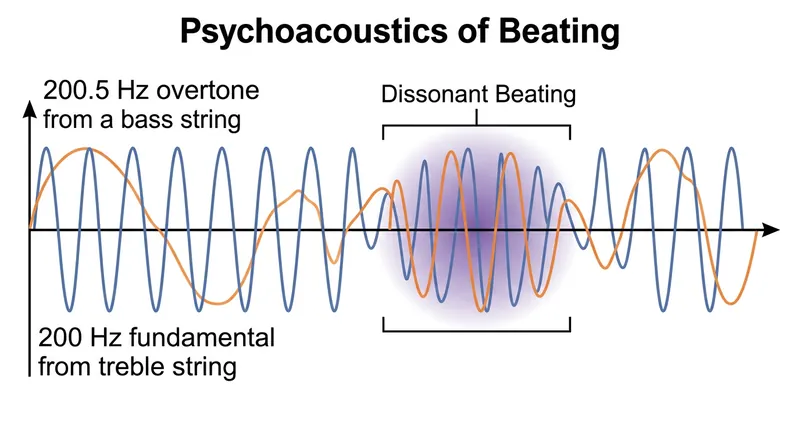

If a technician tunes the octave above that fundamental to a mathematically perfect 200 Hertz, a clash occurs. The 200.5 Hertz overtone of the lower string beats against the 200 Hertz fundamental of the upper string, creating a rapid, dissonant pulsing.[3]

The Inharmonicity Coefficient

To quantify this deviation, acousticians rely on the inharmonicity coefficient, denoted by the letter B. This coefficient is derived from the wire's diameter, its tension, its length, and the Young's modulus of steel.[1][4]

The Young's modulus of standard high-carbon piano wire is approximately 200 gigapascals. This immense rigidity guarantees that no acoustic piano can ever escape the physical reality of inharmonicity, regardless of how perfectly it is manufactured.[1]

In a landmark 1964 paper published in the Journal of the Acoustical Society of America, physicist Harvey Fletcher demonstrated that the frequency of any given overtone can be precisely calculated. The formula multiplies the theoretical harmonic by the square root of one plus the coefficient times the harmonic number squared.[1]

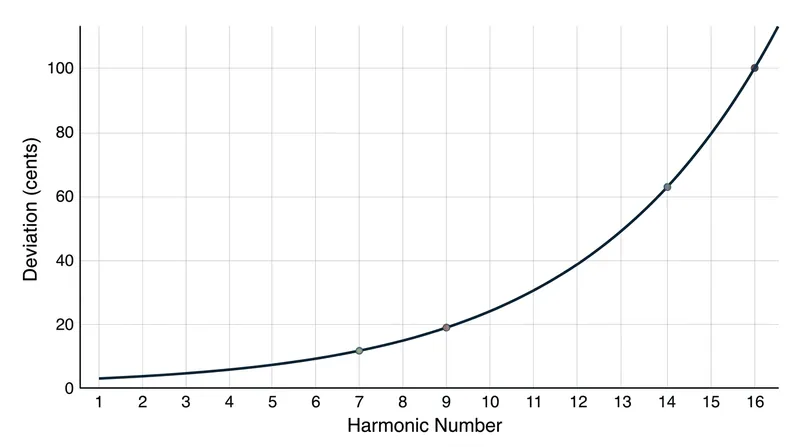

For a thick bass string like A0, the lowest note on the keyboard, the inharmonicity coefficient is roughly 0.0003. While this number appears vanishingly small, its effect compounds exponentially as you move higher up the overtone series.[1][4]

By the time you reach the 16th harmonic of that low A0 string, the pitch is nearly a full semitone sharper than a perfect mathematical multiple. The physical stiffness of the wire has entirely overridden the theoretical acoustics of the ideal string.[1]

To resolve this, the technician must tune the upper note to match the sharp overtone of the lower note, rather than its theoretical fundamental. This compromises the fundamental pitch to achieve a harmonious blend of overtones.[3]

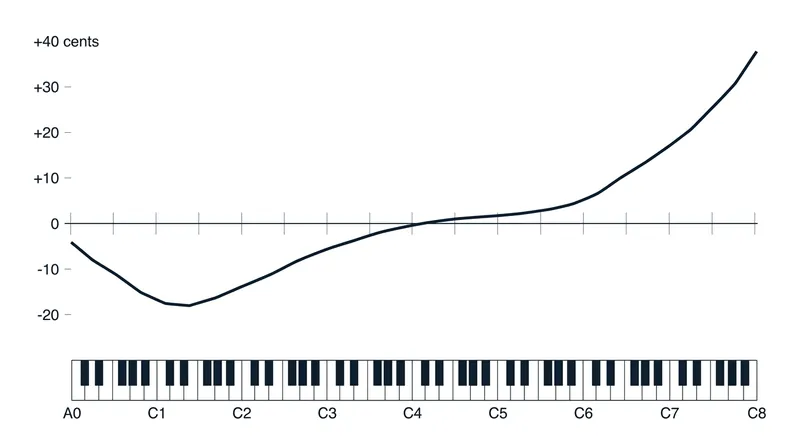

Mapping the Railsback Curve

The cumulative effect of this overtone matching across the entire keyboard was first systematically measured by acoustician O.L. Railsback in 1938. His measurements proved that professional tuners were universally deviating from the 2:1 ratio.[2]

Railsback plotted the fundamental frequencies of a professionally tuned piano against the theoretical frequencies of equal temperament. The resulting graph, now known as the Railsback curve, visually demonstrates the necessity of stretched tuning.[2]

The curve shows that the middle octaves of the piano remain relatively close to mathematical perfection. However, as the notes descend into the bass, the tuning becomes progressively flatter than the theoretical ideal.[2][3]

Conversely, as the notes ascend into the high treble, the tuning becomes exponentially sharper. By the time the curve reaches C8, the highest note on a standard piano, the pitch is typically 30 to 40 cents sharper than a perfect 2:1 projection.[2][4]

A cent is one-hundredth of a semitone, meaning the highest notes on a concert grand are nearly a quarter-step sharp. If a digital synthesizer were tuned to this exact frequency without the accompanying stiff-string overtones, it would sound painfully out of tune.[3][4]

The Railsback curve is not a single, universal formula that can be applied blindly to every instrument. Because inharmonicity depends on wire length and thickness, a nine-foot concert grand requires a significantly different stretch curve than a forty-inch upright piano.[2][3]

The Psychoacoustic Compromise

The necessity of stretch tuning reveals a profound truth about human psychoacoustics. Our auditory processing system does not evaluate the pitch of a complex tone by isolating its fundamental frequency.[4]

Instead, the human brain analyzes the entire spectrum of overtones and assigns a perceived pitch based on the aggregate pattern. When the overtones are sharp due to wire stiffness, our brain expects the corresponding higher notes to be equally sharp.

The strongest counter-argument to this practice comes from advocates of pure intonation, who argue that any deviation from mathematical ratios corrupts the music. They maintain that electronic instruments, which can generate perfect harmonics, offer a superior acoustic experience.[4]

However, the evidence from centuries of acoustic instrument design suggests otherwise. The slight inharmonicity of the piano string, and the stretched tuning it necessitates, is precisely what gives the instrument its characteristic warmth and brilliance.[3][4]

Removing that physical imperfection yields a sound that most listeners describe as sterile and artificial. The stiffness of the steel wire is not a defect to be engineered away, but the defining physical trait of the piano's voice.[3]

The 2:1 octave remains a useful mathematical abstraction for introductory physics, but it fails to account for the physical reality of the materials we use to make music. True harmony requires technicians to accommodate the steel, rather than forcing it into a theoretical ideal.[4]
