How Trapped Ram Pressure Turns Airspeed Indicators Into Altimeters That Lure Pilots Into Stalls

The binding constraint of fixed-wing flight is that an aircraft must move through the air faster than its stall speed to maintain lift. To know whether this condition holds, pilots rely on a mechanical subtraction problem. The airspeed indicator constantly compares the impact of the oncoming wind against the ambient pressure of the sky.[2]

When that subtraction problem works, it keeps the aircraft safely within its aerodynamic envelope. But when ice or debris seals the system, the math breaks in a highly specific and dangerous way. The instrument stops measuring forward speed entirely. Instead, it begins measuring altitude, feeding the cockpit a lethal illusion.[1]

This failure mode, known as trapped ram pressure, has lured highly trained crews into catastrophic aerodynamic stalls. It occurs when a blocked pitot tube transforms the airspeed indicator into a makeshift altimeter. Understanding why this happens requires looking at the pneumatic plumbing that drives the instrument panel.[1]

The Federal Aviation Administration’s Pilot's Handbook of Aeronautical Knowledge details the pitot-static system as a network of pressure-sensitive instruments. The system relies on two distinct air sources. The pitot tube, a forward-facing probe, captures ram air pressure generated by the aircraft's forward motion.[2]

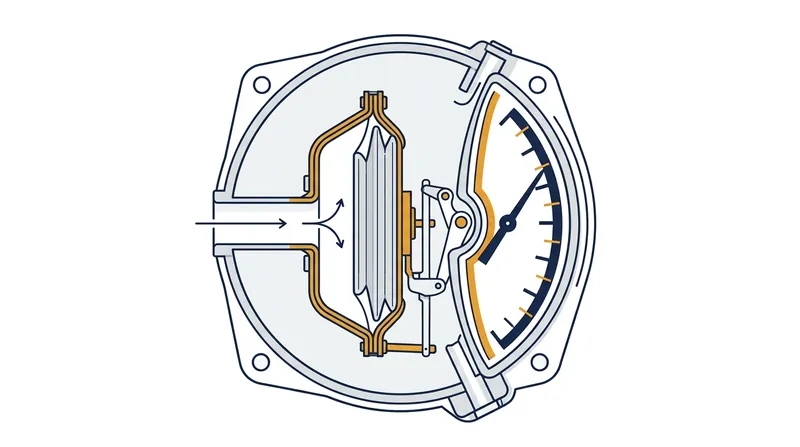

Meanwhile, flush-mounted static ports on the side of the fuselage measure the undisturbed ambient atmospheric pressure. The airspeed indicator is the only instrument in the cockpit that receives both of these inputs. Inside the gauge, a flexible metallic diaphragm receives the ram air pressure from the pitot tube.[2][5]

The Mechanics of Measurement

The airtight case surrounding that diaphragm is vented to the static ports. As the aircraft accelerates, the ram pressure increases, inflating the diaphragm against the ambient static pressure inside the case. The instrument's mechanical linkages translate this expansion into the indicated airspeed displayed on the dial.[2]

The airspeed indicator is essentially measuring dynamic pressure, which is the difference between total ram pressure and static pressure. If the aircraft flies faster, dynamic pressure rises. If it slows down, dynamic pressure falls. But this delicate balance assumes that air can flow freely into and out of the pitot tube.[2][4]

A pitot tube has a front inlet for ram air and a small drain hole at the back to expel moisture. If only the front inlet freezes, the trapped pressure bleeds out through the drain hole. The airspeed indicator simply drops to zero, which is an obvious and easily diagnosed failure.[5]

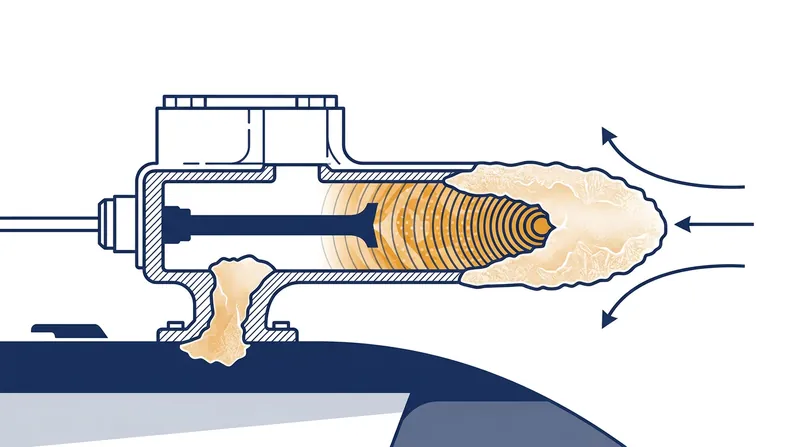

The trap is set when both the front inlet and the drain hole become blocked simultaneously. This usually happens when a pilot fails to activate the pitot heat before entering visible moisture at freezing temperatures. Ice rapidly seals the entire probe, trapping a fixed volume of air inside the pitot line.

At the exact moment the ice seals the tube, the ram pressure is locked at its current value. If the aircraft is flying at 150 knots, the pressure required to indicate 150 knots is permanently trapped inside the diaphragm. If the aircraft remains in level flight, the airspeed indicator will freeze at 150 knots, regardless of actual throttle changes.[5]

The Altimeter Illusion

The illusion begins when the aircraft changes altitude. If the pilot initiates a climb, the aircraft ascends into thinner air. The static ports, which remain unblocked, continue to feed this decreasing ambient pressure into the casing of the airspeed indicator.[2]

Inside the instrument, the trapped ram pressure inside the diaphragm remains constant, but the static pressure pushing back against it is dropping. With less resistance from the static air, the diaphragm expands further. The mechanical linkages interpret this expansion exactly as they were designed to: as an increase in airspeed.[2][5]

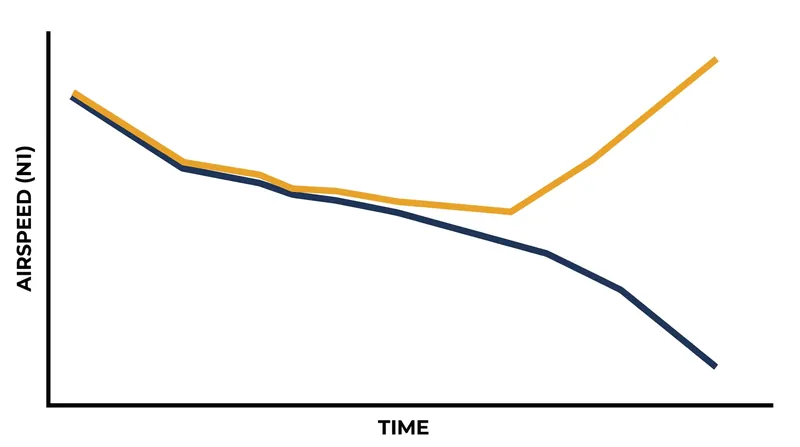

The airspeed indicator now functions identically to an altimeter. As the aircraft climbs higher, the static pressure drops lower, and the indicated airspeed rises faster. The instrument is no longer measuring how fast the aircraft is moving through the air; it is measuring how high the aircraft is climbing.[1]

This creates a profound cognitive dissonance in the cockpit. In normal flight, pitching the nose up to climb causes an aircraft to lose airspeed as it trades kinetic energy for altitude. But with trapped ram pressure, the pilot pulls the nose up, and the airspeed indicator perversely shows the aircraft accelerating.[1][5]

Faced with an airspeed needle surging toward the aircraft's structural redline, the pilot's conditioned instinct is to arrest the acceleration. The standard procedure for an overspeed condition is to reduce engine power and pitch the nose up even further. This is where the mechanical failure becomes a psychological trap.[1]

The Aerodynamic Trap

By pitching the nose up to bleed off the false speed, the pilot forces the aircraft into a steeper climb. This steeper climb causes the ambient static pressure to drop even faster. The airspeed indicator, responding to the rapidly dropping static pressure, shows a massive, instantaneous acceleration.

"The airspeed went from the bottom of the airspeed indicator to the top so quickly that the captain couldn't visualize the airplane doing so," the National Transportation Safety Board noted in a 2009 incident report involving a blocked pitot tube. The crew was seeing speeds exceeding 400 knots while the aircraft was actually slowing down.[3]

As the pilot continues to pull back on the yoke to fight the phantom overspeed, the aircraft's actual aerodynamic speed decays critically. The wings are pitched at an increasingly steep angle to the oncoming air. Eventually, the airflow separates from the upper surface of the wing, destroying its lift.[4]

The aircraft enters an aerodynamic stall, dropping out of the sky while the airspeed indicator still screams that it is flying too fast. Because the aircraft is now descending in the stall, the static pressure begins to rise again. This compresses the diaphragm, causing the indicated airspeed to plummet, adding to the crew's confusion.[4]

This exact sequence has destroyed multiple commercial airliners. In 1996, Birgenair Flight 301 crashed into the Caribbean Sea after mud dauber wasps built a nest inside the pitot tube. The trapped pressure caused the airspeed indicator to show a dangerous acceleration during the initial climb, prompting the captain to reduce thrust until the Boeing 757 stalled.[3][4]

The Digital Counter-Argument

A strong counter-argument suggests that modern aviation has engineered its way out of this trap. Contemporary glass cockpits use digital Air Data Computers rather than mechanical diaphragms. These computers cross-reference multiple sensors, including GPS ground speed and angle-of-attack vanes, to filter out anomalous readings.[5]

Furthermore, modern flight control systems often feature envelope protection. If the computer detects that the aircraft is approaching a stall, it will automatically push the nose down, overriding the pilot's inputs. Proponents argue that the trapped ram pressure illusion is a relic of analog instrumentation.[5]

However, this technological optimism ignores the fundamental architecture of flight data. Air Data Computers still rely on the exact same pneumatic pressures gathered by the physical pitot tubes and static ports. If the physical inputs are corrupted by ice, the digital output is equally corrupted, just rendered on a high-definition screen.[1]

When an Air Data Computer receives conflicting information—such as an airspeed that contradicts the angle of attack—it often degrades its operating mode. In the case of Air France Flight 447, frozen pitot tubes caused the computers to disconnect the autopilot and hand manual control back to the pilots, without envelope protection.[4]

The pilots, confused by the sudden loss of reliable airspeed data and the blaring alarms, pitched the Airbus A330 nose-up. They held the aircraft in a deep aerodynamic stall all the way down to the Atlantic Ocean. The digital systems did not save them; they merely changed the presentation of the failure.[4]

Recognizing the Illusion

The only reliable defense against trapped ram pressure is recognizing the failure pattern before the stall occurs. Pilots are trained to cross-reference their instruments. If the airspeed indicator is climbing, but the attitude indicator shows a steep pitch and the engine RPM is low, the airspeed data is false.[2]

Aviation safety relies on the principle that no single instrument should dictate a critical flight input if it contradicts the physical reality of the aircraft. When ice seals the pitot tube, the airspeed indicator becomes a liar. Surviving the illusion requires the pilot to ignore the dial and fly the wing.[1][2]
