Urea's 32.5 Percent Eutectic Threshold Prevents Fractional Freezing, Keeping Thawed Diesel Exhaust Fluid Chemically Uniform

Some fleet mechanics argue the 32.5 percent urea concentration in Diesel Exhaust Fluid (DEF) is strictly a stoichiometric necessity—the exact chemical ratio required to generate enough ammonia to neutralize nitrogen oxides in the exhaust stream. Others insist the standard is purely a winter-weather compromise, chosen because it drops the fluid's freezing point to 12 degrees Fahrenheit.[1]

Both positions capture a fraction of the truth, but both miss the thermodynamic mechanism that actually dictates the ISO 22241 standard. The 32.5 percent threshold is the eutectic point of a urea-water mixture. Its primary function is not just to resist freezing, but to dictate exactly how the fluid behaves when it finally does freeze.[1][3][5]

By hitting the exact eutectic concentration, the mixture prevents a destructive process known as fractional freezing. If the concentration were even slightly higher or lower, either the water or the urea would crystallize first as temperatures drop. That separation would destroy the fluid's chemical uniformity, leaving a slush of pure ice and a highly concentrated urea liquid.[1][3][5]

When a separated mixture thaws, it does not easily recombine into a uniform solution without mechanical agitation. A diesel truck's Selective Catalytic Reduction (SCR) system relies on a perfectly calibrated injection of urea to function. If the dosing pump pulls a separated, hyper-concentrated liquid from the bottom of the tank, the catalyst will be poisoned.[2]

The Mechanics of Fractional Freezing

To understand why the eutectic point matters, one must look at how binary liquids freeze. When a standard mixture of two liquids cools, the component with the higher freezing point begins to solidify first. This is the principle behind freeze distillation, where water turns to ice and leaves behind a more concentrated alcohol.[3][5]

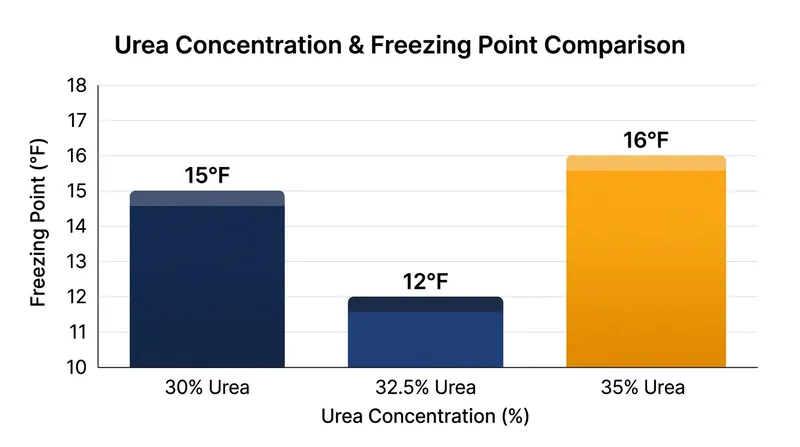

In a urea-water solution that is not at the eutectic point, this same separation occurs. If a manufacturer mixes a 30 percent urea solution, the water is in excess of the eutectic ratio. As the temperature drops below 15 degrees Fahrenheit, pure water ice crystals begin to form, pulling water out of the liquid phase.[1][5]

This leaves the remaining liquid with a higher concentration of urea. As the temperature continues to drop, more water freezes, and the remaining liquid becomes even more concentrated. By the time the entire tank freezes solid, the fluid is no longer a uniform mixture, but a stratified block of ice and urea crystals.[3][5]

Conversely, if the mixture is 35 percent urea, the urea is in excess. As the temperature drops, pure urea crystals precipitate out of the solution first. These heavy crystals sink to the bottom of the DEF tank, leaving a weaker, water-heavy solution at the top.[1][5]

When the truck's internal tank heater activates to thaw the fluid, it melts the stratified layers unevenly. The dosing module, expecting a precise 32.5 percent concentration, instead injects either pure water or a dense urea sludge into the exhaust stream. Neither will properly reduce nitrogen oxides, and the sludge will permanently clog the injector.[2][4]

The Eutectic Sweet Spot

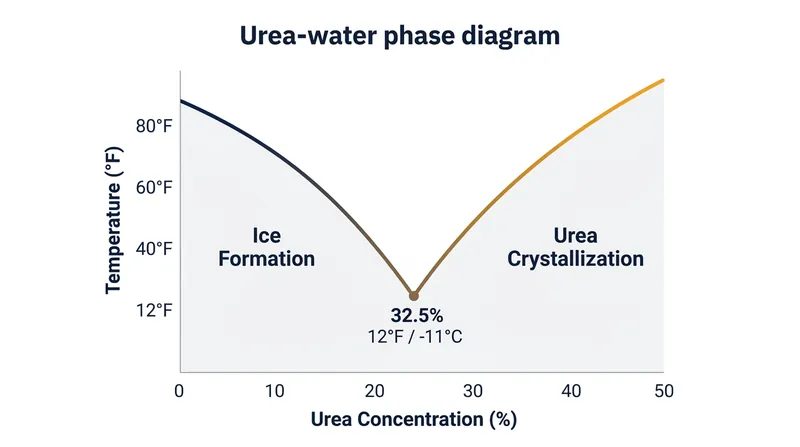

The eutectic point is the specific composition of a mixture that yields the lowest possible melting temperature. For synthetic urea and deionized water, this thermodynamic sweet spot occurs at exactly 32.5 percent urea by weight. At this precise ratio, the two components behave as if they were a single pure substance.[1][3][5]

"That 32.5 percent ratio represents the eutectic composition, the exact mixture with the coldest temperature before freezing on the urea-water phase diagram," explains Hot Shot's Secret in their technical documentation. "If you go above or below that ratio, the freezing point actually rises, along with the risk of one component separating out and crystallizing first."[1]

When a 32.5 percent DEF solution reaches 12 degrees Fahrenheit, it does not separate. The water and the urea crystallize simultaneously, forming a uniform solid matrix. There is no slush, no precipitation, and no concentration gradient formed within the tank.[1][3][5]

This simultaneous crystallization is the critical feature that allows modern diesel emissions systems to survive winter climates. Because the fluid freezes uniformly, it also thaws uniformly. When the tank heater warms the solid block, the liquid that melts off is exactly 32.5 percent urea, ready for immediate injection.[4][5]

The ISO 22241 standard enforces this concentration with virtually zero tolerance. The specification requires DEF to contain between 31.8 percent and 33.2 percent urea. A fluid that falls outside this narrow window is considered off-spec and will trigger engine fault codes if detected by the vehicle's onboard diagnostic sensors.[1][4]

Catalyst Calibration and Ammonia Slip

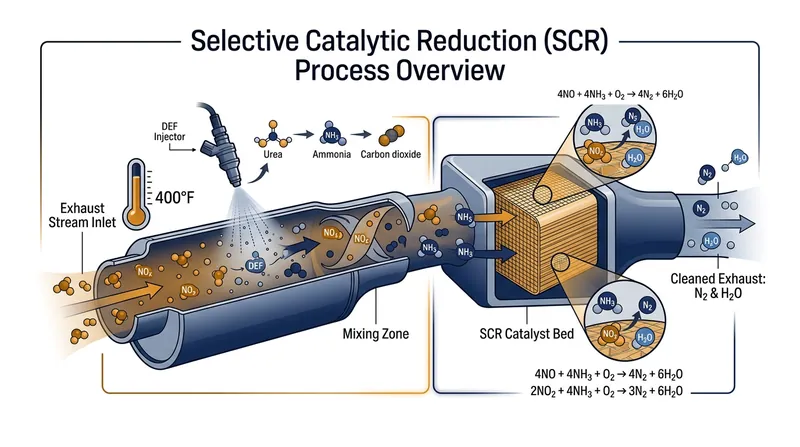

While the eutectic point prevents fractional freezing, the 32.5 percent concentration also aligns perfectly with the chemical demands of the SCR catalyst. When DEF is injected into a 400-degree Fahrenheit exhaust stream, the water evaporates instantly. The remaining urea thermally decomposes into ammonia and isocyanic acid.[1][2][5]

The ammonia then reacts with nitrogen oxides over the catalyst bed, converting them into harmless nitrogen gas and water vapor. The engine's computer calculates the exact volume of DEF required based on exhaust temperature and engine load, assuming a constant 32.5 percent urea concentration.[2]

If fractional freezing were allowed to occur, a thawed tank would deliver a fluctuating concentration of urea to the doser. If the concentration is too low, the system generates insufficient ammonia. The unreacted nitrogen oxides pass straight through the tailpipe, violating federal emissions standards and forcing the engine into a restricted limp mode.[4][5]

If the concentration is too high, the system generates excess ammonia. The catalyst cannot process the surplus, resulting in ammonia slip, where raw ammonia gas is expelled into the atmosphere. Furthermore, excess urea that fails to decompose will bake onto the catalyst surface, forming solid cyanuric acid deposits.[1][2][5]

These deposits physically block the active sites on the catalyst bed, permanently reducing its efficiency. Replacing a fouled SCR system can cost a fleet operator upwards of $10,000 per vehicle. The strict adherence to the eutectic concentration is therefore as much an economic necessity as an environmental one.[2][5]

The Vulnerability of Storage and Heat

While the eutectic point protects DEF from the consequences of freezing, it offers no protection against heat. The ISO 22241 standard specifies an ideal storage range of 12 to 77 degrees Fahrenheit. When stored within this window, the fluid maintains its chemical integrity for up to two years.[4][5]

However, when temperatures exceed 86 degrees Fahrenheit, the urea begins to spontaneously hydrolyze. This slow thermal degradation breaks the urea down into ammonia gas, which vents out of the storage container. As the ammonia escapes, the urea concentration of the remaining fluid steadily drops.[4][5]

A tank of DEF left in direct summer sunlight can easily degrade below the 31.8 percent minimum threshold within a few months. Once the concentration drops, the fluid is no longer at the eutectic point. If this degraded fluid is left in the tank until winter, it will undergo fractional freezing, compounding the damage.[1][5]

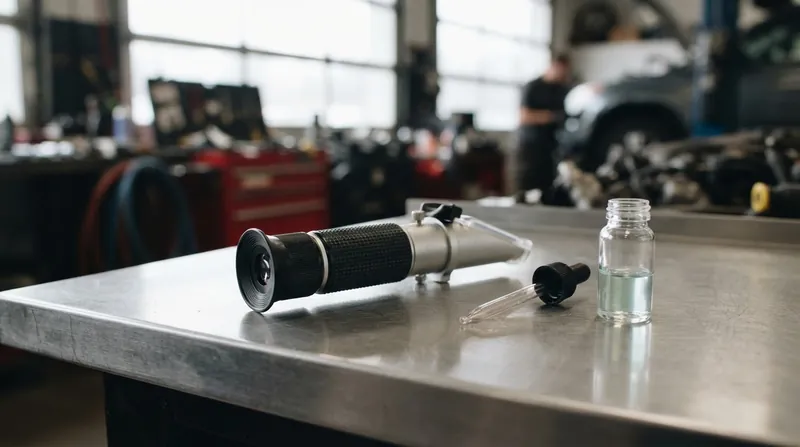

Fleet managers must therefore monitor fluid quality continuously. A standard urea refractometer can instantly verify the concentration of a DEF sample. If a reading falls below the ISO minimum, the fluid must be discarded, as adding pure urea to re-concentrate the mixture risks introducing trace minerals that will poison the catalyst.[1][4]

The Engineering Consensus

The reliance on a 32.5 percent urea solution represents a rare moment of absolute consensus in automotive engineering. Every major manufacturer of heavy-duty diesel engines—from Cummins to Volvo—utilizes the exact same fluid specification. There is no proprietary blend or competing standard.[4][5]

This uniformity is dictated entirely by the laws of thermodynamics. No amount of software optimization or mechanical redesign can alter the urea-water phase diagram. The eutectic point is a physical constant, and the emissions control architecture of the entire global logistics network is built upon it.[1][3][5]

Alternative nitrogen oxide reduction technologies proved insufficient on their own to meet the 2010 EPA Tier 4 standards. SCR systems became mandatory, and with them, the absolute necessity of a stable, freeze-tolerant working fluid. The eutectic urea solution was the only viable chemical candidate.[2][4][5]

The blue-capped DEF tank on a modern diesel truck stands as a testament to applied physical chemistry. By exploiting the simultaneous crystallization of a eutectic mixture, engineers solved a massive logistical hurdle. They ensured that a temperature-sensitive chemical reaction could be performed reliably in the freezing conditions of a North American winter.[3][5]
