Why a Severed Neutral Wire Turns Split-Phase Home Circuits Into a 240-Volt Trap That Destroys Electronics

When a lightning strike or a grid switching error sends a transient power surge into a residential electrical panel, the destructive mechanism is external. A massive spike of foreign energy forces its way into the home, overwhelming the insulation of whatever it touches.[4]

A severed center-tap neutral, however, operates on a fundamentally different and far more insidious principle. It does not inject a single volt of outside energy into the system.[1][5]

Instead, it weaponizes the home’s own 240-volt supply. By removing the zero-volt anchor, a broken neutral silently reconfigures parallel 120-volt circuits into a series voltage divider that forces appliances to destroy one another.[1][3]

The Architecture of Split-Phase Power

The North American residential power grid relies on a split-phase delivery system. A distribution transformer on the street steps the high-voltage utility lines down to a usable 240 volts.[2][3]

That 240-volt secondary winding is tapped exactly in the middle. This center tap is grounded and becomes the neutral wire, effectively splitting the 240 volts into two 120-volt halves, known as Leg 1 and Leg 2.[2][3]

Heavy appliances like ovens and clothes dryers connect across both legs, utilizing the full 240 volts. Standard household outlets connect between one of the legs and the center-tapped neutral, receiving 120 volts.[2]

This means that 120-volt power is not an independent source of energy. It is strictly a geometric relationship to the neutral wire, which acts as the electrical fulcrum keeping both sides balanced.[1][3]

"The neutral conductor carries the unbalanced current; without it, the loads themselves must establish the voltage midpoint, which they do strictly according to Ohm's Law," writes Dr. Charles Alexander in Fundamentals of Electric Circuits.[3]

The Physics of the Series Divider

As long as the neutral wire remains intact back to the transformer, it absorbs any imbalance between the two legs. If Leg 1 draws 20 amps and Leg 2 draws 15 amps, the neutral safely carries the 5-amp difference back to the pole.[1][3]

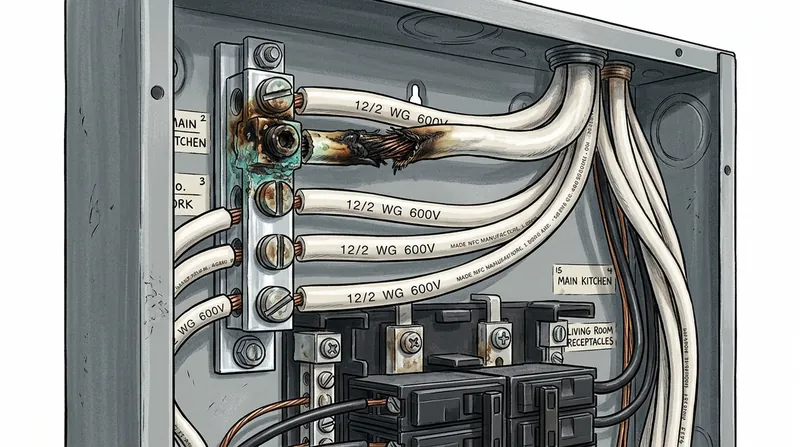

But if that neutral wire breaks—whether from a falling tree branch, a corroded lug in the meter box, or a loose screw in the main panel—the zero-volt anchor vanishes instantly.[1]

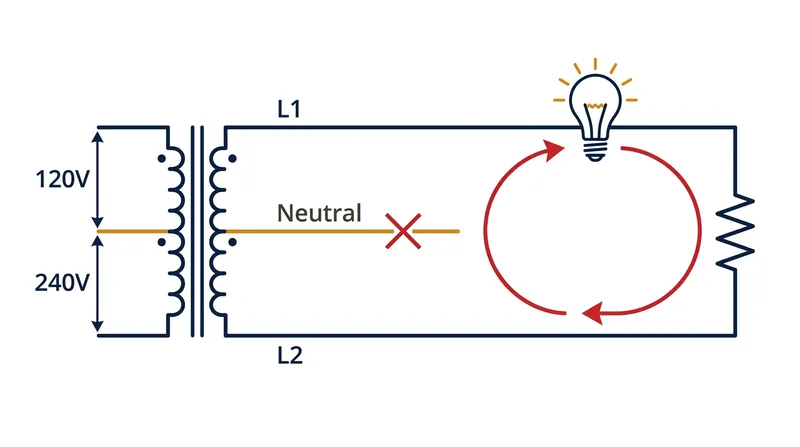

Without the neutral return path, Leg 1 and Leg 2 are no longer independent 120-volt circuits. They are immediately joined together through the appliances plugged into them, forming a single 240-volt series circuit.[1][3]

In a series circuit, voltage does not distribute evenly. According to the voltage divider rule, the 240 volts will be apportioned across the active appliances in direct proportion to their electrical resistance.[3][5]

The device with the highest resistance will absorb the vast majority of the voltage. The device with the lowest resistance will act almost like a piece of wire, passing the current through while dropping very little voltage itself.[3]

The Irony of Energy Efficiency

This creates a brutal irony in modern electrical systems. Energy-efficient devices draw very little power, which means they possess extremely high electrical resistance.[1][5]

A standard 10-watt LED light bulb operating at 120 volts has an equivalent resistance of 1,440 ohms. It is designed to sip current, presenting a massive barrier to electrical flow.[1][5]

Conversely, a 1,500-watt space heater draws massive amounts of current to generate warmth. To do so, it presents a very low resistance to the circuit—exactly 9.6 ohms.[1][5]

If a home loses its neutral wire while the LED bulb is on Leg 1 and the space heater is on Leg 2, those two devices are suddenly wired in series across 240 volts.[1][5]

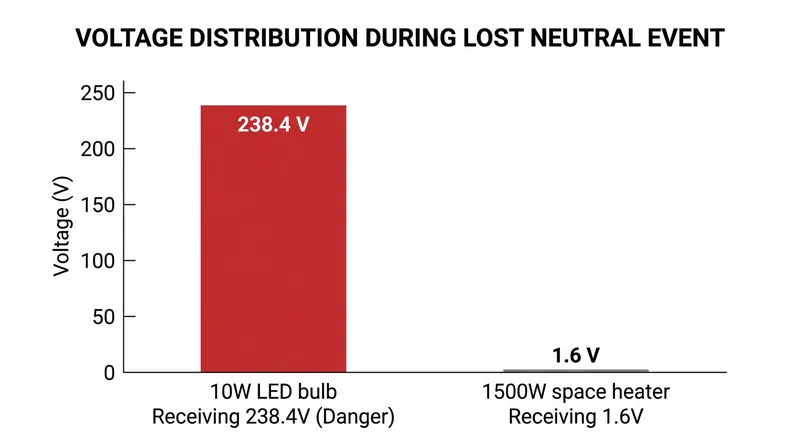

The total resistance of the circuit is 1,449.6 ohms. The space heater, representing less than one percent of the total resistance, drops only 1.6 volts. The LED bulb absorbs the remaining 238.4 volts.[5]

The space heater simply goes cold, surviving the event unharmed. The LED bulb, subjected to nearly double its maximum rated voltage, instantly overheats and violently fails, its internal components vaporized by the home's own power.[1][5]

The Blind Spot in Circuit Protection

The most dangerous aspect of a lost neutral is that standard circuit breakers are entirely blind to it. A breaker is an overcurrent device, designed to trip only when too many amps flow through the wire.[2]

During a floating neutral event, the total current flowing through the series circuit actually drops, because the combined resistance of the two appliances in series is higher than either one alone.[1][3]

Because the current remains well below the 15-amp or 20-amp threshold, the circuit breaker sleeps peacefully in the panel while the television, refrigerator control board, and computer power supplies burn out.[1]

Standard plug-in surge protectors offer no defense either. Surge protectors use metal oxide varistors (MOVs) designed to clamp microsecond-long high-voltage transients from lightning.[4]

When subjected to a sustained 240-volt wave from a lost neutral, an MOV will attempt to short the circuit to save the equipment. Within milliseconds, the MOV overheats, catches fire, or blows apart, leaving the electronics defenseless.[4]

Diagnosing the Floating Neutral

Because the voltage distribution depends entirely on what is turned on at any given moment, the symptoms of a failing neutral are highly dynamic and deeply confusing to homeowners.[1]

The classic warning sign is a seesaw effect. When a heavy load like a vacuum cleaner is turned on, the lights on that same leg will dim severely, while the lights on the opposite leg will suddenly flare to blinding brightness.[1]

"If turning on your microwave makes the living room lamps glow like stadium lights, you do not have a ghost; you have a compromised neutral, and you must cut the main breaker immediately," notes a 2025 Department of Energy grid fault report.

The danger is magnified in older homes utilizing multi-wire branch circuits, where two 120-volt circuits share a single neutral wire all the way back to the panel.[2]

If that shared neutral comes loose at a junction box, the series divider effect occurs locally within those two rooms, completely independent of the main utility connection.[2][5]

Engineering a Resilient Defense

Defending against a lost neutral requires specialized hardware. Phase monitoring relays and whole-house overvoltage protectors actively measure the voltage on both legs relative to ground.[2][4]

If the monitor detects Leg 1 dropping below 100 volts while Leg 2 spikes above 140 volts, it instantly triggers a shunt trip, physically throwing the main breaker before the electronics can cook.[4]

Until such devices become mandatory in residential codes, the safety of every television, computer, and smart appliance in a split-phase home relies entirely on the mechanical integrity of a single, unmonitored wire.[2][5]
