How Positive Crankcase Ventilation Valves Regulate Blowby Gas Flow Across Shifting Engine Manifold Vacuums

Modern internal combustion engines no longer suffocate in their own acidic blowby gases or blow their oil seals under heavy load. A simple spring-loaded plunger, known as the positive crankcase ventilation (PCV) valve, actively balances internal engine pressure against shifting manifold vacuum. By dynamically altering its orifice size, this mechanical regulator extracts toxic fumes before they can condense into sludge.[1][4]

During the normal combustion process, a small percentage of exhaust gases and unburned fuel inevitably slips past the piston rings. This phenomenon, known as blowby, introduces highly volatile and corrosive compounds directly into the engine's lower crankcase. If left trapped, these gases rapidly degrade the lubricating oil and create immense internal pressure.[2]

Before 1961, automotive engineers simply vented these harmful crankcase vapors directly to the atmosphere through a downward-facing road draft tube. This crude method relied entirely on the vehicle's forward motion to draw out the fumes. It was environmentally disastrous and completely ineffective when the vehicle was idling in traffic.[1]

The introduction of the PCV valve revolutionized engine longevity by creating a closed-loop extraction system. The valve changed everything by routing these gases back into the intake manifold for a second chance at combustion. This elegant solution requires no electronics or sensors to operate.[1][4]

Instead of relying on vehicle speed, the system harnesses the engine's own intake manifold vacuum to siphon the blowby gases out of the crankcase. Fresh, filtered air is simultaneously drawn into the engine through a breather tube to replace the extracted fumes. This continuous flushing action prevents moisture and acids from accumulating in the oil pan.[1]

The Physics of Blowby and Vacuum

The engineering challenge lies in the inverse relationship between blowby gas production and intake manifold vacuum. When an engine idles, the throttle plate is closed, creating a massive vacuum signal of 18 to 22 inches of mercury (inHg). However, because the engine is operating under minimal load, it produces very little blowby gas.[3]

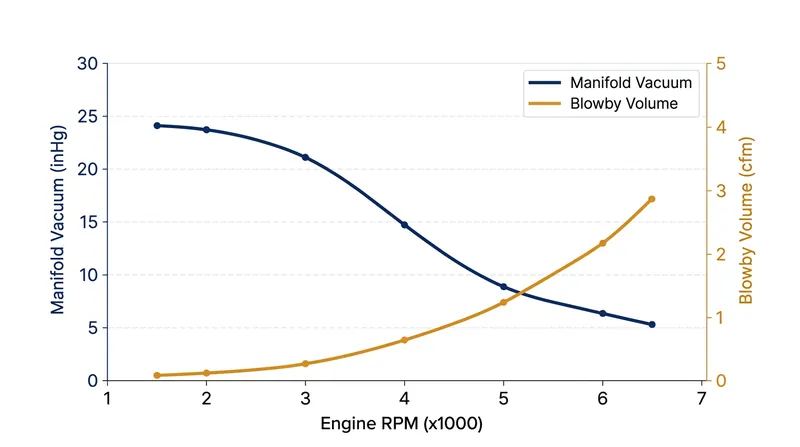

Conversely, when a driver accelerates heavily, the throttle plate opens wide, causing manifold vacuum to plummet to between 1.5 and 3.0 inHg. At this exact moment, peak cylinder pressures force the maximum volume of blowby gases past the piston rings. The PCV valve must somehow extract the most gas when the vacuum pulling it is at its weakest.[2][3]

If engineers simply used a fixed open tube to connect the crankcase to the intake manifold, the high vacuum at idle would draw in massive amounts of unmetered air. This would instantly cause a lean misfire, resulting in a rough idle or engine stalling. The PCV valve prevents this by acting as a variable restrictor.[1][3]

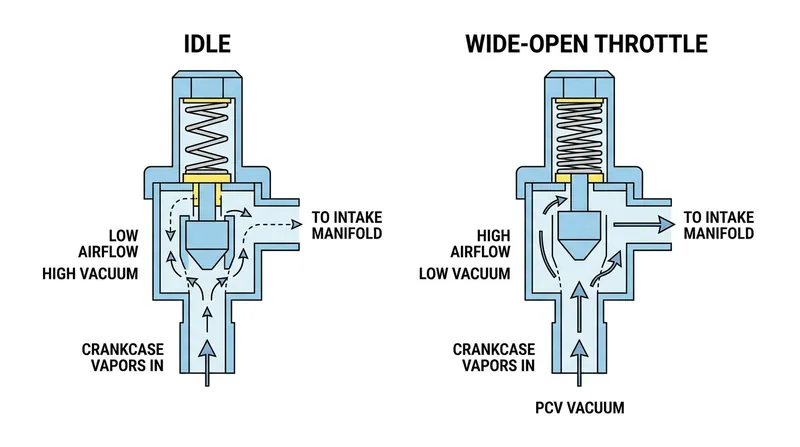

Inside the valve housing sits a tapered metal plunger, often called a pintle, which is biased by a precisely calibrated coil spring. At idle, when manifold vacuum levels are high and loads are low, crankcase fumes are at a relative minimum. The intense vacuum easily overcomes the spring, pulling the pintle forward to nearly close the orifice.[1][4]

By restricting the flow path to a tiny opening, the valve allows just enough vapor extraction to handle the minimal idle blowby. Testing on a 2.0-liter engine revealed that this restricted idle flow drops mass airflow from 2.26 to 2.05 grams per second, accounting for roughly 10 percent of the total intake air.[1][4]

Dynamic Flow Regulation Under Load

As the vehicle accelerates and engine load increases, the dynamics inside the intake manifold shift dramatically. The vacuum level drops proportionally, reducing the physical pull on the valve's internal pintle. Simultaneously, the rising cylinder pressures generate a significantly larger volume of blowby gas that must be evacuated immediately.[2][3]

With the vacuum signal weakening, the internal spring begins to overpower the suction, pushing the tapered pintle backward away from the orifice. This mechanical movement gradually increases the cross-sectional area of the flow path. The valve opens wider precisely as the engine generates more toxic fumes, perfectly matching extraction capacity to blowby production.[1]

Under wide-open throttle conditions, manifold vacuum drops to near zero, leaving the spring completely unopposed. The spring forces the pintle into its fully open position, maximizing the valve's flow rate to handle the extreme blowby volume. Even with minimal vacuum, the wide-open orifice allows the sheer pressure of the crankcase gases to push them into the intake.[1][3]

Sometimes, the volume of blowby generated under heavy load exceeds even the fully open valve's capacity. When the engine produces more blowby than the PCV valve can handle, the blowby gases find their way out through the valve cover breather. These excess gases are safely routed into the air filter housing to be burned.[1][4]

The PCV valve also serves a critical safety function as a mechanical flame arrestor. If the engine experiences an intake backfire, the sudden wave of positive pressure slams the pintle completely shut against its seat. This instantaneous closure prevents the explosive flame front from traveling into the crankcase and igniting the volatile oil vapors.[1]

The Consequences of Calibration Failure

Because the valve relies entirely on the delicate balance between spring tension and vacuum, its internal calibration must perfectly match the specific engine. Manufacturers use different spring rates and plunger weights to tune the valve's response curve. A valve designed for a high-vacuum economy car will fail miserably if installed on a low-vacuum performance engine.[4]

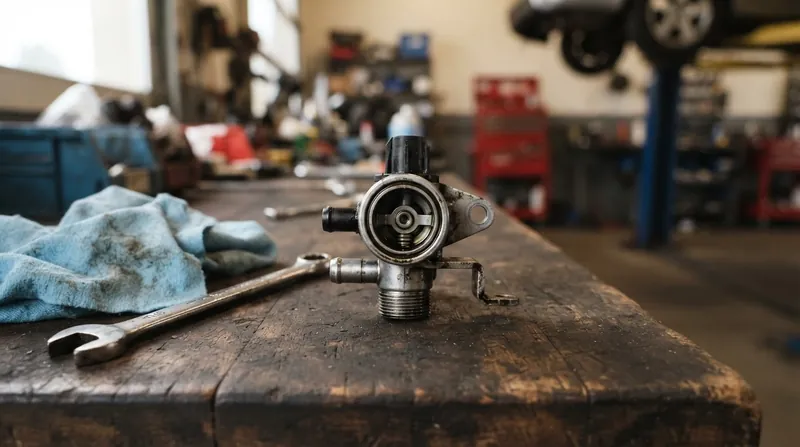

When a PCV valve becomes clogged with carbon sludge and sticks in the closed position, the crankcase rapidly pressurizes. This trapped pressure seeks the path of least resistance, typically blowing out the valve cover gaskets or the main engine seals. A sudden, severe oil leak is often the first symptom of a completely blocked ventilation system.[1][4]

Conversely, if the internal spring breaks or the valve sticks in the fully open position, it creates a massive vacuum leak at idle. The engine will draw in far more air than the fuel injectors can match, triggering lean operation codes and causing the idle speed to surge uncontrollably. Replacing the $15 valve instantly cures these dramatic drivability issues.[1][3]

Aftermarket replacement valves often consolidate dozens of specific factory calibrations into a single generic part number. This cost-saving measure can introduce subtle drivability problems, as the generic spring rate may open the valve too early or too late. Professional mechanics strongly recommend using original equipment manufacturer (OEM) valves to ensure the flow curve matches the engine's original design.[4]

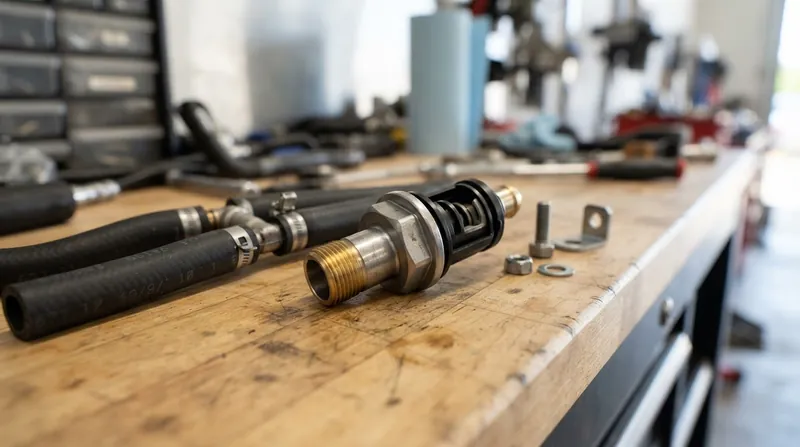

Engine modifications, such as installing a high-performance camshaft, drastically alter the manifold vacuum profile. A stock PCV valve will no longer function correctly because the modified engine produces less vacuum at idle, causing the factory spring to hold the valve open too far. Specialized dual-flow adjustable valves are required to restore proper crankcase ventilation in these custom builds.[3][4]

Advanced Crankcase Diagnostics

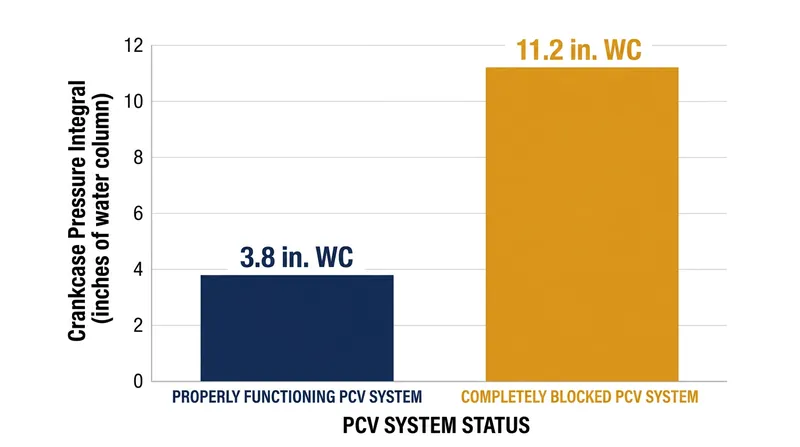

Engineers evaluate crankcase ventilation efficiency by logging the pressure differentials over a complete drive cycle. A properly functioning system maintains a slight negative pressure, typically between 1 and 3 inches of water column, inside the crankcase. This constant vacuum actively helps pull the engine's oil seals tight against their mating surfaces, preventing nuisance leaks.[1][4]

Advanced data acquisition systems integrate the area under the pressure curve to determine how often the crankcase operates under vacuum versus positive pressure. A high pressure integral indicates that the blowby volume is consistently overwhelming the PCV system's extraction capacity. This data allows engineers to resize the valve orifices or adjust the spring rates for optimal performance.[4]

Turbocharged and supercharged engines introduce an entirely new layer of complexity to crankcase ventilation. Under boost, the intake manifold becomes highly pressurized, which would normally force air backward through the PCV valve and into the crankcase. To prevent this, boosted engines utilize heavy-duty check valves that completely block reverse flow during forced induction events.[1][3]

Because the primary PCV valve closes under boost, turbocharged engines rely entirely on the secondary breather circuit to evacuate blowby during heavy acceleration. This high-velocity gas flow often carries atomized oil mist. The blowby gas can entrain a significant amount of oil mist, sometimes exceeding 0.7 grams per brake horsepower-hour, contributing heavily to particulate emissions.[1][2]

To combat this oil carryover, modern engines incorporate complex labyrinth separators and catch cans into the ventilation plumbing. These devices force the blowby gases to navigate sharp turns, causing the heavier oil droplets to fall out of suspension. The clean air continues into the intake, while the recovered oil drains safely back into the oil pan.[1]

Despite its simplicity, the positive crankcase ventilation valve remains one of the most critical emission control devices ever invented. By elegantly balancing fluid dynamics and mechanical spring tension, it continuously protects the engine's internal components from chemical degradation. This tiny plunger proves that the most effective engineering solutions do not always require a microchip.[1][4]
