Fried's Atmospheric Coherence Length Limits Ground Telescopes to 20-Centimeter Aperture Resolution Regardless of Mirror Size

In 1965, physicist David L. Fried published a paper in the Journal of the Optical Society of America that delivered a sobering mathematical truth to astronomers. He demonstrated that building larger telescope mirrors would not inherently yield sharper images, proving that the atmosphere itself imposes a hard ceiling on optical resolution.[3]

Before Fried's formulation, telescope designers knew that atmospheric turbulence degraded image quality, a phenomenon astronomers refer to as "seeing." Stars twinkle because temperature gradients in the air create moving pockets of varying refractive indices. As starlight passes through these pockets, its perfectly planar wavefront becomes crumpled and severely distorted.[1][4]

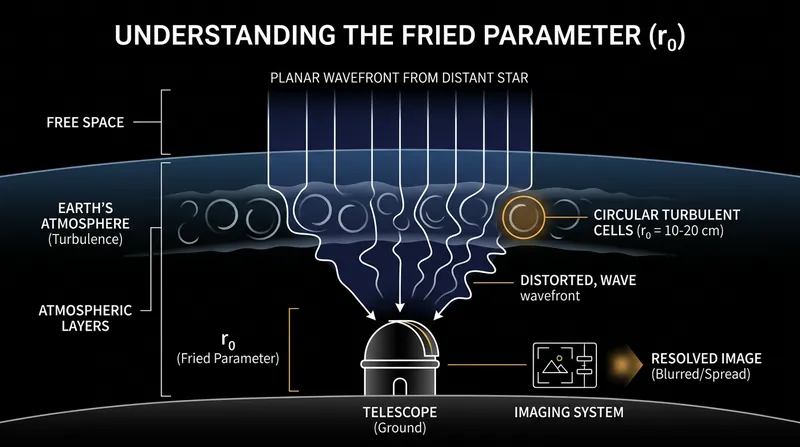

Fried quantified this distortion by introducing a metric that would become fundamental to modern optical engineering: the atmospheric coherence length, now universally known as the Fried parameter, or r0. He defined it precisely as the diameter of a circular area over which the incoming wavefront's root-mean-square phase error remains under one radian.[1][3]

"The Fried Parameter describes the smallest diameter of a telescope aperture at which the image fidelity starts to suffer significantly from turbulent airflows in the atmosphere of Earth," notes the biographical entry for David L. Fried.[2]

The mathematical consequence of r0 is absolute and unavoidable. If a telescope's physical aperture is smaller than the Fried parameter, its resolution is limited by diffraction—the fundamental physics of its own mirror. But once the aperture exceeds r0, the atmosphere takes over, and the telescope becomes entirely "seeing-limited."[1][4]

The 20-Centimeter Ceiling

At visible wavelengths, specifically around 500 nanometers, the Fried parameter at a typical high-altitude observing site measures between 10 and 20 centimeters. This means that a wavefront of starlight, after traveling unperturbed for thousands of light-years, only remains coherent over a patch of glass the size of a standard dinner plate.[1]

For ground-based astronomy, this creates a brutal and counterintuitive bottleneck. A massive 10-meter observatory, like the Keck Observatory in Hawaii, gathers exponentially more light than a 20-centimeter backyard telescope. However, without active correction, it cannot resolve any finer spatial detail than that small amateur instrument.[4]

Instead of producing a tighter, sharper focal point, the larger mirror simply collects a wider array of distorted wavefronts. These uncoordinated waves interfere with one another at the focal plane, breaking the star's image into a rapidly shifting pattern of speckles. The resulting blur is mathematically equivalent to the diffraction limit of an r0-sized aperture.[1][4]

This limitation explains why, for decades, the world's largest telescopes were used primarily as "light buckets" for spectroscopy rather than for high-resolution imaging. They could detect incredibly faint objects by funneling massive amounts of photons into a spectrograph, but they could not visually separate close binary stars or resolve the surfaces of distant planets.[4]

The Wavelength Loophole

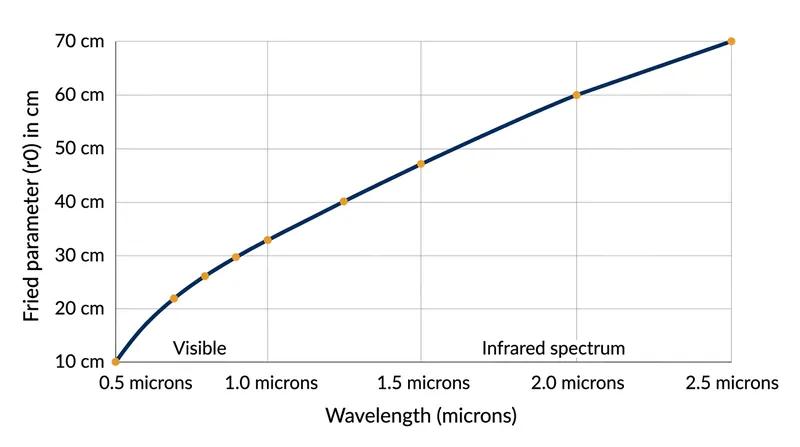

Fried's equations also revealed a crucial dependency that offered engineers a way forward: the coherence length is not static across the electromagnetic spectrum. The Fried parameter scales with the observing wavelength raised to the power of 6/5. As astronomers look at longer, redder wavelengths, the atmosphere effectively becomes less turbulent.[3][4]

Moving from visible light at 500 nanometers to the near-infrared at 2.2 microns fundamentally changes the optical math. At these longer wavelengths, the Fried parameter expands dramatically, growing from 10 centimeters to roughly 60 or 70 centimeters. The atmospheric cells of uniform refraction are physically larger when probed by longer waves.[4]

This wavelength scaling is why the first major breakthroughs in overcoming atmospheric distortion occurred in the infrared spectrum. A larger r0 means the telescope's uncorrected resolution is inherently better, and any mechanical system designed to fix the remaining distortion requires far fewer moving parts to match the atmospheric cells.[4]

Furthermore, the speed at which the turbulence changes—the coherence time, or τ0—is directly proportional to the Fried parameter divided by the wind speed. A larger r0 in the infrared means the speckle pattern shifts more slowly, giving instruments vital extra milliseconds to measure and react to the optical chaos.[4]

The Brute Force of Adaptive Optics

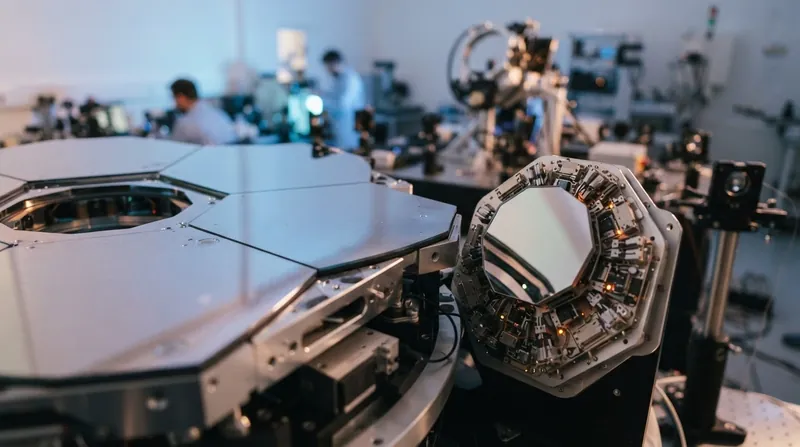

To break the 20-centimeter limit, engineers developed adaptive optics, a technology that physically deforms a secondary mirror to cancel out atmospheric distortion in real time. The design of every adaptive optics system on Earth is strictly dictated by the Fried parameter, which defines both the spatial and temporal requirements of the hardware.[4]

An adaptive optics system must measure the wavefront and apply a correction across the entire telescope pupil. To achieve a diffraction-limited image, the deformable mirror must be segmented into independent actuators that are roughly the size of r0. The total number of actuators required scales with the square of the telescope diameter divided by r0.[4]

For a 10-meter telescope operating in the near-infrared, where r0 is 70 centimeters, the system requires roughly 200 actuators. This was technologically achievable in the late 1990s and early 2000s, allowing observatories to finally capture sharp images of the galactic center and directly observe exoplanets orbiting distant stars.[4]

However, attempting the same correction in visible light is a monumental engineering challenge. With an r0 of just 10 centimeters, that same 10-meter telescope requires approximately 10,000 independent actuators. Each one must be precisely controlled by a computer calculating wavefront errors on the fly, pushing the limits of modern micro-electromechanical systems.[4]

Because the coherence time in the visible spectrum is just a few milliseconds, this 10,000-actuator array must update its shape at least 1,000 times per second. If the system lags, it applies a correction for a turbulent cell that has already blown past the telescope, worsening the image rather than fixing it.[4]

Artificial Stars and the Isoplanatic Angle

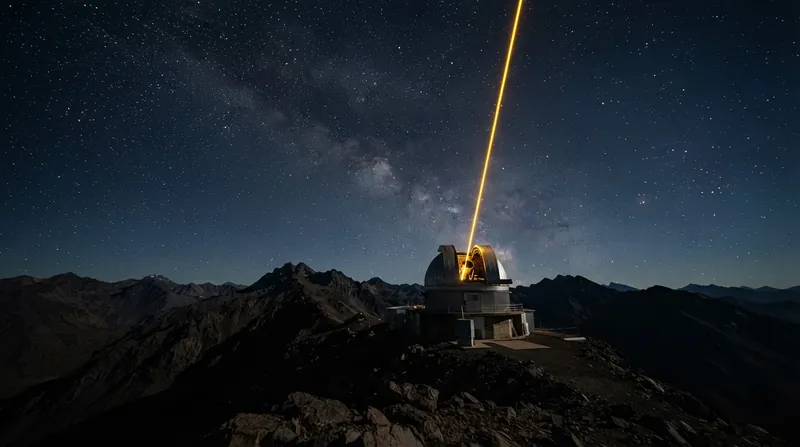

To measure the distortion fast enough, adaptive optics systems need a bright reference point located extremely close to the target object. Because natural stars are rarely bright enough or close enough, observatories fire powerful sodium lasers into the mesosphere, 90 kilometers above the Earth, to create artificial guide stars on demand.[4]

The laser excites a thin layer of sodium atoms left behind by micrometeors, creating a glowing point of light that shines back down through the exact same turbulent atmosphere as the astronomical target. A high-speed wavefront sensor analyzes this artificial star to compute the exact shape required for the deformable mirror.[4]

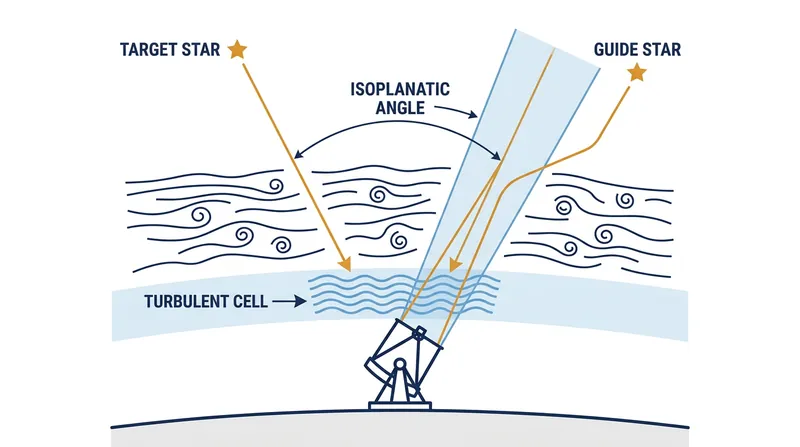

Yet Fried's mathematics impose one final, frustrating constraint: the isoplanatic angle. This is the narrow cone of sky over which the atmospheric turbulence remains identical. If the target object is too far from the guide star, their light paths travel through completely different turbulent cells, rendering the correction useless.[4]

In visible light, the isoplanatic angle is typically just a few arcseconds wide. This means an adaptive optics system can only sharpen a tiny patch of the sky at any given moment. To image a wider field, modern observatories must use multiple lasers and complex tomographic algorithms to map the atmosphere in three dimensions.[4]

The Era of Extremely Large Telescopes

As the astronomical community builds the next generation of Extremely Large Telescopes, with primary mirrors ranging from 24 to 39 meters in diameter, the Fried parameter remains the ultimate adversary. Without adaptive optics, a 39-meter mirror would still be trapped by the exact same 20-centimeter resolution limit as a backyard scope.[4]

For the 39-meter European Extremely Large Telescope, achieving diffraction-limited imaging in the visible spectrum will require deformable mirrors equipped with tens of thousands of actuators. The computational power required to process wavefront data from multiple laser guide stars at kilohertz frequencies rivals that of dedicated supercomputers.[4]

David L. Fried's 1965 parameter defined the boundary between the fundamental physics of light and the unpredictable chaos of the atmosphere. By quantifying exactly how the sky blurs our vision, he provided the exact mathematical blueprint required to finally engineer our way out of it.[3][4]
