Why Opposing Zener and Avalanche Temperature Coefficients Cancel at 5.6 Volts

When engineers standardized precision analog circuits in the early 1970s, they abandoned complex thermal compensation networks in favor of a single silicon component. They discovered that operating a heavily doped p-n junction at exactly 5.6 volts effectively immunized the circuit against ambient temperature swings.[5]

This thermal stability does not emerge from a specialized material, but from a precise mathematical cancellation between two competing physical phenomena. Inside the silicon lattice, quantum tunneling and impact ionization react to heat in strictly opposite directions.[4]

By tuning the semiconductor doping profile to force both breakdown mechanisms to occur simultaneously, manufacturers create a zero-sum thermal environment. The resulting 5.6-volt diode remains the foundational voltage reference for analog-to-digital converters and precision power supplies worldwide.[3]

"The temperature coefficient of a Zener diode depends on the breakdown voltage, transitioning from negative to positive at approximately 5 volts," according to technical documentation from Toshiba Electronic Devices & Storage.[2]

The Quantum Tunneling Effect

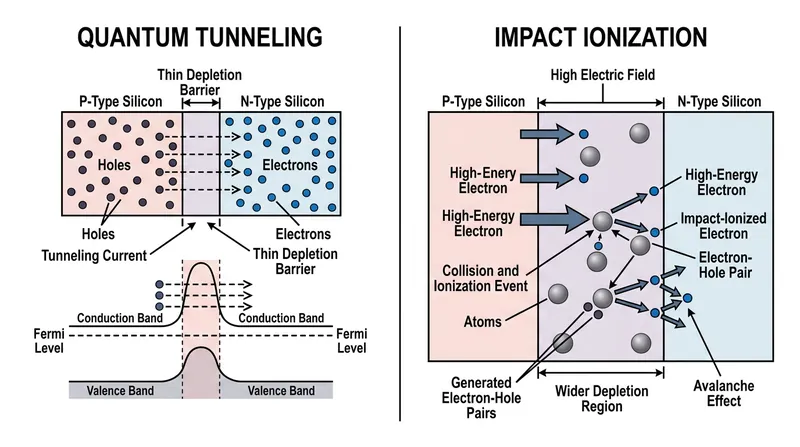

Below 5 volts, the dominant mechanism governing reverse-biased current flow is the Zener effect, named after physicist Clarence Zener. This phenomenon relies on quantum mechanical tunneling, where electrons pass directly through the thin depletion region of a heavily doped junction.

Tunneling requires an immense electric field, typically exceeding one million volts per centimeter across the microscopic junction barrier. Because the depletion region is so narrow, even a modest reverse voltage of 3.3 volts generates sufficient field strength to strip electrons from their covalent bonds.[8]

Crucially, the Zener effect exhibits a negative temperature coefficient. As the silicon heats up, the bandgap energy of the semiconductor material decreases slightly, making it easier for electrons to tunnel through the barrier.[4]

Consequently, a pure Zener diode breaks down at a lower voltage when subjected to higher temperatures. A standard 3.3-volt reference diode typically drifts downward by roughly 2.0 millivolts for every degree Celsius of temperature increase.[7]

The Avalanche Multiplication Process

Above 6 volts, the physical mechanism shifts entirely to avalanche breakdown, a process driven by impact ionization. In these lightly doped junctions, the depletion region is wider, preventing quantum tunneling from occurring before the electric field accelerates free charge carriers.[9]

These accelerated electrons collide with the silicon crystal lattice, knocking additional electrons loose in a cascading chain reaction. This multiplication effect generates a sudden, massive surge of current once the reverse voltage reaches the diode's specific avalanche threshold.[6]

Unlike tunneling, avalanche breakdown possesses a positive temperature coefficient. When the ambient temperature rises, the increased thermal vibration of the silicon atoms scatters the accelerated electrons more frequently, reducing their mean free path between collisions.[1]

Because the electrons lose energy to these thermal collisions, the circuit must apply a higher external voltage to achieve the velocity required for impact ionization. A typical 12-volt avalanche diode drifts upward by approximately 9.0 millivolts per degree Celsius.[7]

The 5.6-Volt Cancellation Point

The engineering breakthrough occurs in the narrow transition zone between 5.1 volts and 5.6 volts, where neither physical mechanism completely dominates the junction behavior. In this specific voltage window, quantum tunneling and impact ionization operate concurrently within the same silicon die.[3]

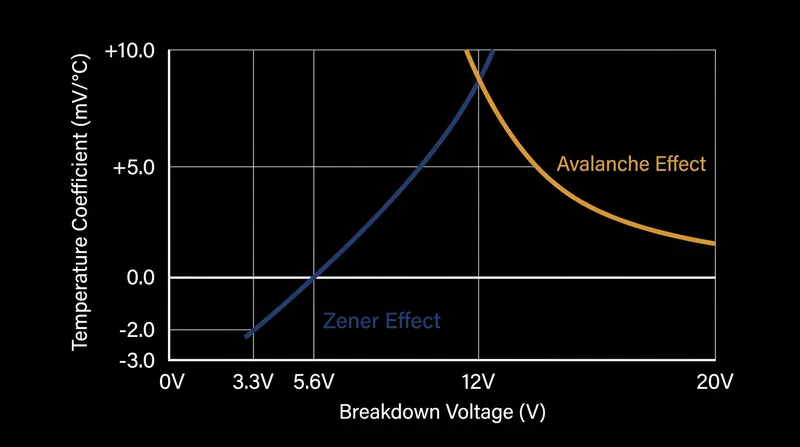

Because the Zener effect drives the breakdown voltage down with heat, and the avalanche effect drives it up, the two temperature coefficients actively fight each other. At precisely 5.6 volts, the negative and positive drifts achieve perfect mathematical parity.[4]

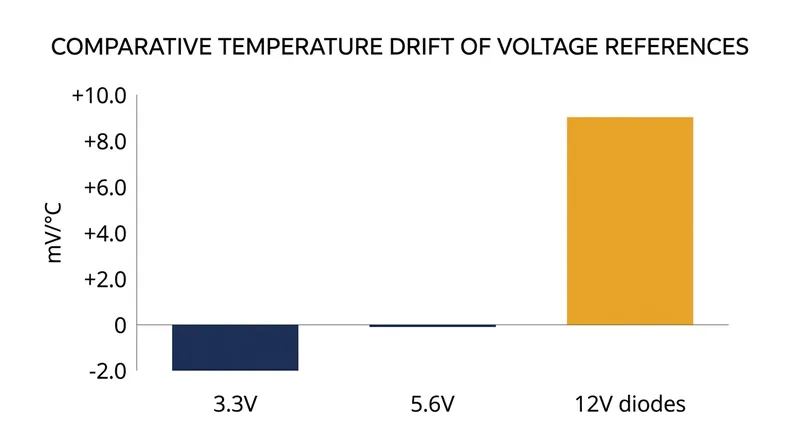

The resulting component exhibits a net temperature coefficient approaching zero millivolts per degree Celsius. Circuit designers can subject a 5.6-volt diode to environmental swings from 25 degrees to 100 degrees Celsius without altering the reference voltage by more than a few millivolts.[5]

"For diodes with a breakdown voltage of around 5.6 volts, the Zener and avalanche effects are present in almost equal proportions," notes application engineering data from Nexperia. This balance eliminates the need for external temperature compensation circuitry.[4]

Doping Profiles and Manufacturing

To hit this exact cancellation point, semiconductor manufacturers must control the silicon doping concentration with extreme precision. The ratio of boron to phosphorus atoms injected into the crystal lattice dictates the exact width of the depletion region.[9]

If the junction is doped too heavily, the depletion region shrinks, allowing tunneling to dominate and pushing the temperature coefficient negative. If the doping is too light, the region expands, delaying breakdown until the avalanche effect takes over and drives the coefficient positive.[1]

Modern fabrication facilities use ion implantation to achieve the exact impurity profiles required for 5.6-volt references. This technique accelerates dopant ions in a vacuum chamber, embedding them into the silicon wafer at highly controlled depths and concentrations.[1]

The precision of ion implantation allows manufacturers to mass-produce voltage references with thermal drifts as low as 0.0005 percent per degree Celsius. This consistency is critical for the automotive and aerospace industries, where electronics must survive extreme thermal cycling.[5]

Operating Current Dependencies

While the 5.6-volt threshold provides the optimal theoretical cancellation, the exact zero-drift point remains highly dependent on the current flowing through the diode. The temperature coefficient curve shifts vertically as the bias current increases or decreases.[7]

Most semiconductor datasheets specify the zero-drift characteristic at a precise test current, typically 5 milliamperes. If a circuit designer starves the diode by running it at 1 milliampere, the cancellation point drifts, and the component will exhibit a noticeable thermal skew.[2]

To maintain perfect thermal stability, engineers must drive the reference diode with a constant current source rather than a simple series resistor. Fluctuations in the supply current will alter the junction temperature and disrupt the delicate balance between tunneling and ionization.[3]

Furthermore, self-heating presents a significant challenge in high-precision applications. If the diode dissipates too much power, the internal junction temperature will rise independently of the ambient environment, potentially pushing the component out of its optimal thermal cancellation window.[9]

Noise Characteristics and Alternatives

Despite their exceptional thermal stability, 5.6-volt reference diodes suffer from inherent electrical noise. The avalanche multiplication process is fundamentally chaotic, generating broadband high-frequency noise that can interfere with sensitive analog-to-digital conversions.[5]

To mitigate this interference, circuit designers typically place a bypass capacitor in parallel with the diode to shunt the high-frequency noise to ground. However, this added capacitance can slow the circuit's response time during rapid power transients.[8]

For applications requiring both zero thermal drift and ultra-low noise, engineers often upgrade to bandgap voltage references. These integrated circuits use a network of transistors to cancel the negative temperature coefficient of a base-emitter junction with a positive thermal voltage.[5]

Nevertheless, the standalone 5.6-volt diode remains a masterclass in exploiting fundamental physics for practical engineering. By pitting two distinct quantum mechanisms against each other, it delivers robust thermal stability without the complexity of a multi-transistor integrated circuit.
