Why Cork's Zero Poisson's Ratio Prevents Radial Bulging and Spares Glass Bottles From Fracture

In November 1665, Robert Hooke placed a thin slice of Quercus suber bark under his newly refined compound microscope. He observed a rigid matrix of empty spaces, coining the biological term "cell" to describe them. He was looking at the precise mechanical reason a wine bottle does not explode when corked.[1]

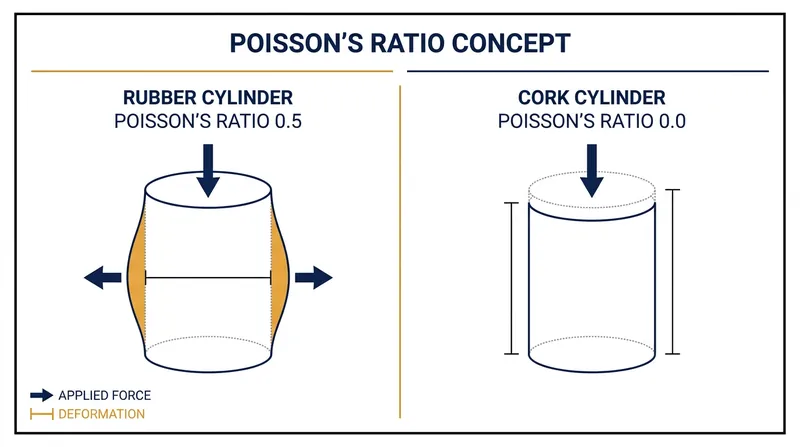

The anomaly of cork lies in a property most materials lack: it compresses axially without bulging radially. Push down on a block of solid rubber, and its sides will immediately bow outward to displace the volume. Push down on a cylinder of cork, and it simply becomes a smaller cylinder.[1][3]

This behavior is not a quaint traditional quirk; it is a strict engineering requirement for glass packaging. The evidence shows that cork's unique cellular geometry yields a Poisson's ratio of effectively zero, allowing it to absorb massive insertion forces without transferring that energy outward into the fragile glass bottleneck.[2]

Claim 1: Volume conservation dictates that most solid materials must expand radially when compressed along one axis. The ratio of this transverse expansion to the axial compression is known as Poisson's ratio, and for standard incompressible elastomers, it hovers near 0.5.[2]

The Mechanics of Radial Expansion

When a bottling machine forces a 24-millimetre closure into an 18.5-millimetre glass neck, the material must go somewhere. If the closure is made of a standard elastomer with a high Poisson's ratio, the axial force of the plunger translates directly into lateral expansion.[2][4]

Glass is remarkably strong when compressed, but it is notoriously weak under tension. Radial bulging from a stopper creates severe hoop stress, pulling the glass molecules apart from the inside out and initiating microscopic fractures along the neck.[3]

Claim 2: A standard 15-millimetre axial compression of a solid elastomer exerts enough radial force to fracture standard bottling glass. The outward pressure spikes exponentially as the material runs out of empty space to occupy within the rigid cylinder.[2][4]

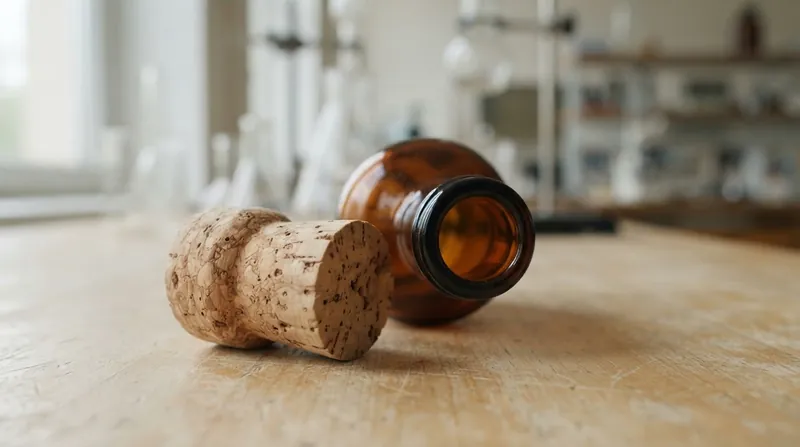

Cork bypasses this problem entirely through its microscopic architecture. A single cubic centimetre of natural cork contains roughly 40 million hexagonal cells, and approximately 85 percent of the material's total volume consists of trapped atmospheric gas.[1]

How Corrugated Cell Walls Absorb Strain

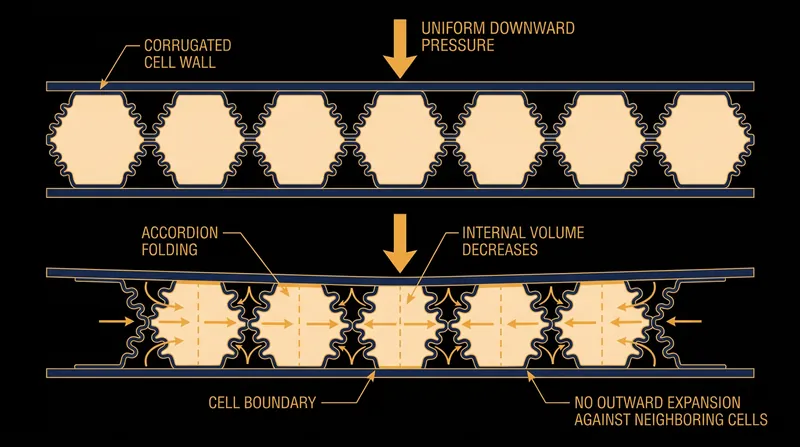

In 1981, materials scientists Lorna Gibson and Michael Ashby placed cork under a scanning electron microscope to map its mechanical deformation. They discovered that the cell walls do not simply compress; they buckle in a highly specific, predictable pattern.[1]

"The cell walls of cork are corrugated, like the bellows of an accordion," Gibson wrote in their landmark Royal Society paper. "Allowing them to fold and collapse under pressure without pushing outward against their neighbors."[1]

Claim 3: Because the internal gas compresses and the corrugated walls fold inward, the macroscopic volume of the cork decreases under load. This internal collapse yields a Poisson's ratio of nearly 0.0, a rarity in the natural world.[1][3]

This zero-ratio property means the immense force applied by the bottling plunger translates entirely into axial compression. The cork shrinks to fit the 18.5-millimetre opening, slides down the glass neck, and exerts only the precise restorative force required to seal the liquid, sparing the glass from radial hoop stress.[2]

Why Early Rubber Stoppers Shattered Glass

The strongest counter-argument to cork's necessity is the modern prevalence of synthetic closures. However, the early history of synthetic wine stoppers in the 1990s perfectly illustrates the danger of ignoring Poisson's ratio in packaging engineering.[4]

Early synthetics were manufactured as solid, homogeneous elastomers. They were designed to mimic the exact axial stiffness and chemical inertness of natural bark, but engineers initially overlooked the cellular buckling mechanism.[3][4]

Wineries adopting these early solid plastic stoppers found their bottles shattering on the production line. The mechanical mismatch was catastrophic: the bottling plungers were forcing an incompressible solid into a rigid glass tube, leaving the displaced volume nowhere to go but through the glass.[4]

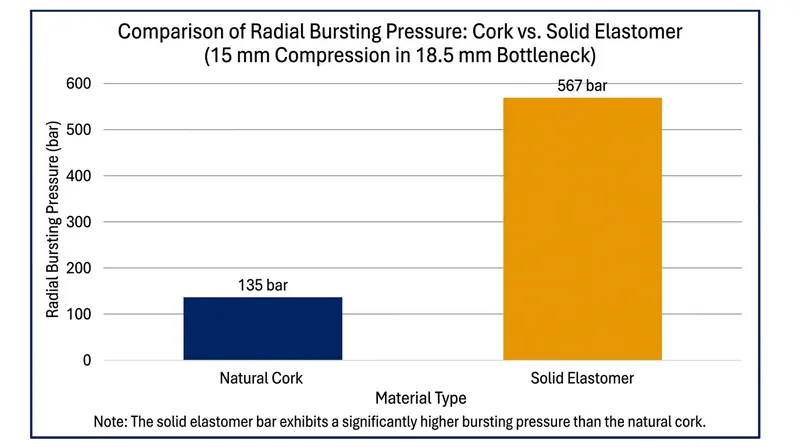

Claim 4: Solid synthetics exerted up to 4.2 times more radial bursting pressure than natural cork under identical insertion loads. The glass necks simply could not contain the outward expansion dictated by a Poisson's ratio of 0.49.[2][4]

Mimicking the Bark of Quercus Suber

To solve the fracture problem, synthetic closure manufacturers had to fundamentally redesign their materials to mimic the biology of the cork oak. They could no longer use solid plastics; they had to engineer cellular solids.[3]

Modern synthetic corks are now manufactured using complex co-extrusion processes that create a foamed inner core. This core is injected with millions of microscopic gas bubbles, artificially recreating the empty spaces Hooke observed in 1665.[1][4]

By foaming the plastic, engineers successfully lowered the effective Poisson's ratio of the synthetic closure to match the natural bark. The artificial bubbles compress and the polymer walls buckle, allowing the stopper to absorb the insertion force without blowing out the glass neck.[3][4]

The primary uncertainty remaining in closure engineering is long-term stress relaxation. While natural cork's zero Poisson's ratio perfectly protects the bottle during insertion, its cellular walls gradually lose their restorative spring over decades, which is why century-old bottles eventually leak.[1][3]

The 17th-century solution remains the mechanical gold standard for sealing glass. It succeeds not by brute strength, but by a quirk of tree biology that allows it to fold inward, protecting the fragile vessel that holds it.[1][2]
