Liquid Sloshing Scales With the Cube of Tank Width: Why a Single Centerline Bulkhead Cuts Virtual Metacentric Loss by 75 Percent

Commercial shipping operators demand massive, unobstructed cargo holds to maximize payload volume and accelerate the loading of liquid natural gas or crude oil. Every internal division adds structural weight, complicates piping, and slows down port turnaround times. Conversely, naval architects view wide, undivided tanks as an existential threat to a vessel.[3]

The tension between commercial efficiency and structural safety centers on a phenomenon known as the free surface effect. When a vessel with a partially filled tank rolls, the liquid inside shifts toward the lower side. This movement effectively raises the ship's center of gravity, weakening the righting arm that pulls the vessel back upright.[1][2]

The Mechanics of Metacentric Height

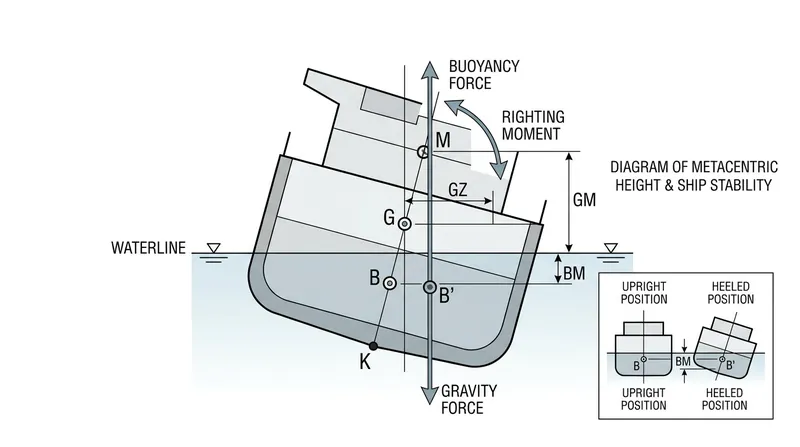

To understand why liquid sloshing is so dangerous, one must first map the static stability of a floating body. A ship's center of gravity is the point through which its total weight acts downward. Its center of buoyancy is the geometric center of the displaced water, acting upward.[2][1]

When a ship rolls to an angle of heel, the hull displaces more water on the lowered side, causing the center of buoyancy to shift laterally. A vertical line drawn upward from this new center of buoyancy intersects the ship's centerline at a point called the metacenter.[2]

The vertical distance between the center of gravity and the metacenter is the metacentric height. As long as the metacenter remains above the center of gravity, the ship possesses a positive metacentric height, which generates a mechanical lever to pull the vessel back to an upright position.[2]

A larger metacentric height creates a stiffer ship that snaps back quickly, while a smaller value creates a tender ship that rolls slowly. According to the Wärtsilä marine engineering encyclopedia, naval architects must carefully balance this stiffness. "It is advisable to avoid excessive values of metacentric height, since these might lead to acceleration forces which could be dangerous," the reference states.[2]

Solid cargo remains fixed when a ship rolls, keeping the center of gravity stationary. Liquid cargo in a slack tank, however, flows toward the lowered side, shifting its own mass laterally. This lateral shift of fluid weight creates a heeling moment that actively works against the ship's natural righting arm.[3]

The Virtual Rise of Gravity

Naval architects model this dynamic fluid shift as a static change in the ship's properties. The lateral movement of the liquid is mathematically equivalent to the ship's center of gravity rising vertically along the centerline. This virtual rise directly subtracts from the metacentric height, creating a virtual metacentric loss.[2]

If the virtual rise is large enough, the center of gravity can move above the metacenter, resulting in a negative metacentric height. When this occurs, the ship loses its initial stability and will loll to one side, seeking a new angle of equilibrium. If environmental conditions worsen, the vessel will capsize.[2][1]

The exact magnitude of this virtual rise is calculated by dividing the free surface's transverse moment of inertia by the ship's total displacement volume. For a standard rectangular tank, the transverse moment of inertia is defined as the tank's length multiplied by the cube of its breadth, divided by twelve.[3]

Because the breadth term is cubed, the width of the tank exerts an exponential influence on the vessel's stability. If a tank's width is doubled, the free surface effect does not double; it increases by a factor of eight. A wide, shallow layer of water is vastly more dangerous than a deep, narrow column.[1]

The Cubed Width Penalty

The density of the liquid also plays a proportional role in the calculation. A slack tank of seawater generates a larger virtual metacentric loss than the same volume of lighter fuel oil. However, the cubed width remains the overwhelmingly dominant variable in the stability equation.[3]

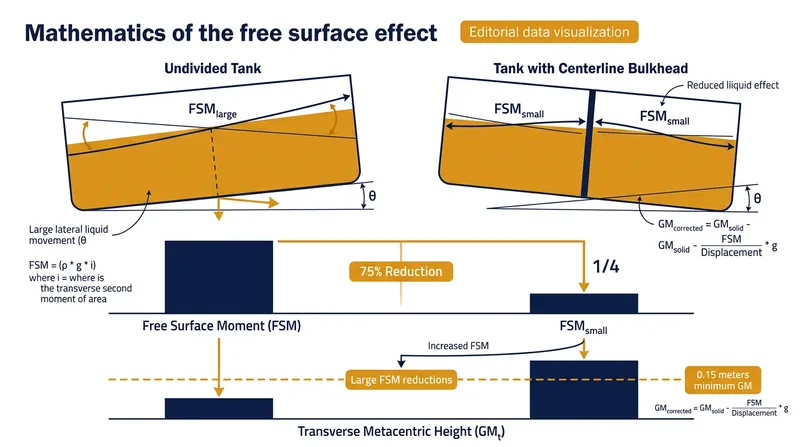

To meet stability requirements without sacrificing too much cargo space, engineers rely on a simple structural intervention. Installing a single longitudinal bulkhead down the centerline of a tank cuts its width exactly in half. Because the inertia scales with the cube of the width, each new half-tank drops to one-eighth of the original inertia.[4]

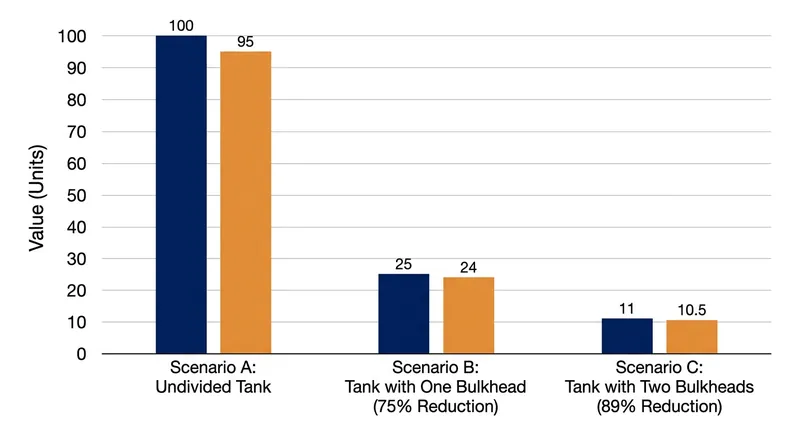

With two such tanks side by side, the total inertia becomes two-eighths, or one-quarter, of the baseline figure. This single division instantly eliminates 75 percent of the free surface effect. A virtual metacentric loss of 0.60 meters in an open hold drops to just 0.15 meters the moment a centerline bulkhead is welded into place.[3][4]

Adding a second longitudinal bulkhead divides the original space into three equal tanks. The width of each tank becomes one-third of the original, reducing the individual inertia to one twenty-seventh. Multiplying by three tanks yields a total inertia of one-ninth, meaning two bulkheads eliminate 89 percent of the original free surface effect.[3]

The 75 Percent Solution

The International Maritime Organization strictly regulates this phenomenon through the 2008 Intact Stability Code. The code mandates that cargo and passenger vessels over 24 meters in length maintain a minimum initial metacentric height of 0.15 meters after accounting for all free surface corrections.

The Intact Stability Code also requires that the area under the righting lever curve must not be less than 0.055 meter-radians up to a 30-degree angle of heel. These criteria ensure that the vessel retains enough dynamic stability to absorb the energy of wind and waves.[4]

Historically, the failure to respect the cubed width rule has led to catastrophic maritime disasters. Roll-on/roll-off ferries are particularly vulnerable because their massive, undivided vehicle decks span the entire beam of the ship. If water breaches the hull and floods these wide decks, the resulting free surface effect can capsize the vessel in minutes.[1][4]

Even tanks that are considered nominally full must account for this effect. The latest amendments to the Intact Stability Code require free surface corrections for tanks loaded to 98 percent capacity. Thermal expansion, cargo heating, and ship motions can still create temporary shifting surfaces within these nearly full holds.[3]

Regulatory Mandates and the IS Code

A tank is only truly safe from sloshing when it is completely pressed up against the tank top or entirely empty. When a tank is pressed up, the liquid has no room to shift laterally, meaning the center of gravity remains fixed. Consequently, standard maritime practice dictates that ballast tanks should be kept 100 percent full or completely empty.[5][2]

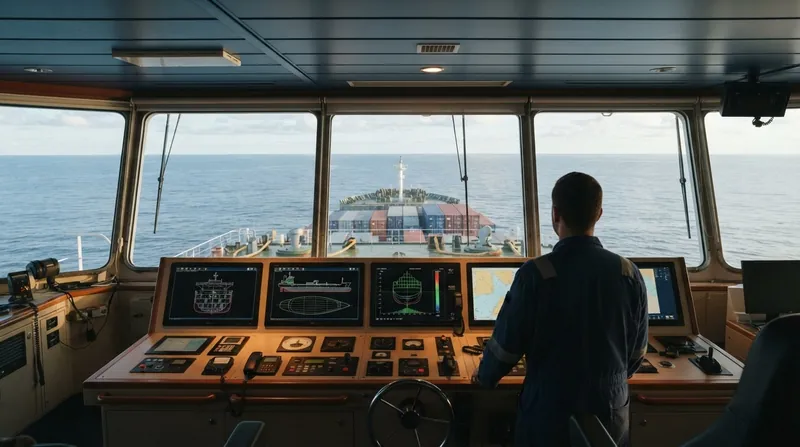

When ballasting operations are necessary underway, officers are trained to fill only one transverse pair or a single centerline tank at a time. This minimizes the number of slack tanks actively generating a free surface effect. Modern loading computers link directly to tank gauges to calculate real-time corrections.[2][3]

Interestingly, naval architects occasionally use the free surface effect intentionally to improve passenger comfort. Passive anti-roll U-tanks consist of two wing tanks connected by a cross-duct at the bottom of the hull. By carefully tuning the width of the tanks and the volume of the liquid, engineers match the fluid's sloshing frequency to the ship's natural rolling period.[4][1]

When the ship rolls, the liquid in the U-tank lags behind the motion. This delayed weight transfer creates a stabilizing moment that dampens the roll amplitude. However, this system purposefully introduces a free surface effect, requiring precise calibration to ensure the vessel does not lose its overall stability in extreme weather.[4][1]

The Cost of Compartmentalization

While bulkheads solve the stability equation, they introduce significant operational trade-offs. A subdivided tank requires duplicate pumping systems, additional valves, and more complex loading sequences to ensure the vessel remains balanced during cargo transfers. The added steel also increases the ship's lightweight displacement, marginally reducing its maximum payload.[3][4]

Furthermore, longitudinal bulkheads increase the surface area of the tank interiors, which complicates cleaning and gas-freeing operations on chemical tankers. The structural intersections also create stress concentration points that must be carefully monitored for fatigue cracking over the vessel's lifespan.[4]

Despite these costs, the 75 percent reduction in virtual metacentric loss makes the centerline bulkhead a non-negotiable feature in modern tanker design. The physics of liquid sloshing leave no room for compromise. When the survival of a vessel depends on a positive righting arm, halving the width of the fluid is the only mathematically sound way to keep the ship upright.[2]
