The IEC 60529 Standard: How the Two Digits of an IP Rating Actually Define Water and Dust Resistance

A consumer evaluating a smartphone battery looks at milliamp-hours as a strictly linear scale—4,000 mAh always outlasts 3,000 mAh under identical loads. The Ingress Protection (IP) code, defined by the International Electrotechnical Commission under standard 60529, appears to follow the same intuitive progression. A device stamped IP68 seems inherently superior to one rated IP65. The single respect in which this standard differs from a linear scale is that its testing parameters are orthogonal: the tests for surviving a drop into a pool do not measure the ability to survive a pressurized jet of water.[1]

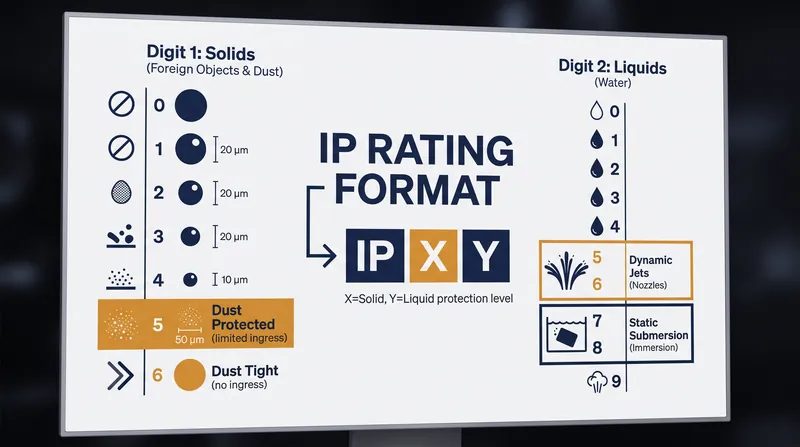

Established by the IEC in 1989 and adopted globally, the 60529 standard replaces vague marketing terms like "waterproof" with a precise two-digit classification. As RS Components outlines in its technical guidance, the system is designed to "classify the degrees of protection provided against the intrusion of solid objects, dust, accidental contact, and water in electrical enclosures." The first digit, ranging from 0 to 6, measures resistance to solid particles. A rating of 6 indicates the enclosure is entirely dust-tight, verified by placing the device in a chamber circulating 50-micrometer talcum powder for up to 8 hours under a continuous vacuum.[1][3]

The second digit, ranging from 0 to 9, measures liquid ingress, and this is where consumer intuition routinely fails. Marketing departments frequently treat the liquid scale as a ladder, implying that an IP67 device can survive anything an IP65 device can, plus more. The physical testing protocols dictate otherwise. The standard bifurcates the types of water exposure into dynamic pressure and static pressure, requiring entirely different sealing mechanisms to pass.[4][5]

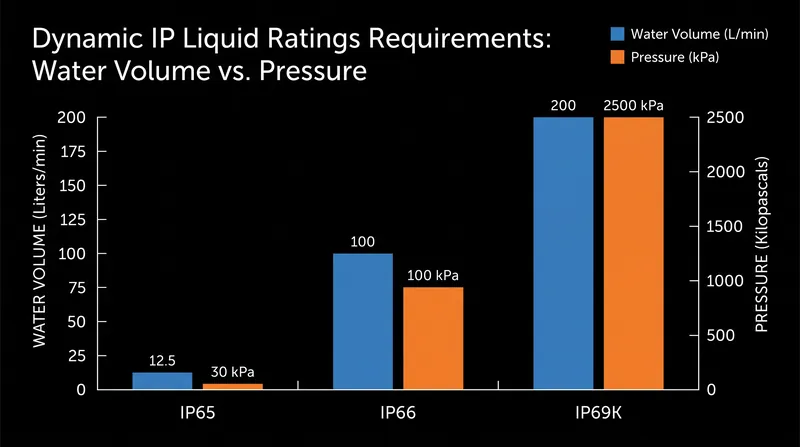

Consider the IP65 rating, commonly found on outdoor lighting and security cameras. Intertek, a major global testing laboratory, defines the IP65 liquid test as subjecting the enclosure to water projected by a 6.3mm nozzle at a rate of 12.5 liters per minute, pressurized to 30 kilopascals from a distance of 3 meters. The device must survive this dynamic assault from all angles for at least 3 minutes. It tests the ability of gaskets to deflect a concentrated, forceful stream.[2]

The IP67 rating tests a completely different physical threat: static head pressure. To achieve IP67, the IEC requires the device to be submerged in exactly 1 meter of static water for 30 minutes. There are no jets, no nozzles, and no dynamic force. The test measures whether the internal air volume and the structural integrity of the seals can hold back the weight of the water above it.[1][5]

Because these forces are fundamentally different, an IP67 rating does not guarantee IP65 compliance. A smartphone designed to survive a 30-minute drop into a bathtub (IP67) can easily suffer water damage if sprayed with a garden hose (IP65), because the hose exerts a localized dynamic pressure that the static submersion seals were never engineered to deflect. Devices that survive both must carry a dual rating, written as IP65/IP67, though consumer packaging rarely displays this nuance.[3][4]

The IP68 rating introduces further ambiguity into the hardware market. Unlike IP67, which has a fixed depth and duration, IP68 simply means the device is protected against continuous submersion under conditions "more severe than IP67." The manufacturer dictates those exact conditions. Polycase, an enclosure manufacturer, notes that one brand's IP68 might mean 1.5 meters for 30 minutes, while another's means 2 meters for an hour. The number 8 is a variable, not a constant.[4]

Furthermore, all IEC 60529 liquid testing is conducted using fresh water at standard room temperatures. The standard does not account for the chemical realities of consumer use. Saltwater in an ocean, chlorinated water in a swimming pool, or soapy water in a sink all feature lower surface tension than fresh water, allowing them to bypass seals that passed the laboratory certification. The chemicals also actively corrode the adhesives holding the device together.[5]

The baseline certification represents the device on the day it leaves the factory. Thermal expansion from processor heat, ultraviolet degradation of rubber gaskets, and microscopic chassis flex from daily use steadily erode the tolerances that earned the rating. The next verifiable checkpoint for the hardware industry is how emerging right-to-repair legislation might force manufacturers to certify IP ratings after a screen or battery replacement, shifting the standard from a factory-only metric to a measurable lifecycle requirement.[6]
