Restricted Mean Survival Time Quantifies Gained Lifespan When Crossing Curves Break Cox Proportional Hazards

When the CheckMate 057 clinical trial evaluated the immunotherapy drug nivolumab for advanced lung cancer, the initial statistical readout presented a paradox. Patients receiving the new therapy were clearly surviving longer in the trial's later stages, yet the primary progression-free survival metric returned a null result.[3]

The trial reported a hazard ratio of 0.92 with a p-value of 0.39, failing to demonstrate a statistically significant improvement over standard chemotherapy. The drug worked, but the mathematical framework used to evaluate it had fundamentally broken down.[3]

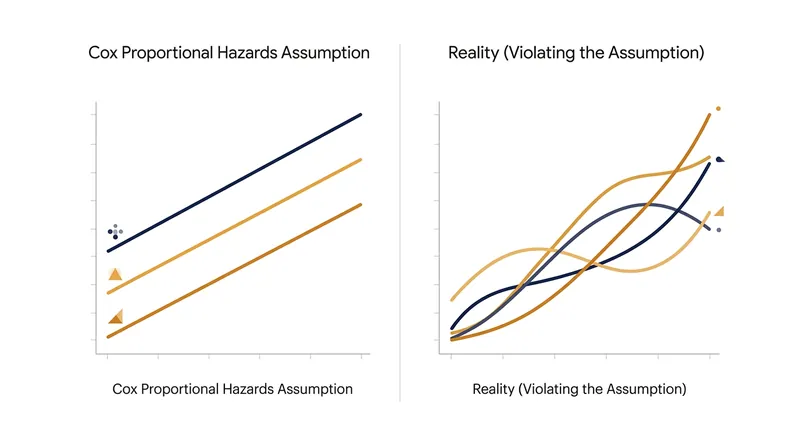

That framework was the Cox proportional hazards model, the undisputed workhorse of medical statistics since its introduction in 1972. The model generates a single hazard ratio to summarize treatment efficacy, but it relies on a rigid assumption that the relative risk between two groups remains constant over time.

If a drug reduces the risk of disease progression by 30 percent in the first month, the Cox model assumes it also reduces that risk by 30 percent in the twentieth month. When that assumption holds, the hazard ratio provides a clean, powerful summary of a treatment's benefit.

The Immunotherapy Curve Crossing

The advent of immuno-oncology systematically violated that constant-risk assumption. Unlike traditional cytotoxic chemotherapy, which attacks tumors immediately, immune checkpoint inhibitors take time to activate the body's T-cells. This biological delay creates a distinct statistical signature in the trial data.[3]

During the first few months of an immunotherapy trial, patients on the experimental arm often experience disease progression at higher rates than those on chemotherapy. The Kaplan-Meier survival curve for the immunotherapy group initially drops below the control group, representing an early treatment detriment.[3]

As the immune response finally takes hold, the dynamic reverses. The immunotherapy curve flattens out, representing a durable tail of long-term survivors, and eventually crosses back above the chemotherapy curve. A recent review of phase 3 oncology trials found that 14 different studies exhibited these crossing survival curves, and every single one was an immunotherapy trial.[3]

When survival curves cross, the Cox proportional hazards model fails catastrophically. The model mathematically averages the early period of elevated risk with the later period of reduced risk. A hazard ratio of 1.3 in the first six months and 0.6 in the subsequent eighteen months will average out to a single hazard ratio near 1.0.

This averaging effect mathematically erases the long-term survival tail that defines immunotherapy's success. A single hazard ratio cannot describe a treatment effect that changes direction over time, leaving clinicians with an opaque metric that hides a drug's true clinical value.

The Area Under the Curve

To solve the crossing-curves problem, statisticians Patrick Royston and Mahesh Parmar formally advocated in 2013 for a metric that requires no proportionality assumptions: Restricted Mean Survival Time. Rather than calculating a ratio of instantaneous event rates, the metric measures absolute time.[1]

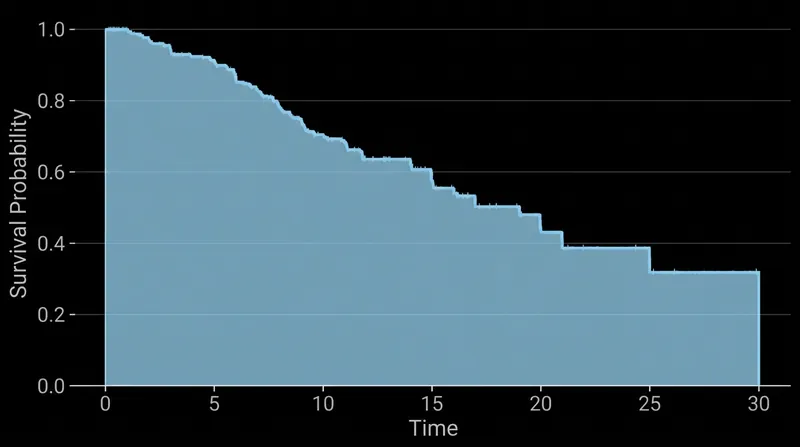

Restricted Mean Survival Time is calculated simply as the area under the Kaplan-Meier survival curve from the start of the trial up to a specific time horizon, denoted as tau. It answers a concrete, patient-centered question without relying on proportional hazards.

"RMST answers a concrete question for clinicians and patients," notes the statistical platform MetricGate in its technical documentation.

"On average, how much event-free time does a subject accumulate within the first tau months?"

Because the metric is a model-free summary, it remains perfectly valid regardless of how the treatment effect fluctuates over time. If the survival curves cross, diverge, or converge, the area under the curve still accurately reflects the total survival time experienced by the cohort.[1][3]

The metric also translates seamlessly into clinical practice. While a hazard ratio of 0.73 is difficult to explain to a patient, an area-based difference is expressed in plain time units. A physician can state that a new therapy provides an average of 1.8 additional months of progression-free survival over a two-year period.[5]

Rescuing the CheckMate Data

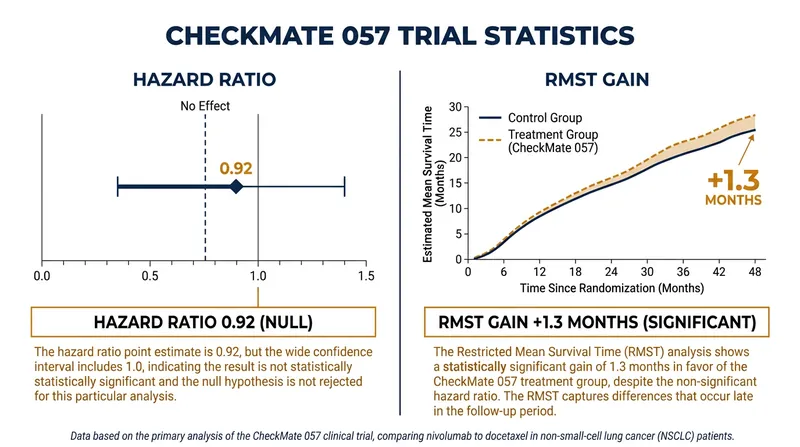

When biostatisticians reanalyzed the CheckMate 057 trial data using the area under the curve, the hidden benefit of nivolumab became mathematically visible. The researchers set a time horizon of 24 months and calculated the restricted mean survival time for both trial arms.[3]

The reanalysis demonstrated a statistically significant gain in progression-free survival of 1.3 months, yielding a p-value of 0.02. By abandoning the proportional hazards assumption, the area-based framework successfully detected the treatment effect that the standard Cox model had discarded.[3]

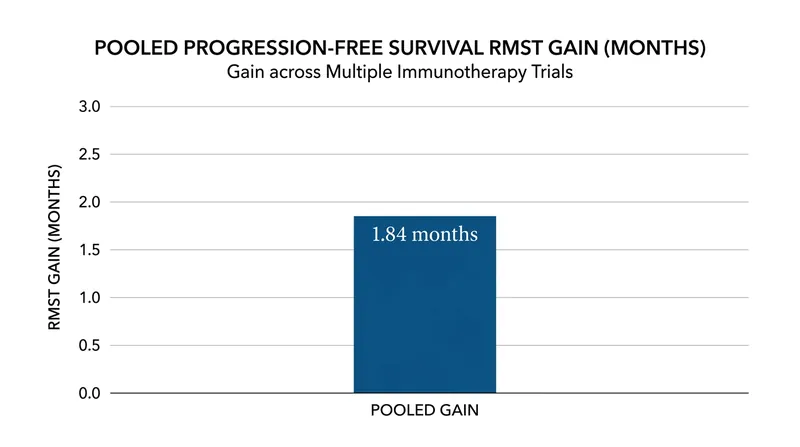

This rescue effect is not an isolated anomaly. A broader meta-analysis of seven immunotherapy trials comprising 1,766 patients utilized digitized Kaplan-Meier curves to reconstruct individual patient data. The pooled gain for progression-free survival across the studies was 1.84 months, with an overall survival gain of 1.98 months.[3]

The adoption of the metric accelerated significantly after 2014, when statistician Hajime Uno and colleagues published a highly influential paper in the Journal of Clinical Oncology and released the survRM2 software package. Their work provided the open-source computational tools necessary for trial designers to implement the metric routinely.[2]

The Scale of the Problem

The scale of the proportional hazards problem is substantial. A comprehensive review of 357 phase 3 oncology trial comparisons published through 2020 found that 85 of them—nearly 24 percent—exhibited statistically significant proportional hazards violations.[3]

The violations were particularly concentrated in specific trial types. Over 30 percent of the comparisons involving immunotherapy drugs violated the proportional hazards assumption, compared to 22 percent of trials evaluating targeted therapies. The standard statistical tools were failing in one out of every four modern oncology trials.[3]

While the area under the curve provides a clean summary measure, trial designers have also explored alternative testing frameworks like the MaxCombo test. MaxCombo combines the standard log-rank test with weighted statistics to maintain statistical power even when survival curves separate late.[3]

However, while MaxCombo is highly effective at generating a significant p-value under non-proportional hazards, it fails to provide a summary measure of treatment efficacy. It can confirm that a drug works, but it cannot quantify the magnitude of the benefit in a way that clinicians can use.[3]

The Horizon Problem

Despite its mathematical advantages, the area-based metric introduces a new subjective variable into trial design: the selection of the time horizon, tau. The calculated survival benefit can vary dramatically depending on where this cutoff is placed, forcing researchers to justify their chosen window.[4]

If the horizon is set too early, the analysis will miss the delayed separation of the curves and underestimate the drug's benefit. If it is set too late, the calculation relies on the sparse, heavily censored tail of the Kaplan-Meier curve, introducing severe statistical noise into the estimate.[4]

To prevent researchers from cherry-picking a time horizon that artificially inflates a drug's efficacy, regulatory agencies require the cutoff to be strictly pre-specified in the trial protocol. The horizon must be clinically motivated, often aligning with the minimum follow-up time required for the primary analysis.[4]

Some statisticians advocate for reporting the restricted mean survival time alongside the traditional hazard ratio, rather than replacing it entirely. The hazard ratio maintains comparability with historical trials, while the area-based metric provides the interpretable, assumption-free absolute measure of patient benefit.

The metric is also gaining traction in health technology assessments and cost-effectiveness research. Because it measures the actual time lived by the cohort, health economists can directly link the restricted mean survival time to quality-adjusted life years and drug pricing models.[6]

The shift toward this framework reflects a broader reckoning within medical statistics. As novel therapeutics produce increasingly complex biological responses, the rigid mathematical models of the twentieth century are no longer sufficient.[3]

When a treatment fundamentally alters the trajectory of a disease, forcing the data into a proportional hazards model obscures the breakthrough. By measuring the actual area under the curve, statisticians ensure that delayed lifespans are accurately quantified and clinically recognized.[1]
