How the Cyber Kill Chain Framework Structures Network Defense

In July 2020, Lockheed Martin re-issued its foundational 14-page white paper on "intelligence-driven computer network defense," cementing a framework that adapted a Cold War-era military targeting sequence for enterprise servers. The document formalized a concept that had been circulating in defense circles since 2011: a cyber intrusion is not a single event, but a rigid sequence of dependencies.[1]

The framework argues that an attacker must successfully execute every phase in sequence to achieve their objective. If a defender breaks any single link in that chain, the entire campaign collapses. Lockheed Martin's original paper defined this as a risk management strategy that "addresses the threat component of risk, incorporating mitigation against the adversary's capabilities, intent, and targeting."[1]

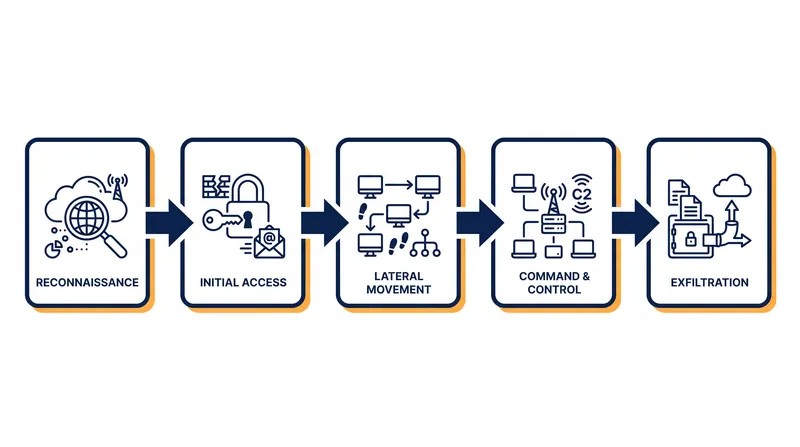

While the original Lockheed model outlined seven distinct steps, modern network security doctrine—driven by the migration to cloud infrastructure—frequently condenses the operational reality into five core phases: reconnaissance, initial access, lateral movement, command and control, and exfiltration. This structural approach dictates how the global cybersecurity industry allocates its capital and resources.[2][5]

The first phase, reconnaissance, occurs entirely outside the target network. Threat actors harvest employee credentials from public breaches, scan internet-facing assets for unpatched vulnerabilities, and map the organization's digital footprint. Because this activity relies on public infrastructure, defensive options are limited to observation and external attack surface management.[3][6]

Organizations deploy threat intelligence platforms to monitor dark web forums for their domain names and use automated scanners to identify exposed servers before adversaries do. The goal is to reduce the available attack surface, forcing the adversary to expend more resources to find a viable entry point.[4][6]

The second phase bridges the gap between preparation and execution. Initial access involves pairing a remote access trojan or ransomware payload with an exploitation vector, such as a spear-phishing email or a compromised third-party software update. Here, the defensive posture shifts to active denial.[1][3]

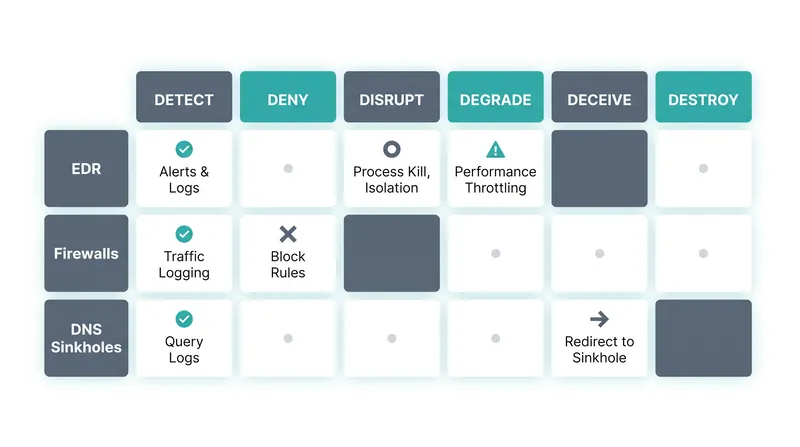

Email gateways strip executable attachments, while domain name system (DNS) sinkholes block traffic originating from known malicious IP addresses. If delivery succeeds, the malicious code executes on the target machine, establishing a foothold. This is the moment the perimeter is breached, a reality that modern security frameworks assume will inevitably occur.[2][4]

Countermeasures at this stage rely heavily on endpoint detection and response (EDR) agents. These systems monitor for anomalous behavior, such as a standard word processor attempting to execute a PowerShell script, and automatically quarantine the affected device from the broader network.[6]

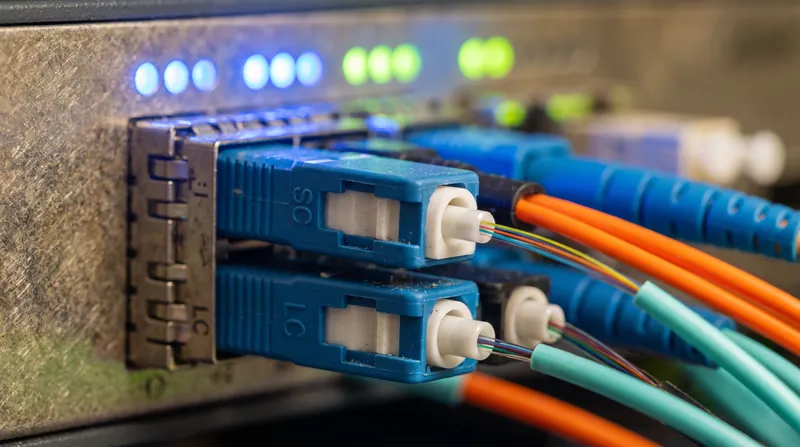

Once installed, the malware initiates the command and control (C2) phase. The compromised asset reaches out to an external server operated by the attacker to receive further instructions and download additional tools. Disrupting this C2 channel is a primary focus for network defenders, as malware without a connection to its operator remains dormant.[5]

Security teams use network traffic analysis to detect beaconing behavior—regular, automated outbound pings that indicate a compromised host is seeking instructions. To evade detection, advanced persistent threats often route their C2 traffic through legitimate cloud services or encrypt the communications.[3][4]

Defenders counter this encryption by implementing SSL inspection, which decrypts and analyzes outbound traffic at the firewall before re-encrypting it for transit. If the C2 connection is severed, the kill chain is broken, and the adversary must establish a new foothold.[3][6]

The final phases encompass lateral movement and the adversary's ultimate objective. In financial extortion campaigns, this means moving from the initial compromised workstation to locate sensitive databases, followed by the exfiltration of that data and the deployment of ransomware to encrypt the local copies.[2][5]

Defense at this terminal stage relies on internal segmentation and the principle of least privilege. If a compromised marketing workstation cannot route traffic to the human resources database, the attack is contained. Microsoft's security architecture emphasizes that the shift to remote work has dissolved the traditional network perimeter, making these later stages the critical battleground.[2]

This evolution requires defenders to operate under an "assume breach" mentality. Instead of concentrating resources entirely on the delivery phase, security operations centers now measure their effectiveness by their "dwell time"—the duration an adversary remains undetected inside the network during the lateral movement phase.[4][6]

As automated attack tools lower the barrier to entry for threat actors, the volume of intrusions continues to scale. The defensive response relies on integrating artificial intelligence into the detection pipeline, reducing the time between a C2 beacon and an automated quarantine from hours to milliseconds.[5][7]
