How Steering the Contact Patch Out From Under the Center of Mass Turns a Bicycle

A cyclist approaching a sharp descent corner makes a subconscious physical calculation. To navigate a right-hand bend at 30 kilometers per hour, the rider cannot simply point the handlebars to the right. Instead, they must briefly push the right grip forward, steering the front wheel 2 to 3 degrees to the left.[3]

This momentary leftward input initiates a cascade of physical forces that actually turns the bicycle. The rider is actively steering the front tire's contact patch out from under their combined center of mass. That 50-millimeter displacement allows gravity to pull the bicycle down into the required rightward lean.[3][7]

Without that initial lean, a two-wheeled vehicle cannot negotiate a corner at speed. The physics of this maneuver, known as countersteering, govern every turn a cyclist makes. Yet the exact mathematical mechanics behind it have puzzled engineers since the first formal equations were drafted in 1899.[2]

The inverted pendulum problem

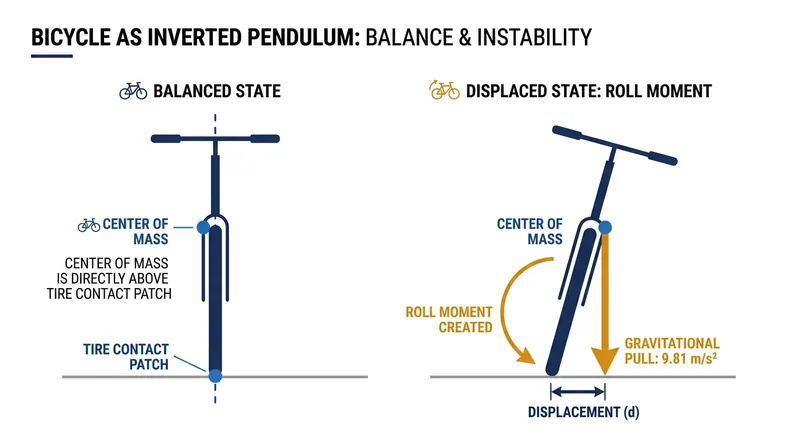

A bicycle and its rider function as an inverted pendulum, balancing a heavy mass atop a very narrow base. When riding in a straight line, the center of mass sits directly above the two tire contact patches. The system remains in a delicate, continuous state of dynamic equilibrium.[8]

To change direction, that equilibrium must be intentionally broken. If a rider simply turns the handlebars to the right while perfectly upright, centrifugal force will immediately throw their 80-kilogram mass to the left. The bicycle would capsize outward, away from the intended direction of travel.[3]

Therefore, the lean must precede the turn. By briefly steering left, the front wheel tracks away from the centerline for roughly 0.5 seconds. The contact patch moves leftward, leaving the rider's center of mass unsupported on the right side of the vehicle.[5]

Gravity instantly acts on this unsupported mass, pulling it downward at 9.81 meters per second squared. This creates a gravitational roll moment, tipping the bicycle and rider to the right. The rider has effectively used gravity to initiate the turn.[3][8]

Dismissing the gyroscopic myth

Historically, conventional wisdom held that spinning wheels acted as gyroscopes, keeping the bicycle upright and forcing it to lean when steered. This gyroscopic precession was taught as the fundamental mechanism of two-wheeled stability. However, modern dynamic modeling has proven this theory incomplete.[4]

In 2011, researchers published a landmark paper demonstrating that a bicycle does not need spinning mass to balance. They built a specialized experimental bicycle with counter-rotating wheels that canceled out all gyroscopic forces. The vehicle still balanced and turned perfectly without rider input.[1]

As the researchers noted in their findings, "A bicycle can be self-stable without gyroscopic or caster effects." The experiment proved that while gyroscopic forces exist, they are merely secondary artifacts. The primary driver of stability and turning is the relationship between the steering axis and the contact patch.[1]

When the experimental bike began to fall, the geometry of the front fork automatically steered the wheel into the fall. This brought the contact patch back under the center of mass. The gravitational roll moment was neutralized, and the bicycle returned to an upright position.[1][6]

Trail and caster effects

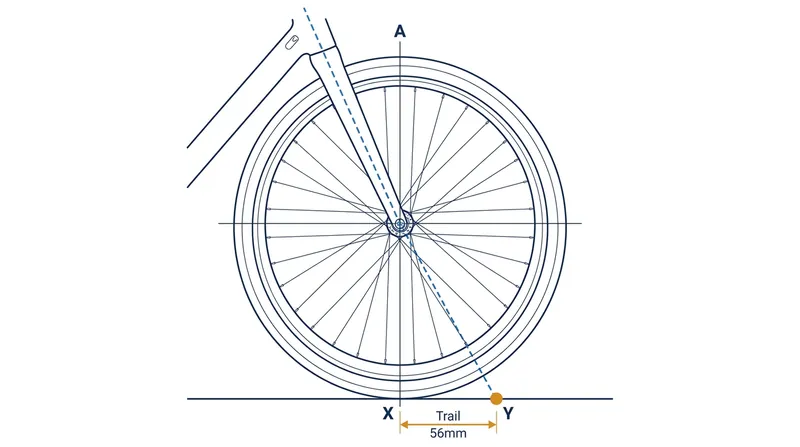

The automatic steering correction relies heavily on a geometric measurement called trail. Trail is the horizontal distance between the tire's contact patch and the point where the steering axis intersects the ground. On a typical road bicycle, this distance measures between 50 and 60 millimeters.[5]

This positive trail creates a caster effect, much like the wheels on a shopping cart. The contact patch is dragged behind the steering axis, forcing the wheel to align with the direction of travel. When the bike leans, the caster effect helps steer the wheel into the lean.[5][7]

However, the 2011 experiment also eliminated positive trail, placing the contact patch ahead of the steering axis. Remarkably, the bicycle still demonstrated self-stability. The researchers discovered that mass distribution ahead of the steering axis could compensate for the lack of trail.[1]

If the front assembly has a forward center of mass, gravity will pull it downward when the bike leans. This gravitational pull forces the handlebars to turn into the lean, even without positive trail. The contact patch is once again driven back under the rider.[1][2]

Practical application for riders

Understanding this contact patch physics translates directly to safer, more efficient riding. At speeds below 15 kilometers per hour, a rider can often steer by simply shifting their body weight. The mass moves, creating the roll moment without significant handlebar input.[3]

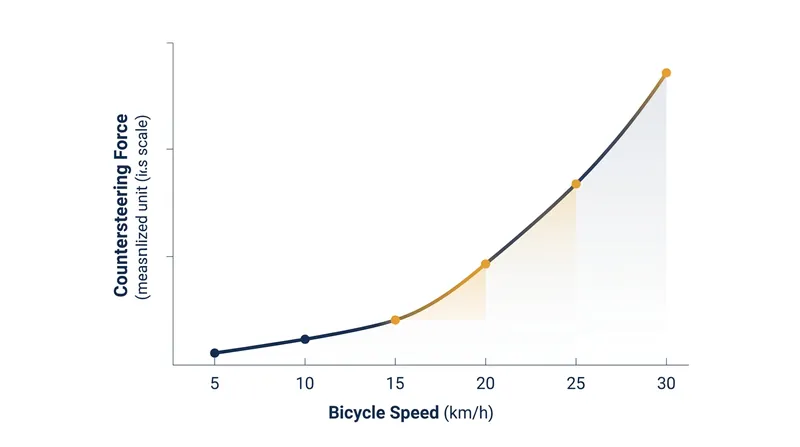

But at higher speeds, body English becomes entirely ineffective. A rider descending a mountain pass at 60 kilometers per hour cannot lean the 100-kilogram combined mass simply by shifting their hips. The gyroscopic stability of the wheels and the forward momentum demand a more forceful intervention.[3][5]

To navigate a high-speed corner, the rider must actively countersteer. Pushing the inside grip forward forces the contact patch out from under the center of mass. The harder the push, the faster the gravitational roll moment initiates the lean.[3]

Once the desired lean angle is achieved, the rider relaxes the countersteering pressure. The bicycle's geometry naturally turns the front wheel into the corner. The bike tracks smoothly through the curve, balanced perfectly between gravity pulling down and centrifugal force pushing out.[5][7]

To exit the turn, the rider reverses the process. They steer slightly harder into the corner, moving the contact patch back under the center of mass. The roll moment is neutralized, the bike stands up, and straight-line equilibrium is restored.[3][6]
