Surface Impedance Overwhelms Casing Hysteresis: Why Overinflating Bicycle Tires Increases Rolling Resistance on Real Roads

The cyclist standing over a floor pump before a ride faces a decision that dictates their speed and fatigue for the day. For a century, the rule was simple: push the plunger until the gauge reads 100 psi or more, assuming a rock-hard tire rolls fastest.

But that decision, based entirely on laboratory drum testing, ignores the physics of real asphalt. Modern field testing has definitively dismantled the high-pressure myth, revealing that overinflated tires are quantifiably slower on actual roads, regardless of how fast they might feel.[7]

The shift in understanding comes down to a battle between two physical forces: casing hysteresis and surface impedance. When a rider pumps a tire past its optimal threshold, they trade a minor mechanical efficiency for a massive biomechanical penalty.

The Steel Drum Illusion

To understand why the high-pressure myth survived for so long, you have to look at how the bicycle industry historically measured rolling resistance. Traditional tests involved running a weighted tire against a perfectly smooth, rotating steel drum.

On that flawless surface, the only drag acting on the tire is casing hysteresis. This is the energy lost as heat when the rubber tread and internal casing fibers deform at the contact patch and then snap back into shape as the wheel turns.[1]

Because higher air pressure physically stiffens the tire, it reduces the amount of deformation at the contact patch. On a steel drum, plotting rolling resistance against pressure produces a simple, downward-sloping line: the harder the tire, the lower the resistance.[4]

The Reality of Surface Impedance

Out on the road, however, asphalt is not a steel drum. It is a chaotic landscape of aggregate, cracks, chip-seal, and debris. When a tire encounters these imperfections, it must either deform around them or be deflected upward by them.

If a tire is inflated to 100 psi, it becomes too rigid to absorb the texture of the road. Instead of the pneumatic casing swallowing the bump, the entire bicycle and the rider are lifted vertically into the air.

This upward deflection is called surface impedance, or suspension loss. Every time the bike is bumped upward, forward momentum is converted into vertical movement, actively robbing the cyclist of speed and forcing them to pedal harder to maintain pace.[1][5]

The Human Shock Absorber

The energy lost to surface impedance does not just vanish into the air. It is transmitted directly into the rider. The human body is composed of soft tissue, muscle, and fluid, which collectively act as a massive, highly inefficient damper.

When high-frequency vibrations travel up the seatpost and handlebars, the rider's body absorbs them. The energy required to vibrate a 75-kilogram human mass is stolen directly from the wattage the rider is putting into the pedals.[1]

This creates a cruel sensory illusion. High-frequency vibrations transmit a visceral sensation of speed to the brain, making a rock-hard tire feel incredibly fast. In reality, that buzzing sensation is the physical feeling of forward watts being wasted as heat in the rider's tissues.

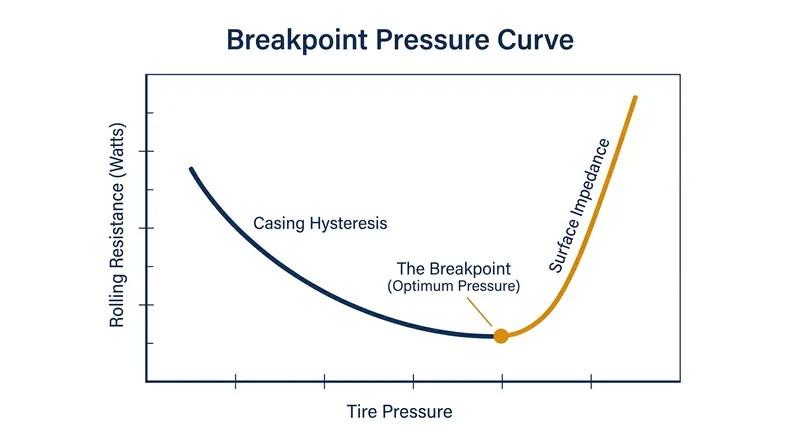

Finding the Breakpoint Pressure

Engineers like Tom Anhalt and Silca’s Josh Poertner mapped these two competing forces to find what they call the "breakpoint pressure." This is the exact inflection point on a tire's performance curve where the rules of physics flip.[1][2]

Below the breakpoint, casing hysteresis is the dominant drag on the system. Because the tire is soft enough to absorb the road, adding a few psi reduces casing flex without triggering significant vibration, making the bike marginally faster.

But the moment the pressure crosses the breakpoint, surface impedance takes over. The tire becomes too stiff for the specific road surface, and rolling resistance spikes dramatically as the rider begins absorbing the terrain instead of the pneumatic casing doing the work.

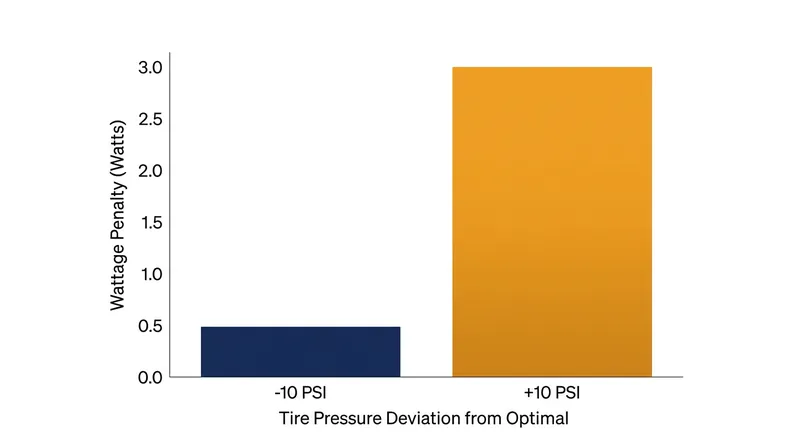

The Asymmetric Penalty

The most critical discovery from this field testing is that the penalty curve is highly asymmetric. Missing your optimal tire pressure by 10 psi on the low side costs a fraction of a watt in extra casing flex.[1][7]

Conversely, overinflating by that same 10 psi beyond the breakpoint can cost several watts in impedance losses. The rougher the road surface, the steeper the impedance curve becomes, and the more severely overinflation is punished.[1]

Independent testing by Wheel Energy identified that the difference in energy lost around this inflection point can vary from 0.1 to 2.2 watts per wheel, depending entirely on the severity of the road texture and the stiffness of the casing.[2]

Testing the Theory on the Road

To validate these laboratory findings, engineers moved their testing protocols outdoors. By using virtual elevation models and highly sensitive power meters, researchers measured the exact wattage required to maintain a constant speed over real-world chip-seal and broken pavement.[2]

The field data perfectly matched the laboratory predictions below the breakpoint, confirming that casing hysteresis behaves predictably. However, once the tires were overinflated, the real-world wattage required to maintain speed skyrocketed far beyond what the smooth steel drum had suggested.

This divergence proved that surface impedance is not just a theoretical concept, but the primary limiting factor for bicycle speed on imperfect roads. It demonstrated that the human body's inability to efficiently absorb vibration is the true bottleneck in the system.

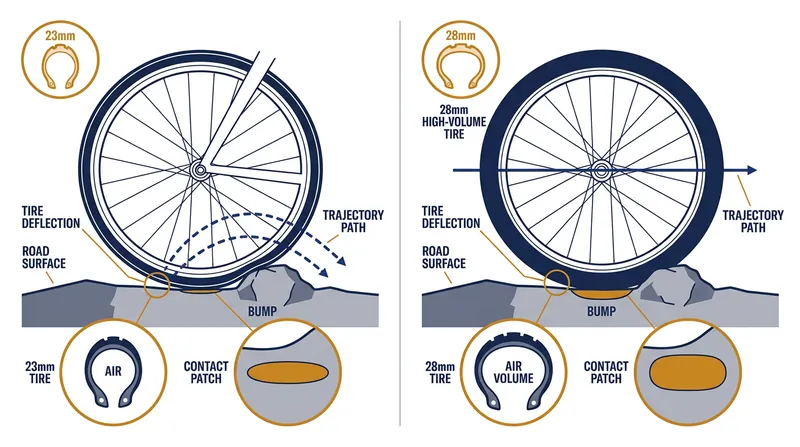

The Shift to High-Volume Tires

This understanding of impedance has fundamentally changed bicycle design, driving the professional peloton away from 23-millimeter tires toward 28-millimeter and 30-millimeter widths. A wider tire holds a larger volume of air, allowing it to support the rider at a much lower pressure without risking a pinch flat.[3]

By running 60 to 70 psi in a 28-millimeter tubeless tire, a cyclist effectively neutralizes surface impedance on standard asphalt. The larger contact patch and lower pressure allow the casing to swallow road chatter before it ever reaches the frame.[6]

This setup saves watts and drastically reduces muscular fatigue over a long ride. The modern consensus is clear: when in doubt about the exact breakpoint for a given road, rounding down by a few psi is always the faster, safer choice.[7]
