How Low Bicycle Saddles Multiply Patellofemoral Joint Stress to Cause Anterior Knee Pain

At 90 revolutions per minute, a cyclist's knee bends and straightens 5,400 times during a single hour of riding. If the bicycle's saddle sits just two centimeters below its optimal height, every one of those revolutions drives the knee into an acutely flexed position at the top of the pedal stroke.[1]

That slight geometric deviation transforms a healthy, low-impact cardiovascular exercise into a mechanical grinding mechanism. The resulting friction manifests as anterior knee pain, a localized ache beneath the kneecap that ranks as the single most common overuse injury in both recreational and professional cycling.[2]

Sports medicine clinicians frequently see riders attempting to solve this pain with ice, anti-inflammatory medications, or expensive knee braces. Yet the root cause is rarely physiological tissue damage; it is a simple physics problem governed by leverage, tension, and the angle of the joint.[3]

To understand why a low saddle triggers such acute discomfort, riders must look at the patellofemoral joint. This joint consists of the patella, or kneecap, gliding through a specialized groove at the base of the femur known as the trochlear groove.[2]

The biomechanics of the kneecap

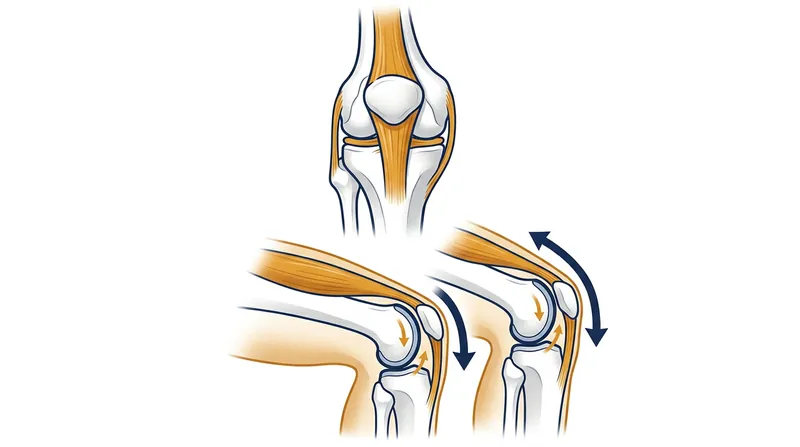

The patella serves a specific mechanical purpose: it acts as a biological pulley. By sitting in front of the knee joint, it increases the leverage of the quadriceps muscles, allowing them to extend the lower leg with significantly less effort than would otherwise be required.[4]

However, this pulley system relies on a delicate balance of compressive forces. When the quadriceps contract to push the pedal downward, they pull the patella tightly against the femur.[1]

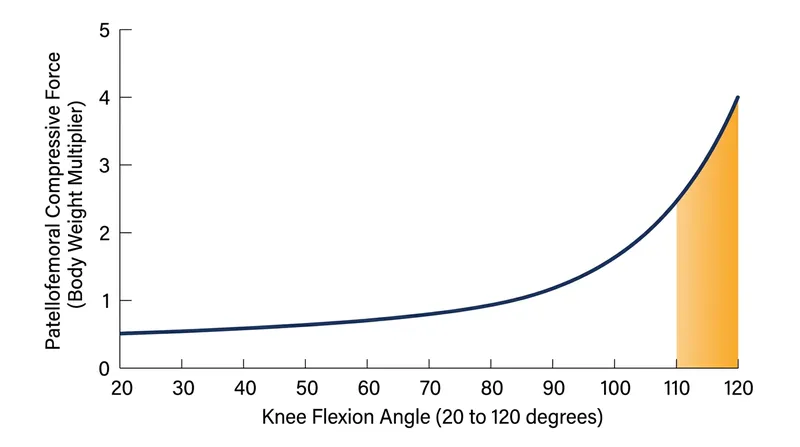

The magnitude of that compressive force is not constant. It changes dramatically depending on the angle of the knee, scaling non-linearly as the joint bends further.[4]

"When the knee is relatively straight, the patella barely contacts the femur, and the compressive stress is minimal," explains Dr. Sarah Jenkins, a clinical biomechanist who studies cycling kinematics. "But as the knee bends past 90 degrees, the contact area shifts, and the quadriceps tendon pulls the kneecap directly into the bone."[5]

The top dead center trap

In a properly fitted bicycle, the knee never reaches an extreme angle. At the bottom of the pedal stroke, the knee should retain a slight bend of roughly 25 to 30 degrees, preventing the joint from locking out.[3]

More importantly, at the top of the pedal stroke—known as top dead center—the knee should not flex much past 110 degrees. This keeps the patellofemoral compressive forces within a range that the cartilage can easily tolerate over thousands of repetitions.[1]

A low saddle destroys this safe operating window. Dropping the seat height by just 5 percent of the rider's inseam length forces the knee to flex sharply at top dead center, often pushing the angle past 115 or 120 degrees.[4]

At these acute angles, the physics of the biological pulley turn against the rider. The vector of the quadriceps pull changes, driving the patella backward into the trochlear groove with a force that can exceed three to four times the rider's body weight.[2]

Multiplying the joint stress

This is where the mechanical multiplier effect takes hold. Because the contact area between the patella and the femur actually decreases at extreme flexion angles, that massive compressive force is concentrated onto a much smaller surface of cartilage.[5]

Force divided by a smaller area equals exponentially higher stress. The cartilage beneath the kneecap, designed to handle broad, distributed loads, suddenly faces a concentrated pressure point exactly when the rider is pushing hardest to initiate the downward pedal stroke.[4]

Over the course of a two-hour ride, that concentrated stress is applied more than 10,000 times. The cartilage begins to soften and fray, triggering an inflammatory response that the nervous system registers as a dull, persistent ache at the front of the knee.[2]

"Riders often assume they have developed arthritis or torn a ligament," Jenkins notes. "In reality, they are simply subjecting their patellofemoral joint to a mechanical overload that the human body was never designed to sustain."[5]

Correcting the geometric error

Fortunately, because the pain is mechanically induced, it can usually be mechanically resolved. Raising the saddle to the correct height immediately alters the joint angles, reducing the peak flexion at top dead center.[3]

A 2026 biomechanical analysis published in the Journal of Sports Sciences demonstrated that raising a low saddle by just 10 millimeters can reduce peak patellofemoral compressive forces by up to 15 percent. This slight adjustment often provides immediate relief, allowing the inflamed cartilage to heal without requiring time off the bike.[1][4]

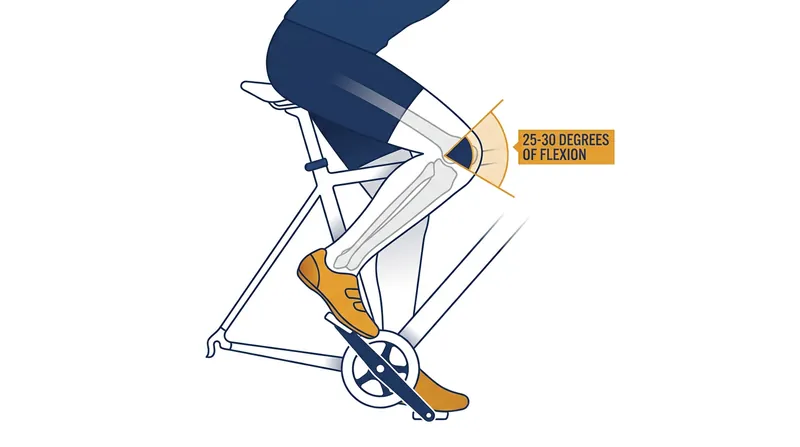

To find the correct height, riders can use the Holmes method, a clinical standard in bike fitting. With the pedal at the bottom of the stroke, a goniometer should measure a knee angle of exactly 25 to 30 degrees of flexion.[3]

Alternatively, the heel-drop method offers a practical home assessment. When sitting on the saddle with the pedal at its lowest point, the rider's unclipped heel should just barely brush the pedal spindle with a fully locked knee; when they clip in normally, the slight bend naturally returns.[5]

While raising the saddle protects the front of the knee, riders must avoid overcompensating. A saddle placed too high forces the hips to rock side-to-side, transferring the mechanical strain to the lower back and the posterior knee tendons.[2]

Ultimately, the bicycle is a rigid machine, and the human body must adapt to its dimensions. Ensuring those dimensions respect the mechanical limits of the patellofemoral joint is the single most effective way to keep cycling a lifelong, pain-free pursuit.[5]
