How Hookless Carbon Rims Rely on Tire Casing Tensile Tolerance to Prevent Blowouts

When a cyclist mounts a new set of tires to a modern carbon wheelset, they are making a structural engineering decision. The choice dictates whether the tire stays on the rim during a high-speed descent or blows off the wheel entirely.[2]

Historically, bicycle rims featured an inward-facing hook at the top of the sidewall. This mechanical lip physically grabbed the tire bead, locking it in place regardless of how much air pressure the rider pumped into the inner tube.[1]

Today, the cycling industry is rapidly shifting toward tubeless straight-side rims, commonly known as hookless rims. These carbon hoops feature perfectly vertical inner walls, eliminating the mechanical safety net that defined bicycle wheels for a century.[2]

Without a hook, the system relies entirely on the tensile tolerance of the tire casing. The tire bead—a stiff ring of aramid, Kevlar, or carbon fiber hidden inside the rubber—must maintain an exact diameter under immense pneumatic pressure.[1]

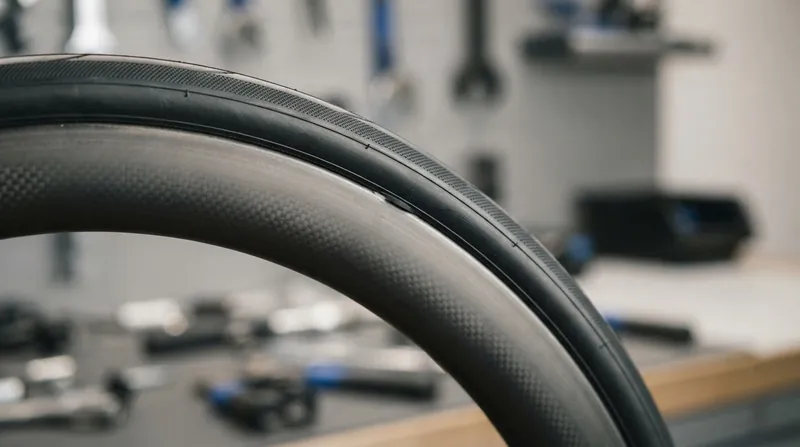

When inflated, the air pressure forces the tire bead outward onto a raised shelf on the rim bed. The bead locks into place through pure friction and tension, gripping the straight carbon wall like a tightly stretched rubber band around a glass cylinder.[1]

The Physics of Bead Retention

If the tire bead stretches even a fraction of a millimeter, the system fails. The outward force of the air pressure will push the elongated bead up and over the straight sidewall, resulting in an instantaneous blowout.[1]

At the European Tyre and Rim Technical Organisation (ETRTO) maximum hookless pressure of 72.5 psi, a 28-millimeter tire exerts continuous outward force against the rim. The bead core must resist this radial expansion without creeping or deforming over time.[1]

Traditional folding tires used flexible Kevlar beads that allowed for easy mounting but stretched slightly under high pressure. Hookless-compatible tires require significantly stiffer bead cores, often utilizing Zylon or continuous carbon fiber strands to achieve near-zero stretch.

"The hookless interface demands absolute dimensional stability from the tire bead, as the casing must resist the entire pneumatic load without mechanical assistance," notes a 2025 analysis in the Journal of Sports Engineering and Technology. "If the bead core stretches by even 0.2 percent, the tire will unseat."[1]

The margin for error is microscopic. The 2026 ETRTO standards dictate that a 700c hookless rim must measure exactly 622 millimeters in diameter, with a manufacturing tolerance of just 0.5 millimeters.

The tire bead must be manufactured to an equally strict tolerance. If the tire is slightly too large, it will blow off under pressure; if it is slightly too small, the rider will be physically unable to stretch it onto the rim by hand.

Why Manufacturers Abandoned the Hook

Molding a hollow carbon fiber rim with an internal hook requires complex, collapsible silicone mandrels. The process is labor-intensive, expensive, and leaves excess resin that adds unnecessary weight to the wheel's outer edge.[2]

Hookless rims are manufactured using solid steel molds that pull straight out of the rim bed. This creates a highly compacted, void-free carbon structure that is significantly stronger and saves approximately 40 to 50 grams of rotational weight per rim.[2]

The straight sidewall also creates a smoother transition between the rim and the tire. Without the hook pinching the tire inward, the casing forms a more aerodynamic teardrop shape that reduces turbulent airflow at speeds above 25 miles per hour.[2]

By eliminating the thin, fragile hook, engineers can widen the rim's top edge. This blunt profile distributes impact forces over a larger area, dramatically reducing the risk of pinch flats and carbon rim fractures when hitting potholes.

The Strict Limits of Hookless Systems

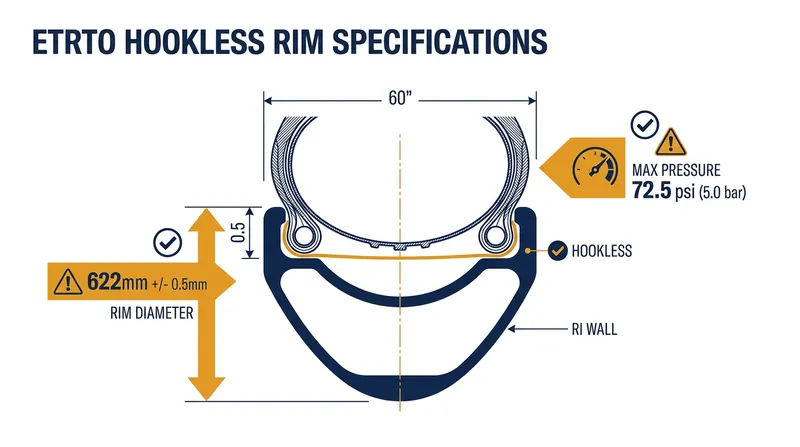

The most critical limitation of hookless technology is air pressure. The ETRTO strictly caps hookless tire pressure at 5.0 bar, or 72.5 psi, regardless of rider weight, tire width, or road conditions.

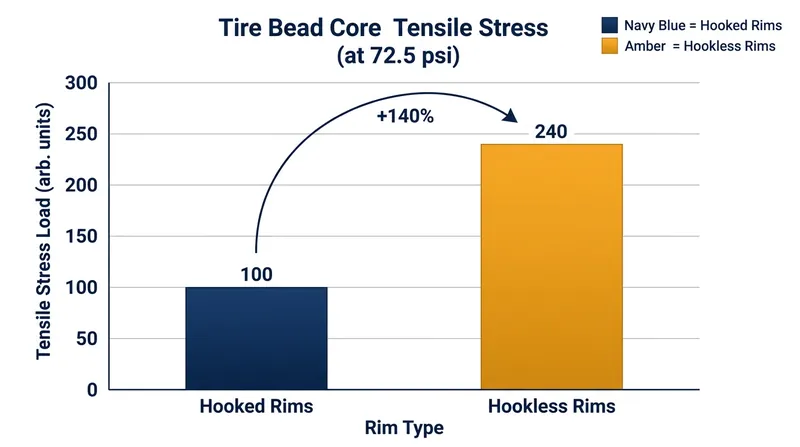

Above this 72.5 psi threshold, the tensile stress on the tire bead exceeds the safety margin of current casing materials. Even a perfectly manufactured tire risks stretching and blowing off the straight sidewall if over-inflated by a careless mechanic.[1]

Because of this pressure limit, hookless rims are only viable with wider tires. A 28-millimeter or 30-millimeter tire can easily support a heavy rider at 65 psi, whereas a traditional 23-millimeter tire would require 100 psi to prevent rim strikes.[2]

Temperature also plays a crucial role in bead stability. Prolonged braking on long descents or leaving a bicycle in a hot car can soften the rubber matrix holding the aramid fibers, increasing the risk of bead stretch and subsequent failure.[1]

Navigating Compatibility and Safety

Unlike the universal compatibility of hooked rims, hookless systems require strict adherence to manufacturer-approved tire lists. A tire that works perfectly on a hooked rim may be highly dangerous on a hookless setup.[2]

Standard clincher tires lack the reinforced bead core required for hookless retention. Mounting a non-approved tire to a hookless rim is a guaranteed failure, as the bead will inevitably stretch under the pneumatic load.

This dynamic shifts the burden of safety entirely onto the consumer. Mechanics and riders must verify that their specific tire model, width, and rim combination have been tested and approved by the wheel manufacturer before inflation.[2]

The transition away from mechanical hooks represents a fundamental shift in bicycle tire engineering. The safety of the system no longer relies on a physical barrier, but on the invisible tensile strength of advanced aramid fibers.[1][3]

As long as riders respect the strict pressure limits and compatibility charts, the straight-sided rim offers a lighter, more resilient foundation for modern cycling. The key is understanding that the tire and rim now function as a single, interdependent structural unit.[3]
