Sparse Ligamentous Nociceptors Mask Rotational Strain: Why Heel Hooks Rupture Knees Before Grapplers Feel Pain

The anterior cruciate ligament provides approximately 85 percent of the knee's total restraining force against anterior translation, making it the joint's primary linear stabiliser. It is a robust, fibrous band of connective tissue designed to prevent the tibia from sliding forward during explosive athletic movements like sprinting and jumping.[1]

However, this linear strength masks a profound vulnerability to rotational torque. When subjected to twisting forces, the ligament's mechanical capacity drops precipitously. In submission grappling, the heel hook exploits this exact biomechanical limitation with devastating efficiency.[3]

By trapping the opponent's thigh to immobilise the femur, and using the heel as a lever, the attacker forces the tibia to rotate internally or externally. A 2010 case report in Knee Surgery, Sports Traumatology, Arthroscopy documented how this specific rotational force routinely produces complete ruptures of the anterior cruciate ligament.[2]

The Nociceptor Density Deficit

Unlike an armbar, which pits the attacker's hips against the defender's biceps, a heel hook offers no muscular line of defense. The force is applied directly into the joint capsule, transferring the torque immediately to the passive ligamentous structures. Because the foot serves as a long lever arm, even a minor extension of the attacker's hips generates massive rotational force at the knee.[3]

The true danger of the technique lies not just in its mechanical leverage, but in the knee's neurological blind spot. Ligaments are embedded with nociceptors—specialised free nerve endings responsible for transmitting pain signals to the central nervous system. These receptors act as the body's early warning system, firing rapidly when tissue is stretched near its failure point.[3]

While the elbow's ulnar collateral ligament is densely innervated and signals linear hyperextension with escalating, unmistakable pain, the knee is wired differently. Its cruciate and collateral ligaments possess a high density of stretch receptors for linear extension, but significantly fewer for rotational strain. This creates a dangerous neurological deficit during twisting submissions.[3]

This sparse innervation means the ligament undergoes catastrophic mechanical deformation before the brain registers a corresponding level of pain. For a grappler caught in a heel hook, the defensive window between feeling uncomfortable pressure and suffering a complete structural rupture is dramatically compressed. The mechanical threshold for failure is frequently crossed while the athlete still believes they are safe to attempt an escape.[3]

The Cascade of Structural Failure

In practical terms, the absence of pain during the early phase of a heel hook is not a signal that the position is secure. Grapplers who wait for pain to signal danger often tap only after feeling or hearing the audible pop of the ligament tearing. By the time the nociceptors fire a severe warning, the tissue has already passed from elastic deformation into plastic failure.[2]

When the anterior cruciate ligament fails under rotational load, the applied torque does not simply dissipate. It immediately transfers to the knee's secondary stabilisers, frequently causing severe multi-ligament trauma. Because the knee is primarily a hinge joint designed for flexion and extension, it possesses very little capacity to absorb rotation once the primary restraint is severed.[1]

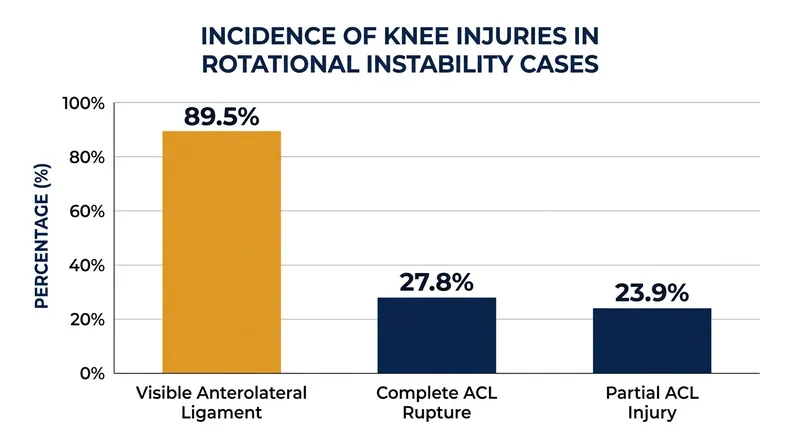

Magnetic resonance imaging confirms the cascading nature of these complex rotational injuries. In a 2020 study published in the Journal of Musculoskeletal Surgery and Research, researchers evaluated 505 knee MRIs from patients exhibiting rotational instability. They found that the anterolateral ligament was visible in 89.5 percent of the scans, highlighting its critical role as a secondary rotational restraint once the primary ligaments are loaded.[1]

When the anterior cruciate ligament is compromised, these secondary structures bear the brunt of the remaining rotational force. The same imaging study identified partial anterior cruciate ligament injuries in 121 patients, representing 23.9 percent of the evaluated cohort. Complete ruptures were observed in another 141 patients, accounting for 27.8 percent of the cases.[1]

Systematic surgical explorations have demonstrated that significant rotational instability rarely occurs in isolation. Researchers have documented a 90 percent incidence of combined injuries involving both the anterior cruciate ligament and anterolateral structures when the knee is subjected to severe rotational laxity. A fully locked heel hook drives the joint directly into this multi-ligament failure pattern, destroying the knee's architecture in milliseconds.[1][2]

Inside Versus Outside Rotational Dynamics

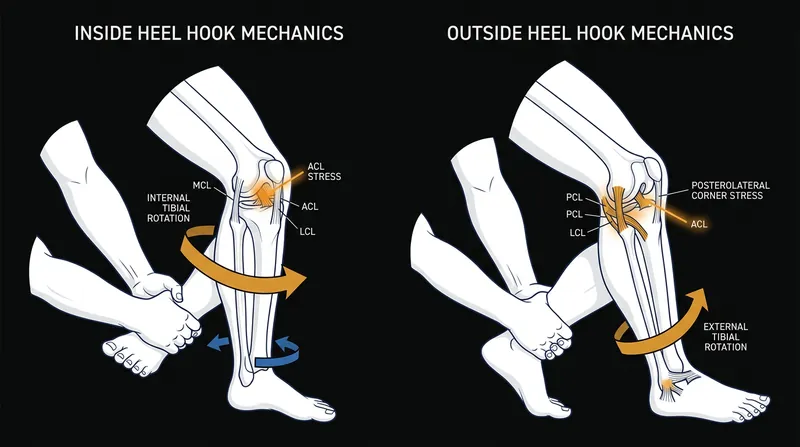

The specific structures damaged depend heavily on the direction of the applied rotation. An inside heel hook rotates the tibia internally relative to the femur. This internal rotation directly loads the anterior cruciate ligament, pulling it taut against the posterior cruciate ligament until it snaps. It is widely considered the most efficient method for rupturing the center of the knee.[2]

Conversely, an outside heel hook rotates the tibia externally. This external rotation bypasses the cruciate ligaments initially, targeting the posterolateral corner of the knee instead. The lateral collateral ligament and the popliteus tendon absorb the torque, and their failure often requires far more complex surgical reconstruction than a standard anterior cruciate ligament repair.[3]

Regardless of the direction, the neurological deficit remains the same. The posterolateral corner is similarly sparse in rotational nociceptors, meaning the outside heel hook is just as likely to rupture tissue before generating severe pain. The athlete is left entirely reliant on their conscious understanding of the entanglement rather than their body's natural reflexes.[3]

Recalibrating the Submission Response

The case of a 32-year-old mixed martial artist, detailed in the 2010 surgical literature, illustrates the typical clinical presentation of these injuries. The athlete sustained a complete anterior cruciate ligament rupture alongside medial collateral ligament damage after refusing to submit to a heel hook. Because the pain arrived too late, the athlete relied on a neurological warning system that was simply not equipped for the specific mechanical load.[2]

To train safely in modern grappling environments, athletes must divorce their submission response from their perception of pain. Tapping to a heel hook should be triggered purely by positional awareness. The correct time to concede is the moment the attacker secures the grip on the heel and immobilises the hip line, trapping the lever in place.[3]

Waiting for the joint to hurt guarantees that the ligament is already stretching beyond its elastic limit and entering the zone of permanent damage. Coaches and physical therapists now emphasize that defending a fully locked heel hook by gritting through the pressure is a biomechanical impossibility. The knee will always fail before the attacker's hips run out of leverage.[3]

Understanding this biomechanical reality allows athletes to engage with modern leg-locking systems safely and sustainably. The heel hook is not inherently malicious, but it demands a technical respect that arm-based submissions do not require. By recognising that the knee's nociceptors will not save them, practitioners can protect their ligaments through early, conscious concession.[3]

The Long-Term Proprioceptive Cost

The rehabilitation process for a multi-ligament knee injury underscores the severity of the heel hook's mechanics. While an isolated anterior cruciate ligament reconstruction typically requires nine to twelve months of recovery, combined injuries involving the anterolateral or posterolateral structures often extend that timeline significantly. The surgical complexity increases, and the return to sport becomes far less certain.[1]

Furthermore, the loss of proprioception following a severe knee injury permanently alters how the joint functions. The mechanoreceptors embedded within the native ligament are destroyed during the rupture, and the grafted tissue used in reconstruction never fully replicates their sensitivity. This leaves the athlete with a knee that is even less capable of detecting dangerous rotational forces in the future.[3]

Ultimately, the evolution of submission grappling has outpaced the evolutionary design of the human knee. While the sport continues to develop increasingly sophisticated methods for entangling and rotating the lower extremities, the joint remains a simple hinge. Acknowledging this structural mismatch is the first step in preventing catastrophic injury on the mat.[3]
