How Reed-Solomon Erasure Coding Secures Cloud Object Durability at Half the Storage Overhead

To reconstruct a shattered file from mathematical parity, a cloud provider's internal network must instantly fetch fragments from across independent data centers before a second drive fails. If that cross-rack bandwidth bottlenecks during a rebuild, the underlying mathematics of data survival cease to matter.[8]

That network constraint dictates how the modern internet stores information. For decades, the default method for preventing data loss was simple three-way replication, which copies every file in its entirety to three separate physical drives.[2]

Three-way replication guarantees that if two drives die simultaneously, the data survives intact on the third. However, this brute-force approach requires three megabytes of physical disk space for every one megabyte of customer data, imposing a massive storage overhead that becomes financially ruinous at exabyte scale.[3]

To escape this physical limit, hyperscale cloud providers abandoned replication for warm and cold data, replacing it with Reed-Solomon erasure coding. This algorithmic approach secures the industry-standard eleven nines of durability while cutting the required physical storage overhead by more than half.[5]

The Mathematics of Survival

Erasure coding abandons the concept of keeping intact, identical copies of a file. Instead, the storage system's software slices an incoming object into a specific number of equal-sized data fragments, typically denoted in the mathematical literature as the variable k.[1]

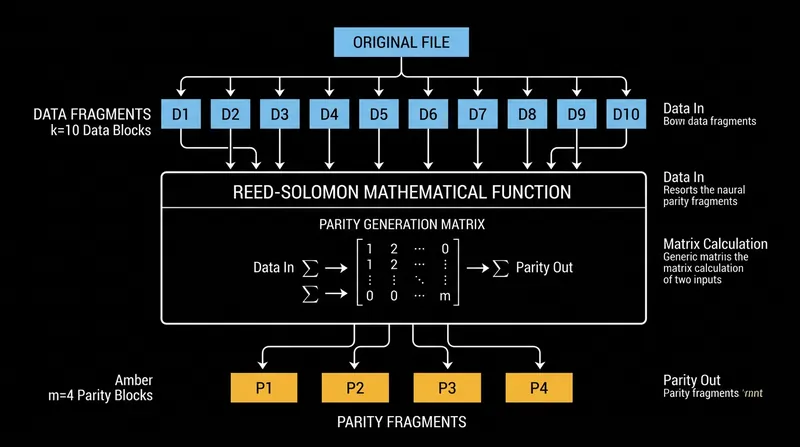

The system then passes those data fragments through a polynomial algorithm to generate an additional set of parity fragments. In a common configuration, ten data fragments yield four parity fragments, creating fourteen total pieces that are scattered across different server racks.[4]

The mathematical property of a Reed-Solomon matrix ensures that the original file can be perfectly reconstructed from any k surviving fragments. In a ten-plus-four configuration, the system only needs any ten of the fourteen pieces to rebuild the object, meaning four separate drives can fail simultaneously without data loss.[6]

The underlying mathematics rely on Galois fields, a type of finite field arithmetic where addition and multiplication operations always result in a number within a fixed range. This prevents the polynomial calculations from overflowing the standard integer boundaries used by computer processors.[6]

James Plank, a computer science researcher at the University of Tennessee, authored a foundational tutorial on applying these specific matrix operations to storage arrays. His work demonstrated how to optimize the Cauchy matrix variants of Reed-Solomon to minimize the computational burden on standard server processors.[6]

"Erasure coding is fundamentally a trade-off between CPU cycles and physical disk space," notes the documentation for Ceph, an open-source distributed storage platform. The processor must calculate complex matrix inversions for every write operation, trading compute power for a massive reduction in required hard drives.[1]

The Overhead Equation

The financial leverage of this mathematical substitution is staggering when applied to cloud-scale infrastructure. A traditional three-way replication system holding one petabyte of customer data requires three petabytes of raw physical hard drives just to maintain its baseline safety margin.[2]

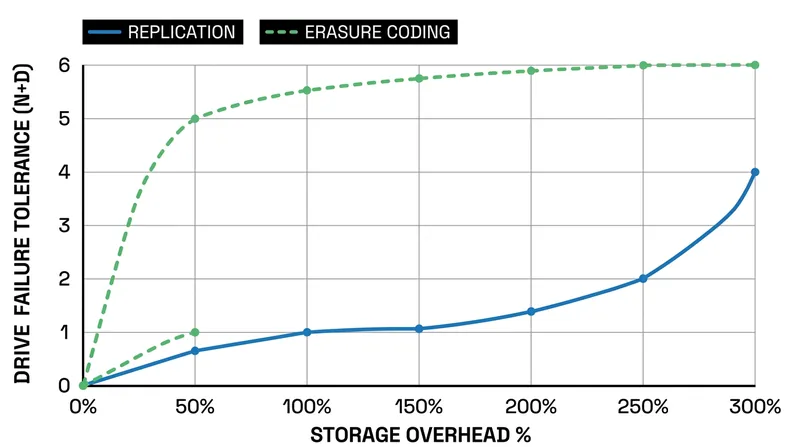

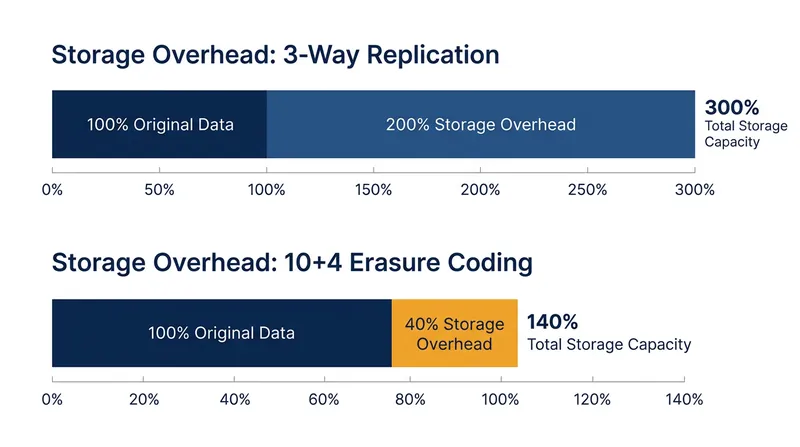

By contrast, a ten-plus-four erasure coding scheme requires only 1.4 petabytes of raw storage to hold that same petabyte of customer data. The storage overhead drops from 200 percent to just 40 percent, while actually increasing the simultaneous failure tolerance from two drives to four.[4]

Backblaze, a cloud storage provider, utilizes a fifteen-plus-five Reed-Solomon configuration for its storage vaults. This architecture divides files into fifteen data shards and five parity shards, distributing them across twenty separate storage pods to ensure that the loss of an entire server chassis cannot destroy a file.[7]

This configuration operates with just a 33 percent storage overhead, yet it can survive the simultaneous destruction of any five drives in the array. The company open-sourced its Java-based Reed-Solomon implementation in 2015, allowing other developers to integrate the algorithm without writing the complex matrix mathematics from scratch.[7]

The hyperscale savings extend far beyond the raw purchase price of the mechanical hard drives themselves. Removing 1.6 petabytes of spinning disks from a datacenter permanently eliminates the associated electrical power consumption, the thermal cooling requirements, and the physical floor space those server racks would have occupied.[3]

Microsoft Research documented this exact transition within the Azure storage architecture, noting that the sheer volume of data made replication unsustainable. By implementing a proprietary erasure coding scheme, Azure dramatically reduced its hardware footprint while maintaining the strict durability guarantees required by enterprise customers.[3]

The Network Rebuild Penalty

The primary vulnerability of erasure coding emerges not during normal operations, but when a hard drive inevitably dies. When a disk fails in a replicated system, the network simply copies the intact file from a surviving drive to a replacement drive in a single sequential transfer.[8]

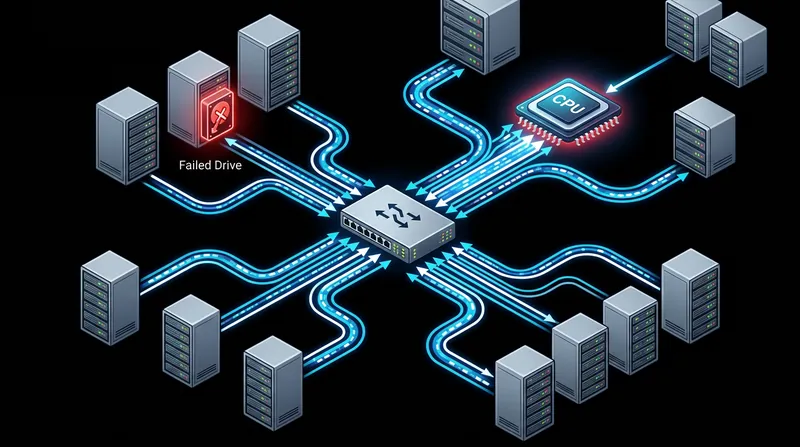

Rebuilding a lost erasure-coded fragment requires a massive, coordinated network flood. The storage cluster must reach across the network, read the surviving fragments from different servers, route them to a single processor, recalculate the missing piece, and write it to a new disk.[1]

This reconstruction process consumes immense cross-rack network bandwidth and CPU time, creating a race against the clock. The system must complete this mathematical rebuild before subsequent drive failures exceed the parity threshold and permanently destroy the object.[8]

Facebook engineered its f4 warm storage system specifically to manage this rebuild penalty. By restricting erasure coding to older, infrequently accessed photos and videos, the social network isolates the heavy network traffic of parity reconstruction away from its latency-sensitive live databases.[4]

Deconstructing Eleven Nines

Cloud providers routinely market their object storage platforms, such as Amazon S3, as delivering 99.999999999 percent durability. This eleven nines metric is a statistical probability model, not a measurement of historical uptime or a guarantee against service outages.[5]

Durability measures the annualized probability that a properly stored file will not be permanently lost due to hardware failure. Eleven nines implies that if a customer stores ten million objects, they can expect to lose a single file to hardware degradation roughly once every ten thousand years.[2]

This metric assumes independent drive failures and relies heavily on the rapid automated rebuild processes that erasure coding enables. It does not account for correlated failures, such as a datacenter fire, a malicious ransomware encryption event, or a software bug that accidentally deletes the namespace.[8]

Microsoft Azure implements erasure coding across its storage tiers, utilizing different fragment configurations depending on the redundancy level. Local Redundant Storage keeps all fragments within a single facility, while Geo-Redundant Storage replicates the erasure-coded blocks to a secondary region hundreds of miles away.[3]

Crucially, durability is entirely distinct from availability, which measures whether a user can actually download their file at a given moment. A storage cluster might be completely offline due to a network routing error, rendering the data unavailable, while the mathematical durability of the offline disks remains perfectly intact.[8]

Amazon Web Services explicitly separates these two concepts in its service level agreements. While S3 Standard storage claims eleven nines of durability, it only guarantees 99.99 percent availability, acknowledging that network partitions and software deployments will occasionally interrupt access to the underlying data.[5]

The Small File Constraint

Despite its massive efficiency gains, Reed-Solomon coding cannot universally replace simple replication due to the physics of small files. Slicing a four-kilobyte text document into fifteen microscopic fragments creates severe metadata bloat and tracking inefficiencies that overwhelm the storage controller.[1]

The metadata required to track the physical location of fourteen separate fragments often consumes more disk space than the fragments themselves. Furthermore, reading a tiny file requires the system to perform fourteen separate disk seek operations, destroying read latency and bottlenecking the entire array.[4]

To circumvent this limitation, modern distributed storage systems operate as hybrids. They continue to use three-way replication for tiny files, metadata databases, and latency-sensitive block storage, while aggressively applying erasure coding to large, immutable objects like video files and system backups.[1]

As global data generation accelerates, the hyperscale cloud relies entirely on this mathematical sleight of hand to remain economically viable. Without the Galois field calculations powering erasure coding, the physical footprint of the modern internet would be more than twice its current size.[3][9]
