Virtual Nodes on the Hash Ring: How Consistent Hashing Limits Key Relocation to 1/N During Cloud Cluster Rescaling

A traditional database routes information using a simple modulo operation, dividing a unique key by the total number of servers to find its home. When a new server is added, that denominator changes, forcing nearly every piece of data to relocate.[5][8]

Consistent hashing differs in exactly one respect: it maps both the data and the servers to the same fixed circular continuum. This decouples the data’s address from the cluster's total size.[1][5]

This mathematical separation is the foundational mechanism that allows modern cloud infrastructure to scale without collapsing. Instead of recalculating every address when a cluster expands, the system only moves the exact fraction of data necessary to populate the new hardware.[8]

The technique was originally formalized in 1997 to solve the problem of caching on the early World Wide Web. Today, it forms the routing backbone for distributed databases like Apache Cassandra, Amazon DynamoDB, and massive real-time systems.[1][2][4]

Cloud vendors frequently market this capability as seamless, zero-downtime scaling, implying that adding capacity is a frictionless software toggle. The physical reality of the network is far more constrained, governed by strict mathematical limits on how data must migrate.[9]

The fragility of standard modulo hashing

To understand the solution, one must first examine the failure mode of the standard approach. In a typical hash table, a hashing algorithm converts a piece of data into a large number, which is then divided by the number of available servers.[5]

The remainder of that division dictates the server assignment. If a cluster has ten nodes, a key that hashes to 105 is assigned to node five, which works perfectly until the cluster needs more capacity to handle increased traffic.[5][8]

Adding an eleventh server changes the divisor from ten to eleven. That same key, 105, now yields a remainder of six, meaning it must be physically moved to a different machine over the network.[8]

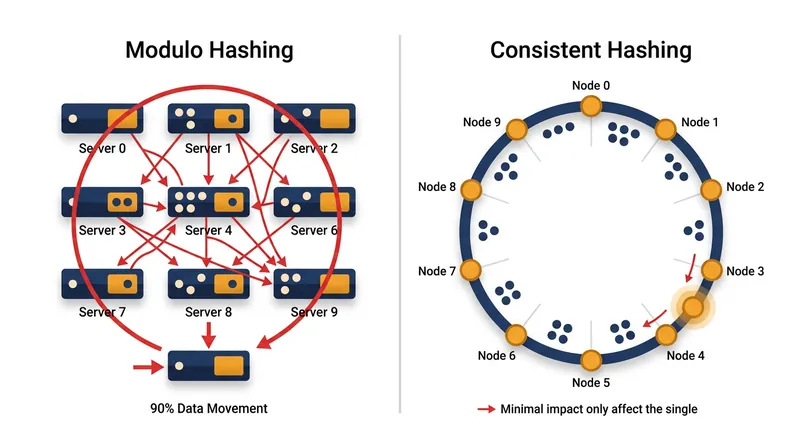

This recalculation applies to the entire dataset simultaneously. In a ten-node cluster expanding to eleven, roughly 90 percent of the stored records will suddenly map to a new location, triggering a massive internal data migration.[5][8]

This sudden flood of network traffic, known as a rehashing storm, routinely overwhelms the very servers that were already struggling with high load. The cluster effectively paralyzes itself trying to reorganize its own internal state.[5]

Mapping servers and keys to a circular space

Consistent hashing solves this by abandoning the division step entirely. Instead, the output range of the hash function is treated as a continuous loop, often visualized as a ring spanning from zero to 360 degrees.[1][5][8]

When a server joins the cluster, its unique identifier is hashed to assign it a specific, fixed position on this ring. A ten-node cluster simply places ten markers around the circle.[1][8]

Incoming data keys are hashed using the exact same function, placing them on the ring alongside the servers. To determine which server stores a specific key, the system simply moves clockwise around the ring until it encounters the first server marker.[1][5]

This spatial arrangement fundamentally changes the math of cluster expansion. If a new server is inserted into the ring between two existing nodes, it only intercepts the keys that fall in the immediate gap behind it.[1][8]

The rest of the ring remains entirely undisturbed. According to the original 1997 ACM paper by Karger and colleagues, this limits the number of relocated keys to exactly K/N, where K is the total number of keys and N is the new number of servers.[1]

Why raw consistent hashing creates hot spots

While the theoretical model perfectly minimizes data movement, a raw implementation introduces a severe operational flaw. Because the hash function distributes server markers pseudo-randomly, the gaps between them are rarely uniform.[2][8]

In a real-world deployment, random placement inevitably results in some servers sitting very close together on the ring, while others are separated by massive empty spans. The server responsible for a large span absorbs a disproportionate amount of traffic.[2][5]

This creates localized hot spots, where a single machine might be forced to store twice as much data as its peers. If that overloaded node fails, its entire massive dataset is suddenly dumped onto the next server in the clockwise rotation.[1][6]

"Consistent hashing with bounded loads ensures that no server receives more than a specified fraction of the total traffic," the Google engineering team explained regarding their specific algorithmic adjustment.[6]

While Google utilized bounded loads, the broader industry standard solution relies on a concept called virtual nodes. This architecture was popularized by Amazon's foundational 2007 Dynamo paper.[2][4]

Multiplying presence to smooth data distribution

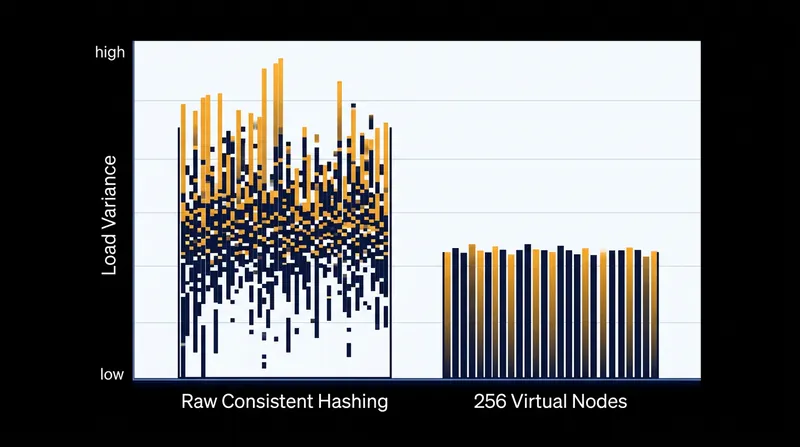

Instead of assigning a physical server to a single point on the hash ring, the system assigns it dozens or hundreds of distinct points. A single physical machine might be represented by 256 virtual nodes, scattered randomly across the entire circular space.[2][4]

When every server in the cluster projects hundreds of these virtual markers, the ring becomes densely and evenly populated. This statistical multiplexing averages out the random variations in spacing.[2][4]

The law of large numbers ensures that every physical server ends up responsible for roughly the same total percentage of the ring's surface area. This balances the storage load without requiring a central coordinator.[2][8]

Virtual nodes also transform how a cluster handles hardware failures. If a physical server dies, its 256 virtual nodes disappear from the ring simultaneously, shifting their small individual data slices to 256 different neighboring nodes.[4]

Rather than dumping a massive burden onto a single unlucky neighbor, the recovery workload is distributed evenly across the entire remaining cluster. This parallelization prevents the cascading failures that plague raw consistent hashing implementations.[2][4]

The network cost of cluster expansion

This same parallelization applies when scaling up. When a new physical server is provisioned, it generates its own set of 256 virtual nodes, inserting them randomly throughout the existing ring.[4]

Each new virtual node takes over a tiny sliver of data from the node immediately clockwise to it. Because these insertion points are scattered everywhere, the new server pulls its initial data payload from every other machine in the cluster simultaneously.[2][4]

This allows the cluster to rebuild its redundancy extremely quickly, utilizing the combined network bandwidth of all available hardware. Discord utilized this exact property to scale their Elixir-based presence system to handle five million concurrent users without downtime.[7]

However, the marketing language surrounding these distributed systems often obscures the physical reality of this process. Vendors frequently describe scaling as an instantaneous operation, ignoring the heavy network tax that the mathematics still demand.[9]

The physical limits of data migration

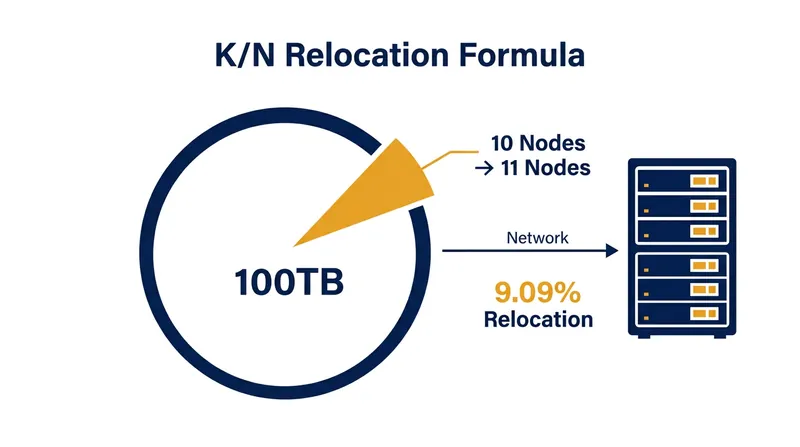

The K/N relocation formula represents a hard physical floor, not just a theoretical optimum. If a company operates a 100-terabyte database across ten nodes and adds an eleventh, exactly one-eleventh of that data must physically move.[1][9]

That equates to over nine terabytes of information that must be read from disk, serialized, transmitted across the data center network, and written to new storage. Virtual nodes do not reduce this total volume; they merely optimize the routing.[9]

During this migration window, the cluster's network interfaces are heavily saturated, and disk throughput is diverted from serving customer queries to handling internal replication. The system is fundamentally degraded until the data transfer completes.[9]

Understanding the mechanics of the hash ring strips away the magic of cloud scaling. It reveals a highly optimized, mathematically elegant system that remains strictly bound by the physical limits of network bandwidth and storage throughput.[9]
